Machine Overview

The Automatic Food Paste Filling Machine fills high-viscosity food products — sauces, jams, honey, ketchup, mayonnaise, and other thick pastes — through a servo rotor pump with a 70L mixing hopper and anti-drip filling nozzle.

A rotor pump moves product through low-shear rotation rather than high-pressure displacement — the relevant distinction for thick pastes where a piston or gear pump at filling pressure would alter texture or consistency before the product reaches the container. Servo actuation controls rotor speed rather than running at a fixed rate, which keeps fill volume consistent when viscosity shifts between batches or across a long production run.

The 70L mixing hopper keeps material in motion during production. For products that separate or settle at rest — honey crystallizing, sauce solids sinking — continuous mixing maintains the consistency the filling mechanism expects at the nozzle. Without it, what the pump draws at the start of a run differs from what it draws an hour in.

The anti-drip nozzle cuts product flow cleanly at cycle end. For thick pastes that string or cling after dispensing, that clean cutoff keeps the container exterior and the cap seating area free of residue — which affects both appearance and downstream capping consistency.

Filling range covers 100 ml to 1,000 ml. Output reaches approximately 20 to 30 bottles per minute depending on fill volume and product viscosity. Customizable filling heads and a conveyor system allow the machine to run as a standalone filling unit or integrate into a complete automated food packaging line.

Machine Features

Servo Rotor Pump Filling System

The servo rotor pump is designed for filling thick and viscous food products with stable material transfer. It helps control filling volume accurately while handling products such as sauce, jam, honey, and other paste materials. The filling head quantity can be customized according to different production requirements, allowing the machine to adapt to various filling capacities.

Mixing Hopper for Consistent Food Materials

The large 70L hopper is equipped with a mixing system to keep food materials evenly distributed during filling. It helps reduce material separation and supports continuous feeding for products with uneven textures or high viscosity. This design is suitable for food products that need continuous stirring, including sauces, condiments, and thick pastes.

Anti-Drip Filling Nozzle

The anti-drip filling nozzle helps reduce leftover materials after filling and keeps bottle openings cleaner. It is suitable for sticky food products that may cause dripping during the filling process. The nozzle design can be customized based on different bottle sizes and filling requirements.

Easy Operation Control Panel

The control panel allows operators to adjust filling parameters such as filling volume and machine settings. Multiple languages can be customized according to customer needs. The simple operation interface helps operators quickly set up the machine for different food filling applications.

Automatic Feeding System

The feeding pump supplies materials to the hopper automatically, reducing manual material transfer during production. The level sensor helps monitor material supply and supports continuous filling operation.

Stable Conveyor System

The chain conveyor provides stable bottle transportation during filling. Conveyor size and layout can be customized according to bottle dimensions and production line requirements.

Food Applications

The automatic food paste filling machine is suitable for filling various thick food products:

Sauce Products

• Chili sauce

• Tomato sauce

• Ketchup

• Hot sauce

• Mayonnaise

• Salad dressing

Sweet Food Products

• Jam

• Honey

• Chocolate sauce

• Peanut butter

• Syrup

Other Food Materials

• Condiment paste

• Seasoning sauce

• Thick liquid food products

Technical Specifications

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

Machine Details

Product Description

The automatic food viscous liquid bottle filling line integrates bottle unscrambling, air rinsing, servo piston filling, screw capping, press capping, and bottle collection into one automated sequence. Liquid and semi-viscous food products — sauces, condiments, oils, honey, syrups, dressings — move from empty bottle to capped, filled unit without manual handling between stages.

A servo piston filling system drives the fill. Servo actuation controls stroke speed and position precisely rather than running at a fixed mechanical setting — which keeps fill weight consistent when product viscosity shifts between batches or across a long production run. Anti-drip nozzles cut product flow cleanly at the end of each fill cycle, keeping bottle exteriors clean and preventing residue from reaching the cap seating area where it would interfere with capping torque.

The line handles both screw-on and press-on caps without separate capping equipment per closure type. Bottle size adjusts within the line's configuration range through parameter changes rather than mechanical component swaps — relevant for manufacturers running multiple SKUs across different bottle formats on the same line.

Optional additions extend the sequence downstream: labeling machines, induction sealers, inkjet printers, and carton packaging equipment connect to the filling line and run as integrated stages rather than separate manual operations inserted between automated steps.

Machine Features

Complete Food Bottling Solution

Bottle feeding, cleaning, filling, capping, and collection run as one continuous automated sequence. What that removes isn't just labor — it removes the handling inconsistency that manual transfers introduce between each stage, and the quality variation that follows from it.

Servo Piston Filling Technology

Servo actuation controls stroke speed and position rather than running at a fixed mechanical setting. For free-flowing and viscous food products, that control keeps fill weight consistent when viscosity shifts between batches or across a long production run — which is where fixed-setting piston systems lose accuracy. Multiple filling volume options adjust through parameter changes at the panel.

Supports Multiple Cap Types

Screw caps and press-on caps both run on the same line through configurable capping stations. For manufacturers packaging different products across different closure types, that configuration avoids the capital cost and floor space of separate capping equipment per closure.

Hygienic Food-Grade Construction

Product-contact components are SUS304 stainless steel. Smooth surfaces resist residue buildup from viscous food products between cleaning cycles — which matters more for sauces, honey, and thick condiments than for thin liquids, where residue accumulation between runs is less of a concern.

Negative Ion Bottle Cleaning

Negative ion air rinsing removes dust and foreign particles from bottle interiors before filling. Standard compressed air removes loose particles; negative ion air neutralizes static charge that holds fine dust to the bottle wall — the particles that compressed air alone leaves behind.

Anti-Drip Filling Nozzles

The nozzle cuts product flow cleanly at the end of each fill cycle. Without it, residual product strings or drips onto the bottle exterior or the cap seating area — contaminating the surface where the cap needs to seat cleanly and affecting capping torque consistency downstream.

Flexible Bottle Compatibility

PET, glass, HDPE, and custom containers run on the same line. Bottle format changes adjust through parameter and guide rail changes rather than mechanical component replacement — relevant for operations running multiple SKUs across different bottle geometries on the same shift.

Expandable Packaging Line

Automatic labeling machines, induction sealing machines, date coding systems, carton packing machines, and palletizing equipment connect downstream. Each addition runs as an integrated stage in the sequence rather than a separate manual operation — the filled, capped bottle moves through without a handoff between automated and manual stages.

Typical Food Applications

Designed for packaging various liquid and viscous food products, including:

• Syrup

• Honey

• Maple Syrup

• Corn Syrup

• Chocolate Syrup

• Chocolate Sauce

• Caramel Sauce

• Fruit Syrup

• Fruit Puree

• Fruit Concentrate

• Jam

• Jelly

• Peanut Butter

• Sesame Paste

• Cheese Sauce

• Ketchup

• Tomato Sauce

• Chili Sauce

• Hot Sauce

• BBQ Sauce

• Mustard

• Mayonnaise

• Salad Dressing

• Yogurt

• Condensed Milk

• Cream

• Cooking Oil

• Vinegar

• Liquid Seasoning

• Soy Sauce

• Oyster Sauce

• Other viscous or free-flowing food products

Viscous Liquid Bottle Filling Line Parameter

Air Rinsing Machine

This automatic honey bottle filling capping machine is designed for high-viscosity food products such as honey, sauce, jam, and syrup. Equipped with a servo-controlled piston pump, it ensures stable filling performance and high accuracy, making it ideal for small bottle production.

The machine integrates bottle positioning, filling, cap feeding, and capping into one compact system, improving efficiency while reducing manual labor. Its anti-drip filling nozzles effectively prevent material leakage, which is especially important when handling thick liquids like honey or chili sauce.

With a vibratory bowl feeder for automatic cap sorting and feeding, the machine enables continuous and consistent operation. The user-friendly touchscreen control panel allows easy parameter adjustment, making it suitable for different bottle sizes and filling volumes.

This bottle filling capping machine is widely used in food processing industries and is a reliable solution for businesses looking to automate honey bottling, sauce packaging, or other viscous liquid filling applications.

Key Features

High Accuracy Servo Piston Filling: Powered by a servo-controlled piston pump, this machine delivers precise and stable filling performance. - Ideal for honey, syrup, and other high-viscosity liquids that require consistent dosing.

Designed for High-Viscosity Products: Specially engineered for thick liquids such as honey, jam, chili sauce, and paste. - Ensures smooth filling without clogging, dripping, or inconsistent flow.

Anti-Drip Filling System: Equipped with pneumatic anti-drip nozzles to prevent stringing and leakage. - Keeps bottles clean, reduces product waste, and improves overall packaging quality.

Automatic Filling & Capping Integration: Combines bottle positioning, filling, cap feeding, and capping into one compact system. - Streamlines production and reduces manual labor.

Precision Servo Capping Control: Servo motor-driven capping system ensures consistent torque and tight sealing, improving product reliability and minimizing cap damage.

Vibratory Bowl Cap Feeding: Automatic cap sorting and feeding system keeps production continuous and efficient, eliminating manual cap placement.

Stable Starwheel Positioning: Starwheel mechanism ensures accurate bottle alignment during filling and capping, reducing errors and improving consistency.

Built for Food Production: Made for food-grade applications such as honey bottling, sauce packaging, and syrup filling. Reliable for small to medium-scale production lines.

Honey Bottle Filling Capping Machine Parameter

• Machine Model: FZ-AFC34
• Power: 220 V 50 Hz 4.2 KW
• Cover Size: Customized
• Bottle Size: Customized
• Filling Capacity: 200-300 ml (Based on syrup)
• Filling Pump: Double-Head Servo Piston Filling
• Filling Accuracy: ± 2 %
• Production Efficiency: 30 BPM (Based on filling volume and filling material)
• Working Air Pressure: 0.6-0.8 Mpa
• Machine Size: 2300*1500*1700 mm
• Machine Weight: 800 kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required

Machine Overview

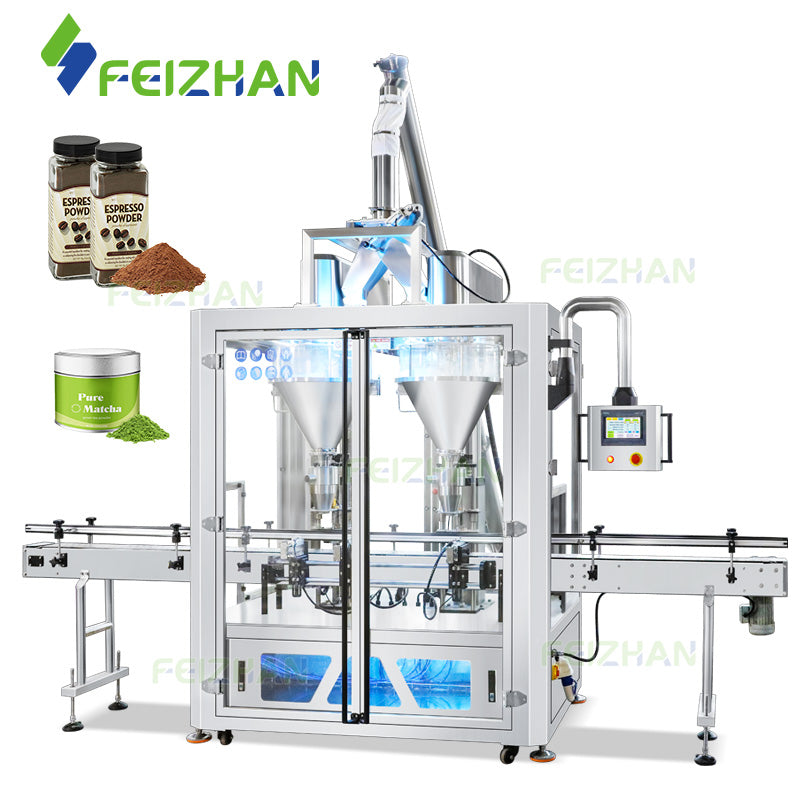

The Automatic Food Powder Filling Machine runs a dual servo auger dosing system with independent load-cell weighing feedback — the combination that separates auger filling that holds weight across a run from auger filling that drifts.

The auger controls feed rate through rotation. The load cell measures actual fill weight in real time and signals corrections before the next cycle rather than after a deviation has already compounded across several containers. The integrated dust collection system captures airborne particles at the fill point — before they reach the container seal area or the surrounding production environment.

Container format covers the main rigid packaging types: plastic jars, PET bottles, composite cans, metal tins, glass containers. Product range covers most food powders — protein, milk powder, coffee, flour, cocoa, spices, seasoning blends, collagen, nutritional supplements. Free-flowing and non-free-flowing both run, though non-free-flowing products place more demand on the auger mechanism to maintain consistent feed rate.

Recipe storage handles the changeover question. Parameters for each product save to the PLC and recall at the touchscreen — no repeated calibration between SKUs, no manual re-entry of fill weight targets at each format change. Dual servo motors drive the system; speed and stroke adjust independently, which is where the accuracy advantage over single-motor systems actually comes from.

Product-contact parts are food-grade stainless steel throughout. The machine integrates into complete powder packaging lines — bottle unscramblers, capping machines, induction sealers, labeling machines, case packers — running as one stage in a continuous process rather than as a standalone filling station with manual transfers on either side.

Machine Features

High-Precision Servo Auger Filling

Two independent servo augers handle dosing — each controlled separately, which is what allows the system to maintain accuracy when the two heads encounter slight variations in powder flow or bulk density between cycles. Weighing feedback feeds back into the auger control continuously, correcting the next cycle before a deviation compounds into a pattern.

Dynamic Weighing Correction

The load cell monitors fill weight every cycle — not as a quality check after the fact, but as an active input into the next fill. When a cycle lands outside the target range, the system adjusts auger rotation on the following stroke. The correction happens within the production sequence rather than requiring an operator to notice, intervene, and recalibrate manually.

Integrated Dust Collection System

Airborne powder at the fill point creates three problems simultaneously: product loss, operator exposure, and residue that reaches the container seal area or surrounding equipment. The dust extraction system captures particles at the source — before any of those three consequences have a chance to develop.

Recipe Memory Function

Product parameters save to the PLC and recall at the touchscreen. Switching between a protein powder SKU and a spice blend doesn't mean re-entering fill weight, auger speed, and correction thresholds from scratch — it means selecting the saved recipe and confirming. The calibration work happens once per product, not once per run.

Dual Filling Heads

Two auger stations fill simultaneously. At equivalent cycle speed, dual-head output is roughly double single-head output — without doubling the machine footprint or the operator count required to run it. For medium- and large-scale powder packaging, that multiplication is where the capacity argument for this configuration actually sits.

Food-Grade Stainless Steel Construction

SUS304 for standard food powder applications. SUS316L where the product or cleaning chemistry involves salt, acids, or chloride-containing agents that degrade 304 over time. The grade distinction matters most across a machine's working life — not at commissioning, but after two or three years of repeated cleaning cycles with aggressive sanitizers.

Typical Food Applications

The machine is suitable for packaging various food powders, including:

Protein & Nutrition

• Whey Protein Powder
• Plant Protein Powder
• Collagen Powder
• Meal Replacement Powder
• Creatine Powder
• Electrolyte Powder

Dairy Products

• Milk Powder
• Infant Formula
• Coffee Creamer
• Dairy Blend Powder

Coffee & Tea

• Instant Coffee
• Ground Coffee
• Matcha Powder
• Tea Powder

Baking Ingredients

• Wheat Flour
• Corn Starch
• Cocoa Powder
• Baking Mix
• Icing Sugar
• Cake Premix

Seasonings

• Chili Powder
• Garlic Powder
• Onion Powder
• Curry Powder
• Black Pepper Powder
• Five Spice Powder
• Seasoning Mix

Other Food Powders

• Soy Powder
• Oat Powder
• Rice Powder
• Coconut Powder
• Freeze-Dried Fruit Powder
• Vegetable Powder

Parameter & Configuration

Machine Details

How Does the Powder Filling Machine Work?

Product Overview

The Automatic Food Powder Filling and Capping Machine takes bottled powder packaging from loose components to sealed, capped product — in one pass.

The mechanical core combines two systems. A servo auger handles dosing. A cam-driven star wheel manages bottle positioning. Together, they keep fill weight stable and bottle movement controlled through each cycle.

Monoblock construction matters here. Conveying, filling, cap feeding, cap placement, and capping — all contained within a single compact frame. Fewer handoffs between stations. Less floor space. Reduced need for manual intervention between steps.

What does it run? Coffee powder, seasoning blends, spices, milk powder, protein powder, cocoa, nutritional supplements — the machine handles a broad range of dry food powders with varying flow characteristics.

All food-contact parts are stainless steel. A practical requirement for powder products, where residue buildup and cross-contamination between batches are real concerns.

Footprint is compact. The unit integrates into existing production lines without demanding a full layout redesign — useful for manufacturers working within fixed floor space or adding capacity incrementally.

Machine Features

Servo Auger Filling System

The servo-driven auger mechanism ensures accurate and repeatable powder dosing, making it suitable for free-flowing and semi-free-flowing food powders.

Cam-driven Star Wheel Structure

The star wheel system precisely indexes bottles through each production stage, ensuring smooth filling and capping operations.

Automatic Cap Feeding

A vibratory bowl sorter automatically arranges and delivers caps, reducing manual intervention and supporting continuous production.

Integrated Filling and Capping Design

The monoblock structure combines filling and capping functions into one compact machine, saving floor space and simplifying operation.

Production Line Integration

The machine can be connected with bottle unscramblers, labeling machines, induction sealers, and carton packaging equipment to create a complete food powder packaging line.

Hygienic Stainless Steel Construction

Material-contact components are made from stainless steel to support food processing requirements and simplify cleaning procedures.

Applications

Suitable Products

• Coffee Powder
• Instant Coffee
• Milk Powder
• Protein Powder
• Nutritional Supplements
• Cocoa Powder
• Matcha Powder
• Seasoning Powder
• Spice Powder
• Chili Powder
• Garlic Powder
• Onion Powder
• Baking Mixes
• Premixed Food Powders
• Beverage Powders
• Flavoring Powders

Suitable Containers

• PET Bottles
• Plastic Jars
• HDPE Containers
• Food-grade Bottles
• Wide-mouth Powder Containers
• Supplement Bottles
• Spice Containers

Food Powder Filling and Capping Machine Parameter

Machine Detail

Machine Overview

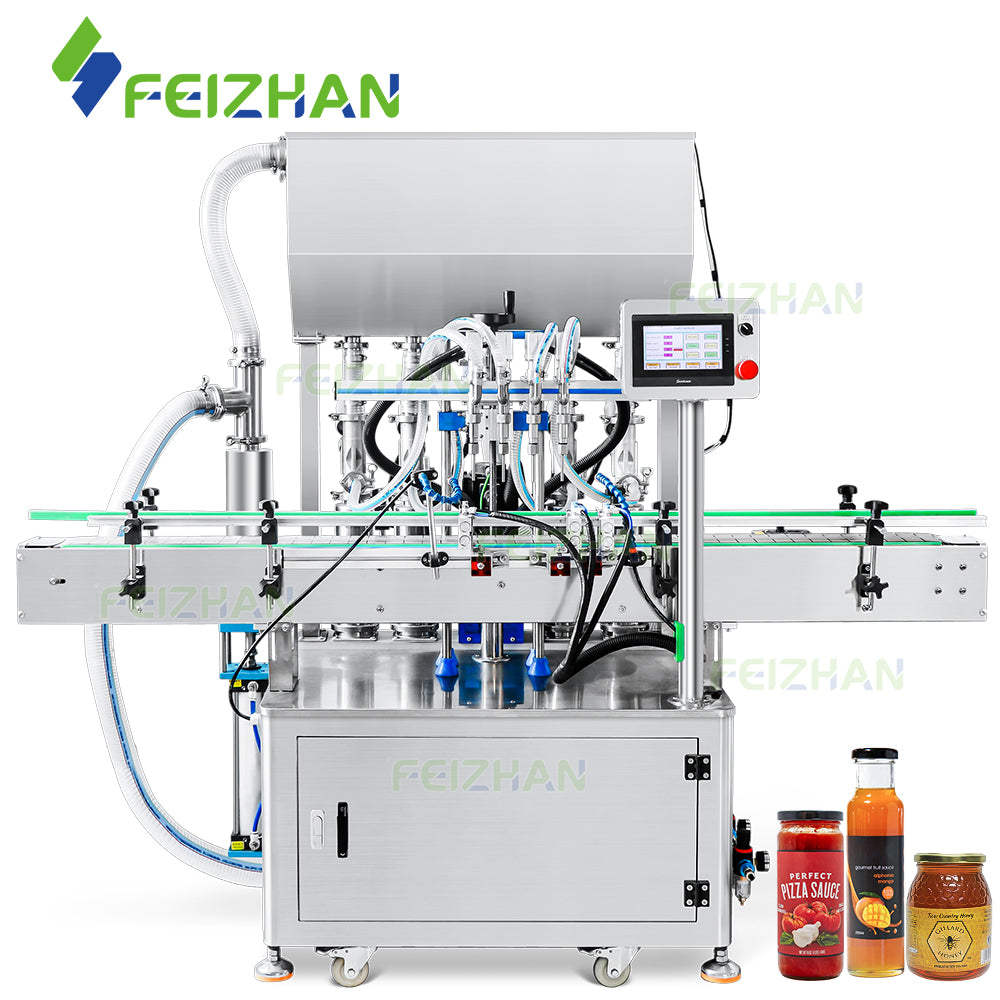

The FEIZHAN automatic servo paste filling machine is designed for hygienic and accurate filling of viscous and semi-viscous food products into bottles, jars, and containers. Equipped with a high-precision servo filling system and multi-head filling structure, it delivers stable production performance for sauces, honey, jam, peanut butter, syrups, dressings, cream-based foods, and other thick food materials.

Designed for food packaging applications, this machine integrates precise filling, smooth bottle conveying, and food-grade contact components to improve efficiency while maintaining filling consistency. The adjustable structure allows compatibility with various bottle sizes and production requirements, making it suitable for food factories, commercial kitchens, and growing production businesses.

Machine Features

High-Precision Servo Filling

The servo-driven filling system ensures accurate portion control and stable output, helping reduce product waste and maintain consistent packaging quality for viscous food products.

Multi-Head Production Efficiency

Designed with multiple filling nozzles, the machine supports simultaneous filling to improve production speed and meet medium- to large-scale food manufacturing requirements.

Suitable for Thick & Semi-Fluid Products

Ideal for packaging high-viscosity materials such as honey, sauces, jam, peanut butter, mayonnaise, syrup, ketchup, cream-based foods, and other semi-liquid food products.

Food-Grade Stainless Steel Construction

Product-contact parts are made of food-grade stainless steel, supporting hygienic production standards and easier cleaning for food processing environments.

Anti-Drip Filling Design

The filling nozzle structure helps reduce dripping, stringing, and material waste, ensuring cleaner packaging and improved product appearance.

Adjustable for Different Containers

Bottle guide rails, filling height, and conveyor settings can be adjusted to accommodate containers of different heights, diameters, and shapes.

User-Friendly Touch Screen Operation

The smart control interface allows operators to easily adjust filling volume, filling speed, and working parameters for more convenient production management.

Applications

This food paste filling machine is suitable for filling various viscous, semi-viscous, and thick liquid food products, including:

• Honey
• Jam
• Peanut butter
• Ketchup
• Mayonnaise
• Salad dressing
• Chocolate spread
• Syrup
• Chili sauce
• Cream-based food products and viscous condiments

Suitable container types include bottles, jars, cans, cups, and other food packaging containers.

Technical Parameters

• Machine Model: FZ-YT4T-4PX
• Voltage: 110/220V 50-60HZ 2KW
• Filling Range: 10-180 ml/30-500 ml/100-1000 ml/＞1000ml (Customizable)
• Working Speed: About 30-50 Bottles/min
• Hopper Size: 90L (＜1000 ml filling range)
• Filling Pump: Piston Pump
• Feeding Pump: Piston Pump or Diaphragm Pump (Based on filling material)
• Air Pressure: 0.6-0.8 MPa
• Filling Accuracy: ±1%
• Filling Nozzle: 4 (Can be customized)
• Machine Size: About 2000*800*1800 mm
• Machine Weight: About 200 kg
• Packaging Size: About 2070*960*2010 mm(100-1000 ml)
• Packaging Weight: About 392 kg (100-1000 ml)

*Specifications are for reference only and may vary by your product. Please confirm with us if required

Machine Details

Machine Overview

The FEIZHAN automatic magnetic pump liquid filling machine is designed for fast and hygienic filling of food-grade free-flowing liquids into bottles and containers. Equipped with a SUS316 magnetic pump, this machine delivers stable and accurate filling with a maximum flow rate of 22L/min, making it suitable for medium- to high-efficiency food production. The touchscreen system allows filling volume adjustment directly on the panel, reducing setup time and simplifying operation. Combined with an anti-drip nozzle and conveyor system, this food liquid filling machine is ideal for juice, syrup, edible oils, sauces, beverages, flavoring liquids, and other low-viscosity food products. It can also integrate with capping and labeling systems to create a complete food bottling solution.

Machine Features

• SUS316 Magnetic Pump System
  Food-grade pump ensures hygienic liquid transfer and stable filling performance for food applications.
• Large Flow Filling Capacity
  Delivers up to 22L/min flow rate for faster bottling and higher production efficiency.
• Direct Filling Volume Adjustment
  Filling volume can be set directly on the touchscreen, reducing manual calculations and setup time.
• Anti-Drip Filling Nozzle
  Helps minimize dripping and maintain cleaner filling performance during production.
• Adjustable Filling Height
  Nozzle position can be adjusted to suit bottles and containers of different sizes.
• Conveyor-Based Continuous Production
  Supports stable bottle transportation and can connect with capping or labeling systems for automated production.

Applications

This food liquid filling machine is suitable for filling a wide range of low-viscosity and free-flowing food liquids, including:

• Syrup
• Fruit juice
• Beverage concentrates
• Honey water and flavored liquids
• Vinegar
• Cooking oils
• Liquid seasonings
• Coffee concentrates
• Food additives and flavoring liquids

It is widely used in beverage processing, condiment production, food factories, and small to medium-scale bottling businesses.

Technical Parameters

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

Machine Details

Honey Filling Machine Overview

The automatic food honey filling machine fills high-viscosity products — honey, jam, ketchup, peanut butter, syrup, sauces — through a food-grade gear pump with an anti-drip nozzle. No external air compressor required; the full-electric design runs on its own without a compressed air supply, which removes both the equipment cost and the maintenance load a pneumatic system carries.

The gear pump handles viscosities up to 180,000 CP — the upper range where most standard pump types either stall or lose dosing accuracy. Gear pump operation is continuous rather than stroke-based, which suits products that flow unevenly or resist consistent piston displacement at high viscosity.

The anti-drip nozzle cuts product flow cleanly at the end of each fill cycle. Without it, residual product strings or drips onto the container exterior or the rotary plate — material waste at the fill point, and a surface that accumulates residue between cleaning cycles.

A customizable rotary plate manages bottle positioning and movement through the fill station. For small and medium-scale operations, that handling efficiency determines how closely actual output approaches the machine's rated fill speed.

Machine Features

Food-Grade Gear Pump System

A gear pump moves product continuously rather than in strokes — which matters for honey, syrup, jam, peanut butter, and thick sauces, where a piston system's stop-start displacement creates pressure irregularities that show up as fill weight variation. Continuous rotation keeps the flow steady, and dosing accuracy holds because the output per revolution stays consistent regardless of how the product behaves between batches.

Anti-Drip Filling Nozzle

The nozzle cuts flow cleanly at cycle end — no stringing, no residual drip onto the bottle exterior or the rotary plate. An electric eye detection system runs alongside, sensing bottle presence before the fill cycle triggers. Without it, the machine fills regardless of whether a bottle is in position — product on the plate, material waste, and a cleaning task that compounds across a shift.

Rotary Plate for Bottle Handling

The rotary plate positions and transfers bottles through the fill station continuously. Plate structure is customizable to match bottle diameter and base geometry — a plate configured for the wrong bottle format causes misalignment at the fill point, which affects both fill accuracy and cycle speed. Getting the plate right for the bottle means the rated output figure is actually achievable in practice.

Full Electric Design

No air compressor. The machine runs entirely on electrical power — which removes the installation requirement for a compressed air line, drops operating noise compared to pneumatic alternatives, and eliminates the maintenance a compressor adds to the facility's workload. For small and medium-scale food workshops where a compressor isn't already in place, that difference in setup cost is immediate.

Adjustable Filling Parameters

Fill weight, speed, and operating parameters adjust at the control panel. The adjustment happens without stopping the line or recalibrating mechanically — relevant when the same machine runs honey in the morning and a thicker sauce in the afternoon, where viscosity difference alone changes what the correct fill speed actually is.

Applications

This honey filling machine is widely used for filling high viscosity food products in the food processing and packaging industry. Equipped with a food-grade gear pump and anti-drip filling system, it is suitable for handling thick liquids and paste materials with stable filling accuracy and hygienic production performance.

Honey Filling

The machine is ideal for filling various types of honey into glass jars, plastic bottles and other containers. The gear pump system ensures smooth transfer of thick honey while the anti-drip nozzle helps maintain clean and accurate filling results.

Syrup Bottling

Suitable for syrup bottling applications, the machine can handle viscous liquid products with stable flow control. It is commonly used for packaging maple syrup, flavored syrup and concentrated syrup products in food production facilities.

Jam Packaging

This machine can be used for filling jam and fruit paste products with consistent filling performance. The customizable rotary plate improves bottle handling efficiency during jam packaging production.

Peanut Butter Filling

Designed for high viscosity materials, the machine is suitable for filling peanut butter and similar paste products. The food-grade gear pump helps ensure stable material transfer while reducing material waste during filling.

Sauce Filling

The machine is widely used for filling ketchup, chili sauce, salad dressing and other food sauces. Adjustable filling parameters allow operators to optimize filling speed and accuracy for different sauce viscosities and bottle sizes.

Food Paste Filling

Suitable for thick food pastes and semi-liquid products, this filling machine can support various food packaging applications requiring hygienic and accurate filling performance. The full-electric design also simplifies installation and daily operation for food manufacturers.

Small Batch Food Production

With its compact desktop structure and full-electric operation, the machine is especially suitable for small and medium-sized food businesses, commercial kitchens and startup food production workshops that require flexible and efficient filling solutions.

Technical Parameters

Machine Details

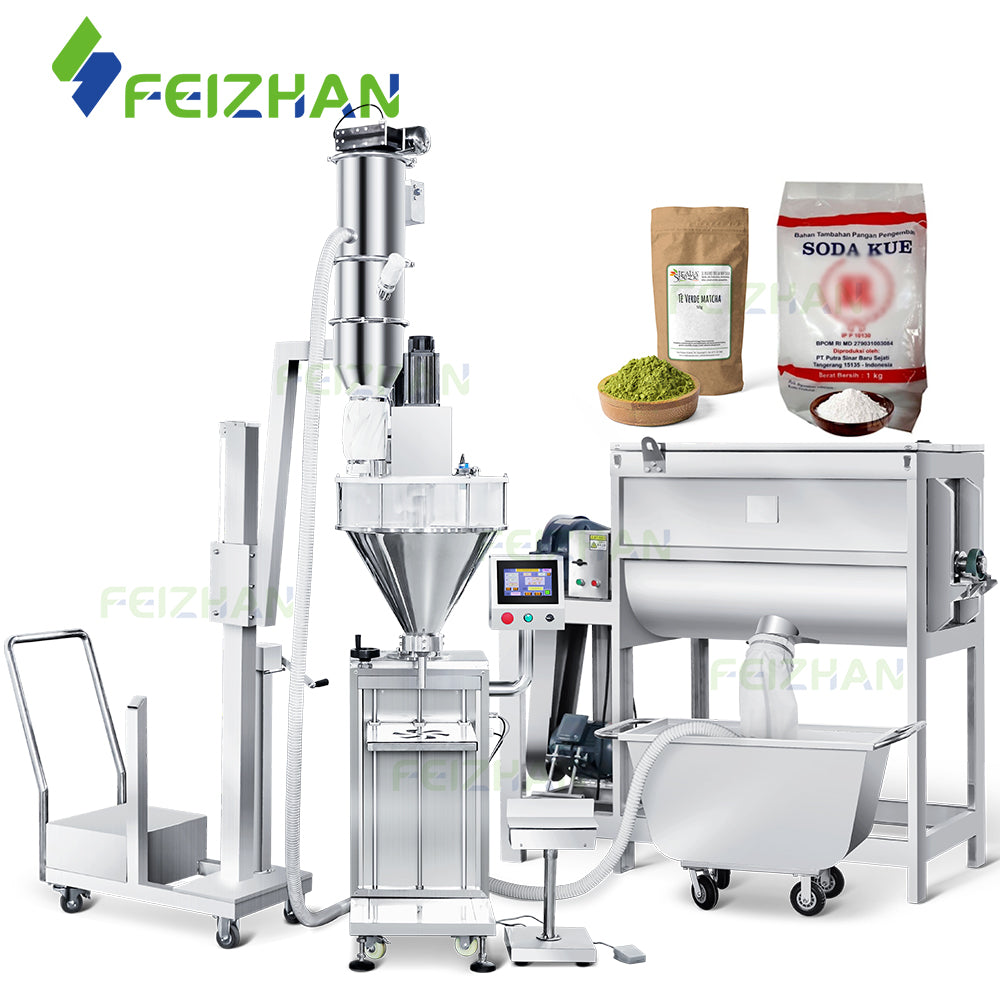

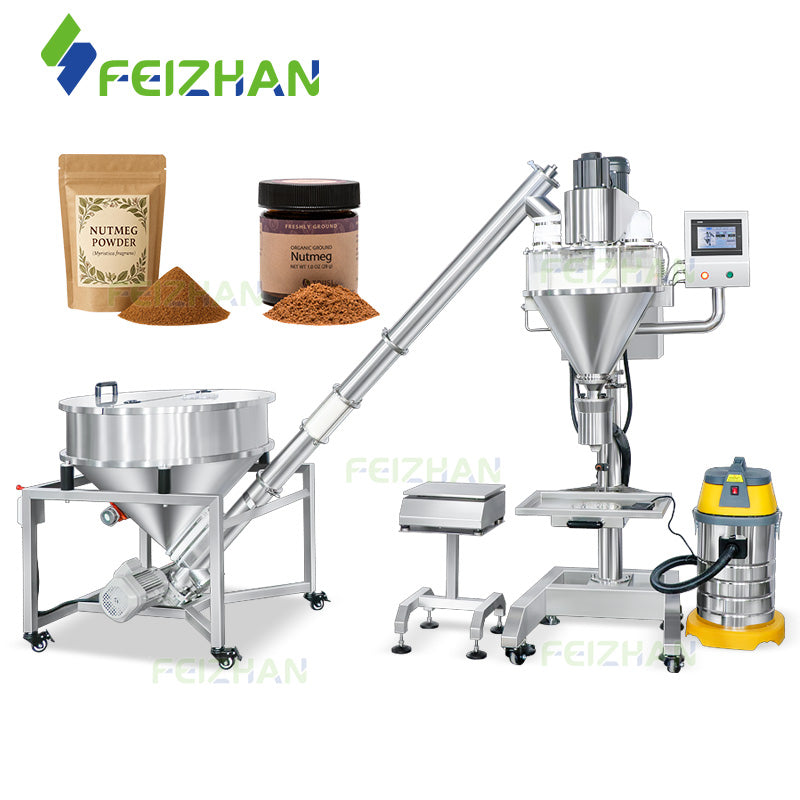

This semi automatic powder filling machine is specially designed for food powder packaging applications such as protein powder, coffee powder, milk powder, flour, spices and nutritional supplements. Equipped with an auger filling system, mixing tank and weighing function, the machine ensures stable filling accuracy and efficient production performance.

The machine is suitable for both free-flowing and non free-flowing powders. Stainless steel contact parts meet food-grade production requirements and are easy to clean and maintain.

It can be widely used for filling powders into bottles, jars, cans and other containers in the food, nutraceutical and beverage industries.

Key Features

• Auger filling system for high filling accuracy

• Suitable for fine powder and slightly sticky powder

• Integrated mixing and weighing function

• Food-grade stainless steel structure

• Easy parameter adjustment through touch screen

• Suitable for bottles, jars and cans

• Stable operation and low powder dust leakage

Applications

This machine is widely used for packaging various food powders, nutritional supplements, and functional wellness products in bottles, jars, cans, and pouches.

Traditional Food Powder Applications

• Protein powder

• Whey protein powder

• Coffee powder

• Instant coffee mix

• Milk powder

• Flour

• Cocoa powder

• Spice powder

• Chili powder

• Curry powder

• Garlic powder

• Seasoning powder

• Matcha powder

• Sugar powder

Functional & Trending Food Applications

• Collagen powder

• Mushroom coffee powder

• Lion’s mane powder

• Reishi mushroom powder

• Adaptogen powder blends

• Greens powder

• Superfood powder

• Electrolyte hydration powder

• Meal replacement powder

• Prebiotic & probiotic powder

• Fiber supplement powder

• Plant-based protein powder

• Clear protein powder

• Energy drink powder

• Sleep support powder

• Nootropic beverage powder

Popular Packaging Industries

• Functional food industry

• Sports nutrition industry

• Health supplement industry

• Beverage powder manufacturing

• Wellness product packaging
• Nutraceutical production

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

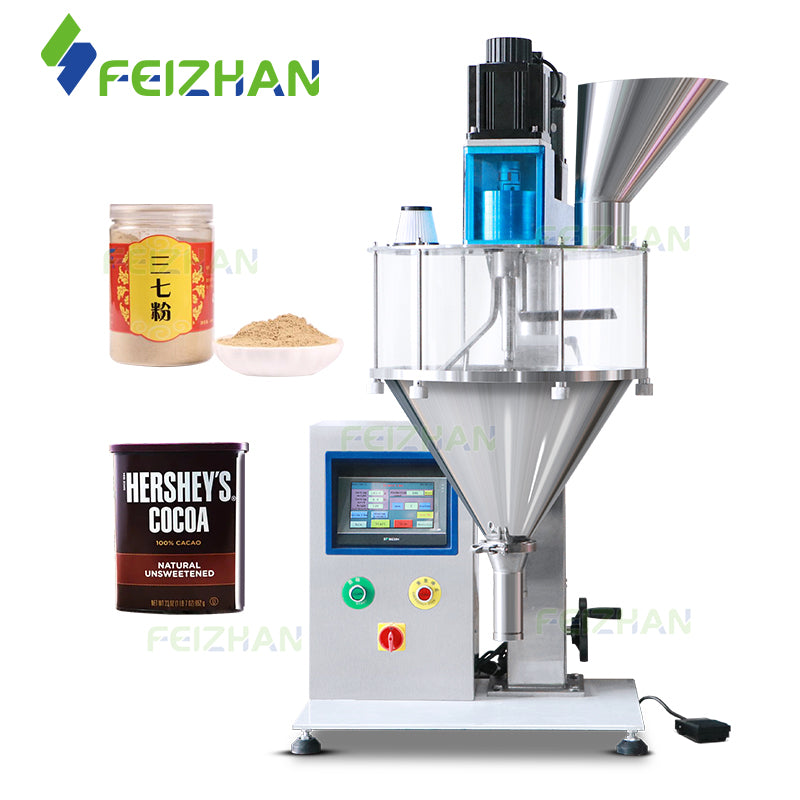

This semi-automatic powder filling machine is specifically designed for food-grade powder packaging, offering high precision and stable performance for a wide range of edible powders.

It is widely used in industries such as food processing, beverage production, and nutritional supplements, making it ideal for filling products like protein powder, coffee powder, milk powder, cocoa powder, flour, spices, and seasoning blends.

Powered by an auger screw dosing system, the machine ensures accurate and consistent filling, even for fine powders. The adjustable filling range allows it to handle different packaging needs, from small sachets to bottles and jars.

The machine is built with food-grade stainless steel, ensuring hygiene and compliance with food safety standards. Its user-friendly control panel allows operators to easily adjust parameters such as filling volume and speed, improving efficiency without complicated setup.

Whether you are running a small food business, commercial kitchen, or large-scale production line, this powder filling machine provides a reliable solution to improve packaging efficiency and reduce material waste.

Key Features

High-Precision Auger Filling System

Equipped with an advanced auger screw mechanism, this machine ensures accurate and consistent dosing for various food powders such as protein powder, coffee powder, cocoa powder, and spices. Ideal for maintaining product quality and reducing material waste.

Wide Application for Food Powders

Designed for a broad range of food-grade materials, including flour, milk powder, seasoning blends, baking powder, and nutritional supplements. Works well with fine, semi-fine, and slightly sticky powders.

Flexible Packaging Compatibility

Suitable for multiple packaging formats, including bottles, jars, and pre-made pouches. Adjustable filling range allows easy switching between different product sizes and packaging needs.

Food-Grade Stainless Steel Construction

All contact parts are made of food-grade stainless steel, ensuring hygiene, corrosion resistance, and compliance with food safety standards. Easy to clean and maintain for daily production.

User-Friendly Control Panel

Simple interface enables quick adjustment of filling weight, speed, and working parameters, reducing operator training time and improving production efficiency.

Efficient & Stable Performance

Designed for continuous operation with stable filling speed and minimal error, making it suitable for both small businesses and growing food production lines.

Adjustable for Different Powder Types

The machine can be fine-tuned based on powder characteristics, ensuring smooth filling for light powders (like flour) and dense powders (like protein or cocoa) without clogging or inconsistency.

Food Powder Filling Machine Parameter

• Machine Model: FZ-FM100B
• Machine Voltage: 110/220 V 50-60 HZ
• Screw Diameter & Filling Range: φ19 mm, 0.5-10 g/ φ25 mm, 2-15 g/ φ32 mm, 10-30 g/ φ38 mm, 20-50 g/ φ51 mm, 30-100 g/ φ64 mm, 100-500 g/ φ76 mm, 200-2000 g (For reference only, it will be different according to filling material)
• Hopper Size: 35 L(Customized)
• Hopper Diameter: 450 mm(Customized)
• Filling Nozzle Size: Customized
• Working Capacity: 10-25 BPM(Based on filling volume)
• Container Height: H≤300 mm
• Filling Accuracy: ±1 %(based on filling range)
• Machine Size: About 780*750*1150 mm
• Machine Weight: About 120 kg
• Package Size: About 810*810*1300 mm
• Package Weight: About 144 kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

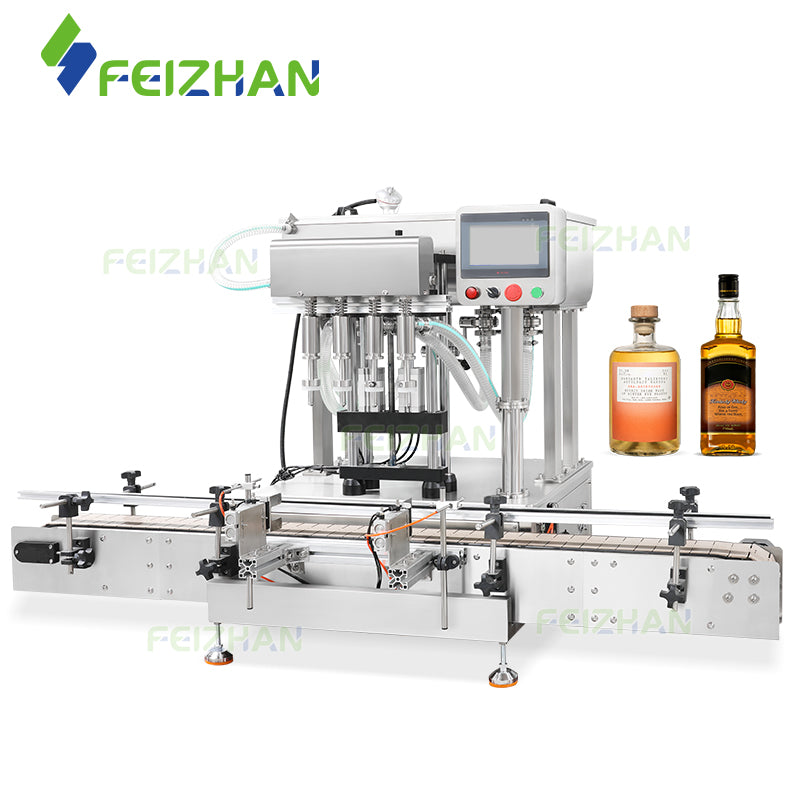

This tabletop overflow liquid filling machine is specially designed for food and beverage applications, delivering consistent filling levels and a clean, professional bottle appearance. It is ideal for filling non-viscous liquids such as water, juice, wine, whiskey, vinegar, soy sauce, and other free-flowing food-grade liquids.

Equipped with 4 filling heads, the machine ensures stable performance and improved efficiency for small to medium-scale production. The overflow filling principle guarantees that each bottle is filled to the same visible level, which is especially important for glass bottles used in premium beverages.

Built with food-grade stainless steel, the machine is easy to clean and meets hygiene requirements for food processing. The user-friendly control panel allows quick parameter adjustment, making it suitable for both beginners and experienced operators.

This compact liquid filling machine is a reliable choice for startups, small beverage businesses, and craft producers looking for precise, consistent, and visually appealing filling results.

Key Features

Consistent liquid level filling
Using overflow filling technology, each bottle is filled to the same visible level, ensuring a clean and premium appearance. Especially suitable for glass bottles used in beverage and alcohol packaging.

Four heads for higher efficiency
Equipped with four filling nozzles, the machine improves production speed while maintaining stable and accurate filling performance for small to medium scale production.

Designed for food and beverage liquids
Suitable for filling water, juice, wine, whiskey, vinegar, soy sauce and other non viscous food grade liquids.

Food grade stainless steel construction
Made of durable stainless steel, ensuring hygiene, corrosion resistance and easy cleaning, meeting food processing requirements.

Less waste with overflow system
Excess liquid is automatically returned to the tank, reducing waste and keeping the working area clean.

Easy to operate control panel
The intuitive control panel allows quick parameter adjustment, making operation simple for both beginners and experienced users.

Compact tabletop design
Space saving structure is ideal for small workshops, startups and craft beverage production environments.

Stable conveyor system
The integrated conveyor ensures smooth bottle movement and consistent filling workflow, improving overall efficiency.

Overflow Filling Machine Parameter

• Machine Model: FZ-DTGZ400

• Machine Voltage: 110/220 V 50-60 HZ 150 W

• Quantity of Filling Nozzle: 4

• Working Capacity: About 12-20 BPM(based on filling volume)

• Hopper Size: 70 L

• Air Pressure: 0.4-0.6 Mpa

• Suitable Filling Volume: ≤1500 ml/bottle

• Suitable Bottle Diameter: Φ=50-80 mm

• Conveyor Height From Ground: About 236 mm+100 mm

• Suitable Bottle Height: 200-300 mm

• Suitable Bottle Opening Mouth: 20-35 mm

• Machine Size: About 1810*1040*1000 mm(L*W*H)

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

This automatic squeeze bottle filling line is designed for packaging viscous food products such as ketchup, chili oil, salad dressing, and gourmet sauces into squeeze bottles with precision and consistency. From quantitative filling to cap placing, leakproof capping, induction sealing, and wet glue labeling, the entire process is seamlessly integrated to ensure hygienic production and stable output.

Equipped with a servo-driven piston filling system, the line delivers high filling accuracy while handling thick and semi-fluid sauces with ease. The anti-dripping nozzles help maintain a clean filling environment, reducing product waste and ensuring a neat bottle finish—especially important for consumer-facing food packaging.

The dual sealing solution, combining leakproof caps and induction sealing, enhances product safety during transportation and storage, making it suitable for retail distribution and export markets. In addition, the system can be customized with heating and mixing functions, allowing better handling of sauces with varying viscosity or oil-based compositions.

This production line is ideal for food manufacturers looking to upgrade to automated, standardized packaging while maintaining product quality, visual appeal, and operational efficiency.

Key Features

Precision Filling for Viscous Sauces
Servo-driven piston filling ensures accurate and consistent dosing, even for thick or semi-fluid products like ketchup, chili oil, and dressing. This helps maintain uniform taste, texture, and portion control across every bottle.

Clean & Anti-Drip Filling System
Equipped with anti-dripping nozzles, the system minimizes residue and prevents sauce from spilling or stringing, keeping bottles clean and improving shelf presentation—especially important for retail-ready products.

Designed for Nozzle & Squeeze Bottles
Optimized for narrow nozzle and squeeze-type containers, enabling controlled dispensing for end users. Ideal for sauces that require precision application, such as condiments used in fast food, ready meals, or home cooking.

Dual Sealing for Food Safety
Combines leakproof cap tightening with induction sealing to provide double protection against leakage and contamination. Enhances product stability during transport and extends shelf life.

Integrated Filling, Capping & Labeling
A complete automated line covering filling, cap placing, capping, sealing, and wet glue labeling. Reduces manual handling and ensures consistent production flow with higher efficiency.

Customizable Heating & Mixing Options
Optional heating and mixing functions allow better handling of sauces with varying viscosity, oil separation, or temperature sensitivity—ensuring smooth filling performance.

Stable & User-Friendly Operation
Controlled via PLC system with adjustable parameters, enabling easy setup for different bottle sizes and filling volumes. Suitable for both continuous production and flexible batch runs.

Built for Modern Food Production
Supports standardized, hygienic, and scalable packaging processes, making it suitable for growing food brands, contract manufacturers, and industrial sauce production.

Parameter of Squeeze Bottle Filling Line

Servo Filling Machine

• Machine Model: FZ-YT4T-4PX
• Voltage: 110/220 V 50-60 HZ 2 KW
• Filling Range: 10-180 ml/30-500 ml/100-1000 ml(Customizable)
• Working Speed: About 30-50 Bottles/min
• Hopper Size: 90 L (<1000 ml Filling Range)
• Filling Pump: Piston Pump
• Air Pressure: 0.6-0.8 MPa
• Filling Accuracy: ±1%
• Filling Nozzle: 4 (Can be Customized)
• Machine Size: 2000*800*1800 mm
• Machine Weight: 200 kg
• Packaging Size: 2070*960*2010 mm(100-1000 ml)
• Packaging Weight: 392 kg(100-1000 ml)


Capping Machine (For Leakproof Caps)

• Machine Model: FZ-XG16V

• Working Voltage: AC 110V/220V 50-60 HZ

• Bottle Height: 30-300 mm

• Cap Diameter: 18-70 mm

• Bottle Diameter: 20-160 mm

• Working Speed: 10-25 bottles/minute (based on cap size)

• Working Pressure: 0.4-0.6 Mpa

• Machine Size: 2000*1000*1750 mm

• Machine Weight: 150 kg

• Package Size: 2000*820*1760 mm

Capping Machine (Narrow Nozzle)

• Machine Model: FZ-XG16E

• Working Voltage: AC 110V/220V 50-60 HZ

• Bottle Height: 30-300 mm

• Cap Diameter: 18-70 mm

• Bottle Diameter: 20-160 mm

• Working Speed: 10-25 bottles/minute (based on cap size)

• Working Pressure: 0.4-0.6 Mpa

• Machine Size: 1930*740*1600 mm

• Machine Weight: 150 kg

• Package Size: 1970*990*1740 mm

• Package Weight: 334 kg

Sealing Machine

• Machine Model: FZ-FK6000

• Voltage: 220V 50 Hz

• Power: 3.6 kW

• Sealing Speed: About 0-80 bottles/min

• Sealing Diameter: 15-60 mm (Can be customized)

• Sealing Height: 50-335 mm

• Cooling Method: Water Cooling

• Application: Suitable for normal bottles and sharp mouth bottles, plastic and glass bottles. Inapplicable for glass caps, metal bottles, or metal caps.
• Machine Size: 707*950*1510 mm(L*W*H)

• Machine Weight: 76 kg

• Package Size: 660*790*1430 mm

• Package Weight: 106 kg

Wet Glue Labeling Machine

• Machine Model: FZ-WGTB01

• Power Supply: 220/380 V 50/60 Hz

• Installed Power : 2 KW

• Bottle/Can Diameter : 50-100 mm
• Label Size : 50-300 mm*50-140 mm(W*H)(Can be customized for larger label size)
• Production Speed : 1000-4000 BPH

• Air Consumption: 4-6.5 m³/min

• Adhesive Used: Resin Glue

• Machine Size: 3050*960*1120 mm (L*W*H)

• Package Size: 3160*1220*1500 mm (L*W*H)

• Package Weight: 480 kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

FAQ of Squeeze Bottle Filling Line

1. What types of food products can this sauce filling line handle?

This automatic sauce filling line is designed for viscous and semi-fluid food products such as ketchup, chili oil, salad dressing, seafood sauce, and other condiments. It performs best with smooth or fine-particle sauces that can flow through nozzle bottles.

2. Can it handle chili crisp or sauces with particles?

Yes, but it depends on the particle size and consistency. The line is suitable for oil-based or fine-particle chili crisp. For sauces with large chunks (such as garlic pieces or peanuts), we recommend using a wider outlet or a jar filling solution instead.

3. Is this filling line suitable for nozzle or squeeze bottles?

Yes, this line is specifically designed for nozzle bottles and squeeze bottles, making it ideal for controlled dispensing applications such as condiments used in restaurants, takeaway food, and retail packaging.

4. How accurate is the filling system?

The servo piston filling system provides high precision with an accuracy of up to ±1%, ensuring consistent portion control and minimizing product waste during production.

5. How does the machine prevent dripping or mess during filling?

The system is equipped with anti-dripping filling nozzles that prevent sauce from leaking or stringing after each fill. This helps maintain clean bottles and improves the final product appearance.

6. What sealing options are included?

This line features a dual sealing system, including leakproof cap tightening and induction sealing. This combination enhances product safety, prevents leakage during transport, and helps extend shelf life.

7. Can the machine handle hot filling or thick sauces?

Yes, the system can be customized with heating and mixing functions, allowing it to handle thicker sauces or temperature-sensitive products more effectively.

8. Is the machine easy to operate and adjust?

The line is controlled by a PLC system with a user-friendly interface, allowing operators to easily adjust filling volume, speed, and other parameters for different products and bottle sizes.

9. How easy is it to clean the machine?

The filling system is designed for easy cleaning and maintenance. Depending on requirements, it can be configured to support hygienic cleaning processes suitable for food production environments.

10. Can this be used for small-scale or startup sauce production?

Yes, this sauce production line is suitable for both small to medium-scale production and growing food businesses. It provides a scalable solution for brands looking to improve efficiency and packaging quality.

11. Can you provide a complete sauce production solution?

Yes, we offer turnkey solutions including filling, capping, sealing, labeling, and customized configurations based on your product and packaging needs.

This food powder filling machine is designed for accurate and hygienic filling of various food powders, including coffee powder, protein powder, spices, flour and seasoning blends. Equipped with a servo-driven auger system, it ensures precise and consistent dosing even for fine or non-free-flowing powders.

The machine supports a flexible filling range from 5 g to 5000 g by changing augers, making it suitable for different packaging needs such as jars, bottles and bags. The integrated weighing feedback system improves filling accuracy by compensating for density variations, which is especially important for protein powder and mixed seasonings.

To maintain a clean production environment, the machine can be equipped with a vacuum dust collection system and anti-dust filling nozzle, effectively reducing powder scattering during operation. This makes it ideal for food factories that require hygienic and dust-free filling conditions.

With PLC touchscreen control and a user-friendly interface, operators can easily adjust parameters and switch between products. It is a reliable solution for small to medium scale food production, offering both efficiency and precision.

Key Features of Food Powder Filling Machine

Servo Driven Auger for High Accuracy Filling
The servo controlled auger system ensures precise and stable filling performance, making it ideal for fine food powders such as protein powder, coffee powder and seasoning blends.

Flexible Filling Range from 5 g to 5000 g
Interchangeable augers allow easy adjustment for different filling volumes, suitable for small sachets as well as large containers.

Weighing Feedback for Consistent Results
Integrated weighing system automatically corrects filling deviations caused by density variations, ensuring uniform product quality.

Dust Free Filling for Hygienic Production
Equipped with anti-dust filling nozzle and optional vacuum dust collection system, effectively reduces powder scattering and keeps the workspace clean.

Designed for Various Food Powder Applications
Widely used for coffee powder, protein powder, spices, flour, cocoa powder and other dry food ingredients.

User Friendly PLC Touchscreen Control
Simple interface allows operators to adjust parameters quickly, improving efficiency and reducing training time.

Optional Screw Feeder for Continuous Operation
Automatic feeding system supplies powder to the hopper, minimizing manual work and increasing production efficiency.

Parameter of Food Powder Filling Machine

• Machine Model: FZ-FM750F
• Machine Supply: 110V 220 V 380 V 50/60 Hz
• Powder: 2.2 KW
• Production Capacity: Based on Filling Volume
• Filling Range: 5-50 g, 50-300 g, 300-1000 g, 1000-5000 g (By Change Auger)
• Hopper Size of Filling Machine: 50 L
• Hopper Size of Feeding Machine: 150 L
• Feeder Pipe Diameter: 102 mm
• Feeder Ground Height: Customizable
• Number of Filling Heads: 1 Head (Multiple Heads Are Optional)
• Measurement Error: ±1%
• Machine Size: 2950*1150*2000 mm

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

FAQ（Food Powder Filling Machine）

What types of food powders can this machine handle?

This powder filling machine is suitable for a wide range of food powders, including coffee powder, protein powder, spices, flour, cocoa powder and seasoning blends. It performs well with both free-flowing and non-free-flowing powders.

What is the filling range of this machine?

The filling range is from 5 g to 5000 g. By changing augers, the machine can easily adapt to different packaging sizes such as small sachets, jars and bottles.

How accurate is the filling process?

The machine offers high filling accuracy of up to ±1%. With the integrated weighing feedback system, it can automatically adjust for density variations, ensuring consistent results especially for protein powder and mixed seasonings.

Is this machine suitable for food-grade production?

Yes, it is designed for hygienic food production. The anti-dust filling nozzle and optional vacuum dust collection system help maintain a clean working environment and reduce powder contamination.

Can it reduce dust during filling?

Yes. The machine is equipped with an anti-dust filling system, and it can also be fitted with a vacuum dust collector to minimize airborne powder and keep the production area clean.

Is it easy to operate for beginners?

The PLC touchscreen control panel makes operation simple and intuitive. Operators can easily set filling weight, speed and other parameters with minimal training.

Can this machine be used for different packaging types?

Yes, it is suitable for filling powders into bottles, jars, bags and containers, making it versatile for various food packaging needs.

Does the machine support automatic feeding?

An optional screw feeder can be added to automatically supply powder to the hopper, improving efficiency and enabling continuous production.

Is it suitable for small or medium food businesses?

Yes, this semi-automatic powder filling machine is ideal for small to medium scale food production, offering a balance between cost, flexibility and precision.

Machine Overview

This automatic food powder filling machine is specially designed for accurate and hygienic filling of edible powders such as protein powder, ground nutmeg, spices, flour, and seasoning blends. Using a precision auger filling system, it ensures stable dosing with an accuracy of up to ±1%, making it ideal for food manufacturers requiring consistent product quality.

The double head filling design significantly increases production efficiency, while the integrated material feeder and mixing hopper enable continuous and smooth powder feeding, preventing clogging and ensuring uniform filling performance.

All material contact parts are made of food-grade SUS316 stainless steel, ensuring compliance with hygiene standards and safe handling of food powders. The user-friendly touchscreen control system allows quick parameter adjustments, supporting flexible filling ranges from 5g to 5000g for different packaging needs.

This food powder filling machine with feeder and conveyor can be seamlessly integrated with capping and labeling machines, making it an ideal solution for building a fully automated food packaging line and improving overall production efficiency.

Key Features

1. High-Precision Auger Filling System
Advanced auger filling technology ensures accurate and consistent dosing with up to ±1% accuracy, ideal for food powders like protein powder, milk powder, and spices.

2. Double Head Design for Higher Efficiency
Equipped with dual filling heads to significantly increase production speed (20–40 bottles/min), making it suitable for medium to large-scale food production.

3. Food-Grade SUS316 Construction
All contact parts are made of SUS316 stainless steel, ensuring hygienic and safe handling of edible powders, compliant with food industry standards.

4. Automatic Feeder & Mixing Hopper
Integrated material feeder and mixing hopper provide continuous and smooth powder supply, preventing clogging and ensuring uniform filling performance.

5. Wide Filling Range & Easy Adjustment
Supports flexible filling volumes from 5g to 5000g by changing augers, suitable for different packaging sizes and product types.

6. User-Friendly Touchscreen Control
PLC-based touchscreen panel allows easy parameter setting and real-time monitoring, improving operational efficiency and reducing training time.

7. Expandable for Full Production Line
Can be integrated with capping and labeling machines to build a fully automatic food packaging line, reducing labor costs and increasing productivity.

Food Powder Filling Machine Parameter

• Machine Model: FZ-FM5D
• Voltage: 110 V/220 V/380 V, 50 Hz/60 Hz
• Power: 10 KW
• Quantity of Filling Heads: 2 (Customizable)
• Production Capacity: 20-40 Bottles/min (Depending on Filling Materials)
• Filling Volume: 5-50 g/ 50-300 g/ 300-1000 g/ 1000-5000 g (Change Auger)
• Filling Accuracy: ±1%
• Hopper Size of Feeding Machine: 150 L
• Feeder Pipe Diameter: 133 mm
• Feeder Ground Height: 2800 mm
• Machine Dimension: 4100*4070*3250 mm(L*W*H)
• Package Size: 2190*1320*2400 mm (Filling Machine), 4350*250*410 mm (Material Feeder)
• Package Weight: 940 kg (Filling Machine)+63 kg (Material Feeder)

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

Machine Detail

This food powder filling machine is specially designed for accurate and hygienic filling of dry food powders such as flour, milk powder, coffee powder, spices, and protein powder.
Equipped with a servo auger system and intelligent weighing control, it ensures high precision filling while maintaining consistent product quality.

Built with food-grade stainless steel, the machine meets hygiene requirements for food production and is easy to clean and maintain. It is widely used in food factories, small businesses, and commercial packaging lines for bottles, jars, and containers.

Key Features

• High Precision Auger Filling
  Servo-driven auger system ensures accurate and consistent filling for various food powders such as flour, milk powder, coffee, and spices.
• Food-Grade Stainless Steel Construction
  All contact parts are made of food-grade stainless steel, ensuring hygiene, safety, and compliance with food production standards.
• Intelligent Weighing System
  Integrated weighing control automatically adjusts filling volume for precise quantitative powder filling, reducing waste and improving efficiency.
• User-Friendly PLC Control Panel
  Easy-to-use interface allows quick parameter setting and real-time monitoring, simplifying operation for both beginners and professionals.
• Adjustable Filling Height & Versatile Use
  Compatible with bottles, jars, and containers of different sizes, ideal for powder bottling and food packaging applications.
• Stable Performance & Durable Structure
  Equipped with a high-quality motor and robust frame to ensure long-term continuous operation with minimal maintenance.
• Compact Design for Flexible Production
  Space-saving structure suitable for small workshops and industrial production lines alike.

Food Powder Filling Machine Parameter

• Machine Model: FZ-FM710
• Voltage: 110/220/380 V 50-60 HZ
• Main Motor Power: 1.25 KW
• Filling Type: Weight Control or Auger Filling
• Filling Range: 10-2000 g (Customized)
• Suitable Bottle Diameter: 25-150 mm
• Suitable Bottle Height: 60-300 mm
• Hopper Size: 25 L
• Working Speed: 1-30 bottles/min
• Machine Size: 450*650*1860 mm(Machine) About 265*265*570 mm(Weighing Device)
• Machine Weight: 128 kg
• Package Size: 1900*2170*820 mm
• Package Weight: 171 kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required

FAQ

1. What products can this powder filling machine handle?

This food powder filling machine is suitable for a wide range of dry powders, including flour, milk powder, coffee powder, protein powder, spices, sugar, and other fine or semi-free-flowing powders.

2. Is this machine suitable for food-grade applications?

Yes, all contact parts are made of food-grade stainless steel, ensuring hygiene and safety for food production. It is suitable for industries such as bakery, dairy, and seasoning.

3. What is the filling accuracy of the machine?

The machine uses a servo auger system combined with a weighing control system, ensuring high precision filling. Accuracy may vary slightly depending on the material, but it is ideal for quantitative powder filling.

4. Can it work with different container sizes?

Yes, the filling height is adjustable, making it compatible with bottles, jars, cans, and other containers used in powder packaging applications.

5. Is it easy to operate for beginners?

Absolutely. The machine is equipped with a user-friendly PLC control panel, allowing operators to easily set parameters such as filling weight and speed. Minimal training is required.

6. Does the machine support different types of powders?

Yes, it works well with various food powders, including fine powders and slightly granular materials. For special materials, customization options are available.

7. How do I clean and maintain the machine?

The machine is designed for easy cleaning, with stainless steel parts that can be quickly disassembled. Regular cleaning ensures hygiene and long service life.

8. Is this machine suitable for small businesses or industrial use?

This powder filling machine is suitable for both small-scale production and industrial manufacturing, offering flexibility and efficiency for different business needs.

9. Can the machine be customized?

Yes, customization is available based on your production requirements, such as hopper size, filling range, or additional functions.

10. What industries commonly use this machine?

It is widely used in food industries such as bakery, dairy, beverage, and seasoning production, as well as other industries requiring powder filling solutions.

This automatic overflow liquid filling machine is designed for food-grade liquid products that require consistent visual fill levels and hygienic processing. It is widely used for filling juice, beverage, vinegar, soy sauce, edible oil, and syrup into bottles with high precision and clean appearance.

Built with food-grade stainless steel, the machine ensures safe contact with consumable liquids while meeting hygiene standards for food production. The overflow filling principle allows each bottle to reach the same liquid level, delivering a uniform shelf appearance that enhances product quality perception.

Equipped with a stable pumping system and precise control panel, this machine supports accurate filling, anti-drip operation, and smooth production flow. It is especially suitable for low-viscosity food liquids and can be integrated with capping and labeling equipment to form a complete bottling line.

Its compact structure and user-friendly interface make it ideal for small to medium food manufacturers, beverage producers, and startup brands looking to improve production efficiency while maintaining consistent filling quality.

Overflow Liquid Filling Machine Parameter

• Machine model: FZ-DTGZ400

• Machine voltage: 110/220V 50-60HZ 150W

• Quantity of filling nozzle: 4

• Working capacity: About 12-20 BPM(based on filling volume)

• Hopper size: 70 L

• Air pressure: 0.4-0.6 MPA

• Suitable filling volume: ≤1500 ml/bottle

• Suitable bottle diameter: Φ=50-80 mm

• Conveyor height from ground: About 236mm+100 mm

• Suitable bottle height: 200-300 mm

• Suitable bottle opening mouth: 20-35 mm

• Machine size: About 1810*1040*1000 mm(L*W*H)

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

This automatic auger powder filling machine is designed for accurate filling of food powders and fine granules such as salt, spices, seasoning powder, milk powder and baby powder. Equipped with a screw conveyor feeder, the machine can automatically transport materials into the hopper, ensuring stable and continuous powder filling during production.

The auger dosing system controls the filling volume through precise screw rotation, which allows the machine to maintain high filling accuracy even when handling light or fluffy powders commonly found in the food industry.

Constructed with food-grade stainless steel, the machine meets hygiene requirements for food processing environments. The compact structure also makes it suitable for integration into semi-automatic or fully automatic powder packaging lines.

This powder filling machine is widely used by food manufacturers for packaging powders into bottles, jars, cans and containers.

Seasoning Powder Filling Machine Parameter

• Machine Model: FZ-FM2A

• Voltage: 220V/110V

• Power: 2000 W

• Filling Speed: 10-15 pcs/min(Based on material)

• Suitable Bottle Diameter: Less than 100 mm

• Applicable Bottle Height: Customized

• Filling Heads: Only one

• Filling Material: Powder Produce like flour

• Package Size: 1352*910*2480 mm(Machine Body) 3270*400*560 mm (Feeder) 935*865*985 mm (Hopper)

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

This automatic food liquid filling machine uses a hygienic peristaltic pump system to accurately fill sauces, edible oils, beverages, and other liquid foods. The 4 nozzles design improves production efficiency while maintaining precise volume control for small bottles from 3–50 ml. Ideal for food manufacturers, laboratories, and small batch production lines.

Food Liquid Filling Machine Parameter

• Model: FZ-DTPP4W

• Power: 20W（Each Pump）

• Recommend Filling Volume: 3-50 ml

• Maximum Flow: 650 ml/min for Each nozzle (Based on water)

• Filling nozzle: 4 Nozzle ( Can be customized)

• Working Speed: 30-50 Bottles/min (based on bottle and liquid)

• Air Pressure: 0.3-0.4 mpa

• Filling Accuracy: ≤±1%

• Dimension of Filling Nozzle: Standard 8 mm and 6 mm

• Delay Range: 0.01-999.9 s

• Belt Length: 1.0 m

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

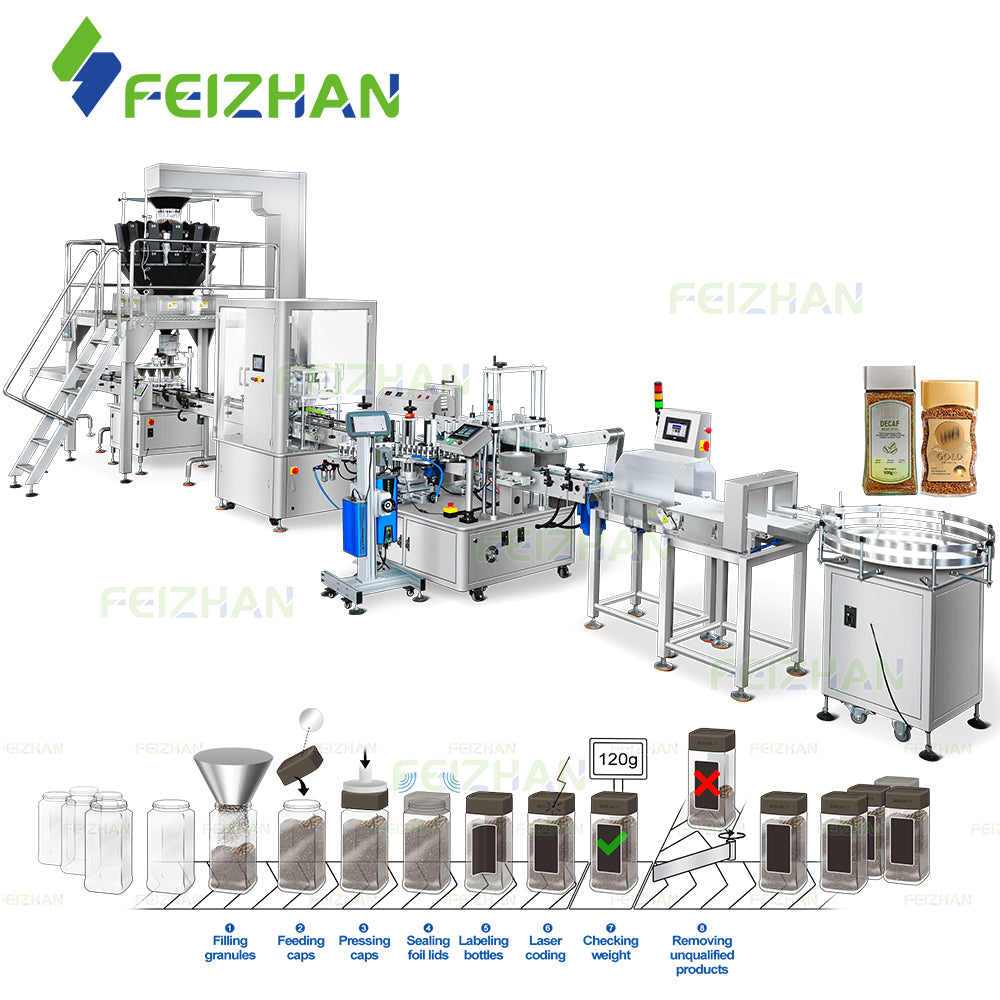

The automatic granule weighing filling machine is designed for accurately filling food granules into bottles or containers. Equipped with a precise weighing system, the machine measures the required amount of product before dispensing, ensuring consistent filling accuracy and reducing material waste.

This machine is widely used for packaging a variety of food granules such as coffee beans, nuts, grains, seeds, candy, and seasoning particles. The controlled weighing process ensures each container receives the correct portion, making it suitable for food manufacturers that require reliable and repeatable filling performance.

The machine features a stainless steel structure and food-grade contact parts, making it suitable for food processing environments. The integrated control system allows operators to easily adjust filling weight and working speed through the touchscreen interface, improving production efficiency while maintaining stable packaging quality.

With a conveyor-based design and automatic bottle detection, the machine supports continuous production and can be integrated into food packaging lines for granule bottling, snack packaging, and seasoning filling applications.

Food Granule Weighing Filling Machine Parameter

• Machine Model: FZ-GW4C

• Machine Voltage: 110/220V 50-60HZ

• Power: 50 W

• Filling Range: 50-500 g

• Filling Precision: ±1% (Depending on the material and filling range)

• Working Speed: About 10-20 pcs/min

• Machine Size: About 1900*450*1920 mm

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

This automatic sauce filling line is designed for packaging viscous sauces and jams into twist-off glass jars. Equipped with servo piston filling, steam vacuum capping and high-speed labeling, it is ideal for medium to large food production.

Why This Sauce Filling Line

Traditional filling machines often struggle with high-viscosity sauces, inaccurate filling, or poor vacuum sealing.

This line is engineered specifically for food manufacturers who require stable filling accuracy, reliable vacuum sealing, and high production efficiency.

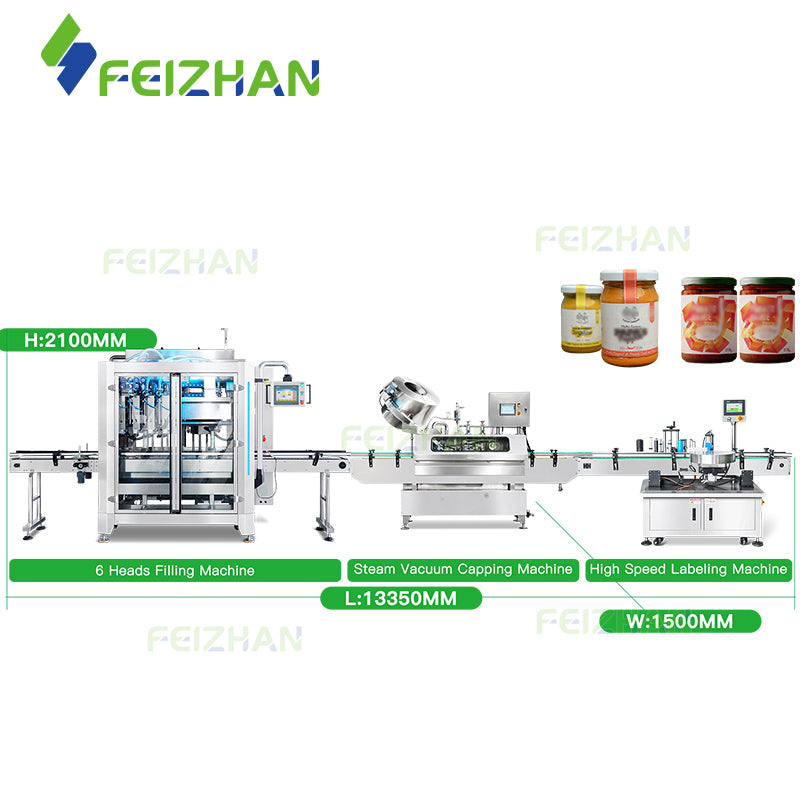

Complete Glass Jar Sauce & Jam Production Line

This production line integrates filling, capping and labeling into one continuous workflow, suitable for:

• Sauce and condiment factories
• Jam and fruit preserve producers
• Honey and viscous liquid processors
• Medium and large food manufacturing plants

Key Machine Units in This Line

Servo Piston Filling Machine

• Designed for high-viscosity sauces and jams
• ±1% filling accuracy
• Tracking filling prevents dripping and contamination

Steam Vacuum Capping Machine

• Steam displaces air before capping
• Creates strong vacuum inside glass jars
• Ideal for twist-off metal caps

High-Speed Labeling Machine

• Stable labeling at up to 100 bottles/min
• Supports wrap-around and front-back labeling

Technical Specifications

*Technical parameters may vary depending on product viscosity, jar size and production capacity requirements.

6 Heads Tracking Filling Machine

• Machine Model: FZ-VTPF6
• Voltage: 380V/220V/110V 50-60Hz (Customizable)
• Power: 6 kW
• Filling Speed: 2000-5000 BPH(Based on filling volume & filling material)
• Filling Range: 100-1000 ml(Customizable for larger filling range)
• Filling Accuracy: ± 1%
• Filling Pump: Servo Piston Pump
• Air Supply: 0.6-0.7 MPa  0.6-0.7 m³/min
• Machine Size: 8000*1500*2100 mm
• Machine Weight: 1200 kg

Steam Vacuum Capping Machine

• Machine Model: FZ-XG01
• Power Supply: 110/220V 50-60HZ 3.12 KW
• Working Capacity: 4000 BPH
• Suitable Cap Size: Customized
• Suitable Bottle Size: Customized
• Steam Consumption: 180-230 KG/H
• Steam Pressure: ≤0.4 MPa
• Maximum Vacuum Degree: 34-67 kPa
• Machine Size: 3250*1050*2010 mm
• Machine Weight: 500 kg

High Speed Labeling Machine

• Model: FZ-TB700
• Power Supply: AC220V 50-60 HZ 2000 W
• Labeling Capacity: 60-100 bottles/min(depends on bottle size)
• Labeling Accuracy: ±1.0 mm
• Suitable Bottle Diameter: Φ30-100 mm H 30-120 mm
• Label Size: (L)20-300 mm (H)15-130 mm(Can be Customized)
• Roll Inside Diameter: Φ76 mm
• Roll Outside Diameter: Φ350 mm
• Conveyor Size: 112*2000 mm(W) (Can be customized)
• Machine Size: 2100*1230*1380 mm(L*W*H)
• Machine Weight: 200 kg
• Package Size: 2060*1070*1550 mm(L*W*H)
• Package Weight: 304 kg

This monoblock cam-driven dropper bottle filling machine is specially designed for filling and capping small-volume food liquids such as edible oils, liquid flavors, nutritional extracts, and concentrated seasoning drops.

Equipped with dual 316 stainless steel magnetic pumps, the machine ensures hygienic, corrosion-resistant, and high-precision dosing from 1-100ml. The cam indexing star wheel system provides accurate bottle positioning, enabling stable operation at 60-70 bottles per minute.

The integrated system completes bottle positioning, liquid filling, dropper cap placing, and screw capping in one compact unit, reducing labor cost and improving production efficiency.

Dropper Bottle Filling Machine Parameter

• Machine Model: FZ-AFC27YT
• Machine Voltage: 220V/50HZ/5A (110V is Customizable)
• Recommend Filling Volume: 1-100 ml (Customizable)
• Filling Pump Type: 316 Magnetic Pump
• Max Flow Rate: 3L/min (Based on water)
• Working Capacity: 60-70 BPM (Based on filling volume & filling material)
• Suitable Bottle Size: Customizable
• Bottle Cap Size: Customizable
• Air Pressure: 0.6-0.8 MPa
• Machine Size: 2100*1460*1240 mm
• Machine Weight: 1500 kg
• Package Size: 2370*1230*1770 mm
• Package Weight: 1600 kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

This automatic food liquid filling capping machine is designed for hygienic, small-volume packaging of low-viscosity edible liquids such as flavorings, extracts, light syrups, vinegar-based seasonings, and food additives. It uses a Peristaltic Pump system where the liquid only contacts the tubing, preventing cross-contamination and ensuring product purity. The monoblock structure integrates filling, cap feeding, and servo-controlled capping, delivering stable operation, ±1% accuracy, and efficient production for 10–60 ml food bottles.

Food Liquid Filling Capping Machine Parameter

• Machine Model: FZ-AFC32

• Voltage: 110/220V 50-60HZ

• Filling Pump: Peristaltic Pump

• Filling Hose Size: #17

• Filling Nozzle Quantity: 2

• Filling Range: 10-60 ml(Customized)

• Filling Accuracy: ±1%

• Working Capacity: About 30 BPM

• Material of Filling Nozzle: SUS304

• Material of Vibratory Bowl Sorter: SUS304

• Machine Size: 1800*1670*1450 mm(L*W*H)

• Package Size: 2490*960*1670 mm(L*W*H)

• Package weight: About 632 kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required

This monoblock liquid filling and capping machine is also suitable for food-grade liquid products such as syrup, vinegar, edible oil, and liquid seasonings. Equipped with a peristaltic pump, it ensures hygienic filling and precise dosing, while the inner stopper and screw cap system helps control dripping and improves user experience for high-value food products.

Liquid Filling Capping Machine Parameter

• Machine Model: FZ-AFC43

• Voltage: 110/220V 50-60 HZ 3 KW

• Filling Pump: Peristaltic Pump

• Working Capacity: 30-45 BPM(Based on filling range)

• Filling Accuracy: ±1 %

• Suitable Bottle Size: Customizable

• Suitable Cap Size: Customizable

• Main Machine Size: 2200*1630*1430 mm

• Size of Vibratory Bowl Sorter For Stopper: 605*455*1040 mm

• Size of Vibratory Bowl Sorter For Caps: 605*455*1070 mm

• Total Machine Weight: ≤ 600 kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required.
