Machine Overview

The FEIZHAN automatic servo paste filling machine is designed for hygienic and accurate filling of viscous and semi-viscous food products into bottles, jars, and containers. Equipped with a high-precision servo filling system and multi-head filling structure, it delivers stable production performance for sauces, honey, jam, peanut butter, syrups, dressings, cream-based foods, and other thick food materials.

Designed for food packaging applications, this machine integrates precise filling, smooth bottle conveying, and food-grade contact components to improve efficiency while maintaining filling consistency. The adjustable structure allows compatibility with various bottle sizes and production requirements, making it suitable for food factories, commercial kitchens, and growing production businesses.

Machine Features

High-Precision Servo Filling

The servo-driven filling system ensures accurate portion control and stable output, helping reduce product waste and maintain consistent packaging quality for viscous food products.

Multi-Head Production Efficiency

Designed with multiple filling nozzles, the machine supports simultaneous filling to improve production speed and meet medium- to large-scale food manufacturing requirements.

Suitable for Thick & Semi-Fluid Products

Ideal for packaging high-viscosity materials such as honey, sauces, jam, peanut butter, mayonnaise, syrup, ketchup, cream-based foods, and other semi-liquid food products.

Food-Grade Stainless Steel Construction

Product-contact parts are made of food-grade stainless steel, supporting hygienic production standards and easier cleaning for food processing environments.

Anti-Drip Filling Design

The filling nozzle structure helps reduce dripping, stringing, and material waste, ensuring cleaner packaging and improved product appearance.

Adjustable for Different Containers

Bottle guide rails, filling height, and conveyor settings can be adjusted to accommodate containers of different heights, diameters, and shapes.

User-Friendly Touch Screen Operation

The smart control interface allows operators to easily adjust filling volume, filling speed, and working parameters for more convenient production management.

Applications

This food paste filling machine is suitable for filling various viscous, semi-viscous, and thick liquid food products, including:

• Honey
• Jam
• Peanut butter
• Ketchup
• Mayonnaise
• Salad dressing
• Chocolate spread
• Syrup
• Chili sauce
• Cream-based food products and viscous condiments

Suitable container types include bottles, jars, cans, cups, and other food packaging containers.

Technical Parameters

• Machine Model: FZ-YT4T-4PX
• Voltage: 110/220V 50-60HZ 2KW
• Filling Range: 10-180 ml/30-500 ml/100-1000 ml/＞1000ml (Customizable)
• Working Speed: About 30-50 Bottles/min
• Hopper Size: 90L (＜1000 ml filling range)
• Filling Pump: Piston Pump
• Feeding Pump: Piston Pump or Diaphragm Pump (Based on filling material)
• Air Pressure: 0.6-0.8 MPa
• Filling Accuracy: ±1%
• Filling Nozzle: 4 (Can be customized)
• Machine Size: About 2000*800*1800 mm
• Machine Weight: About 200 kg
• Packaging Size: About 2070*960*2010 mm(100-1000 ml)
• Packaging Weight: About 392 kg (100-1000 ml)

*Specifications are for reference only and may vary by your product. Please confirm with us if required

Machine Details

Machine Overview

The FEIZHAN automatic magnetic pump liquid filling machine is designed for fast and hygienic filling of food-grade free-flowing liquids into bottles and containers. Equipped with a SUS316 magnetic pump, this machine delivers stable and accurate filling with a maximum flow rate of 22L/min, making it suitable for medium- to high-efficiency food production. The touchscreen system allows filling volume adjustment directly on the panel, reducing setup time and simplifying operation. Combined with an anti-drip nozzle and conveyor system, this food liquid filling machine is ideal for juice, syrup, edible oils, sauces, beverages, flavoring liquids, and other low-viscosity food products. It can also integrate with capping and labeling systems to create a complete food bottling solution.

Machine Features

• SUS316 Magnetic Pump System
  Food-grade pump ensures hygienic liquid transfer and stable filling performance for food applications.
• Large Flow Filling Capacity
  Delivers up to 22L/min flow rate for faster bottling and higher production efficiency.
• Direct Filling Volume Adjustment
  Filling volume can be set directly on the touchscreen, reducing manual calculations and setup time.
• Anti-Drip Filling Nozzle
  Helps minimize dripping and maintain cleaner filling performance during production.
• Adjustable Filling Height
  Nozzle position can be adjusted to suit bottles and containers of different sizes.
• Conveyor-Based Continuous Production
  Supports stable bottle transportation and can connect with capping or labeling systems for automated production.

Applications

This food liquid filling machine is suitable for filling a wide range of low-viscosity and free-flowing food liquids, including:

• Syrup
• Fruit juice
• Beverage concentrates
• Honey water and flavored liquids
• Vinegar
• Cooking oils
• Liquid seasonings
• Coffee concentrates
• Food additives and flavoring liquids

It is widely used in beverage processing, condiment production, food factories, and small to medium-scale bottling businesses.

Technical Parameters

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

Machine Details

Honey Filling Machine Overview

This automatic food honey filling machine is designed for filling high viscosity food products such as honey, jam, ketchup, peanut butter, syrup and sauces. Equipped with a food-grade gear pump and anti-drip filling nozzle, it ensures hygienic and accurate filling performance for small and medium-scale food production.

The customizable rotary plate improves bottle handling efficiency, while the full-electric design eliminates the need for an external air compressor. Suitable for liquids and pastes with viscosities up to 180000CP, this machine is widely used in honey bottling, sauce packaging and other food filling applications.

Machine Features

Food-Grade Gear Pump System

Equipped with a food-grade gear pump, the machine is suitable for filling high viscosity food products such as honey, syrup, jam, peanut butter and sauces. The stable pumping system ensures smooth material transfer and consistent filling accuracy while maintaining hygienic production standards.

Anti-Drip Filling Nozzle

The anti-dripping filling nozzle helps reduce material waste and prevents product from contaminating bottles or the working area. Combined with the electric eye detection system, the machine can achieve automatic bottle sensing for continuous and efficient filling production.

Rotary Plate For Efficient Bottle Handling

The customizable rotary plate is designed to improve bottle positioning and transfer efficiency during production. Different rotary plate structures can be customized according to bottle sizes and packaging requirements, helping ensure smoother operation for food bottling applications.

Full Electric Design Without Air Compressor

Unlike pneumatic filling machines, this machine operates fully electrically and does not require an external air compressor. This simplifies installation, reduces operating noise and saves additional equipment costs, making it ideal for small and medium-sized food production workshops.

Adjustable Filling Parameters

The intelligent control panel allows users to easily adjust filling weight, speed and other working parameters according to different food products and bottle sizes. The user-friendly design helps improve production flexibility and operational efficiency.

Applications

This honey filling machine is widely used for filling high viscosity food products in the food processing and packaging industry. Equipped with a food-grade gear pump and anti-drip filling system, it is suitable for handling thick liquids and paste materials with stable filling accuracy and hygienic production performance.

Honey Filling

The machine is ideal for filling various types of honey into glass jars, plastic bottles and other containers. The gear pump system ensures smooth transfer of thick honey while the anti-drip nozzle helps maintain clean and accurate filling results.

Syrup Bottling

Suitable for syrup bottling applications, the machine can handle viscous liquid products with stable flow control. It is commonly used for packaging maple syrup, flavored syrup and concentrated syrup products in food production facilities.

Jam Packaging

This machine can be used for filling jam and fruit paste products with consistent filling performance. The customizable rotary plate improves bottle handling efficiency during jam packaging production.

Peanut Butter Filling

Designed for high viscosity materials, the machine is suitable for filling peanut butter and similar paste products. The food-grade gear pump helps ensure stable material transfer while reducing material waste during filling.

Sauce Filling

The machine is widely used for filling ketchup, chili sauce, salad dressing and other food sauces. Adjustable filling parameters allow operators to optimize filling speed and accuracy for different sauce viscosities and bottle sizes.

Food Paste Filling

Suitable for thick food pastes and semi-liquid products, this filling machine can support various food packaging applications requiring hygienic and accurate filling performance. The full-electric design also simplifies installation and daily operation for food manufacturers.

Small Batch Food Production

With its compact desktop structure and full-electric operation, the machine is especially suitable for small and medium-sized food businesses, commercial kitchens and startup food production workshops that require flexible and efficient filling solutions.

Technical Parameters

Machine Details

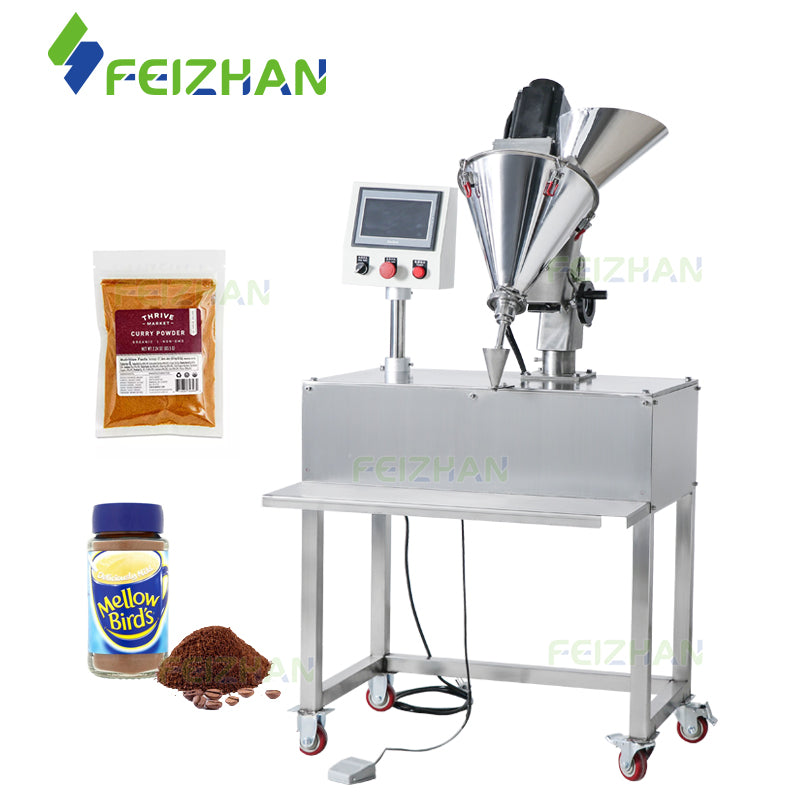

This semi automatic powder filling machine is specially designed for food powder packaging applications such as protein powder, coffee powder, milk powder, flour, spices and nutritional supplements. Equipped with an auger filling system, mixing tank and weighing function, the machine ensures stable filling accuracy and efficient production performance.

The machine is suitable for both free-flowing and non free-flowing powders. Stainless steel contact parts meet food-grade production requirements and are easy to clean and maintain.

It can be widely used for filling powders into bottles, jars, cans and other containers in the food, nutraceutical and beverage industries.

Key Features

• Auger filling system for high filling accuracy

• Suitable for fine powder and slightly sticky powder

• Integrated mixing and weighing function

• Food-grade stainless steel structure

• Easy parameter adjustment through touch screen

• Suitable for bottles, jars and cans

• Stable operation and low powder dust leakage

Applications

This machine is widely used for packaging various food powders, nutritional supplements, and functional wellness products in bottles, jars, cans, and pouches.

Traditional Food Powder Applications

• Protein powder

• Whey protein powder

• Coffee powder

• Instant coffee mix

• Milk powder

• Flour

• Cocoa powder

• Spice powder

• Chili powder

• Curry powder

• Garlic powder

• Seasoning powder

• Matcha powder

• Sugar powder

Functional & Trending Food Applications

• Collagen powder

• Mushroom coffee powder

• Lion’s mane powder

• Reishi mushroom powder

• Adaptogen powder blends

• Greens powder

• Superfood powder

• Electrolyte hydration powder

• Meal replacement powder

• Prebiotic & probiotic powder

• Fiber supplement powder

• Plant-based protein powder

• Clear protein powder

• Energy drink powder

• Sleep support powder

• Nootropic beverage powder

Popular Packaging Industries

• Functional food industry

• Sports nutrition industry

• Health supplement industry

• Beverage powder manufacturing

• Wellness product packaging
• Nutraceutical production

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

This semi-automatic powder filling machine is specifically designed for food-grade powder packaging, offering high precision and stable performance for a wide range of edible powders.

It is widely used in industries such as food processing, beverage production, and nutritional supplements, making it ideal for filling products like protein powder, coffee powder, milk powder, cocoa powder, flour, spices, and seasoning blends.

Powered by an auger screw dosing system, the machine ensures accurate and consistent filling, even for fine powders. The adjustable filling range allows it to handle different packaging needs, from small sachets to bottles and jars.

The machine is built with food-grade stainless steel, ensuring hygiene and compliance with food safety standards. Its user-friendly control panel allows operators to easily adjust parameters such as filling volume and speed, improving efficiency without complicated setup.

Whether you are running a small food business, commercial kitchen, or large-scale production line, this powder filling machine provides a reliable solution to improve packaging efficiency and reduce material waste.

Key Features

High-Precision Auger Filling System

Equipped with an advanced auger screw mechanism, this machine ensures accurate and consistent dosing for various food powders such as protein powder, coffee powder, cocoa powder, and spices. Ideal for maintaining product quality and reducing material waste.

Wide Application for Food Powders

Designed for a broad range of food-grade materials, including flour, milk powder, seasoning blends, baking powder, and nutritional supplements. Works well with fine, semi-fine, and slightly sticky powders.

Flexible Packaging Compatibility

Suitable for multiple packaging formats, including bottles, jars, and pre-made pouches. Adjustable filling range allows easy switching between different product sizes and packaging needs.

Food-Grade Stainless Steel Construction

All contact parts are made of food-grade stainless steel, ensuring hygiene, corrosion resistance, and compliance with food safety standards. Easy to clean and maintain for daily production.

User-Friendly Control Panel

Simple interface enables quick adjustment of filling weight, speed, and working parameters, reducing operator training time and improving production efficiency.

Efficient & Stable Performance

Designed for continuous operation with stable filling speed and minimal error, making it suitable for both small businesses and growing food production lines.

Adjustable for Different Powder Types

The machine can be fine-tuned based on powder characteristics, ensuring smooth filling for light powders (like flour) and dense powders (like protein or cocoa) without clogging or inconsistency.

Food Powder Filling Machine Parameter

• Machine Model: FZ-FM100B
• Machine Voltage: 110/220 V 50-60 HZ
• Screw Diameter & Filling Range: φ19 mm, 0.5-10 g/ φ25 mm, 2-15 g/ φ32 mm, 10-30 g/ φ38 mm, 20-50 g/ φ51 mm, 30-100 g/ φ64 mm, 100-500 g/ φ76 mm, 200-2000 g (For reference only, it will be different according to filling material)
• Hopper Size: 35 L(Customized)
• Hopper Diameter: 450 mm(Customized)
• Filling Nozzle Size: Customized
• Working Capacity: 10-25 BPM(Based on filling volume)
• Container Height: H≤300 mm
• Filling Accuracy: ±1 %(based on filling range)
• Machine Size: About 780*750*1150 mm
• Machine Weight: About 120 kg
• Package Size: About 810*810*1300 mm
• Package Weight: About 144 kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

This tabletop overflow liquid filling machine is specially designed for food and beverage applications, delivering consistent filling levels and a clean, professional bottle appearance. It is ideal for filling non-viscous liquids such as water, juice, wine, whiskey, vinegar, soy sauce, and other free-flowing food-grade liquids.

Equipped with 4 filling heads, the machine ensures stable performance and improved efficiency for small to medium-scale production. The overflow filling principle guarantees that each bottle is filled to the same visible level, which is especially important for glass bottles used in premium beverages.

Built with food-grade stainless steel, the machine is easy to clean and meets hygiene requirements for food processing. The user-friendly control panel allows quick parameter adjustment, making it suitable for both beginners and experienced operators.

This compact liquid filling machine is a reliable choice for startups, small beverage businesses, and craft producers looking for precise, consistent, and visually appealing filling results.

Key Features

Consistent liquid level filling
Using overflow filling technology, each bottle is filled to the same visible level, ensuring a clean and premium appearance. Especially suitable for glass bottles used in beverage and alcohol packaging.

Four heads for higher efficiency
Equipped with four filling nozzles, the machine improves production speed while maintaining stable and accurate filling performance for small to medium scale production.

Designed for food and beverage liquids
Suitable for filling water, juice, wine, whiskey, vinegar, soy sauce and other non viscous food grade liquids.

Food grade stainless steel construction
Made of durable stainless steel, ensuring hygiene, corrosion resistance and easy cleaning, meeting food processing requirements.

Less waste with overflow system
Excess liquid is automatically returned to the tank, reducing waste and keeping the working area clean.

Easy to operate control panel
The intuitive control panel allows quick parameter adjustment, making operation simple for both beginners and experienced users.

Compact tabletop design
Space saving structure is ideal for small workshops, startups and craft beverage production environments.

Stable conveyor system
The integrated conveyor ensures smooth bottle movement and consistent filling workflow, improving overall efficiency.

Overflow Filling Machine Parameter

• Machine Model: FZ-DTGZ400

• Machine Voltage: 110/220 V 50-60 HZ 150 W

• Quantity of Filling Nozzle: 4

• Working Capacity: About 12-20 BPM(based on filling volume)

• Hopper Size: 70 L

• Air Pressure: 0.4-0.6 Mpa

• Suitable Filling Volume: ≤1500 ml/bottle

• Suitable Bottle Diameter: Φ=50-80 mm

• Conveyor Height From Ground: About 236 mm+100 mm

• Suitable Bottle Height: 200-300 mm

• Suitable Bottle Opening Mouth: 20-35 mm

• Machine Size: About 1810*1040*1000 mm(L*W*H)

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

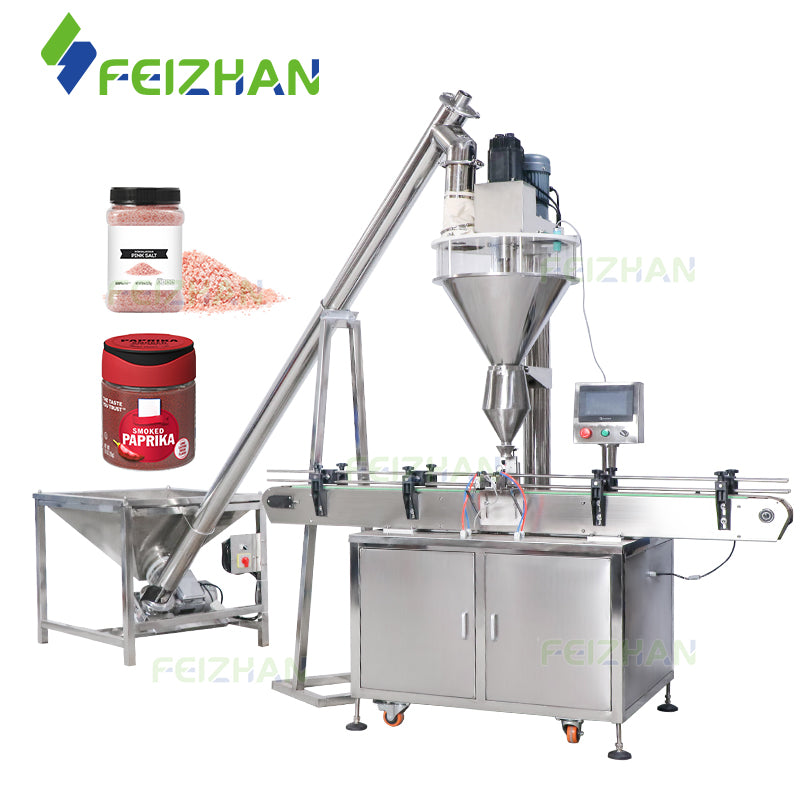

This food powder filling machine is designed for accurate and hygienic filling of various food powders, including coffee powder, protein powder, spices, flour and seasoning blends. Equipped with a servo-driven auger system, it ensures precise and consistent dosing even for fine or non-free-flowing powders.

The machine supports a flexible filling range from 5 g to 5000 g by changing augers, making it suitable for different packaging needs such as jars, bottles and bags. The integrated weighing feedback system improves filling accuracy by compensating for density variations, which is especially important for protein powder and mixed seasonings.

To maintain a clean production environment, the machine can be equipped with a vacuum dust collection system and anti-dust filling nozzle, effectively reducing powder scattering during operation. This makes it ideal for food factories that require hygienic and dust-free filling conditions.

With PLC touchscreen control and a user-friendly interface, operators can easily adjust parameters and switch between products. It is a reliable solution for small to medium scale food production, offering both efficiency and precision.

Key Features of Food Powder Filling Machine

Servo Driven Auger for High Accuracy Filling
The servo controlled auger system ensures precise and stable filling performance, making it ideal for fine food powders such as protein powder, coffee powder and seasoning blends.

Flexible Filling Range from 5 g to 5000 g
Interchangeable augers allow easy adjustment for different filling volumes, suitable for small sachets as well as large containers.

Weighing Feedback for Consistent Results
Integrated weighing system automatically corrects filling deviations caused by density variations, ensuring uniform product quality.

Dust Free Filling for Hygienic Production
Equipped with anti-dust filling nozzle and optional vacuum dust collection system, effectively reduces powder scattering and keeps the workspace clean.

Designed for Various Food Powder Applications
Widely used for coffee powder, protein powder, spices, flour, cocoa powder and other dry food ingredients.

User Friendly PLC Touchscreen Control
Simple interface allows operators to adjust parameters quickly, improving efficiency and reducing training time.

Optional Screw Feeder for Continuous Operation
Automatic feeding system supplies powder to the hopper, minimizing manual work and increasing production efficiency.

Parameter of Food Powder Filling Machine

• Machine Model: FZ-FM750F
• Machine Supply: 110V 220 V 380 V 50/60 Hz
• Powder: 2.2 KW
• Production Capacity: Based on Filling Volume
• Filling Range: 5-50 g, 50-300 g, 300-1000 g, 1000-5000 g (By Change Auger)
• Hopper Size of Filling Machine: 50 L
• Hopper Size of Feeding Machine: 150 L
• Feeder Pipe Diameter: 102 mm
• Feeder Ground Height: Customizable
• Number of Filling Heads: 1 Head (Multiple Heads Are Optional)
• Measurement Error: ±1%
• Machine Size: 2950*1150*2000 mm

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

FAQ（Food Powder Filling Machine）

What types of food powders can this machine handle?

This powder filling machine is suitable for a wide range of food powders, including coffee powder, protein powder, spices, flour, cocoa powder and seasoning blends. It performs well with both free-flowing and non-free-flowing powders.

What is the filling range of this machine?

The filling range is from 5 g to 5000 g. By changing augers, the machine can easily adapt to different packaging sizes such as small sachets, jars and bottles.

How accurate is the filling process?

The machine offers high filling accuracy of up to ±1%. With the integrated weighing feedback system, it can automatically adjust for density variations, ensuring consistent results especially for protein powder and mixed seasonings.

Is this machine suitable for food-grade production?

Yes, it is designed for hygienic food production. The anti-dust filling nozzle and optional vacuum dust collection system help maintain a clean working environment and reduce powder contamination.

Can it reduce dust during filling?

Yes. The machine is equipped with an anti-dust filling system, and it can also be fitted with a vacuum dust collector to minimize airborne powder and keep the production area clean.

Is it easy to operate for beginners?

The PLC touchscreen control panel makes operation simple and intuitive. Operators can easily set filling weight, speed and other parameters with minimal training.

Can this machine be used for different packaging types?

Yes, it is suitable for filling powders into bottles, jars, bags and containers, making it versatile for various food packaging needs.

Does the machine support automatic feeding?

An optional screw feeder can be added to automatically supply powder to the hopper, improving efficiency and enabling continuous production.

Is it suitable for small or medium food businesses?

Yes, this semi-automatic powder filling machine is ideal for small to medium scale food production, offering a balance between cost, flexibility and precision.

This automatic food powder filling machine is specially designed for accurate and hygienic filling of edible powders such as protein powder, ground nutmeg, spices, flour, and seasoning blends. Using a precision auger filling system, it ensures stable dosing with an accuracy of up to ±1%, making it ideal for food manufacturers requiring consistent product quality.

The double head filling design significantly increases production efficiency, while the integrated material feeder and mixing hopper enable continuous and smooth powder feeding, preventing clogging and ensuring uniform filling performance.

All material contact parts are made of food-grade SUS316 stainless steel, ensuring compliance with hygiene standards and safe handling of food powders. The user-friendly touchscreen control system allows quick parameter adjustments, supporting flexible filling ranges from 5g to 5000g for different packaging needs.

This food powder filling machine with feeder and conveyor can be seamlessly integrated with capping and labeling machines, making it an ideal solution for building a fully automated food packaging line and improving overall production efficiency.

Key Features

1. High-Precision Auger Filling System
Advanced auger filling technology ensures accurate and consistent dosing with up to ±1% accuracy, ideal for food powders like protein powder, milk powder, and spices.

2. Double Head Design for Higher Efficiency
Equipped with dual filling heads to significantly increase production speed (20–40 bottles/min), making it suitable for medium to large-scale food production.

3. Food-Grade SUS316 Construction
All contact parts are made of SUS316 stainless steel, ensuring hygienic and safe handling of edible powders, compliant with food industry standards.

4. Automatic Feeder & Mixing Hopper
Integrated material feeder and mixing hopper provide continuous and smooth powder supply, preventing clogging and ensuring uniform filling performance.

5. Wide Filling Range & Easy Adjustment
Supports flexible filling volumes from 5g to 5000g by changing augers, suitable for different packaging sizes and product types.

6. User-Friendly Touchscreen Control
PLC-based touchscreen panel allows easy parameter setting and real-time monitoring, improving operational efficiency and reducing training time.

7. Expandable for Full Production Line
Can be integrated with capping and labeling machines to build a fully automatic food packaging line, reducing labor costs and increasing productivity.

Food Powder Filling Machine Parameter

• Machine Model: FZ-FM5D
• Voltage: 110 V/220 V/380 V, 50 Hz/60 Hz
• Power: 10 KW
• Quantity of Filling Heads: 2 (Customizable)
• Production Capacity: 20-40 Bottles/min (Depending on Filling Materials)
• Filling Volume: 5-50 g/ 50-300 g/ 300-1000 g/ 1000-5000 g (Change Auger)
• Filling Accuracy: ±1%
• Hopper Size of Feeding Machine: 150 L
• Feeder Pipe Diameter: 133 mm
• Feeder Ground Height: 2800 mm
• Machine Dimension: 4100*4070*3250 mm(L*W*H)
• Package Size: 2190*1320*2400 mm (Filling Machine), 4350*250*410 mm (Material Feeder)
• Package Weight: 940 kg (Filling Machine)+63 kg (Material Feeder)

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

This food powder filling machine is specially designed for accurate and hygienic filling of dry food powders such as flour, milk powder, coffee powder, spices, and protein powder.
Equipped with a servo auger system and intelligent weighing control, it ensures high precision filling while maintaining consistent product quality.

Built with food-grade stainless steel, the machine meets hygiene requirements for food production and is easy to clean and maintain. It is widely used in food factories, small businesses, and commercial packaging lines for bottles, jars, and containers.

Key Features

• High Precision Auger Filling
  Servo-driven auger system ensures accurate and consistent filling for various food powders such as flour, milk powder, coffee, and spices.
• Food-Grade Stainless Steel Construction
  All contact parts are made of food-grade stainless steel, ensuring hygiene, safety, and compliance with food production standards.
• Intelligent Weighing System
  Integrated weighing control automatically adjusts filling volume for precise quantitative powder filling, reducing waste and improving efficiency.
• User-Friendly PLC Control Panel
  Easy-to-use interface allows quick parameter setting and real-time monitoring, simplifying operation for both beginners and professionals.
• Adjustable Filling Height & Versatile Use
  Compatible with bottles, jars, and containers of different sizes, ideal for powder bottling and food packaging applications.
• Stable Performance & Durable Structure
  Equipped with a high-quality motor and robust frame to ensure long-term continuous operation with minimal maintenance.
• Compact Design for Flexible Production
  Space-saving structure suitable for small workshops and industrial production lines alike.

Food Powder Filling Machine Parameter

• Machine Model: FZ-FM710
• Voltage: 110/220/380 V 50-60 HZ
• Main Motor Power: 1.25 KW
• Filling Type: Weight Control or Auger Filling
• Filling Range: 10-2000 g (Customized)
• Suitable Bottle Diameter: 25-150 mm
• Suitable Bottle Height: 60-300 mm
• Hopper Size: 25 L
• Working Speed: 1-30 bottles/min
• Machine Size: 450*650*1860 mm(Machine) About 265*265*570 mm(Weighing Device)
• Machine Weight: 128 kg
• Package Size: 1900*2170*820 mm
• Package Weight: 171 kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required

FAQ

1. What products can this powder filling machine handle?

This food powder filling machine is suitable for a wide range of dry powders, including flour, milk powder, coffee powder, protein powder, spices, sugar, and other fine or semi-free-flowing powders.

2. Is this machine suitable for food-grade applications?

Yes, all contact parts are made of food-grade stainless steel, ensuring hygiene and safety for food production. It is suitable for industries such as bakery, dairy, and seasoning.

3. What is the filling accuracy of the machine?

The machine uses a servo auger system combined with a weighing control system, ensuring high precision filling. Accuracy may vary slightly depending on the material, but it is ideal for quantitative powder filling.

4. Can it work with different container sizes?

Yes, the filling height is adjustable, making it compatible with bottles, jars, cans, and other containers used in powder packaging applications.

5. Is it easy to operate for beginners?

Absolutely. The machine is equipped with a user-friendly PLC control panel, allowing operators to easily set parameters such as filling weight and speed. Minimal training is required.

6. Does the machine support different types of powders?

Yes, it works well with various food powders, including fine powders and slightly granular materials. For special materials, customization options are available.

7. How do I clean and maintain the machine?

The machine is designed for easy cleaning, with stainless steel parts that can be quickly disassembled. Regular cleaning ensures hygiene and long service life.

8. Is this machine suitable for small businesses or industrial use?

This powder filling machine is suitable for both small-scale production and industrial manufacturing, offering flexibility and efficiency for different business needs.

9. Can the machine be customized?

Yes, customization is available based on your production requirements, such as hopper size, filling range, or additional functions.

10. What industries commonly use this machine?

It is widely used in food industries such as bakery, dairy, beverage, and seasoning production, as well as other industries requiring powder filling solutions.

This automatic honey bottle filling capping machine is designed for high-viscosity food products such as honey, sauce, jam, and syrup. Equipped with a servo-controlled piston pump, it ensures stable filling performance and high accuracy, making it ideal for small bottle production.

The machine integrates bottle positioning, filling, cap feeding, and capping into one compact system, improving efficiency while reducing manual labor. Its anti-drip filling nozzles effectively prevent material leakage, which is especially important when handling thick liquids like honey or chili sauce.

With a vibratory bowl feeder for automatic cap sorting and feeding, the machine enables continuous and consistent operation. The user-friendly touchscreen control panel allows easy parameter adjustment, making it suitable for different bottle sizes and filling volumes.

This bottle filling capping machine is widely used in food processing industries and is a reliable solution for businesses looking to automate honey bottling, sauce packaging, or other viscous liquid filling applications.

Key Features

High Accuracy Servo Piston Filling: Powered by a servo-controlled piston pump, this machine delivers precise and stable filling performance. - Ideal for honey, syrup, and other high-viscosity liquids that require consistent dosing.

Designed for High-Viscosity Products: Specially engineered for thick liquids such as honey, jam, chili sauce, and paste. - Ensures smooth filling without clogging, dripping, or inconsistent flow.

Anti-Drip Filling System: Equipped with pneumatic anti-drip nozzles to prevent stringing and leakage. - Keeps bottles clean, reduces product waste, and improves overall packaging quality.

Automatic Filling & Capping Integration: Combines bottle positioning, filling, cap feeding, and capping into one compact system. - Streamlines production and reduces manual labor.

Precision Servo Capping Control: Servo motor-driven capping system ensures consistent torque and tight sealing, improving product reliability and minimizing cap damage.

Vibratory Bowl Cap Feeding: Automatic cap sorting and feeding system keeps production continuous and efficient, eliminating manual cap placement.

Stable Starwheel Positioning: Starwheel mechanism ensures accurate bottle alignment during filling and capping, reducing errors and improving consistency.

Built for Food Production: Made for food-grade applications such as honey bottling, sauce packaging, and syrup filling. Reliable for small to medium-scale production lines.

Honey Bottle Filling Capping Machine Parameter

• Machine Model: FZ-AFC34
• Power: 220 V 50 Hz 4.2 KW
• Cover Size: Customized
• Bottle Size: Customized
• Filling Capacity: 200-300 ml (Based on syrup)
• Filling Pump: Double-Head Servo Piston Filling
• Filling Accuracy: ± 2 %
• Production Efficiency: 30 BPM (Based on filling volume and filling material)
• Working Air Pressure: 0.6-0.8 Mpa
• Machine Size: 2300*1500*1700 mm
• Machine Weight: 800 kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required

This automatic overflow liquid filling machine is designed for food-grade liquid products that require consistent visual fill levels and hygienic processing. It is widely used for filling juice, beverage, vinegar, soy sauce, edible oil, and syrup into bottles with high precision and clean appearance.

Built with food-grade stainless steel, the machine ensures safe contact with consumable liquids while meeting hygiene standards for food production. The overflow filling principle allows each bottle to reach the same liquid level, delivering a uniform shelf appearance that enhances product quality perception.

Equipped with a stable pumping system and precise control panel, this machine supports accurate filling, anti-drip operation, and smooth production flow. It is especially suitable for low-viscosity food liquids and can be integrated with capping and labeling equipment to form a complete bottling line.

Its compact structure and user-friendly interface make it ideal for small to medium food manufacturers, beverage producers, and startup brands looking to improve production efficiency while maintaining consistent filling quality.

Overflow Liquid Filling Machine Parameter

• Machine model: FZ-DTGZ400

• Machine voltage: 110/220V 50-60HZ 150W

• Quantity of filling nozzle: 4

• Working capacity: About 12-20 BPM(based on filling volume)

• Hopper size: 70 L

• Air pressure: 0.4-0.6 MPA

• Suitable filling volume: ≤1500 ml/bottle

• Suitable bottle diameter: Φ=50-80 mm

• Conveyor height from ground: About 236mm+100 mm

• Suitable bottle height: 200-300 mm

• Suitable bottle opening mouth: 20-35 mm

• Machine size: About 1810*1040*1000 mm(L*W*H)

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

This automatic auger powder filling machine is designed for accurate filling of food powders and fine granules such as salt, spices, seasoning powder, milk powder and baby powder. Equipped with a screw conveyor feeder, the machine can automatically transport materials into the hopper, ensuring stable and continuous powder filling during production.

The auger dosing system controls the filling volume through precise screw rotation, which allows the machine to maintain high filling accuracy even when handling light or fluffy powders commonly found in the food industry.

Constructed with food-grade stainless steel, the machine meets hygiene requirements for food processing environments. The compact structure also makes it suitable for integration into semi-automatic or fully automatic powder packaging lines.

This powder filling machine is widely used by food manufacturers for packaging powders into bottles, jars, cans and containers.

Seasoning Powder Filling Machine Parameter

• Machine Model: FZ-FM2A

• Voltage: 220V/110V

• Power: 2000 W

• Filling Speed: 10-15 pcs/min(Based on material)

• Suitable Bottle Diameter: Less than 100 mm

• Applicable Bottle Height: Customized

• Filling Heads: Only one

• Filling Material: Powder Produce like flour

• Package Size: 1352*910*2480 mm(Machine Body) 3270*400*560 mm (Feeder) 935*865*985 mm (Hopper)

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

This semi-automatic powder filling machine is designed for accurately filling food powders into bottles, jars, or small bags. Equipped with a high-precision auger dosing system, it ensures stable and consistent filling performance for a wide range of powdered food products.

The machine is widely used for filling spice powder, coffee powder, flour, seasoning powder, protein powder, and other fine food ingredients. The screw feeding system can accurately control the filling amount, reducing material waste while improving production efficiency.

With its compact structure and user-friendly control panel, this powder filler is suitable for small food factories, workshops, and startup food brands. Operators can easily adjust filling weight according to different packaging requirements.

Made with durable materials and a stable frame, the machine provides reliable performance for daily food production. It supports both bottle filling and sachet filling, making it a flexible solution for various food packaging needs.

Auger Powder Filling Machine Parameter

• Machine Model: FZ-FM100P

• Machine Voltage: 110/220V 50-60HZ

• Machine Power: 750W

• Filling Method: Auger Filling

• Suggested Filling Volume: 0.1g-1g, 1-5g, 5-10g,10-30g, 30-50g,50-100g (can be chosen according to requirement)

• Filling Accuracy: ±2%

• Filling Speed: 20-30 bottle/min

• Hopperl Size: 5L

• Machine Size: About 805*660*1540 mm

• Machine Weight: About 82 KG
• Packaging Size: 900*700*1600 mm
• Packaging Weight: 110 KG

*Specifications are for reference only and may vary by your product. Please confirm with us if required

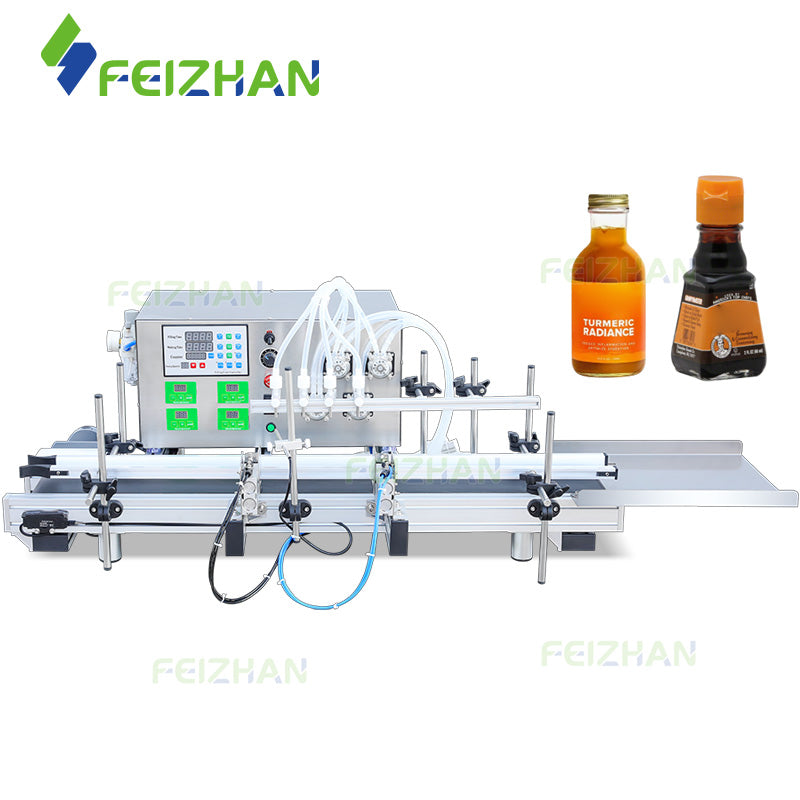

This automatic food liquid filling machine uses a hygienic peristaltic pump system to accurately fill sauces, edible oils, beverages, and other liquid foods. The 4 nozzles design improves production efficiency while maintaining precise volume control for small bottles from 3–50 ml. Ideal for food manufacturers, laboratories, and small batch production lines.

Food Liquid Filling Machine Parameter

• Model: FZ-DTPP4W

• Power: 20W（Each Pump）

• Recommend Filling Volume: 3-50 ml

• Maximum Flow: 650 ml/min for Each nozzle (Based on water)

• Filling nozzle: 4 Nozzle ( Can be customized)

• Working Speed: 30-50 Bottles/min (based on bottle and liquid)

• Air Pressure: 0.3-0.4 mpa

• Filling Accuracy: ≤±1%

• Dimension of Filling Nozzle: Standard 8 mm and 6 mm

• Delay Range: 0.01-999.9 s

• Belt Length: 1.0 m

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

The automatic granule weighing filling machine is designed for accurately filling food granules into bottles or containers. Equipped with a precise weighing system, the machine measures the required amount of product before dispensing, ensuring consistent filling accuracy and reducing material waste.

This machine is widely used for packaging a variety of food granules such as coffee beans, nuts, grains, seeds, candy, and seasoning particles. The controlled weighing process ensures each container receives the correct portion, making it suitable for food manufacturers that require reliable and repeatable filling performance.

The machine features a stainless steel structure and food-grade contact parts, making it suitable for food processing environments. The integrated control system allows operators to easily adjust filling weight and working speed through the touchscreen interface, improving production efficiency while maintaining stable packaging quality.

With a conveyor-based design and automatic bottle detection, the machine supports continuous production and can be integrated into food packaging lines for granule bottling, snack packaging, and seasoning filling applications.

Food Granule Weighing Filling Machine Parameter

• Machine Model: FZ-GW4C

• Machine Voltage: 110/220V 50-60HZ

• Power: 50 W

• Filling Range: 50-500 g

• Filling Precision: ±1% (Depending on the material and filling range)

• Working Speed: About 10-20 pcs/min

• Machine Size: About 1900*450*1920 mm

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

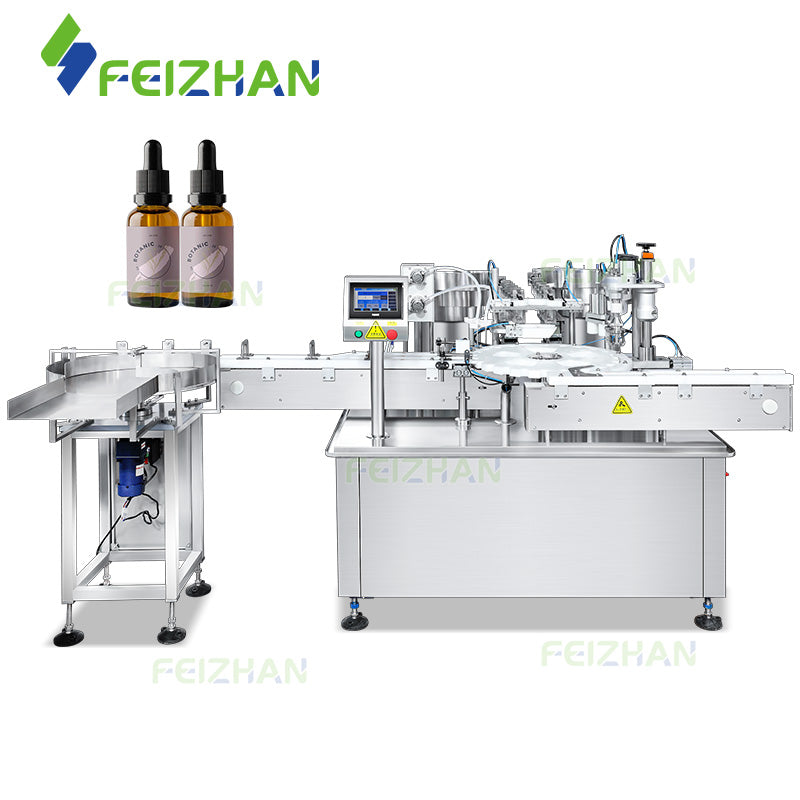

This monoblock cam-driven dropper bottle filling machine is specially designed for filling and capping small-volume food liquids such as edible oils, liquid flavors, nutritional extracts, and concentrated seasoning drops.

Equipped with dual 316 stainless steel magnetic pumps, the machine ensures hygienic, corrosion-resistant, and high-precision dosing from 1-100ml. The cam indexing star wheel system provides accurate bottle positioning, enabling stable operation at 60-70 bottles per minute.

The integrated system completes bottle positioning, liquid filling, dropper cap placing, and screw capping in one compact unit, reducing labor cost and improving production efficiency.

Dropper Bottle Filling Machine Parameter

• Machine Model: FZ-AFC27YT
• Machine Voltage: 220V/50HZ/5A (110V is Customizable)
• Recommend Filling Volume: 1-100 ml (Customizable)
• Filling Pump Type: 316 Magnetic Pump
• Max Flow Rate: 3L/min (Based on water)
• Working Capacity: 60-70 BPM (Based on filling volume & filling material)
• Suitable Bottle Size: Customizable
• Bottle Cap Size: Customizable
• Air Pressure: 0.6-0.8 MPa
• Machine Size: 2100*1460*1240 mm
• Machine Weight: 1500 kg
• Package Size: 2370*1230*1770 mm
• Package Weight: 1600 kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

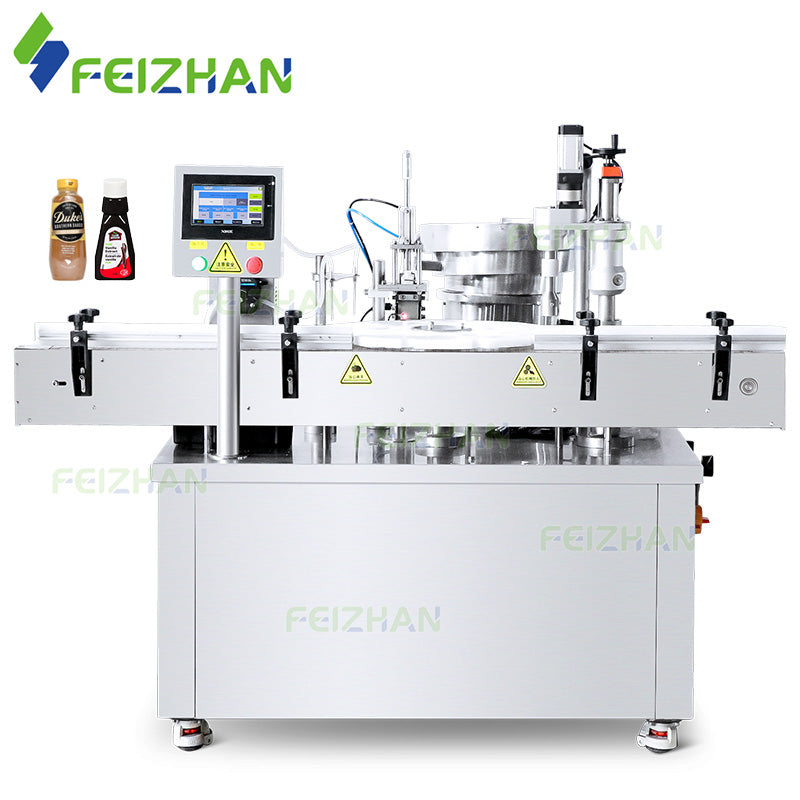

This automatic food liquid filling capping machine is designed for hygienic, small-volume packaging of low-viscosity edible liquids such as flavorings, extracts, light syrups, vinegar-based seasonings, and food additives. It uses a Peristaltic Pump system where the liquid only contacts the tubing, preventing cross-contamination and ensuring product purity. The monoblock structure integrates filling, cap feeding, and servo-controlled capping, delivering stable operation, ±1% accuracy, and efficient production for 10–60 ml food bottles.

Food Liquid Filling Capping Machine Parameter

• Machine Model: FZ-AFC32

• Voltage: 110/220V 50-60HZ

• Filling Pump: Peristaltic Pump

• Filling Hose Size: #17

• Filling Nozzle Quantity: 2

• Filling Range: 10-60 ml(Customized)

• Filling Accuracy: ±1%

• Working Capacity: About 30 BPM

• Material of Filling Nozzle: SUS304

• Material of Vibratory Bowl Sorter: SUS304

• Machine Size: 1800*1670*1450 mm(L*W*H)

• Package Size: 2490*960*1670 mm(L*W*H)

• Package weight: About 632 kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required

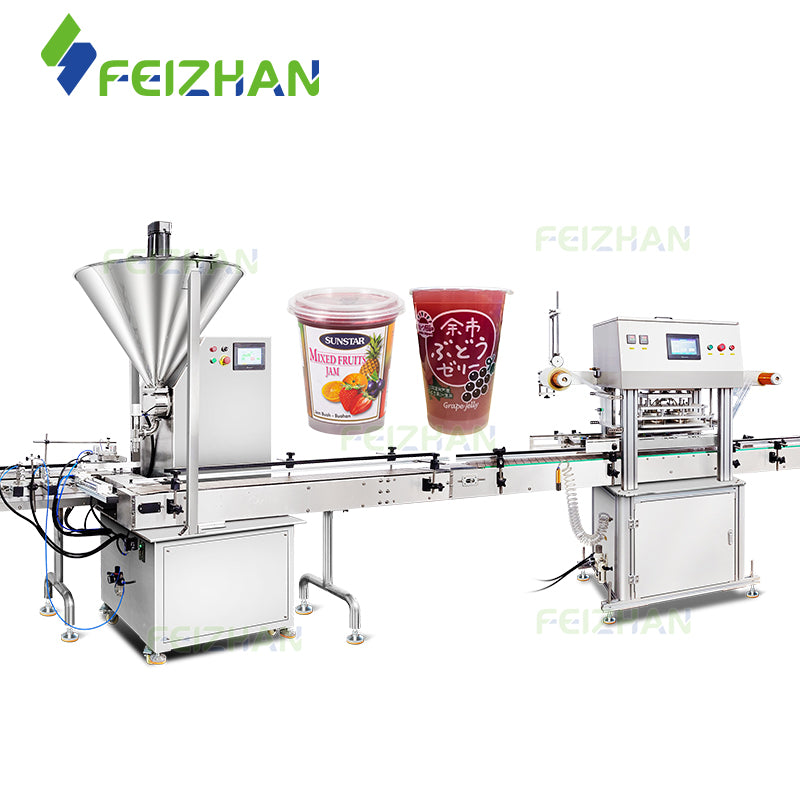

This automatic cup filling and sealing line integrates a rotor pump weighing filling machine with a flexible sealing system, designed for puree and other high-viscosity pastes. It delivers precise dosing through a weighing function, supports round and square cup sealing, and ensures uniform product consistency with an integrated mixing system. Ideal for food applications requiring accuracy, hygiene, and customizable production capacity.

Filling Machine Parameter

• Machine Model: FZ-RPVW1

• Machine Voltage: 110/220 V 50-60 HZ 2.5 KW

• Filling Pump: Rotor Pump

• Filling Range: 50-5000 ml

• Weighing Range: 0-8000 g

• Filling Accuracy: ±1%

• Bottle Size: 40-150*80-140 mm(φ*H) (Customizable)

• Hopper Size: 80 L

• Working Capacity: 8-10 BPM (Based on 1000 ml filling volume)

Sealing Machine Parameter

• Machine Model: FZ-FKR2T

• Machine Voltage: 110/220V 50-60 HZ 2 KW

• Quantity of Sealing Heads: 1/2/3/4 (Can be customized based on bottle size)

• Working Speed: 900-1200 BPH

• Heating Temperature: 0-300 ℃

• Sealing Diameter: 50-250 mm(Round or Square, Can be Customized )

• Suitable Film Size: 2-3 mm Larger than bottle mouth

• Suitable Film Material: PP/PE/PET/PS/ Aluminum foil film

• Air Pressure: 4-8 kg/cm²

• Machine Size: 2500*1000*1500 MM

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

FAQ

Q1: What types of products can this machine handle?

This filling and sealing line is designed for puree and other high-viscosity pastes, such as fruit puree, baby food, jam, sauce, and similar food products that require accurate weight control.

Q2: How does the weighing filling system improve accuracy?

The machine uses an integrated weighing system to control the filling process by weight rather than volume. This ensures consistent filling results and reduces product waste, especially for high-viscosity materials.

Q3: Can the machine support different cup sizes and sealing shapes?

Yes. The filling range, cup size, and sealing molds can all be customized. The sealing system supports both round and square cup sealing to meet different packaging design requirements.

Q4: Is the machine suitable for continuous food production?

Yes. The machine is built with food-grade materials and a stable conveyor system. Optional mixing and heating functions help maintain uniform product consistency during continuous operation.
