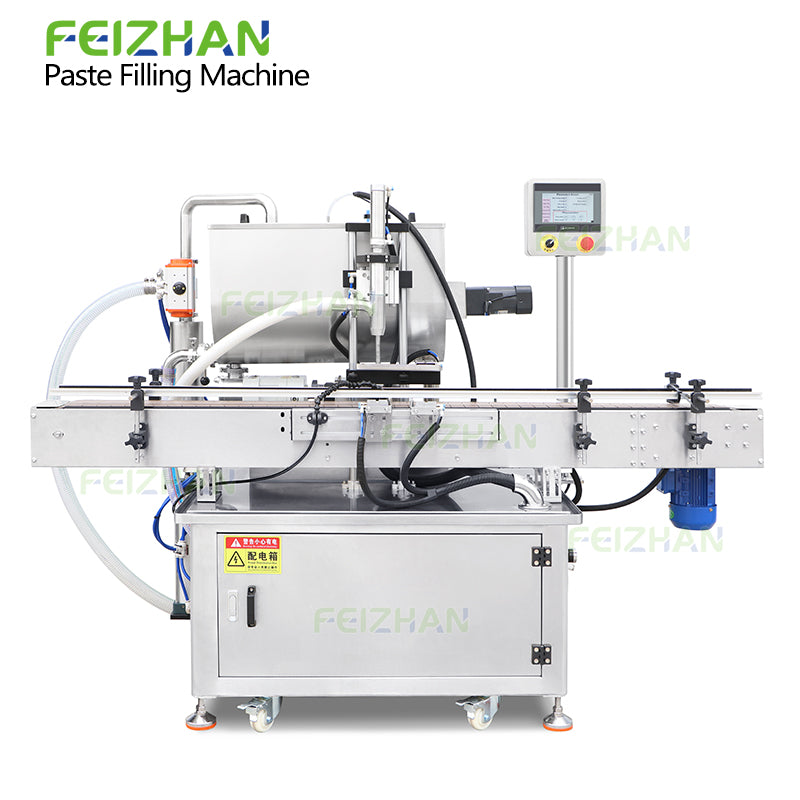

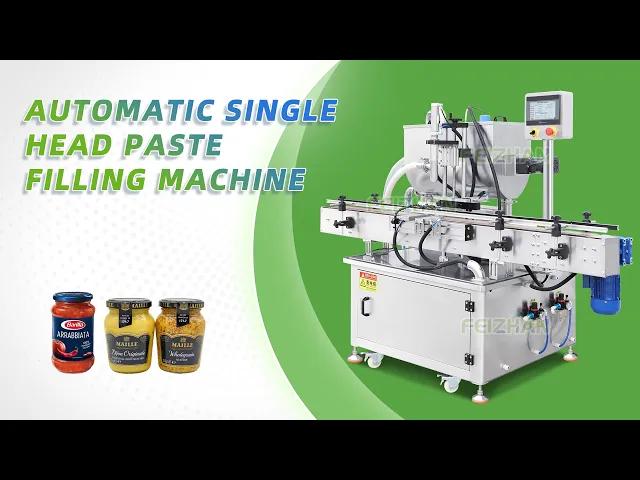

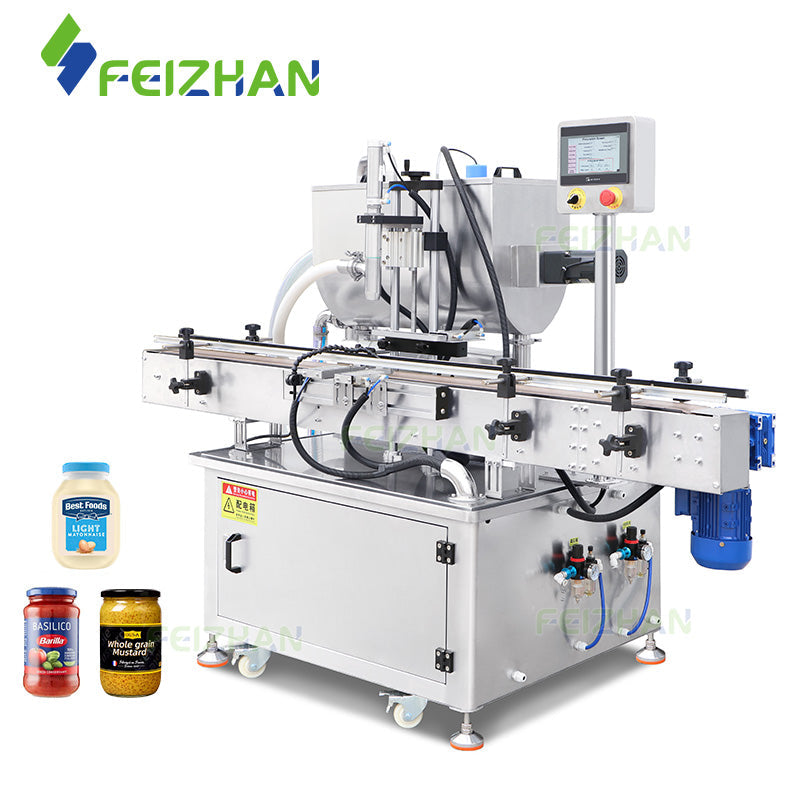

Automatic Food Paste Filling Machine for Bottled Jam and Honey Products
Machine Overview
The Automatic Food Paste Filling Machine fills high-viscosity food products — sauces, jams, honey, ketchup, mayonnaise, and other thick pastes — through a servo rotor pump with a 70L mixing hopper and anti-drip filling nozzle.
A rotor pump moves product through low-shear rotation rather than high-pressure displacement — the relevant distinction for thick pastes where a piston or gear pump at filling pressure would alter texture or consistency before the product reaches the container. Servo actuation controls rotor speed rather than running at a fixed rate, which keeps fill volume consistent when viscosity shifts between batches or across a long production run.
The 70L mixing hopper keeps material in motion during production. For products that separate or settle at rest — honey crystallizing, sauce solids sinking — continuous mixing maintains the consistency the filling mechanism expects at the nozzle. Without it, what the pump draws at the start of a run differs from what it draws an hour in.
The anti-drip nozzle cuts product flow cleanly at cycle end. For thick pastes that string or cling after dispensing, that clean cutoff keeps the container exterior and the cap seating area free of residue — which affects both appearance and downstream capping consistency.
Filling range covers 100 ml to 1,000 ml. Output reaches approximately 20 to 30 bottles per minute depending on fill volume and product viscosity. Customizable filling heads and a conveyor system allow the machine to run as a standalone filling unit or integrate into a complete automated food packaging line.
Machine Features
Servo Rotor Pump Filling System
The servo rotor pump is designed for filling thick and viscous food products with stable material transfer. It helps control filling volume accurately while handling products such as sauce, jam, honey, and other paste materials. The filling head quantity can be customized according to different production requirements, allowing the machine to adapt to various filling capacities.
Mixing Hopper for Consistent Food Materials
The large 70L hopper is equipped with a mixing system to keep food materials evenly distributed during filling. It helps reduce material separation and supports continuous feeding for products with uneven textures or high viscosity. This design is suitable for food products that need continuous stirring, including sauces, condiments, and thick pastes.
Anti-Drip Filling Nozzle
The anti-drip filling nozzle helps reduce leftover materials after filling and keeps bottle openings cleaner. It is suitable for sticky food products that may cause dripping during the filling process. The nozzle design can be customized based on different bottle sizes and filling requirements.
Easy Operation Control Panel
The control panel allows operators to adjust filling parameters such as filling volume and machine settings. Multiple languages can be customized according to customer needs. The simple operation interface helps operators quickly set up the machine for different food filling applications.
Automatic Feeding System
The feeding pump supplies materials to the hopper automatically, reducing manual material transfer during production. The level sensor helps monitor material supply and supports continuous filling operation.
Stable Conveyor System
The chain conveyor provides stable bottle transportation during filling. Conveyor size and layout can be customized according to bottle dimensions and production line requirements.
Food Applications
The automatic food paste filling machine is suitable for filling various thick food products:
Sauce Products
- Chili sauce
- Tomato sauce
- Ketchup
- Hot sauce
- Mayonnaise
- Salad dressing
Sweet Food Products
- Jam
- Honey
- Chocolate sauce
- Peanut butter
- Syrup
Other Food Materials
- Condiment paste
- Seasoning sauce
- Thick liquid food products
Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Model | FZ-YT1T-1PXM |
| Filling Pump | Servo Rotor Pump |
| Filling Range | 100-1000 ml (Customizable) |
| Filling Speed | About 20-30 bottles/min |
| Filling Accuracy | ±1% |
| Hopper Capacity | About 70L with mixer |
| Power Supply | 220V/110V, 50-60 Hz |
| Power | 2.5 kW |
| Air Pressure | 0.5-0.7 MPA |
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
Machine Details

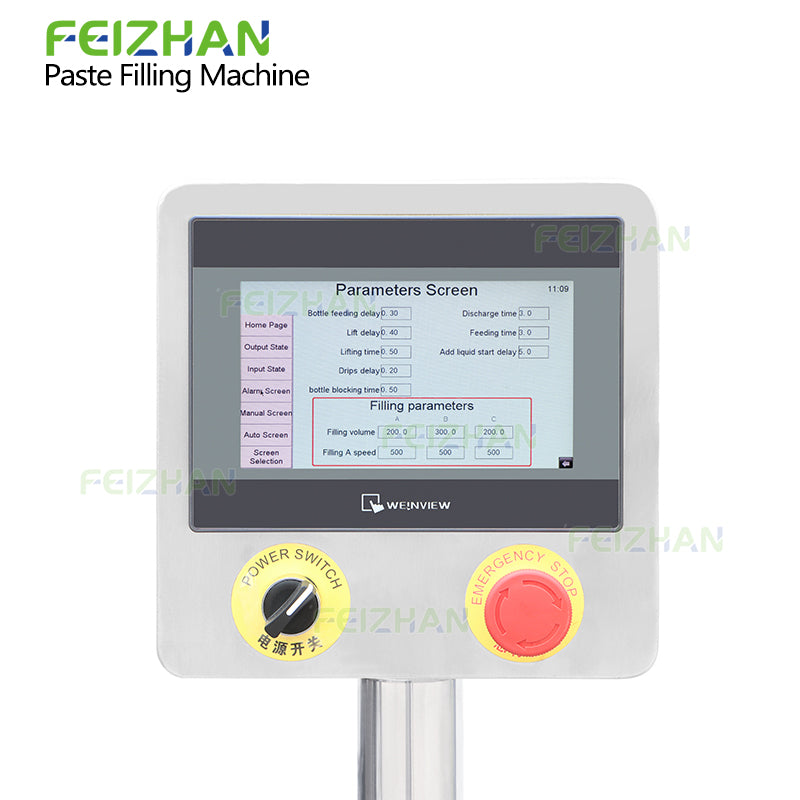

The control panel allows operators to easily set filling parameters, including filling volume and operating speed. Multiple languages can be customized to meet different operating requirements.

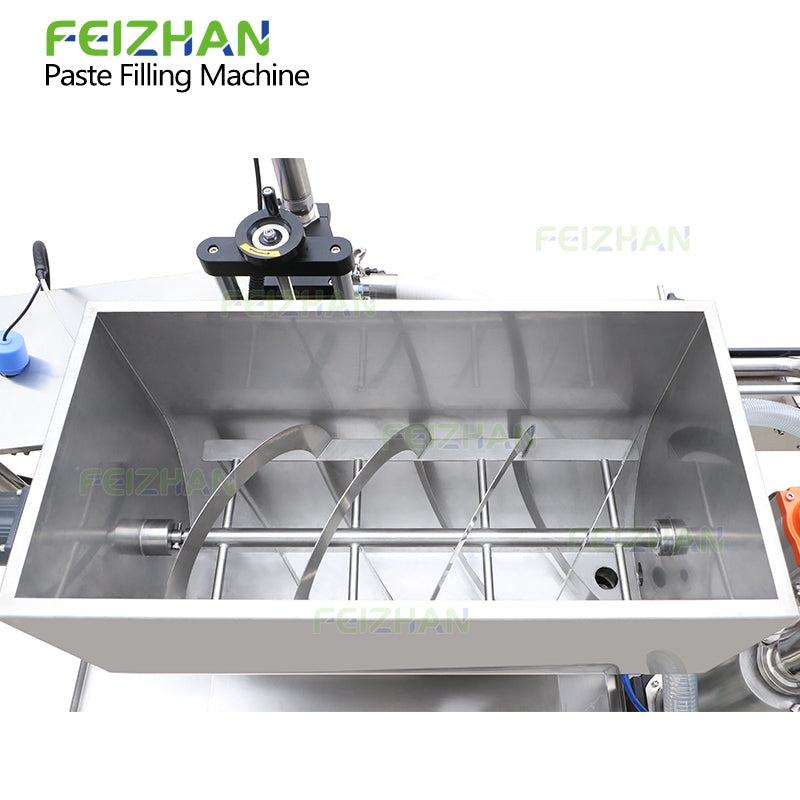

The 70L hopper runs a mixing system continuously during production — not between batches, but throughout the fill cycle. For thick sauces, condiments, and paste foods that separate or settle at rest, that continuous agitation is what keeps the material the pump draws at the end of a run consistent with what it drew at the start.

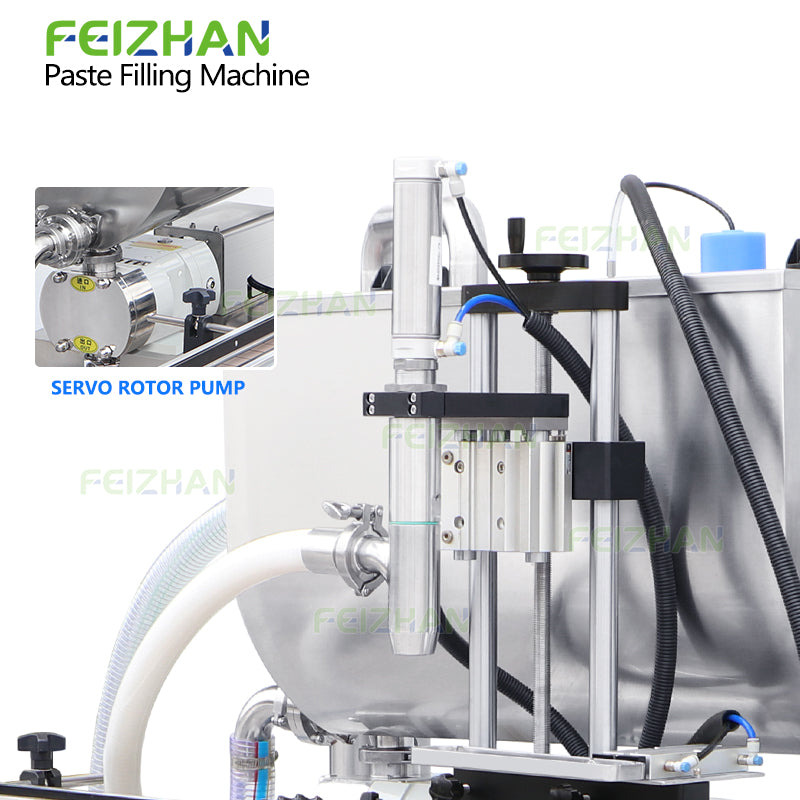

The servo rotor pump is designed for filling thick food products with stable material transfer. It can handle high viscosity materials such as sauces, jams, honey, ketchup, and other paste products while maintaining accurate filling volume.

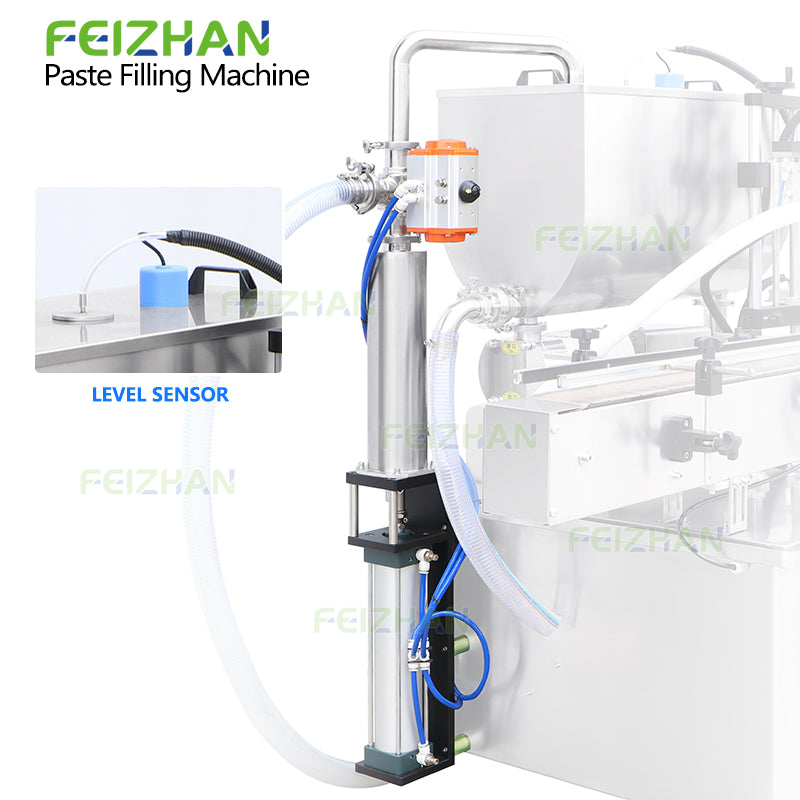

The feeding pump automatically transfers food materials into the hopper, reducing manual feeding work during production. Combined with the level sensor, it helps maintain continuous material supply for stable filling.

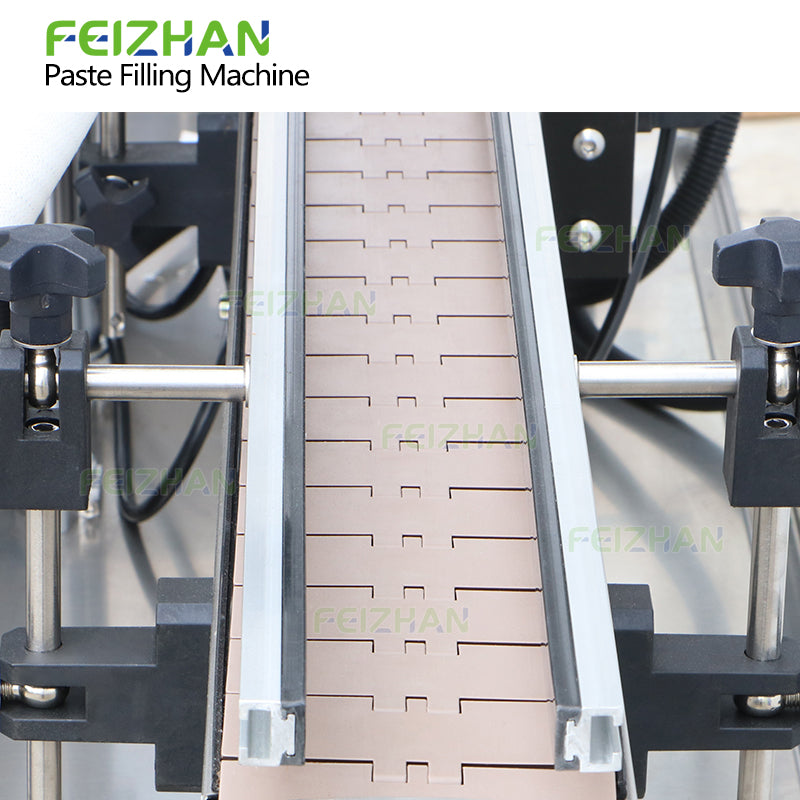

The chain conveyor provides stable bottle transportation during the filling process. The conveyor size and layout can be customized according to different bottle shapes and production line requirements.

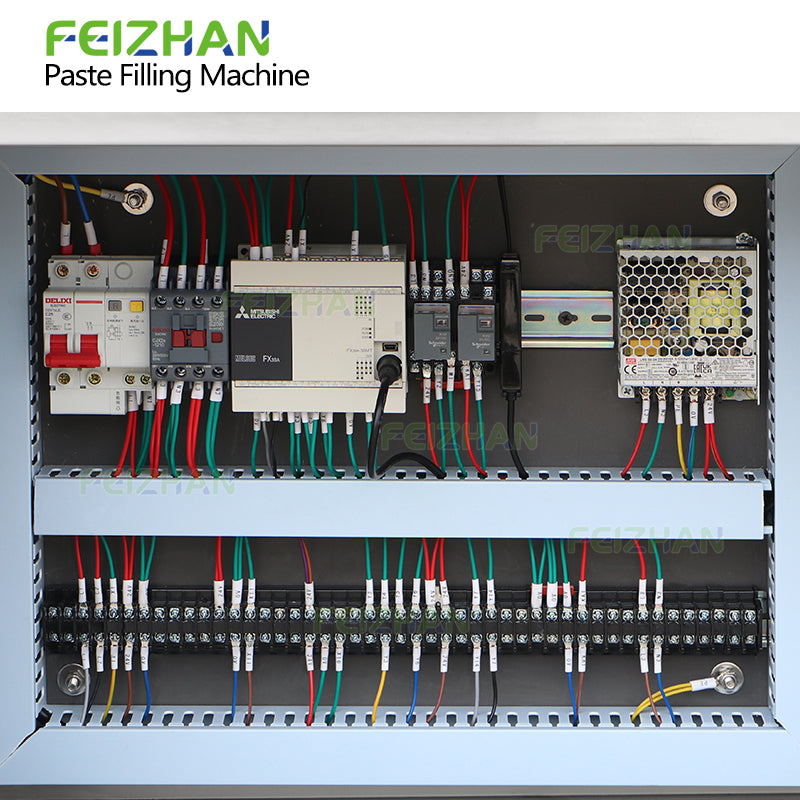

Wiring runs in an organized layout inside the control cabinet. When a fault occurs, a technician traces the source faster in a cabinet where circuits follow a logical structure.
How Does the Food Paste Filling Machine Work?
Food material loads into the 70L mixing hopper, where the mixing system runs continuously throughout production. The mixing stage isn't just storage — it's what keeps the product composition consistent at the nozzle from the first fill cycle to the last.
When a container positions at the filling station, the servo rotor pump transfers paste material from the hopper to the filling nozzle. The rotor mechanism moves product through low-shear rotation — at filling pressure, that's what keeps texture-sensitive pastes intact between the hopper and the container. The nozzle dispenses the preset volume and cuts flow cleanly at cycle end, keeping the container exterior and the cap seating area free of residue.
Filled containers advance on the conveyor to the next packaging stage — capping, labeling, or downstream integration depending on the line configuration.
Filling volume adjusts at the control panel between formats — different container sizes and product types change without mechanical component replacement.
Why Choose This Automatic Food Paste Filling Machine?
Designed for High Viscosity Food Products
Compared with standard liquid fillers, this machine is developed for thicker materials. The servo rotor pump and mixing hopper allow it to handle products that require stronger feeding capability.
Suitable for Multiple Food Applications
One machine can be used for different products, including sauces, jams, honey, ketchup, and other paste foods. This helps food manufacturers reduce equipment investment when producing multiple product types.
Supports Production Line Integration
The conveyor structure allows connection with other automatic packaging equipment, such as capping machines, labeling machines, and packaging lines.
Customizable Filling Solutions
Filling heads, conveyor dimensions, and machine configurations can be customized according to different bottle sizes, production speeds, and product characteristics.
Frequently Asked Questions
1. What food products can this filling machine handle?
This machine is suitable for thick food products including sauce, jam, honey, ketchup, mayonnaise, peanut butter, and other paste materials.
2. Can this machine fill high viscosity products?
Yes. The servo rotor pump is designed for handling viscous liquids and paste products that require stable material transfer.
3. Does the machine support product mixing?
Yes. The machine is equipped with a 70L hopper with a mixing function to help maintain consistent material texture during filling.
4. Can the filling volume be adjusted?
Yes. The filling range can be adjusted from 100ml to 1000ml, and customization is available for different requirements.
5. Can this machine be connected to a production line?
Yes. The machine can be integrated with other automatic packaging equipment according to production needs.
