Mixing & Processing Tanks
2 products
2 products
Sort by:
- Featured
- Most relevant
- Best selling
- Alphabetically, A-Z
- Alphabetically, Z-A
- Price, low to high
- Price, high to low
- Date, old to new
- Date, new to old
$10,250.00
Product Description

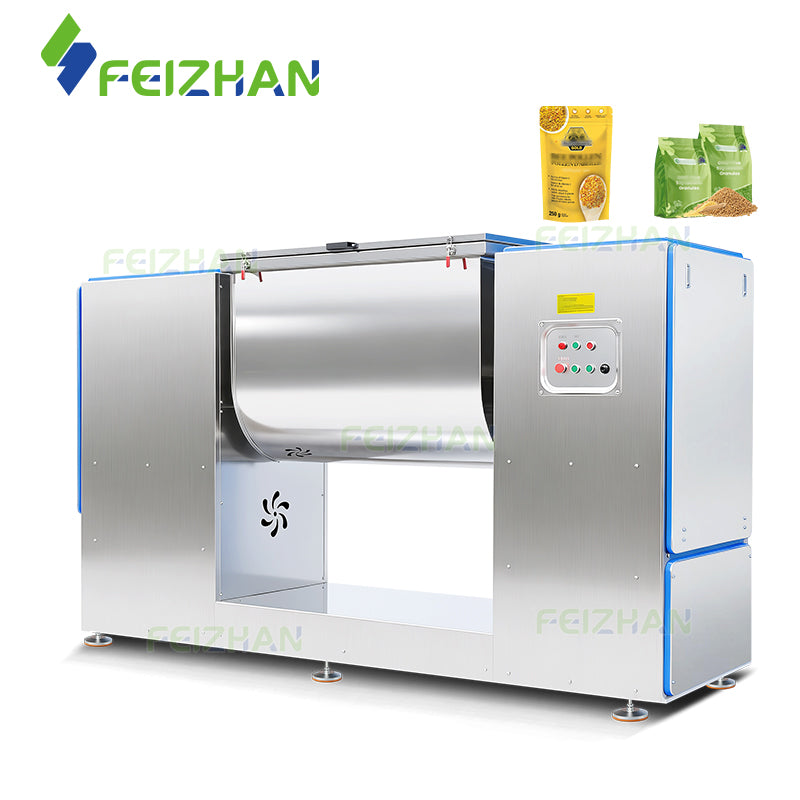

FZ-BM600L 600L Horizontal Powder Mixing Machine Built for powder and granule blending, in food processing and industrial settings alike. A 600L tank gives it real batch capacity — enough for dry ingredients across a range of volumes.
Tank and internal structure: SUS304 stainless steel throughout. Holds up over time, and cleaning between runs stays straightforward. Inside, mixing ribbons pair with blades. Together they increase material contact, so the blend comes out thorough rather than patchy.
Mixing speed adjusts by material — thicker or finer, the setting shifts accordingly. Discharge is easy too, thanks to the tilting tank design. Less manual handling, faster turnaround between batches.
Food powders, seasoning powders, nutritional powders — this machine covers most dry powder and granule materials, prepping them for whatever comes next, whether that's further processing or straight to packaging.
Features
Large 600L Mixing Capacity
The machine is equipped with a 600L large-capacity mixing tank, providing efficient mixing performance for powder and granule materials. The tank capacity can also be customized according to different production requirements.
SUS304 Stainless Steel Construction
The mixing tank and internal mixing structure are made of SUS304 stainless steel, offering a durable structure and suitable contact surface for food powder and granule mixing applications.
Ribbon & Blade Mixing Structure
The internal mixing system combines ribbons and blades to promote thorough material blending and achieve more uniform mixing results.
Adjustable Mixing Speed
The mixing speed can be adjusted from 0–27 rpm, allowing operators to set suitable parameters according to different material characteristics and mixing requirements.
Tilting Tank for Easy Discharge
The mixing tank can be tilted after processing, helping discharge mixed materials more conveniently and improving production efficiency.
Covered Mixing Chamber
The tank cover helps create a more enclosed mixing area, reducing powder spraying during operation and helping prevent external contamination.
Simple Control Panel
The control panel allows operators to easily adjust operating parameters, including mixing speed and tilting angle, making daily operation more convenient.
Suitable for Powder & Granule Materials
Designed for dry material blending, this horizontal mixer is suitable for mixing various powder and granule ingredients before further processing or packaging.
Applications
This industrial powder mixer is suitable for mixing various food ingredients and dry materials, such as:
- Flour and baking ingredients
- Spice powder and seasoning powder
- Protein powder and nutritional powder
- Coffee powder and beverage powder
- Grain and cereal mixtures
- Food additives and premixes
- Other powder and granule materials
Application suitability depends on the characteristics of the materials being mixed.
Technical Specifications
|
Machine Model |
FZ-BM600L |
|
Power Supply |
3-Phase, 380V, 7.5KW |
|
Mixing Speed |
0-27 r/min |
|
Tank Capacity |
600L |
|
Tilting Motor |
1.5 kW |
|
Tank & Mixing Structure |
SUS304 |
|
Package Size |
About 2990*890*1920 mm |
|
Package Weight |
About 1080 kg |
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
Machine Detail
The control panel allows operators to adjust machine parameters easily, including mixing speed and tilting angle, providing convenient operation for daily production.
After the mixing process is completed, the tank can be tilted to help discharge the mixed materials more efficiently. This design reduces manual handling effort and makes material transfer more convenient.
Improve the contact between different materials and achieve more uniform mixing results. Mixing structure is suitable for blending different powder & granule ingredients evenly before other production processes.
The tank cover helps create an enclosed mixing environment, helping reduce powder spraying during operation and protecting the mixing area from external contamination.
Why Choose This Food Powder Mixer?
- Large 600L capacity for efficient ingredient mixing
- Suitable for powder and granule material blending
- SUS304 stainless steel construction
- Uniform mixing with ribbon and blade structure
- Adjustable mixing speed for different materials
- Tilting tank design for easier discharge
- Simple operation and maintenance
FAQ
What materials can this powder mixing machine mix?
This machine is designed for mixing powder and granule materials. It can be used for various dry food ingredients and similar materials depending on their characteristics.
What is the capacity of this horizontal mixer?
The standard model has a 600L mixing tank capacity. Customized capacities are available according to production requirements.
Is the mixing speed adjustable?
Yes. The mixing speed can be adjusted within 0–27 rpm according to different mixing requirements.
What material is the mixing tank made of?
The tank and mixing structure are made of SUS304 stainless steel.
How are materials discharged after mixing?
The mixing tank can tilt to help discharge finished mixed materials more easily.
$2,799.00

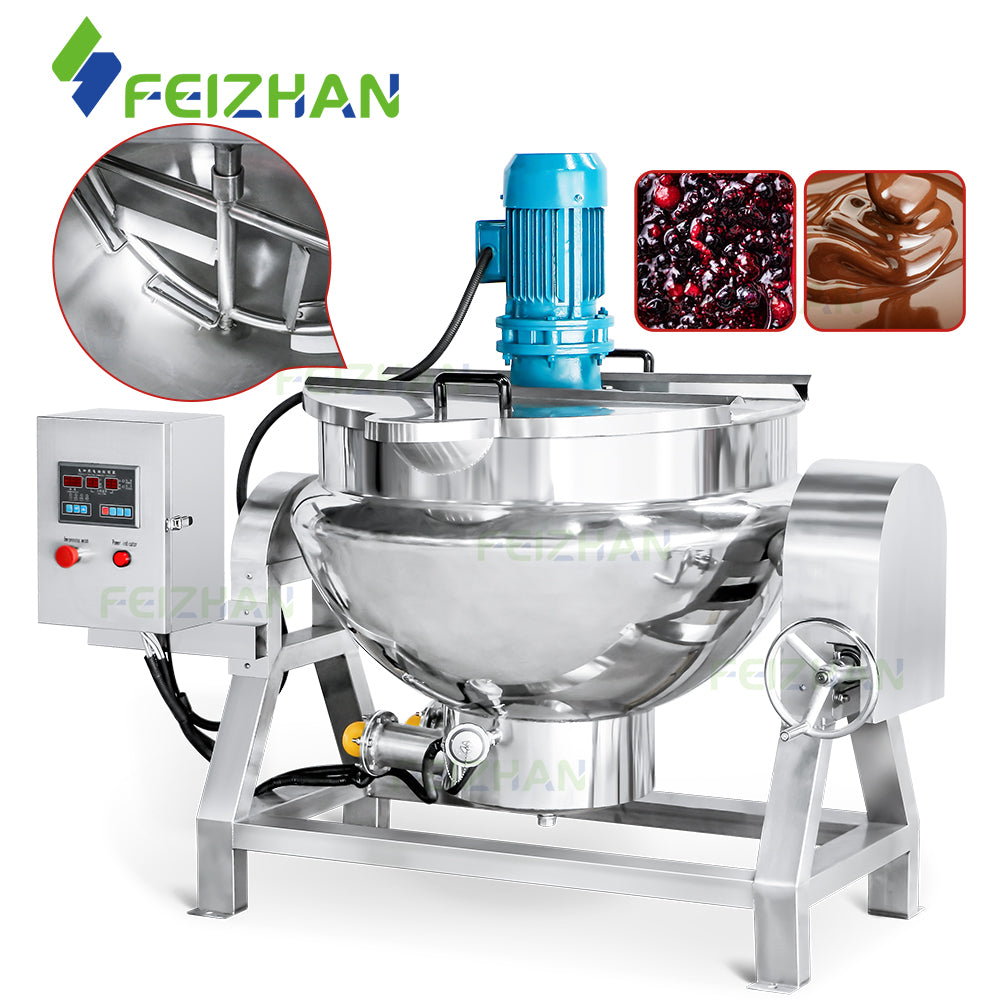

Food-Grade Industrial Jacketed Cooking Mixing Kettle
This 200L industrial jacketed cooking kettle is designed for professional food production, integrating heating, stirring, and uniform mixing in one system. The jacketed structure provides efficient and even heat transfer, preventing burning while ensuring precise temperature control during processing. Equipped with a planetary mixing and wall-scraping system, it is especially suitable for high-viscosity foods such as chili sauce, jam, chocolate paste, candy syrup, caramel, fillings, and thick sauces.
All material contact parts are made of food-grade stainless steel, meeting hygiene standards and allowing easy cleaning after production. The motorized tilting discharge design enables fast and complete emptying, reducing material waste and improving production efficiency. This machine is widely used in sauce factories, confectionery production, central kitchens, and food processing plants for consistent, large-batch cooking and mixing operations.
Jacketed Cooking Kettle Parameter
- Machine Model: FZ-CG200L
- Machine Voltage: 380V
- Mixing Power: 1.5 KW
- Working Capacity: 200 L(Can be customized)
- Heating Power: 12 KW
- Material: 304 Stainless Steel
- Rotating Speed: 40 r/min
- Machine Size: 1000*1000*1000 mm
- Machine Weight: 200 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
Digital control panel allows precise adjustment of heating temperature and mixing speed, improving product consistency and reducing manual operation errors.
All contact parts are made of SUS304 stainless steel, corrosion-resistant, easy to clean, and compliant with food processing hygiene standards.
Motorized tilting system allows safe and complete discharge of materials, minimizing residue and improving production efficiency.
The working capacity, heating method, and mixing configuration can be customized to match different food processing requirements. It helps ensure uniform heating, stable mixing performance, and consistent product quality before filling or further processing.
FAQ – Jacketed Cooking Mixing Kettle
Q1: What types of food products can this cooking mixing kettle process?
This machine is suitable for high-viscosity food materials such as chili sauce, jam, chocolate paste, candy syrup, caramel, fillings, and thick sauces. It is widely used in sauce factories, confectionery production, central kitchens, and food processing plants.
Q2: How does the machine prevent burning during cooking?
The jacketed heating structure provides indirect and uniform heat transfer, while the planetary mixing system with scraping blades continuously stirs the material and prevents sticking to the tank wall, reducing the risk of burning.
Q3: Can the capacity and heating method be customized?
Yes. The working capacity, heating source (electric or steam), mixing type, and additional functions can be customized to match different production requirements.
Q4: Is the machine suitable for thick or sticky materials?
Yes. It is specially designed for high-viscosity processing. The wall-scraping mixing system ensures thorough blending and smooth heat distribution even for dense materials.
Q5: Is the machine easy to clean and maintain?
All material-contact parts are made of food-grade stainless steel with a smooth surface, making cleaning simple and compliant with food hygiene standards.
Q6: Can this kettle be integrated into a production line?
Yes. It can work as part of a food processing line for pre-cooking, blending, and heating before filling, packaging, or further processing.
