Description

Designed for filled chocolate and confectionery production, the FZ-GDJ8 provides precise chocolate depositing with adjustable filling ratios. Its heated hopper helps maintain stable chocolate conditions, while customized molds support different product shapes.

Key Features

• Dual Hopper Design for different chocolate materials

• Adjustable Filling Ratios for different recipes

• Servo Motor Controlled depositing system

• Piston Filling System for accurate portion control

• Heated Stainless Steel Hopper for stable chocolate conditions

• Customized Depositing Molds for different product shapes

• Customizable Nozzle Configuration with up to 8 nozzles

• PLC Touchscreen Control for convenient operation

Applications

The FZ-GDJ8 is designed for filled chocolate and molded confectionery production, especially products requiring controlled chocolate and filling ratios.

• Filled Chocolate

• Center-Filled Chocolate

• Cream-Filled Chocolate

• Molded Chocolate

• Chocolate Confectionery

• Customized Chocolate Products

Its dual-hopper and adjustable filling system allows different chocolate materials to be deposited separately according to the product recipe and mold design.

Detail

Technical Parameters

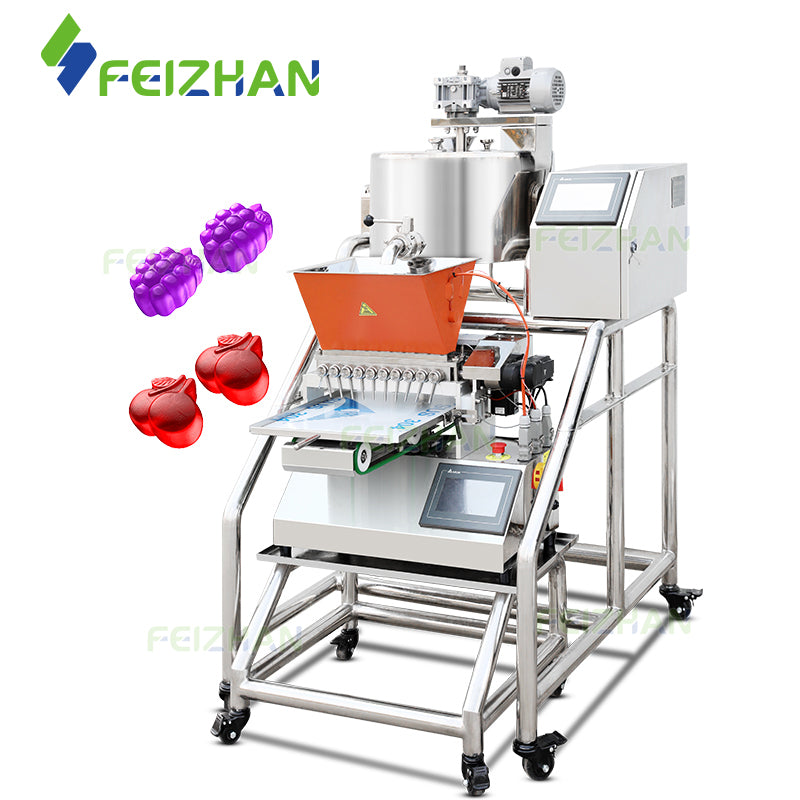

This semi-automatic gummy depositing machine is designed to simplify confectionery production by integrating cooking, mixing, and depositing into one compact system. With a 20L heated cooking tank and a 10L heated hopper, it ensures materials remain at optimal temperature for smooth and consistent filling.

Equipped with 10 precision depositing nozzles, the machine delivers accurate weight control (1–4.5g per piece) and a stable output of up to 24,000 pieces per hour. The built-in touchscreen control panel allows easy parameter adjustment and supports up to 60 recipe memories, making it ideal for manufacturers producing multiple candy types.

Constructed from food-grade 304 stainless steel, this machine is suitable for producing gummies, jelly candies, and chocolate products. Its compact design and reliable performance make it a practical choice for small to medium-scale production and growing confectionery businesses.

Key Features

 All-in-One Cooking & Depositing
Integrates melting, mixing, and depositing into a single system, reducing manual steps and improving overall production efficiency.

High Output up to 24,000 pcs/hour
Designed for stable and continuous production, making it suitable for scaling from small batches to higher-volume manufacturing.

10 Heads Precision Depositing
Equipped with 10 nozzles for accurate filling (1–4.5g per piece), ensuring uniform size, shape, and weight across all products.

Smart Touchscreen Control
User-friendly interface allows easy parameter adjustment and stores up to 60 recipes, enabling fast product changeovers.

Stable Heating System
20L cooking tank with mixer and 10L heated hopper maintain optimal temperature, ensuring smooth flow and consistent depositing.

Food-Grade Stainless Steel Structure
Built with 304 stainless steel, ensuring hygiene, durability, and compliance with food production standards.

Compact & Space-Saving Design
Small footprint with flexible placement, ideal for workshops, startups, or limited production spaces.

Gummy Depositing Machine Parameter

• Machine Model: FZ-CTF50
• Voltage: 380V 50 Hz
• Heating Tubes: 2*3 kW
• Stirring Motor: 0.37/0.55 kW
• Heating Power: 6.5 kW / 380 V
• Depositing Nozzle: 10 Nozzles (Can be customized)
• Depositing Times: 6000-24000 pieces/hour
• Depositing Weight: 1-4.5 g for each time
• Hopper Capacity: 10 L
• Cooking Tank: 20L (With Mixer)
• Heating Temperature: Max 130℃
• Machine Material: 304 Stainless Steel
• Recipes Quantity: 60
• Filling Type: Piston Rod (Non-Pump Type)
• Sample Mold Size: 291.5*291.5*11.3 mm (Customizable, sold separately)
• Sample Cavity Size: 15.5*15.5*10 mm (Customizable)
• Sample Cavity Volume: 2.4 ml (Gummy 3.2 g, Chocolate 2.8 g) (Customizable)
• Machine Size: 650*550*600 mm
• Machine Weight: 65 kg
• Package Size: 750*740*900 mm
• Package Weight: 76 kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

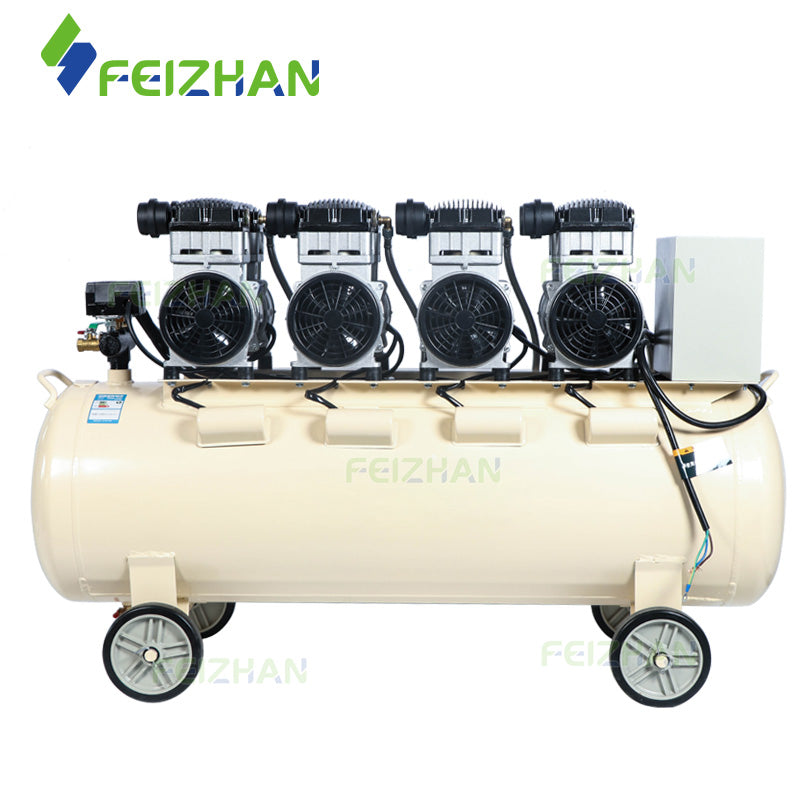

This 160L oil-free silent air compressor is designed to provide clean, stable, and low-noise compressed air for industrial and precision applications. Built with multi-head pump units and high-efficiency cooling fans, the machine ensures reliable continuous operation while preventing overheating. The oil-free design eliminates contamination risks, making it ideal for environments where air purity matters, such as laboratories, medical facilities, electronics manufacturing, food processing, and automated production lines.

Equipped with a precision pressure control system, dual gauges, moisture filtration, and automatic solenoid protection, the compressor delivers adjustable air output with enhanced equipment safety. Its portable tank structure and heavy-duty wheels allow easy movement across workshops, offering a dependable air supply solution for pneumatic tools, spray systems, and industrial automation equipment.
