FEIZHAN

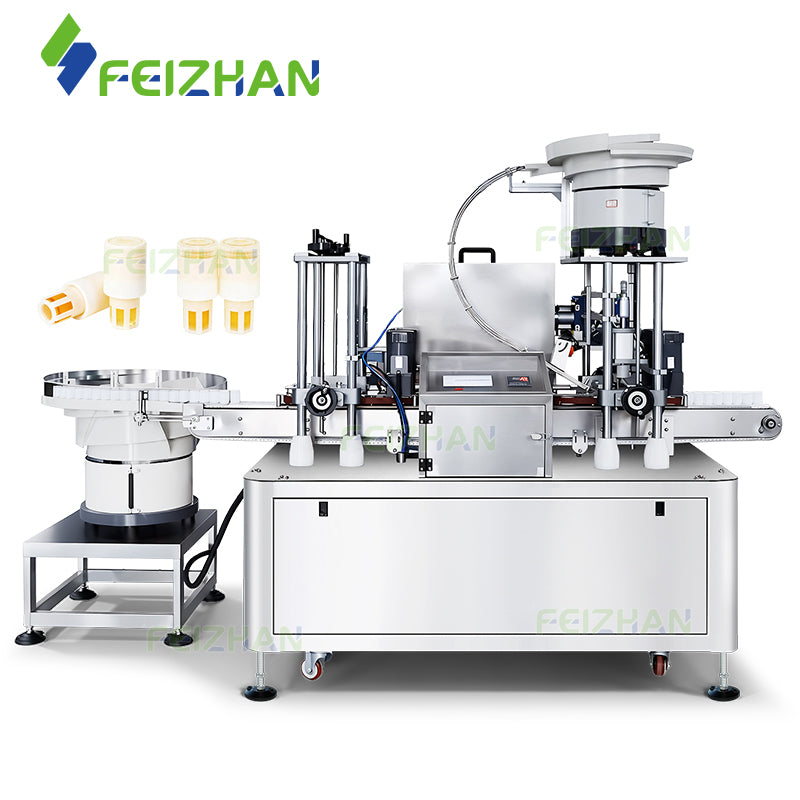

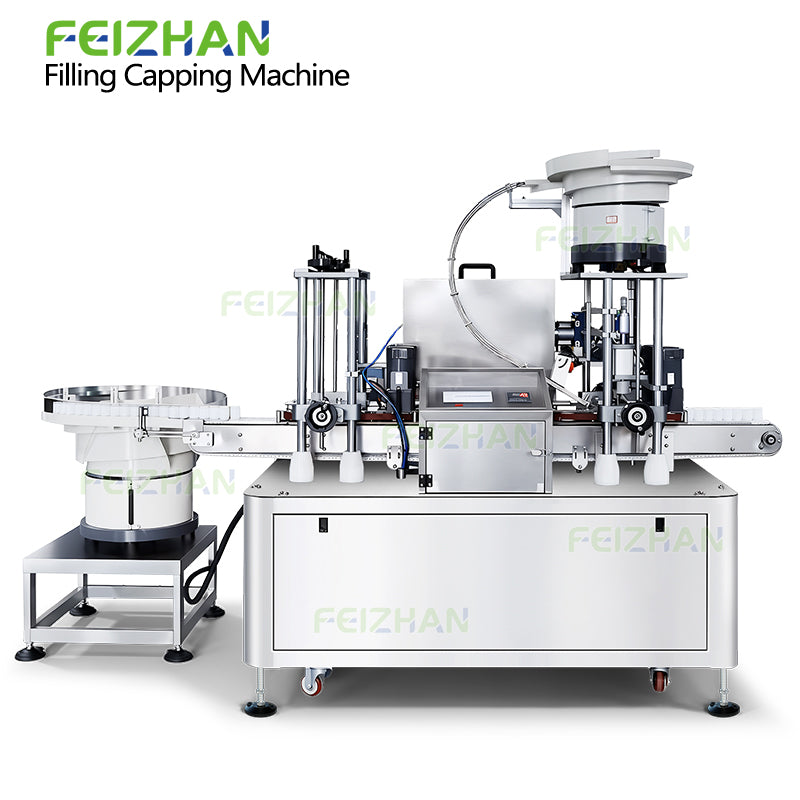

Automatic Honey Filling and Capping Machine for Separate Beverage Ingredients
Product Overview
The Automatic Honey Filling and Capping Machine targets a specific niche. Separate ingredient packaging for beverages, where honey ships as its own small portion rather than mixed in beforehand.
Small containers, viscous fills. Honey, syrup, sweet sauces. Pairs naturally with coffee, tea, milk drinks, yogurt beverages, functional drinks, that whole category.
Traditional honey bottling equipment fills big containers for retail shelves. This machine does something different. It portions honey out in small doses, letting beverage brands hand consumers a way to adjust sweetness themselves, right before drinking.
Container feeding, filling, cap sorting, cap pressing. The system pulls these steps together into one automated line built specifically for beverage accessory packaging.
Product Features
Built for Separate Beverage Ingredient Packaging
This machine targets beverage products that need an extra ingredient packaged on its own.
The filled honey containers work as:
- Coffee honey toppings
- Tea drink sweetener portions
- Beverage accessory ingredients
- Functional drink additives
- Ready-to-use flavor components
Separating the sweetener from the main beverage gives manufacturers more flexibility in how the final product gets used.
Servo Rotor Pump for Accurate Honey Filling
A servo-controlled rotor pump handles the filling. This setup suits high-viscosity ingredients particularly well.
The servo system controls filling volume and speed directly, which keeps honey portions close together across a production run.
What this brings:
- High filling accuracy
- Stable filling performance
- Adjustable filling volume
- Works with sticky, viscous ingredients
- Less material waste
Materials it handles include honey, syrup, sugar solution, sweet sauces, and liquid food concentrates.
Heating and Mixing Hopper for Stable Product Flow
Honey viscosity shifts a lot with temperature. A heated mixing hopper keeps material conditions steady through the filling process.
Heat improves flow. The mixing system keeps the product evenly distributed rather than settling unevenly.
What this solves:
- Keeps honey from thickening too much
- Maintains filling performance over time
- Improves production stability
- Suits temperature-sensitive ingredients generally
Automatic Container Feeding System
The feeding system arranges and moves containers into the filling station on its own, cutting down manual handling.
Manufacturers can customize the feeding setup for different container types, including small plastic bottles, mini ingredient containers, and custom beverage accessory packaging.
Integrated Filling and Capping Process
Several steps run through one production unit: container feeding, honey filling, cap feeding, cap pressing.
Combining these steps this way trims the equipment footprint and keeps automation tighter across the line.
Beverage manufacturers needing a compact setup for separate ingredient packaging tend to find this configuration useful.
Automatic Cap Feeding and Pressing System
The cap feeding system sorts and supplies caps, then presses them onto containers.
A stable capping process supports secure sealing, consistent appearance, and less manual labor throughout the run.
Working Process
The automatic operation process includes:
1. Container Feeding
Empty containers are automatically arranged and transported into the filling position.
2. Honey Filling
The servo filling system accurately dispenses the required amount of honey or liquid ingredient.
3. Cap Sorting
Caps are automatically supplied through the cap feeding mechanism.
4. Cap Pressing
The caps are pressed securely to complete the packaging process.
Technical Parameters
- Machine Model: FZ-FSHS22
- Filling Material: Honey, Syrup, Liquid Food Ingredients
- Filling Method: Servo Rotor Pump
- Filling Range: Customizable
- Filling Accuracy: ±1%
- Production Capacity: 2000-2400 Containers/Hour
- Hopper Capacity: 35L
- Hopper Function: Heating & Mixing
- Air Pressure: 0.6-0.8 MPa
- Machine Material: SUS304 Stainless Steel
- Control System: PLC Touch Screen
- Application: Separate Beverage Ingredient Packaging
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
Machine Detail

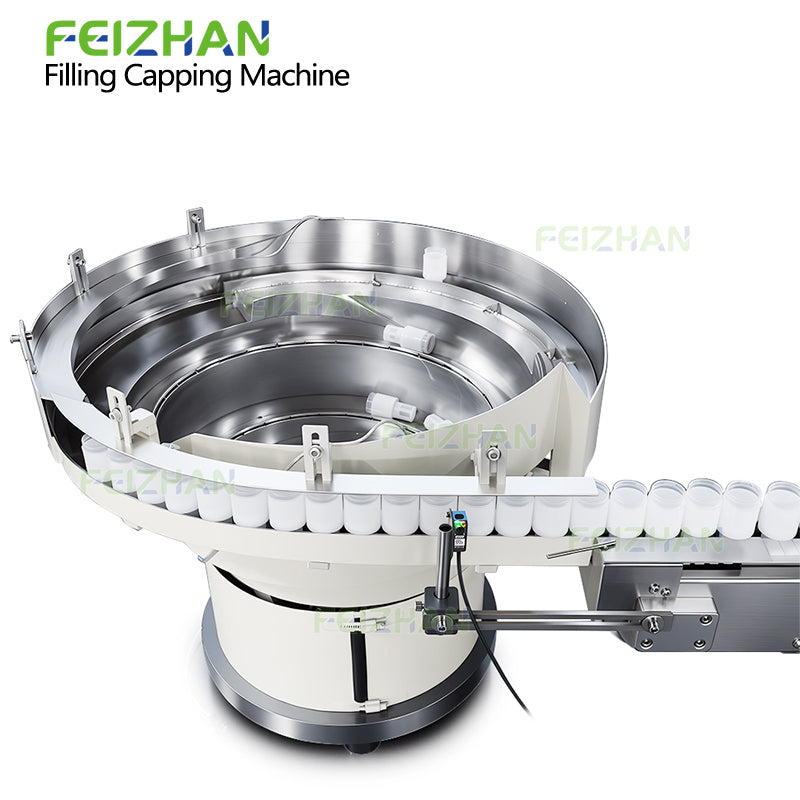

The automatic bottle feeding system arranges containers and transfers them into the filling position smoothly, reducing manual handling and improving production efficiency.

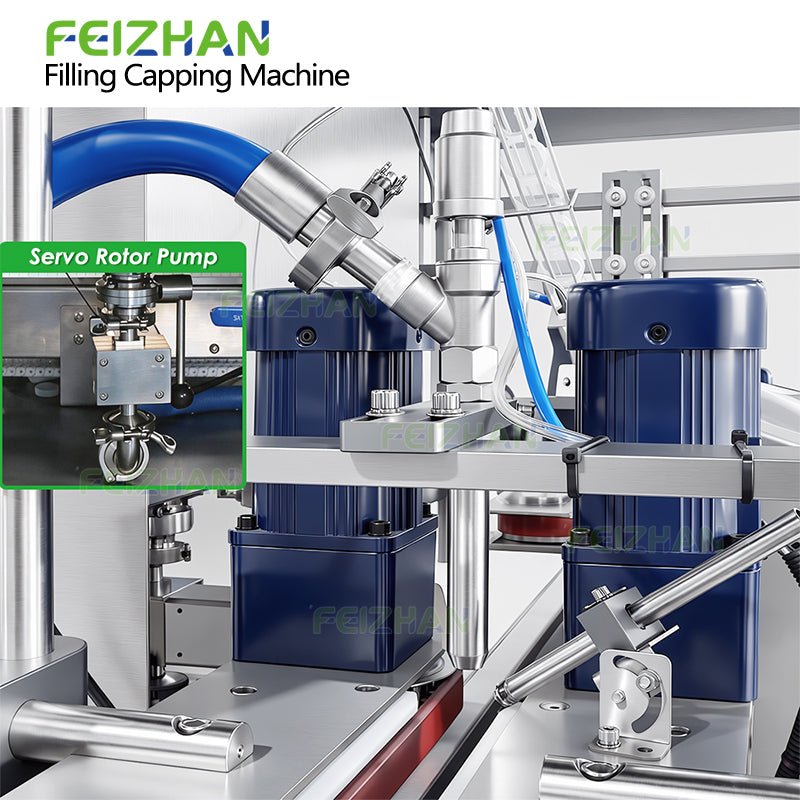

A servo-controlled rotor pump drives the filling here. It handles high-viscosity foods well—honey, jam, sauce, syrup, chocolate paste, that category of thick, sticky products. The servo drive controls filling speed and volume directly. Less product gets wasted this way, and filling quality holds up across long production runs rather than drifting over time.

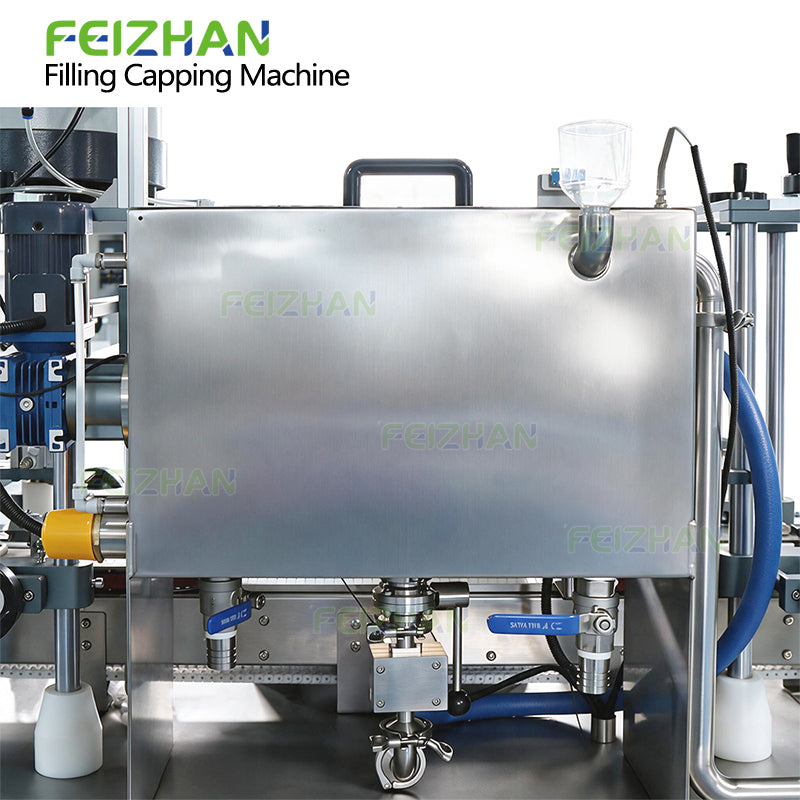

The stainless steel hopper integrates heating and mixing functions to maintain consistent product texture during filling. For materials like honey and chocolate paste that may become thicker at lower temperatures, the heating system helps maintain smooth flow, while the mixing function prevents uneven concentration and product settling.

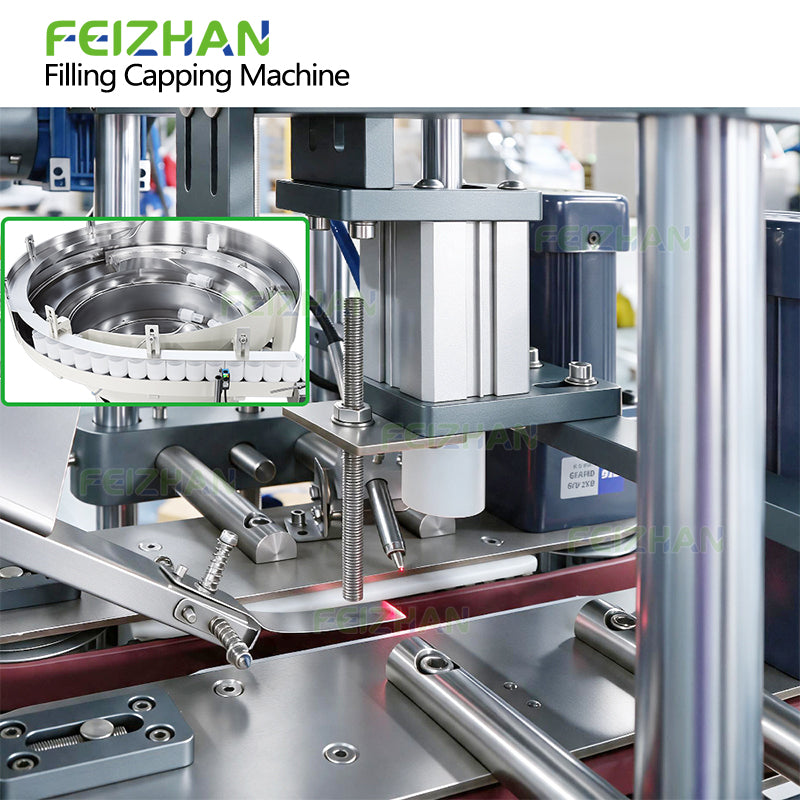

The machine integrates automatic cap sorting, cap placement, and pressing functions to complete the packaging process after filling. The stable capping structure ensures secure sealing and improves production consistency for bottled food products.
Application Industries
Coffee and Tea Beverage Brands
Honey portions packaged separately, ready to add into coffee, tea, or similar drinks.
Functional Beverage Manufacturers
Handles honey, syrup, and nutritional additives when they need to ship as separate ingredients rather than mixed in.
Food Ingredient Suppliers
Fits well for producing single-use ingredient packages, the kind meant for one-time convenience.
Beverage Gift Sets and Premium Drinks
High-end beverage products often need customized ingredient packaging. This covers that space too.
Why Choose This Honey Ingredient Filling Machine?
For separate beverage ingredient packaging, the biggest challenges are maintaining filling accuracy and handling high-viscosity materials such as honey.
This machine provides a complete solution through:
-
Servo-controlled precision filling
-
Heated mixing hopper
-
Automatic container handling
-
Integrated capping system
- Food-grade hygienic design
It helps beverage manufacturers efficiently produce convenient honey portions and other liquid food ingredients for modern drink applications.
FAQ
What products can this machine fill?
The machine is suitable for honey, syrup, sweet sauces, sugar solutions, and other viscous food ingredients.
Is this a traditional honey bottling machine?
No. This machine is mainly designed for separate ingredient beverage packaging, such as small honey containers provided with coffee, tea, or other drinks.
Can the filling volume be customized?
Yes. Filling volume can be adjusted according to the required portion size and container specifications.
What information is needed for customization?
Please provide:
- Ingredient type
- Product viscosity
- Filling volume
- Container size and shape
- Cap type
- Required production speed
- Packaging application
Can it handle thick honey?
Yes. The servo rotor pump and heating mixing hopper are designed to improve filling performance for high-viscosity ingredients.
