Product Description

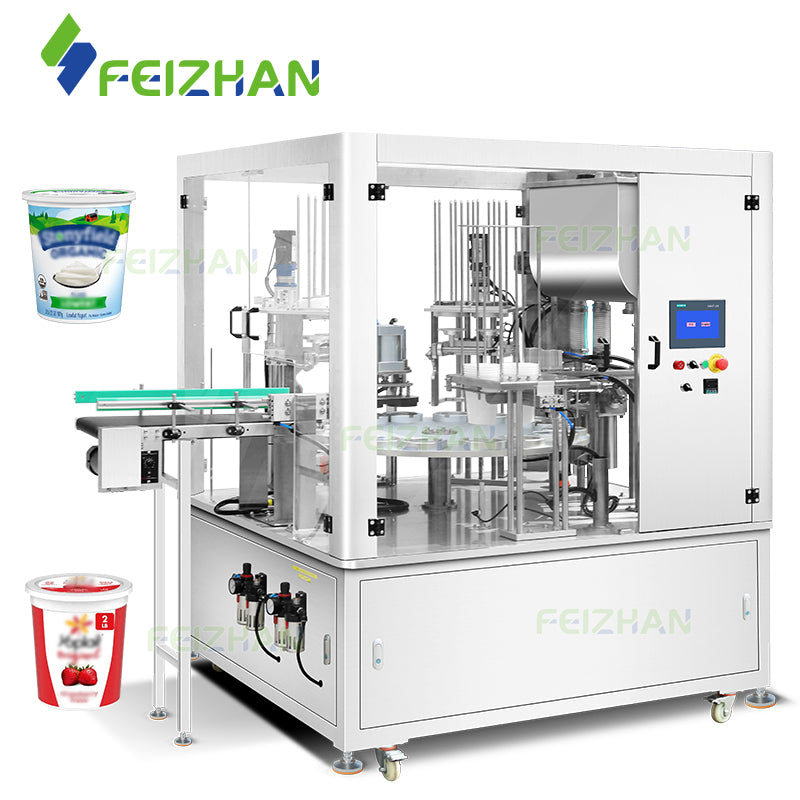

The Automatic Cup Filling Sealing Capping Machine does it all — filling, sealing, and capping plastic cups automatically.

It handles a wide range of food products. Think yogurt, pudding, jelly, honey, sauces, cream, and fruit preparations. Empty cups go in. Finished, sealed cups come out. One compact system manages the whole process.

The machine runs on a high-precision piston filling system. A servo-controlled sealing mechanism pairs with it for tight, consistent seals. Together, they deliver accurate fills and reliable output every single run.

Cleaning is straightforward. The controls are simple and intuitive. Cup sizes are fully customizable. Food manufacturers get efficient, consistent, and professional-looking packaging — without the complexity.

Machine Features

All-in-One Packaging Process One machine handles everything — cup feeding, filling, film sealing, lid placement, and cup discharge. Less labor. Better efficiency.

High-Precision Piston Filling The piston filling system fills accurately and consistently every time. Works great for yogurt, honey, pudding, sauces, cream, and other viscous products.

Servo-Controlled Film Feeding Servo motors keep the film perfectly positioned and feeding smoothly. Less material waste. Consistent seals, every run.

Reliable Heat Sealing Controlled temperature and pressure create strong, leak-resistant seals. Products stay fresh longer and shelf life improves.

Automatic Lid Feeding & Pressing The machine places and presses outer lids onto sealed cups on its own. Better protection. Cleaner retail presentation.

Hygienic Food-Grade Construction Food-contact materials and an enclosed structure keep contamination risks low. Easy to clean, too.

Continuous Material Supply A diaphragm pump and mixing hopper work together to keep product feeding stable throughout production. No interruptions, no downtime.

Applications

Suitable for packaging:

Dairy Products

• Yogurt
• Greek Yogurt
• Drinking Yogurt
• Dairy Desserts

Desserts

• Jelly
• Pudding
• Custard
• Mousse
• Ice Cream Toppings

Sauces & Condiments

• Ketchup
• Mayonnaise
• Salad Dressing
• Chili Sauce
• Cheese Sauce

Sweet Products

• Honey
• Jam
• Chocolate Spread
• Syrup

Other Food Products

• Fruit Cups
• Snack Cups
• Dips
• Ready-to-Eat Foods

Technical Specifications

Machine Detail

Coffee Capsule Filling Machine Overview

The FEIZHAN automatic coffee capsule filling and sealing machine is designed for packaging coffee powder, tea powder, milk powder and other food-grade powdered materials into coffee capsules or K cup pods. Integrating automatic cup feeding, auger filling, film lid placement and heat sealing into one compact system, it helps improve production efficiency while reducing labor costs. Equipped with a closed working structure and food-grade SUS304 stainless steel construction, this machine supports cleaner and more hygienic production conditions for food packaging.

Using an auger filling system, the machine ensures stable and accurate powder filling performance, making it suitable for small to medium-scale food manufacturers, coffee brands and private label production. The sealing temperature can be adjusted according to packaging materials, helping create secure and neat seals for different capsule types. Designed for flexible production, the machine can also be customized for different cup sizes and packaging requirements.

Coffee Capsule Filling Machine Features

Automatic Cup Feeding

The machine can feed coffee capsules or K cups automatically onto the rotary working platform, helping reduce manual handling and improve packaging efficiency. The feeding structure can be customized according to different cup sizes.

Accurate Auger Filling System

Designed for food-grade powder materials such as coffee powder, tea powder and milk powder, the auger filling system ensures stable filling accuracy while reducing powder waste during production.

Automatic Film Lid Placement

The machine can automatically place film lids onto cups before sealing, streamlining production and helping maintain packaging consistency while reducing labor requirements.

Adjustable Heat Sealing

Equipped with an adjustable temperature control system, the machine allows sealing temperature adjustment according to different packaging materials, helping ensure neat and secure seals.

Closed Working Structure

The enclosed machine design helps reduce dust interference during powder filling and supports cleaner production conditions, making it suitable for food packaging applications.

SUS304 Stainless Steel Construction

Made of food-grade SUS304 stainless steel, the machine offers durability, corrosion resistance and easier cleaning for food-related production environments.

Applications

This coffee capsule filling and sealing machine is suitable for packaging food-grade powder materials into coffee capsules, K cups and similar pod containers.

Applicable Products

• Coffee Powder

• Tea Powder

• Milk Powder

• Cocoa Powder

• Instant Beverage Powder

• Protein Powder

• Functional Drink Powder

Applicable Industries

• Coffee Brands

• Food Processing Factories

• Beverage Manufacturers

• Private Label Packaging

• Small & Medium Food Production Workshops

Technical Parameters

Machine Details

This automatic yogurt cup filling machine is designed for food manufacturers who need efficient and hygienic packaging for yogurt, jam, pudding, chocolate, sauce, and other liquid or paste products. Integrating cup feeding, filling, film sealing, and product output into one compact rotary system, it helps reduce labor costs while improving production consistency. The pneumatic filling structure is suitable for both smooth and particle-containing materials such as fruit yogurt or chunky sauces, making it ideal for dairy products, desserts, condiments, and ready-to-eat food packaging applications. Its customizable cup size and filling range allow the machine to adapt to different production requirements for small and medium food businesses.

Key Features

• Integrated cup feeding, filling, sealing, and output system improves packaging efficiency and saves working space.

• Suitable for liquid, paste, and particle-containing products such as yogurt with fruit pieces, jam, pudding, and sauces.

• Pneumatic filling nozzle ensures stable and accurate filling performance for food products.
• Rotary filling structure enables continuous production with consistent packaging quality.

• Adjustable sealing temperature helps achieve reliable sealing for different cup and film materials.

• Touch screen control panel simplifies parameter setting and daily operation.

• Cup size, filling range, and rotary plate can be customized according to production needs.

• Compact machine design is suitable for small and medium food manufacturing businesses.

Applications

This automatic cup filling sealing machine is widely used in the food and beverage industry for packaging:

• Yogurt

• Greek yogurt

• Fruit yogurt

• Jam

• Jelly

• Pudding

• Custard

• Chocolate paste

• Honey

• Ketchup

• Chili sauce

• Salad dressing

• Dipping sauce

• Cream

• Dessert cups

• Ready-to-eat snack cups

It is suitable for plastic cups, dessert cups, dairy cups, and other customized food containers.

Parameter

• Machine Model: FZ-FS100
• Machine Voltage: 110/220V
• Machine Power: 1600 W
• Filling Range: <100 ml ( Customized )
• Packaging Speed: 12-15 cups/min
• Working Air Pressure: 0.4-0.6 MPa
• Cup Diameter: Customized
• Machine Weight: 170 kg
• Package Size: 960*990*1520 mm
• Package Weight: 207 kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

This automatic coffee capsule filling machine is designed for efficient and hygienic packaging of food powders and granules into preformed cups or capsules. It integrates cup feeding, quantitative filling, film sealing, and cutting into one compact system, making it ideal for food manufacturers looking to streamline production while maintaining consistent quality.

The machine is widely used in the food industry for packaging products such as coffee powder, cocoa powder, milk powder, protein powder, sugar, and instant beverage mixes. It is also suitable for innovative applications like dessert powders, seasoning blends, and functional nutrition products, helping brands create convenient single-serve packaging formats.

Equipped with a servo-controlled filling system, the machine ensures high accuracy and stable output, even for fine or slightly sticky powders. The independent temperature control system guarantees tight and clean seals, supporting both plastic and aluminum foil films. Its compact structure saves space while delivering a production capacity of up to 40 cups per minute, making it a practical choice for small to medium-scale food businesses.

Built with food-grade stainless steel and designed for easy cleaning, this machine meets hygiene requirements for food production. The user-friendly control panel allows operators to quickly adjust parameters and monitor the process in real time, reducing downtime and improving efficiency.

Whether you are starting a coffee capsule business or expanding into single-serve food packaging, this machine offers a reliable and flexible solution.

Key Features

Compact All-in-One Design
Integrates cup feeding, powder filling, film sealing, and cutting in one machine, saving space and reducing labor costs for food production lines.

High-Precision Servo Filling
Equipped with a servo-controlled system for accurate dosing of coffee powder, milk powder, protein powder, and other fine or semi-free-flowing powders.

Wide Food Application Compatibility
Suitable for a variety of food products including coffee, cocoa, sugar, instant drink mixes, and nutritional powders, enabling flexible product expansion.

Stable Heat Sealing System
Independent temperature control ensures tight, leak-proof sealing for plastic and aluminum foil films, preserving freshness and product quality.

Hygienic Food-Grade Structure
Constructed with stainless steel and designed for easy cleaning, meeting food industry hygiene standards.

User-Friendly Control Panel
Intuitive interface allows quick parameter adjustment and real-time monitoring, reducing operator training time.

Efficient Production Output
Supports up to 40 cups per minute, ideal for small to medium-scale food businesses looking to scale efficiently.

Customizable for Different Cup Sizes
Flexible configuration to accommodate various cup or capsule sizes, helping brands adapt to different packaging formats.

Ideal for Single-Serve Packaging Business
Perfect for launching or scaling coffee capsule, instant beverage, or portioned food product lines.

Coffee Capsule Filling Machine Parameter

• Model: FZ-KCFC1

• Power: 3 Phase, 220/380 V, 50/60 HZ,1.2 KW

• Air Consumption: 0.1 m³/min

• Air supply: >0.6 Mpa

• Filling Accuracy: ± 0.1 g

• Capacity: About 20 cup/minute

• Filling Weight: 0-20 g

• Weight: 120 Kg

• Dimension: 602*820*1653 mm

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

FAQ (Frequently Asked Questions)

1. Can this machine handle different powder types without changing major parts?

Yes. The machine can handle a wide range of powders with different densities and flow characteristics. Minor parameter adjustments are usually sufficient, making it suitable for switching between products like coffee, drinks powder, or nutritional blends.

2. Is it suitable for small batch production or only for large-scale factories?

This machine is designed to be flexible. It works well for both small batch production and growing businesses, allowing users to scale output without investing in a full production line at the beginning.

3. How difficult is it to switch between different cup sizes or formats?

Changing cup sizes typically requires replacing the corresponding molds or adjusting fixtures. The process is straightforward and does not require advanced technical skills.

4. What kind of operators are needed to run this machine?

The machine can be operated by one person after basic training. No specialized engineering background is required, which helps reduce labor costs.

5. Can the machine be integrated with other packaging equipment?

Yes. It can be connected with upstream and downstream equipment such as powder mixers, conveyors, labeling machines, or cartoning systems to form a complete packaging line.

6. How is the machine shipped and installed?

The machine is securely packed before shipment. Installation is simple, and remote technical support or video guidance is typically available to assist with setup and commissioning.

7. What should be considered when choosing the right film or sealing material?

The choice depends on product type, shelf life requirements, and packaging appearance. Common options include plastic films and aluminum foil. We can provide recommendations based on your product.

8. Can this machine be customized for specific products or requirements?

Yes. Customization options may include cup size, filling range, voltage, and certain structural adjustments to better match your production needs.

FEIZHAN Automatic Food Cup Filling and Sealing Machine is designed for hygienic and efficient packaging of various food products in plastic cups. It integrates automatic cup feeding, quantitative filling, film sealing and finished product output into one compact system, making it ideal for small to medium-scale food production.

This machine is widely used for packaging jelly, yogurt, pudding, honey, sauces and other semi-liquid or viscous food products, helping improve production efficiency while maintaining consistent filling accuracy and sealing quality.

Built with food-grade stainless steel, all contact parts meet hygiene requirements for food processing. The rotary working structure ensures stable operation and smooth workflow, reducing manual labor and improving overall productivity.

Food Cup Filling and Sealing Machine Parameter

• Machine Model: FZ-AFS06

• Voltage: 110 V / 220 V 50-60 Hz

• Power: 1.5 KW

• Working Speed: 1500 Cups/h (Based on 120 ml cups)

• Filling Range: 10-200 ml (Can be customized)

• Filling Accuracy: ±1%

• Filling Pump: Piston Pump

• Sealing Temperature: 0-400 ℃

• Suitable Cup Size: Can be customized

• Hopper Capacity: 35 L

• Air Pressure: 0.5-0.8 Mpa

• Machine Size: 1660*1150*1450 mm

• Machine Weight: 300 kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

FAQ – Food Cup Filling Sealing Machine

Q1: What food products can this cup filling sealing machine handle?

A: This machine is suitable for a wide range of food products, including jelly, yogurt, pudding, honey, sauces and other semi-liquid or viscous materials. It is widely used in dessert cup packaging and snack cup production.

Q2: Is the machine made of food grade materials?

A: Yes, all parts that come into contact with food are made of food-grade stainless steel, ensuring hygiene, safety and compliance with food processing standards.

Q3: Can this machine handle viscous food like honey or sauce?

A: Yes, the machine is equipped with a piston pump filling system, which is suitable for viscous food such as honey, syrup, sauces and cream-based products, ensuring accurate and stable filling.

Q4: What types of cups are compatible with this machine?

A: This machine is designed for plastic cups of different sizes and shapes. Custom molds can be made according to your cup dimensions to ensure precise positioning and sealing.

Q5: Can it be used for yogurt and jelly cup packaging?

A: Yes, it is widely used as a yogurt cup filling sealing machine and jelly cup packaging machine, providing efficient and consistent sealing for food products.

Q6: Is the sealing process reliable for food packaging?

A: The sealing system allows adjustment of temperature and sealing time, ensuring tight, leak-proof sealing for different types of films used in food cup packaging.

Q7: What is the production capacity of this machine?

A: The working speed can reach approximately 15–25 cups per minute, depending on the product type, cup size and filling volume.

Q8: Is the machine suitable for small food businesses?

A: Yes, this automatic cup filling sealing machine is ideal for small to medium-sized food production, including dessert shops, yogurt brands and startup food businesses.

Q9: Can the machine be customized for different food products?

A: Yes, the machine can be customized with different molds, filling nozzles and configurations to suit various food products and cup sizes.

Q10: Does this machine support automatic production?

A: Yes, it integrates automatic cup feeding, filling, sealing and output, making it a complete food cup packaging solution.

This automatic coffee capsule filling and sealing machine is designed for efficient packaging of coffee powder and other food powders into single-serve capsules. The machine integrates automatic cup dropping, precise powder filling, sealing film placement, and heat sealing into one compact system, enabling stable and continuous production.

Equipped with a high-precision filling system, the machine ensures consistent dosing for each capsule, helping maintain product quality and uniform taste. The intelligent sealing system applies controlled temperature and pressure to securely seal aluminum foil lids, creating airtight coffee capsules that help preserve aroma and freshness.

The machine is suitable for packaging various food powders such as coffee powder, tea powder, milk powder, cocoa powder, and protein powder. It is an ideal solution for coffee brands, capsule manufacturers, and food processing companies looking to produce single-serve capsule products efficiently. It is suitable for K-Cup compatible capsules and other coffee pods, making it a flexible solution for coffee capsule production.

Coffee Capsule Packaging Machine Parameter

• Model: FZ-KCFC2

• Power: 2.2 kW

• Voltage: 220/380V 50/60Hz

• Speed: 1200-1800 cups/hour

• Fill Range: 2-10 g (customized according to cup capacity)

• Filling Accuracy: ±1–2%

• Air Pressure: 0.5-0.75 MPa

• Maximum Air Consumption: 0.45 m³/min

• Machine Size: 1200*1100*1900 mm

• Machine Weight: 350 kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

This automatic honey spoon filling sealing machine is specially designed for single-portion liquid food packaging. It integrates spoon feeding, high-precision piston filling, automatic film placement and heat sealing into one compact rotary system, ensuring stable and continuous production.

Equipped with a food-grade SUS304 stainless steel heated mixing hopper, the machine effectively maintains product fluidity and prevents crystallization, making it ideal for honey, syrup, jam, chocolate sauce and other viscous food products. The dual piston filling system provides accurate volumetric filling, ensuring consistent portion control and reducing material waste.

With adjustable sealing temperature and time, the machine delivers leak-proof and hygienic sealing performance, meeting food industry production requirements. It is widely used for honey spoon packaging in hotels, catering services, retail food brands and promotional markets.

Honey Spoon Filling Sealing Machine Parameter

• Machine Model: FZ-FSHS20

• Voltage: 220V/110V/380V 50-60Hz

• Power: 2KW

• Production Speed: 1600-1800 pcs/h (Depending on product size)

• Filling Range: 5-50 ml

• Filling Accuracy: ±0.5%

• Filling Pump: Piston Pump

• Sealing Temperature: 0-400 ℃

• Suitable Product Size: Can be customized

• Air Supply: 0.5-0.75 MPa, 0.45 m³/min

• Machine Size: 1000*1000*1800 mm/ 39.4*39.4*70.9 inches

• Machine Weight: 380 kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

This automatic K-Cup powder packaging machine integrates cup feeding, auger powder filling, lids feeding and heat sealing into one compact system. Designed for coffee and tea capsule production, it offers stable filling accuracy, clean sealing performance, and efficient operation for small to medium-scale production lines.

Powder Packaging Machine Parameter

• Machine Model: FZ-GF900C
• Voltage: 110/220 V 50-60 Hz
• Power: 2.5 KW
• Working Capacity: 1200-1500 Cups/hour
• Filling Range: 2-20 g
• Filling Method: Auger Filling
• Filling Accuracy: ±1.5%
• Sealing Temperature: 0-400 ℃
• Hopper Capacity: 30 L
• Machine Size: 1480*1020*1850 mm
• Package Size: 1260*1260*2040 mm
• Package Weight: 374 kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

FAQ

Q1: What can this K-Cup powder machine pack?

Basically, any free-flowing powder like coffee, tea, or instant drink mixes. It’s made for standard K-Cup capsules and you can settings for different fill range.

Q2: How does the filling and sealing work?

It uses an auger filler—basically a screw system that measures out the powder really steadily and accurately. You can adjust the portion size, which is perfect for keeping every coffee capsule consistent.

Q3: How accurate is the filling?

Pretty precise! You can expect accuracy within about ±1.5%. There’s also a built-in mixing hopper to keep the powder flowing evenly.

Q4: Can this machine handle small-scale production?

Definitely. It runs at around 1200–1500 cups per hour, so it’s a great fit for small to medium coffee capsule producers who want something reliable and efficient without being oversized.
