Cam Indexing Food Grade Dropper Bottle Filling and Capping Machine for Edible Oil & Liquid Flavor

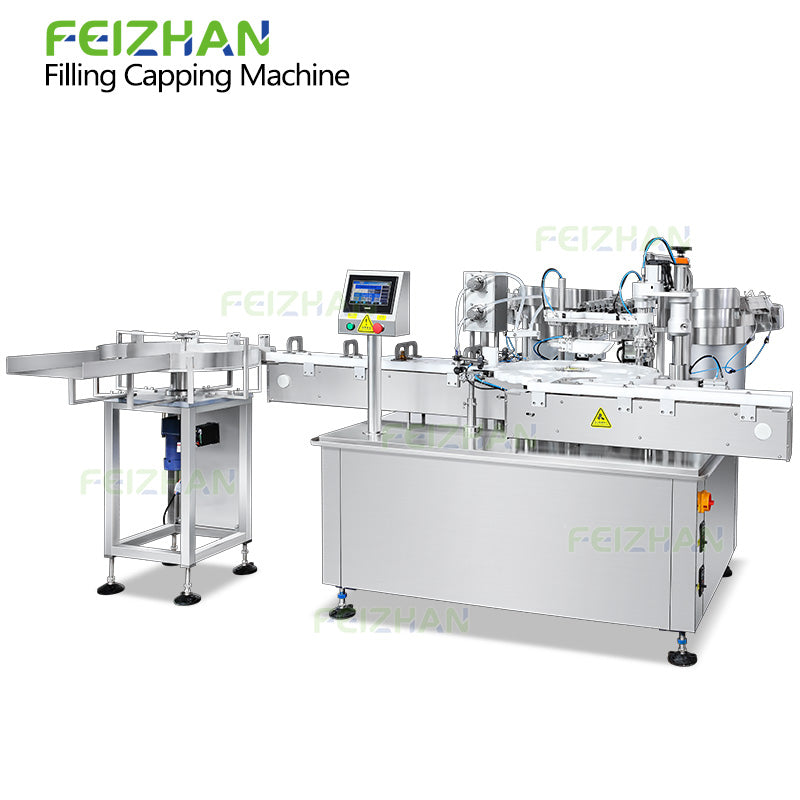

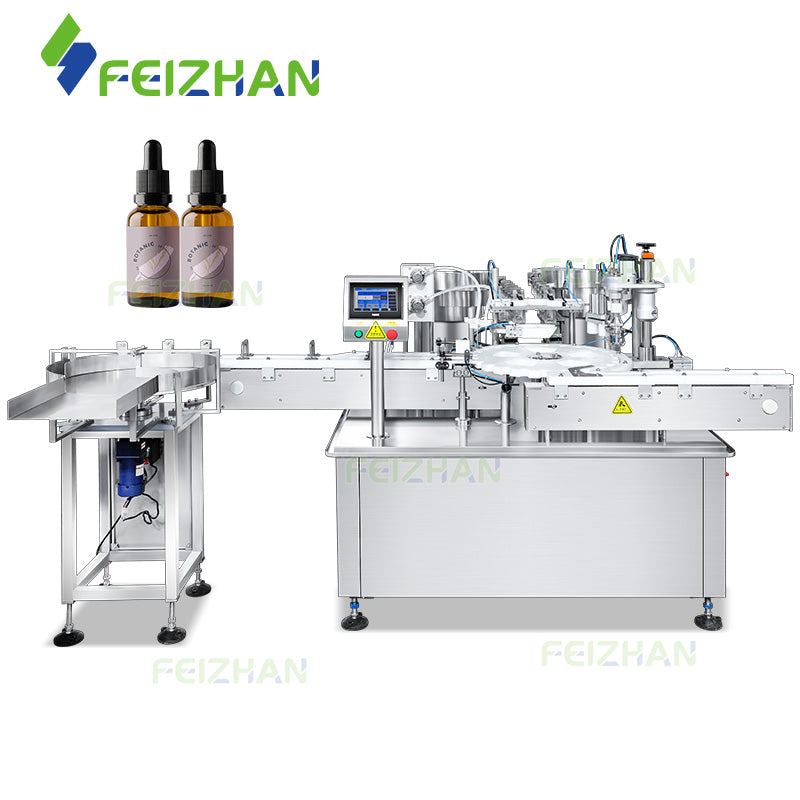

This monoblock cam-driven dropper bottle filling machine is specially designed for filling and capping small-volume food liquids such as edible oils, liquid flavors, nutritional extracts, and concentrated seasoning drops.
Equipped with dual 316 stainless steel magnetic pumps, the machine ensures hygienic, corrosion-resistant, and high-precision dosing from 1-100ml. The cam indexing star wheel system provides accurate bottle positioning, enabling stable operation at 60-70 bottles per minute.
The integrated system completes bottle positioning, liquid filling, dropper cap placing, and screw capping in one compact unit, reducing labor cost and improving production efficiency.
Dropper Bottle Filling Machine Parameter
- Machine Model: FZ-AFC27YT
- Machine Voltage: 220V/50HZ/5A (110V is Customizable)
- Recommend Filling Volume: 1-100 ml (Customizable)
- Filling Pump Type: 316 Magnetic Pump
- Max Flow Rate: 3L/min (Based on water)
- Working Capacity: 60-70 BPM (Based on filling volume & filling material)
- Suitable Bottle Size: Customizable
- Bottle Cap Size: Customizable
- Air Pressure: 0.6-0.8 MPa
- Machine Size: 2100*1460*1240 mm
- Machine Weight: 1500 kg
- Package Size: 2370*1230*1770 mm
- Package Weight: 1600 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

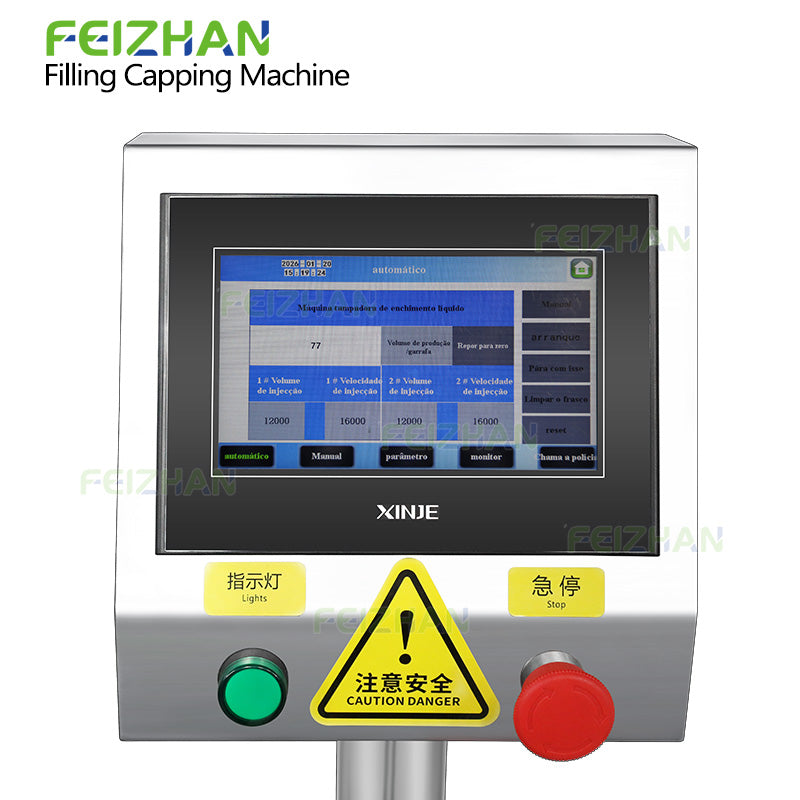

User-friendly HMI with PLC control allows precise parameter setting, filling volume adjustment, and real-time production monitoring. Designed for modern food processing environments, ensuring stable, traceable, and efficient operation.

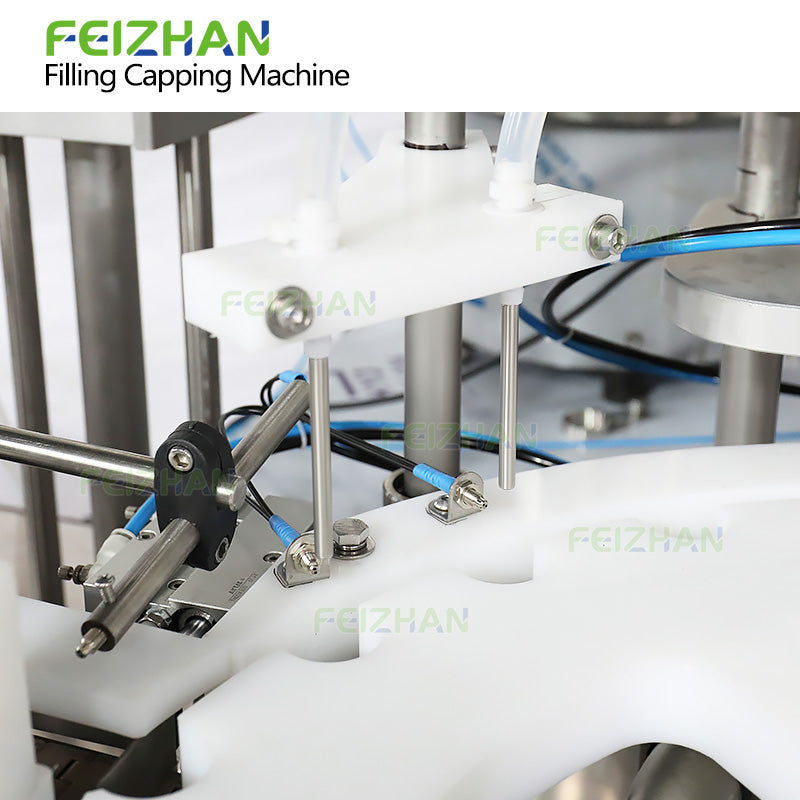

Equipped with high-precision 316 stainless steel magnetic pumps, specially suitable for edible oils, liquid flavors, and nutritional extracts. Ensures hygienic, contamination-free, and highly accurate dosing for consistent product quality.
Vibratory bowl with dual guide rails ensures smooth, stable, and uninterrupted cap supply. Designed to maintain clean cap handling and improve overall packaging efficiency in food production lines.

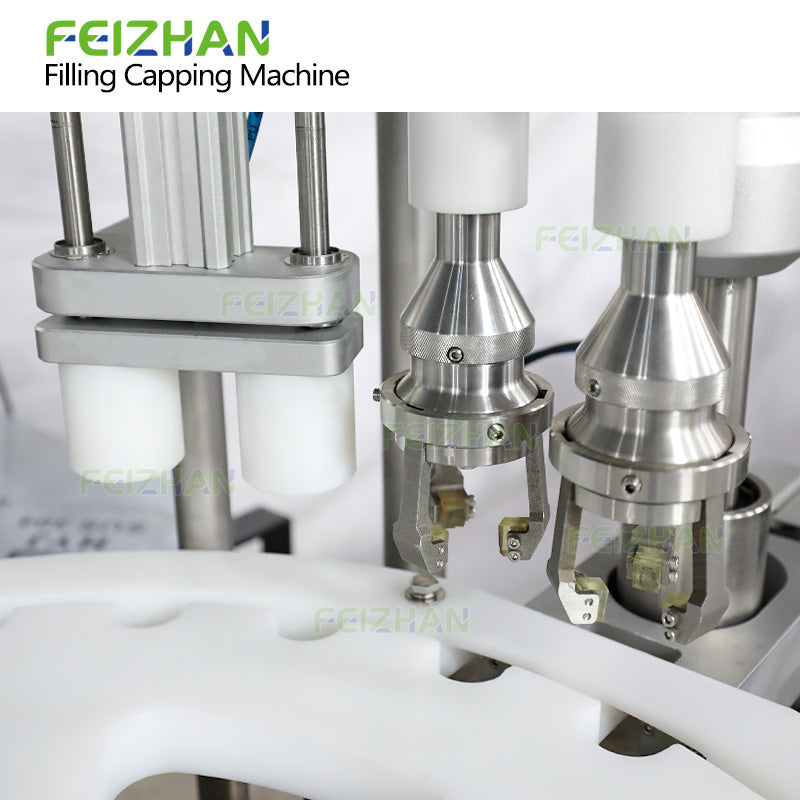

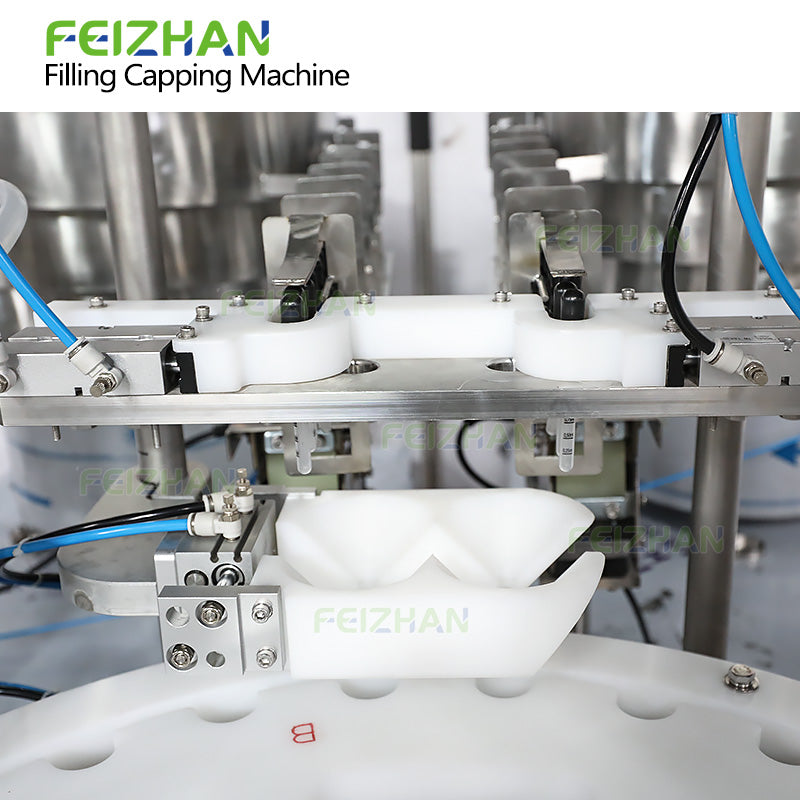

Food-safe guided chute system accurately positions dropper caps onto bottles, reducing misalignment and ensuring consistent sealing quality for edible liquid packaging.
Integrated bottle alignment and torque-adjustable tightening system ensures secure sealing without damaging caps. Helps maintain product freshness and prevent leakage in food applications.

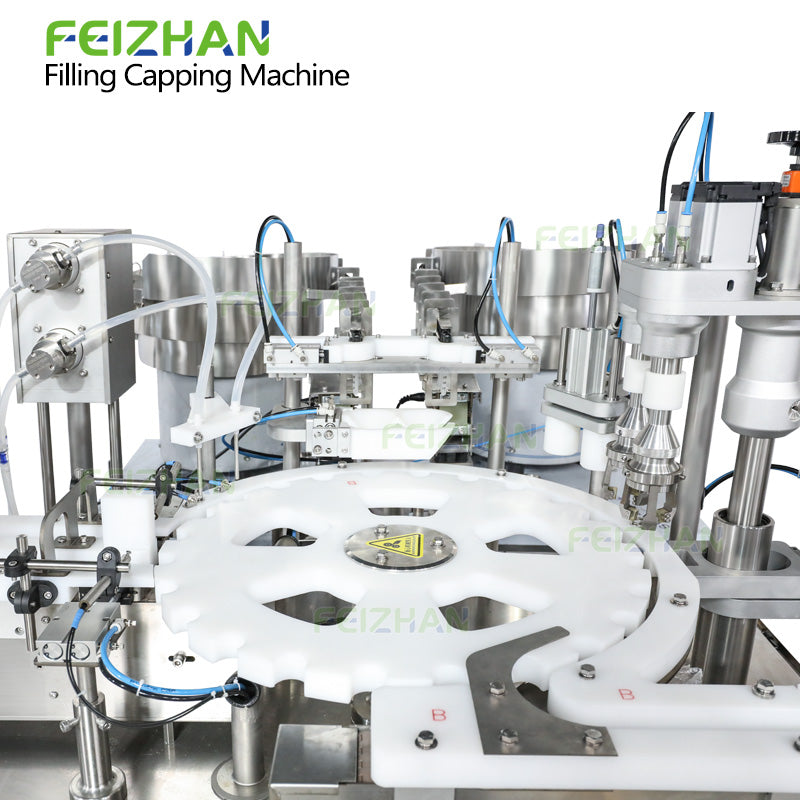

High-precision cam indexing star wheel guarantees accurate bottle positioning for synchronized filling and capping. Stable operation at 60–70 BPM ensures reliable performance in food-grade bottling lines.
Q1: Is this machine suitable for edible oil filling?
Yes. The 316 stainless steel magnetic pump ensures food-grade liquid compatibility.
Q2: Can it fill viscous food liquids?
It works well with low to medium viscosity liquids such as oil, flavor extract and liquid seasoning.
Q3: Is the filling volume adjustable?
Yes, recommended filling range is 1-100ml and customizable.
Q4: Can it connect with other food packaging machines?
Yes, it can operate independently or integrate into a complete food bottling line.
FEIZHAN
Cam Indexing Food Grade Dropper Bottle Filling and Capping Machine for Edible Oil & Liquid Flavor
$26,000.00
Estimated delivery between March 20 and March 22.
This monoblock cam-driven dropper bottle filling machine is specially designed for filling and capping small-volume food liquids such as edible oils, liquid flavors, nutritional extracts, and concentrated seasoning drops.
Equipped with dual 316 stainless steel magnetic pumps, the machine ensures hygienic, corrosion-resistant, and high-precision dosing from 1-100ml. The cam indexing star wheel system provides accurate bottle positioning, enabling stable operation at 60-70 bottles per minute.
The integrated system completes bottle positioning, liquid filling, dropper cap placing, and screw capping in one compact unit, reducing labor cost and improving production efficiency.
Dropper Bottle Filling Machine Parameter
- Machine Model: FZ-AFC27YT
- Machine Voltage: 220V/50HZ/5A (110V is Customizable)
- Recommend Filling Volume: 1-100 ml (Customizable)
- Filling Pump Type: 316 Magnetic Pump
- Max Flow Rate: 3L/min (Based on water)
- Working Capacity: 60-70 BPM (Based on filling volume & filling material)
- Suitable Bottle Size: Customizable
- Bottle Cap Size: Customizable
- Air Pressure: 0.6-0.8 MPa
- Machine Size: 2100*1460*1240 mm
- Machine Weight: 1500 kg
- Package Size: 2370*1230*1770 mm
- Package Weight: 1600 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
User-friendly HMI with PLC control allows precise parameter setting, filling volume adjustment, and real-time production monitoring. Designed for modern food processing environments, ensuring stable, traceable, and efficient operation.
Equipped with high-precision 316 stainless steel magnetic pumps, specially suitable for edible oils, liquid flavors, and nutritional extracts. Ensures hygienic, contamination-free, and highly accurate dosing for consistent product quality.
Vibratory bowl with dual guide rails ensures smooth, stable, and uninterrupted cap supply. Designed to maintain clean cap handling and improve overall packaging efficiency in food production lines.
Food-safe guided chute system accurately positions dropper caps onto bottles, reducing misalignment and ensuring consistent sealing quality for edible liquid packaging.
Integrated bottle alignment and torque-adjustable tightening system ensures secure sealing without damaging caps. Helps maintain product freshness and prevent leakage in food applications.
High-precision cam indexing star wheel guarantees accurate bottle positioning for synchronized filling and capping. Stable operation at 60–70 BPM ensures reliable performance in food-grade bottling lines.
Q1: Is this machine suitable for edible oil filling?
Yes. The 316 stainless steel magnetic pump ensures food-grade liquid compatibility.
Q2: Can it fill viscous food liquids?
It works well with low to medium viscosity liquids such as oil, flavor extract and liquid seasoning.
Q3: Is the filling volume adjustable?
Yes, recommended filling range is 1-100ml and customizable.
Q4: Can it connect with other food packaging machines?
Yes, it can operate independently or integrate into a complete food bottling line.
