Cup Filling & Sealing Machines
12 products
12 products
Sort by:
- Featured
- Most relevant
- Best selling
- Alphabetically, A-Z
- Alphabetically, Z-A
- Price, low to high
- Price, high to low
- Date, old to new
- Date, new to old
$15,399.00
Machine Overview
The Automatic Cup Filling Sealing Machine fills and seals preformed plastic cups in one continuous sequence — cup feeding, filling, film sealing, and discharge without manual handling between stages.
A servo-driven piston filling system controls dosing. Piston displacement pushes a fixed volume through per stroke regardless of how the product resists flow — which keeps fill weight consistent across products that vary in viscosity, from yogurt and custard through honey, chocolate spread, peanut butter, and cream cheese. Servo actuation adjusts stroke speed and position rather than running at a fixed mechanical setting, which is where fill accuracy holds when product consistency shifts between batches.
The film sealing stage closes each cup immediately after filling. Seal integrity depends on consistent temperature, pressure, and dwell time — the parameters that determine whether the seal holds through refrigeration, transport, and the consumer opening it.
Filling heads, cup sizes, and optional functions configure at order to match the product and production requirement rather than being worked around after delivery. It is ideal for the dairy industry, dessert production, condiment manufacturing, bakery ingredient processing, ready-to-eat food production, and central kitchens.
Key Features
- Designed for yogurt, pudding, jelly, sauces, jams, honey, and dairy products
- Servo piston filling ensures high filling accuracy
- Automatic cup feeding, filling, film sealing, and discharge
- PLC touch screen for simple parameter adjustment
- Food-grade SUS304 stainless steel construction
- Customizable filling heads and cup molds
- Stable heat sealing for leak-resistant packaging
- Suitable for various cup diameters and filling volumes
- Easy-to-clean design for hygienic food production
- Optional date coding, nitrogen flushing, and cup sterilization systems
Applications
Suitable Products
- Yogurt
- Greek Yogurt
- Drinking Yogurt
- Pudding
- Jelly
- Custard
- Jam
- Honey
- Chocolate Spread
- Peanut Butter
- Cream Cheese
- Mayonnaise
- Salad Dressing
- Cheese Sauce
- Salsa
- Fruit Puree
- Caramel Sauce
- Dips
- Hummus
- Butter
- Coconut Cream
- Dessert Cups
Suitable Industries
- Dairy Manufacturing
- Dessert Production
- Sauce & Condiment Manufacturing
- Bakery Filling Production
- Honey Processing
- Jam Manufacturing
- Nut Butter Production
- Ready-to-Eat Food Production
- Food Processing Plants
- Central Kitchens
- OEM Food Manufacturing
- Private Label Food Packaging
- Contract Food Co-packing
Technical Specifications
|
Machine model |
FZ-AFS01P |
|
Power supply |
380V/220V 50-60Hz 3.2kW |
|
Working speed |
About 2500-3000pcs/hour(depending on filling range & materials) |
|
Filling pump |
Piston pump |
|
Filling range |
Customizable |
|
Suitable cup size |
Customizable |
|
Hopper size |
About 60L |
|
Air pressure |
0.6-0.8MPa |
|
Machine size |
About 2940*670*1800 mm(L*W*H) |
|
Package size |
About 3070*760*1950 mm(L*W*H) |
|
Package weight |
About 692 kg |
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
Machine Details
Filling volume, sealing temperature, production speed, and operating parameters adjust from one touchscreen interface without stopping the line. Saved recipes mean switching between a yogurt SKU and a pudding format — products with different fill volumes, sealing temperatures, and optimal piston speeds — is a recall rather than a manual re-entry of every parameter from scratch.
Empty cups separate and place onto the conveyor automatically — no operator positioning cups between the magazine and the filling station. Cup magazines and feeding mechanisms configure to match different cup dimensions and production capacities, which determines the throughput the filling system can actually sustain rather than what it's rated to handle on a standard cup format.
A servo-controlled piston delivers a fixed volume per stroke regardless of how the product resists flow. For yogurt, pudding, sauces, jams, and other viscous products — where viscosity shifts between batches or across a long run — that fixed-displacement mechanism is what keeps fill weight consistent without requiring mechanical recalibration. Volume adjusts at the control system rather than through component replacement.
The film lid feeding mechanism picks and transfers lids onto cups before the sealing stage. Placement accuracy at this point determines seal quality downstream — a lid that lands off-center or at the wrong angle seals unevenly, which produces a weak edge that fails under the pressure differential when the consumer opens the cup. Roll film configurations are available for operations running continuous film rather than pre-cut lids.
The sealing station applies heat and pressure to close each cup after filling. Temperature and dwell time adjust to match the sealing film specification — different film materials seal at different temperatures, and a fixed setting across multiple film types produces inconsistent seal strength. The seal that forms here determines whether the cup holds through refrigeration, transport, and the consumer opening it.
Electrical components sit inside a protected control cabinet — separated from the production environment. A fault that needs tracing gets found faster in a cabinet where wiring follows a logical structure. In continuous production, that difference shows up in how long the line stays down when something goes wrong, not in how the machine runs when everything is working correctly.
How Does the Cup Filling Sealing Machine Work?
- Empty cups are automatically fed onto the conveyor.
- Cups move into position beneath the filling station.
- Servo piston pumps dispense the preset amount of product.
- Sealing film is positioned automatically over each cup.
- Heat sealing securely bonds the film to the cup.
- Optional date coding prints production or expiration information.
- Finished cups are automatically discharged for secondary packaging.
Why Choose This Cup Filling Sealing Machine?
- High filling accuracy reduces product waste.
- Fully automated production lowers labor costs.
- Hygienic food-grade construction meets food processing requirements.
- Compatible with a wide variety of dairy, dessert, and condiment products.
- Stable sealing minimizes leakage during transportation.
- Easy-to-use PLC interface simplifies operation.
- Modular configuration supports future production expansion.
- Custom molds fit different cup shapes and sizes.
- Suitable for integration into complete food packaging lines.
- Optional features allow the machine to adapt to different packaging requirements.
Frequently Asked Questions
What products can this machine fill?
Yogurt, pudding, jelly, jam, honey, peanut butter, mayonnaise, cheese sauce, chocolate spread, fruit puree, cream cheese, salad dressing — liquid and viscous food products generally fall within range. If it moves through a piston pump without bridging or requiring heat to flow at room temperature, the filling system handles it.
Can it handle different cup sizes?
Yes. Different molds accommodate various cup diameters, heights, and capacities — the cup format is determined by the mold configuration, not by the machine's core mechanism. Mold changes switch the format without replacing the filling or sealing system.
Is the filling volume adjustable?
Yes. Volume adjusts at the PLC control system without mechanical component changes — relevant when the same machine runs a 100 g yogurt cup and a 200 g pudding cup on the same shift, where the correct fill weight differs by a factor of two.
What filling system does the machine use?
A servo-driven piston filling system. The piston delivers a fixed volume per stroke regardless of how the product resists flow — which is what keeps fill weight consistent when viscosity shifts between batches or across a long production run.
Can the machine package dairy products?
Yes. Yogurt, Greek yogurt, dairy desserts, cream cheese, and other refrigerated dairy products run on the same system. The servo piston filling mechanism handles the viscosity range these products span without requiring a pump or nozzle change between them.
Is nitrogen flushing available?
Yes, as an optional addition. Nitrogen displaces headspace oxygen before the film lid seals — reducing the oxygen the product is in contact with after sealing, which is what extends shelf life rather than any change to the product itself.
Does the machine support date coding?
Yes, as an optional system. Production dates, expiration dates, and batch numbers print directly onto the sealing film during the sealing stage — at the unit level, which gives finer traceability than outer carton coding alone if a quality issue requires isolating a specific production run.
Can this machine be integrated into a production line?
Yes. Cup feeding systems, labeling machines, checkweighers, cartoning machines, and other packaging equipment connect downstream — running as integrated stages in a continuous sequence rather than separate operations with manual transfers between them.
$20,999.00
Product Description
The Automatic Cup Filling Sealing Capping Machine does it all — filling, sealing, and capping plastic cups automatically.
It handles a wide range of food products. Think yogurt, pudding, jelly, honey, sauces, cream, and fruit preparations. Empty cups go in. Finished, sealed cups come out. One compact system manages the whole process.
The machine runs on a high-precision piston filling system. A servo-controlled sealing mechanism pairs with it for tight, consistent seals. Together, they deliver accurate fills and reliable output every single run.
Cleaning is straightforward. The controls are simple and intuitive. Cup sizes are fully customizable. Food manufacturers get efficient, consistent, and professional-looking packaging — without the complexity.
Machine Features
All-in-One Packaging Process One machine handles everything — cup feeding, filling, film sealing, lid placement, and cup discharge. Less labor. Better efficiency.
High-Precision Piston Filling The piston filling system fills accurately and consistently every time. Works great for yogurt, honey, pudding, sauces, cream, and other viscous products.
Servo-Controlled Film Feeding Servo motors keep the film perfectly positioned and feeding smoothly. Less material waste. Consistent seals, every run.
Reliable Heat Sealing Controlled temperature and pressure create strong, leak-resistant seals. Products stay fresh longer and shelf life improves.
Automatic Lid Feeding & Pressing The machine places and presses outer lids onto sealed cups on its own. Better protection. Cleaner retail presentation.
Hygienic Food-Grade Construction Food-contact materials and an enclosed structure keep contamination risks low. Easy to clean, too.
Continuous Material Supply A diaphragm pump and mixing hopper work together to keep product feeding stable throughout production. No interruptions, no downtime.
Applications
Suitable for packaging:
Dairy Products
- Yogurt
- Greek Yogurt
- Drinking Yogurt
- Dairy Desserts
Desserts
- Jelly
- Pudding
- Custard
- Mousse
- Ice Cream Toppings
Sauces & Condiments
- Ketchup
- Mayonnaise
- Salad Dressing
- Chili Sauce
- Cheese Sauce
Sweet Products
- Honey
- Jam
- Chocolate Spread
- Syrup
Other Food Products
- Fruit Cups
- Snack Cups
- Dips
- Ready-to-Eat Foods
Technical Specifications
|
Machine Model |
FZ-AFS02R |
|
Power Supply |
220V/110V 50-60Hz 2KW |
|
Working Speed |
About 1000-1500 pcs/hour (Depending on filling range & materials) |
|
Filling Pump |
Piston Pump |
|
Filling Range |
20-200 ml(Customizable) |
|
Filling Accuracy |
±1% |
|
Suitable Cup Size |
Customizable |
|
Sealing Temperature |
0-400℃ |
|
Material Feeding Pump |
Diaphragm Pump |
|
Hopper Capacity |
50L(with mixer, customizable with heater) |
|
Air Pressure |
0.6-0.8 Mpa |
|
Machine Size |
About 2100*1500*1900 mm(L*W*H) |
|
Package Size |
About 1720*1580*2000 mm |
|
Package Weight |
About 819 kg |
Machine Detail
Control Panel
Allows operators to monitor production status and adjust filling volume, sealing temperature, and operating speed in real time. The user-friendly touch screen interface simplifies operation and improves production efficiency.
Double Filling Heads
Equipped with dual piston filling heads, the machine delivers accurate and consistent filling for yogurt, pudding, honey, sauces, cream, jam, and other viscous food products. Filling volumes can be customized to suit different packaging requirements. Film Lid Feeding Structure
The servo-controlled film feeding system ensures precise lid positioning and smooth film delivery, helping reduce material waste while maintaining stable and continuous production. Film Lid Sealing Structure
Applies controlled heat and pressure to create strong, leak-resistant seals that help preserve product freshness, prevent contamination, and improve shelf life. Outer Cover Feeding Structure
Automatically picks, places, and presses outer lids onto sealed cups, providing additional product protection and enhancing the appearance of finished products. The system can be customized according to production requirements. Electrical Components
High-quality electrical components are arranged in a well-organized layout to ensure stable machine performance, reliable operation, and convenient maintenance for long-term food production. How Does the Machine Work?
Step 1
Plastic cups are automatically fed into the rotary indexing system. Step 2
The piston filling system dispenses a preset amount of product into each cup. Step 3
Pre-cut film lids are automatically positioned and sealed onto the cups. Step 4
Outer plastic covers are automatically fed, placed, and pressed onto the sealed cups. Step 5
Finished products are discharged through the conveyor for collection or secondary packaging. Benefits of Choosing This Machine
Improve Production Efficiency
Automates multiple packaging processes to increase output and reduce labor requirements. Consistent Product Quality
Precise filling and reliable sealing ensure uniform packaging quality. Flexible Production
Cup sizes, filling volumes, sealing configurations, and lid designs can be customized. Reduced Material Waste
Servo-controlled film feeding minimizes packaging material consumption. Enhanced Product Protection
Double packaging protection through film sealing and outer lid pressing improves product safety and appearance. Frequently Asked Questions
What products can this machine fill?
It can fill yogurt, pudding, jelly, honey, sauces, cream, jams, dessert fillings, and other viscous or semi-liquid food products. Can the machine handle different cup sizes?
Yes. Cup dimensions can be customized according to production requirements. Is the filling volume adjustable?
Yes. Filling volumes can be adjusted within the machine's specified range. Can the machine be customized for heated products?
Yes. The hopper can be customized with heating functions for products that require temperature control. Is the machine suitable for food production?
Yes. The machine is designed for food packaging applications and can be configured with food-grade contact materials.
$13,499.00

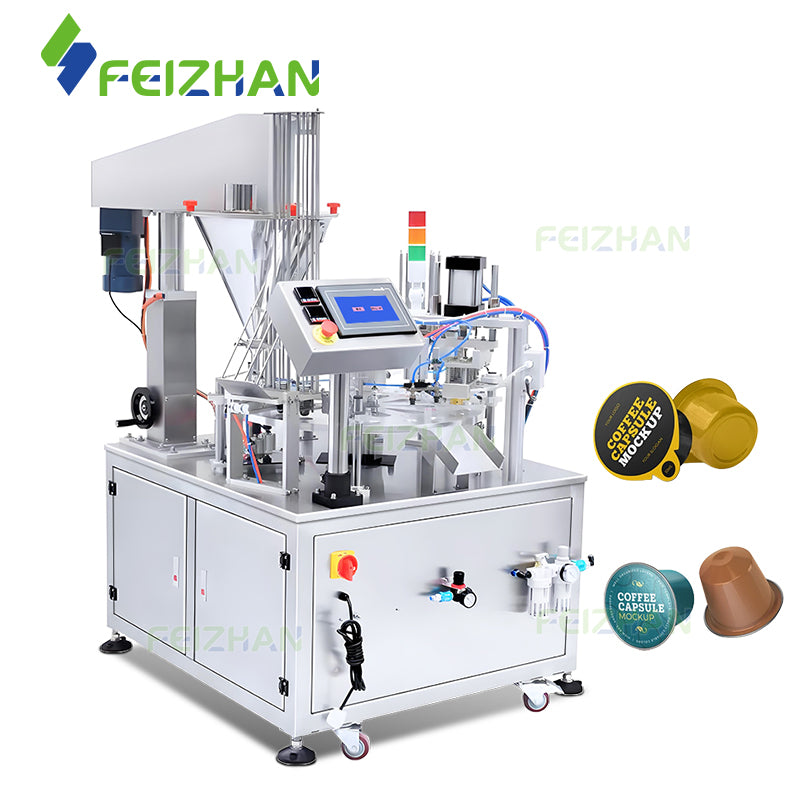

Coffee Capsule Filling Machine Overview
The FEIZHAN automatic coffee capsule filling and sealing machine is designed for packaging coffee powder, tea powder, milk powder and other food-grade powdered materials into coffee capsules or K cup pods. Integrating automatic cup feeding, auger filling, film lid placement and heat sealing into one compact system, it helps improve production efficiency while reducing labor costs. Equipped with a closed working structure and food-grade SUS304 stainless steel construction, this machine supports cleaner and more hygienic production conditions for food packaging.
Using an auger filling system, the machine ensures stable and accurate powder filling performance, making it suitable for small to medium-scale food manufacturers, coffee brands and private label production. The sealing temperature can be adjusted according to packaging materials, helping create secure and neat seals for different capsule types. Designed for flexible production, the machine can also be customized for different cup sizes and packaging requirements.
Coffee Capsule Filling Machine Features
Automatic Cup Feeding
The machine can feed coffee capsules or K cups automatically onto the rotary working platform, helping reduce manual handling and improve packaging efficiency. The feeding structure can be customized according to different cup sizes.
Accurate Auger Filling System
Designed for food-grade powder materials such as coffee powder, tea powder and milk powder, the auger filling system ensures stable filling accuracy while reducing powder waste during production.
Automatic Film Lid Placement
The machine can automatically place film lids onto cups before sealing, streamlining production and helping maintain packaging consistency while reducing labor requirements.
Adjustable Heat Sealing
Equipped with an adjustable temperature control system, the machine allows sealing temperature adjustment according to different packaging materials, helping ensure neat and secure seals.
Closed Working Structure
The enclosed machine design helps reduce dust interference during powder filling and supports cleaner production conditions, making it suitable for food packaging applications.
SUS304 Stainless Steel Construction
Made of food-grade SUS304 stainless steel, the machine offers durability, corrosion resistance and easier cleaning for food-related production environments.
Applications
This coffee capsule filling and sealing machine is suitable for packaging food-grade powder materials into coffee capsules, K cups and similar pod containers.
Applicable Products
- Coffee Powder
- Tea Powder
- Milk Powder
- Cocoa Powder
- Instant Beverage Powder
- Protein Powder
- Functional Drink Powder
Applicable Industries
- Coffee Brands
- Food Processing Factories
- Beverage Manufacturers
- Private Label Packaging
- Small & Medium Food Production Workshops
Technical Parameters
|
Machine Model |
FZ-GF800C |
|
Voltage |
Single phase 220V |
|
Total Power |
1kW |
|
Production Speed |
About 1200-2400 pcs/h(depending on product size and filling materials) |
|
Filling Method |
Auger Filling |
|
Cup Size |
Diameter 37-54 mm*Height 28-50 mm |
|
Film Lid Diameter |
37-54 mm |
|
Air Pressure |
0.6-0.8 MPA |
|
Air Consumption |
0.4 m³/h |
|
Machine Weight |
About 300 kg |
|
Machine Size |
About 650*680*1800 mm/ About 25.6*26.8*70.9 inch |
Machine Details
The machine can feed coffee capsules or K cups onto the rotary working plate automatically, reducing manual labor and improving production efficiency. The feeding structure can be customized according to different cup sizes for flexible production needs.
Equipped with an auger filling system, the machine is suitable for accurately filling powder materials into coffee capsules. It ensures stable filling accuracy and helps reduce material waste, making it ideal for coffee pod and K cup production.
This structure places film lids onto cups automatically before sealing, reducing manual handling and improving workflow consistency. It helps streamline the production process for coffee capsule filling and sealing.
The sealing temperature can be adjusted according to packaging materials and production requirements, helping create secure and neat seals for coffee pods and capsule cups. The enclosed working structure also contributes to a cleaner production environment.
How Does the Coffee Capsule Filling Machine Work?
The automatic coffee capsule filling and sealing machine completes the packaging process through several integrated working steps:
Step 1: Cup Feeding
Empty coffee capsules or K cups are automatically fed onto the rotary working platform.
Step 2: Powder Filling
The auger filling system dispenses a preset amount of powder material into each capsule for consistent filling accuracy.
Step 3: Film Lid Placement
Film lids are automatically placed onto filled cups to prepare for sealing.
Step 4: Heat Sealing
The sealing system applies heat to seal the film lid securely onto the capsule.
Step 5: Finished Product Collection
Completed coffee pods are discharged for the next packaging or inspection process.
Why Choose This Coffee Capsule Filling Machine?
Improve Production Efficiency
Combining cup feeding, powder filling, lid placement and sealing into one machine helps reduce manual work and streamline production.
Designed for Food Packaging
Built with SUS304 stainless steel and a closed working structure, the machine supports cleaner packaging conditions for food-grade products.
Stable Filling Accuracy
The auger filling system is suitable for powder materials and helps achieve stable filling performance with reduced material waste.
Flexible Customization
The machine can be customized according to cup size and packaging requirements, helping meet different production needs.
Compact Integrated Design
Its all-in-one structure saves workspace while simplifying operation and equipment management.
Frequently Asked Questions
1. What products can this coffee capsule filling machine package?
This machine is suitable for coffee powder, tea powder, milk powder, cocoa powder and other food-grade powdered materials.
2. Is this machine suitable for K cups?
Yes. The machine is designed for coffee capsules and K cup style packaging, and can be customized according to cup size requirements.
3. What filling method does the machine use?
The machine adopts an auger filling system, which is suitable for powder materials and helps ensure stable filling accuracy.
4. Can the sealing temperature be adjusted?
Yes. The sealing temperature can be adjusted according to packaging materials and production requirements.
5. What is the production speed?
The production speed is about 1200–2400 pcs/h, depending on cup size and filling materials.
6. Can the machine be customized?
Yes. The machine can be customized according to cup size and production needs.
$6,699.00

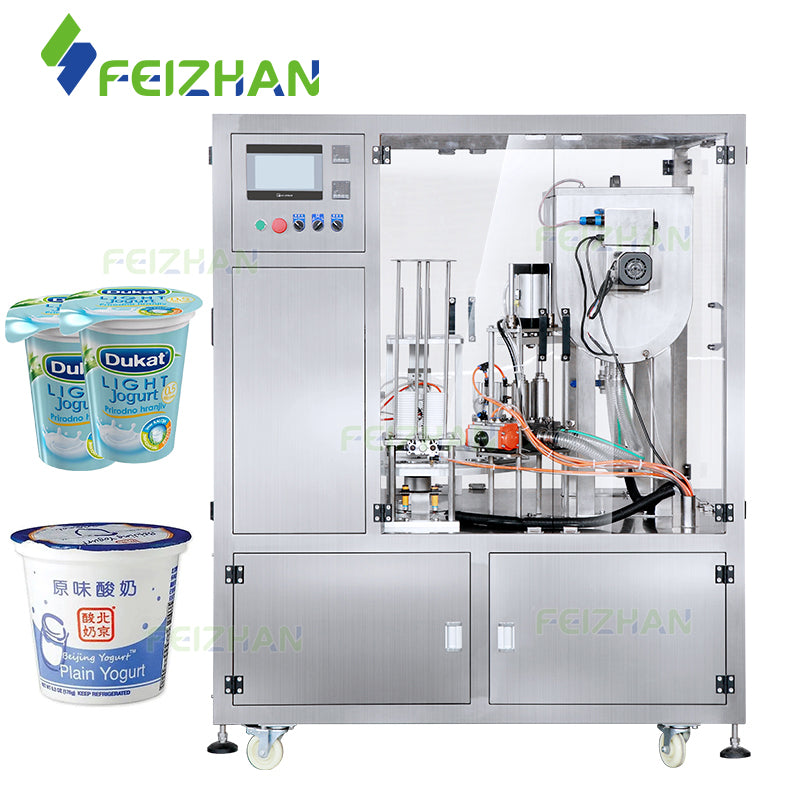

This automatic yogurt cup filling machine is designed for food manufacturers who need efficient and hygienic packaging for yogurt, jam, pudding, chocolate, sauce, and other liquid or paste products. Integrating cup feeding, filling, film sealing, and product output into one compact rotary system, it helps reduce labor costs while improving production consistency. The pneumatic filling structure is suitable for both smooth and particle-containing materials such as fruit yogurt or chunky sauces, making it ideal for dairy products, desserts, condiments, and ready-to-eat food packaging applications. Its customizable cup size and filling range allow the machine to adapt to different production requirements for small and medium food businesses.
Key Features
- Integrated cup feeding, filling, sealing, and output system improves packaging efficiency and saves working space.
- Suitable for liquid, paste, and particle-containing products such as yogurt with fruit pieces, jam, pudding, and sauces.
- Pneumatic filling nozzle ensures stable and accurate filling performance for food products.
-
Rotary filling structure enables continuous production with consistent packaging quality.
-
Adjustable sealing temperature helps achieve reliable sealing for different cup and film materials.
-
Touch screen control panel simplifies parameter setting and daily operation.
- Cup size, filling range, and rotary plate can be customized according to production needs.
- Compact machine design is suitable for small and medium food manufacturing businesses.
Applications
This automatic cup filling sealing machine is widely used in the food and beverage industry for packaging:
- Yogurt
- Greek yogurt
- Fruit yogurt
- Jam
- Jelly
- Pudding
- Custard
- Chocolate paste
- Honey
- Ketchup
- Chili sauce
- Salad dressing
- Dipping sauce
- Cream
- Dessert cups
- Ready-to-eat snack cups
It is suitable for plastic cups, dessert cups, dairy cups, and other customized food containers.
Parameter
- Machine Model: FZ-FS100
- Machine Voltage: 110/220V
- Machine Power: 1600 W
- Filling Range: <100 ml ( Customized )
- Packaging Speed: 12-15 cups/min
- Working Air Pressure: 0.4-0.6 MPa
- Cup Diameter: Customized
- Machine Weight: 170 kg
- Package Size: 960*990*1520 mm
- Package Weight: 207 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
The intelligent touch screen control panel makes operation parameters clear and easy to monitor. Operators can quickly adjust filling time, sealing temperature, and working settings, reducing training time and improving daily production efficiency.
Designed for automatic cup loading, this structure can be customized according to different cup sizes and shapes. Stable cup positioning helps ensure smooth conveying and accurate filling during continuous production.
Pneumatic Filling Nozzle
Equipped with a pneumatic filling system, the machine is suitable for liquid, paste, and semi-viscous food products. The rotary check valve design allows smooth filling of materials containing particles, such as fruit yogurt, jam, or chunky sauces, while improving filling accuracy and reducing leakage.
Automatic Film Feeding Structure
The machine can automatically feed, position, and place sealing film onto cups, helping reduce manual labor and minimize production errors. This automated process improves packaging consistency and overall production efficiency.
Adjustable Sealing Structure
The sealing temperature can be adjusted according to different packaging films and product requirements. The durable heat sealing structure ensures strong and reliable sealing performance, helping maintain product freshness and packaging quality.
FAQ
What products can this cup filling sealing machine package?
This machine is suitable for yogurt, pudding, jelly, jam, chocolate paste, ketchup, honey, salad dressing, dipping sauce, cream, and other liquid or paste food products. It can also fill materials containing small particles such as fruit pieces.
Can the machine be customized for different cup sizes?
Yes. The cup feeding structure and rotary plate can be customized according to your cup diameter, cup height, and production requirements.
Is this machine suitable for yogurt with fruit pieces?
Yes. The rotary check valve filling system is designed to handle products containing soft particles like fruit pieces, making it suitable for fruit yogurt and chunky sauces.
What cup materials are supported?
The machine is suitable for plastic cups, yogurt cups, dessert cups, and other customized food containers compatible with heat sealing films.
Can the sealing temperature be adjusted?
Yes. The sealing temperature can be adjusted based on different sealing films and packaging materials to ensure reliable sealing quality.
Is the machine fully automatic?
The machine integrates automatic cup feeding, filling, film feeding, sealing, and product output into one compact system, helping reduce manual operation during production.
Can this machine fill thick food products?
Yes. It is suitable for liquid, paste, and semi-viscous products such as yogurt, jam, pudding, chocolate paste, and sauces.
What industries is this machine suitable for?
This machine is widely used in dairy factories, dessert production, sauce packaging, snack food manufacturing, and ready-to-eat food packaging industries.
$11,699.00

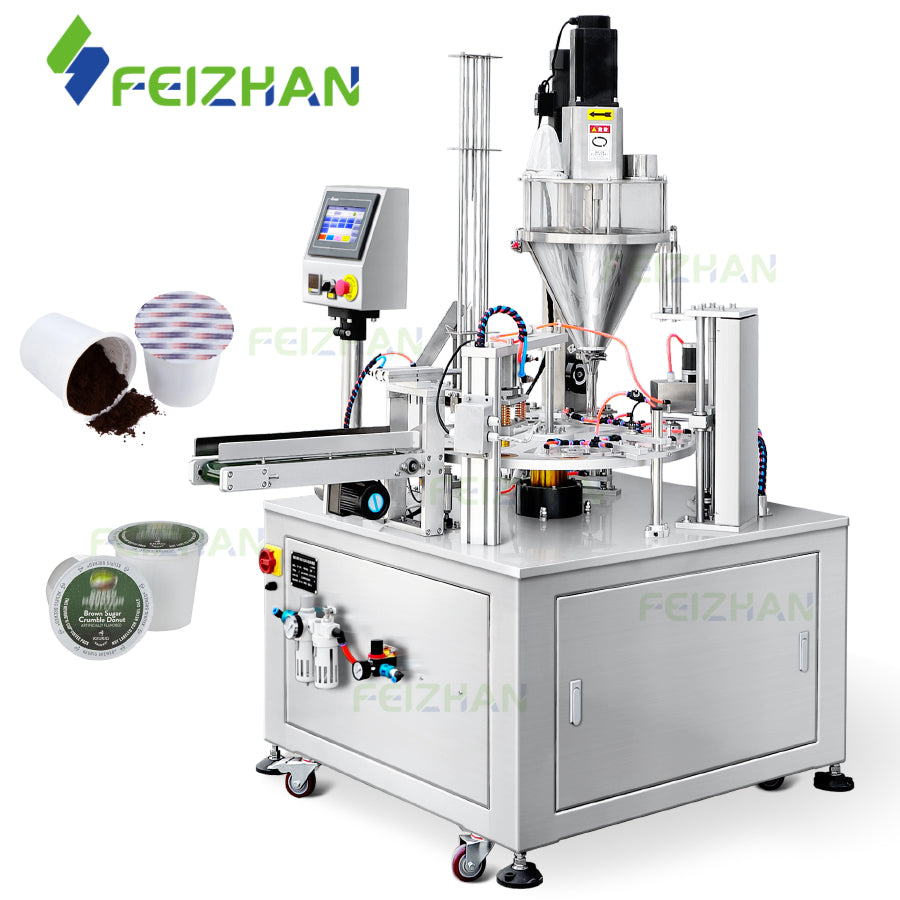

This automatic coffee capsule filling machine is designed for efficient and hygienic packaging of food powders and granules into preformed cups or capsules. It integrates cup feeding, quantitative filling, film sealing, and cutting into one compact system, making it ideal for food manufacturers looking to streamline production while maintaining consistent quality.
The machine is widely used in the food industry for packaging products such as coffee powder, cocoa powder, milk powder, protein powder, sugar, and instant beverage mixes. It is also suitable for innovative applications like dessert powders, seasoning blends, and functional nutrition products, helping brands create convenient single-serve packaging formats.
Equipped with a servo-controlled filling system, the machine ensures high accuracy and stable output, even for fine or slightly sticky powders. The independent temperature control system guarantees tight and clean seals, supporting both plastic and aluminum foil films. Its compact structure saves space while delivering a production capacity of up to 40 cups per minute, making it a practical choice for small to medium-scale food businesses.
Built with food-grade stainless steel and designed for easy cleaning, this machine meets hygiene requirements for food production. The user-friendly control panel allows operators to quickly adjust parameters and monitor the process in real time, reducing downtime and improving efficiency.
Whether you are starting a coffee capsule business or expanding into single-serve food packaging, this machine offers a reliable and flexible solution.
Key Features
Compact All-in-One Design
Integrates cup feeding, powder filling, film sealing, and cutting in one machine, saving space and reducing labor costs for food production lines.
High-Precision Servo Filling
Equipped with a servo-controlled system for accurate dosing of coffee powder, milk powder, protein powder, and other fine or semi-free-flowing powders.
Wide Food Application Compatibility
Suitable for a variety of food products including coffee, cocoa, sugar, instant drink mixes, and nutritional powders, enabling flexible product expansion.
Stable Heat Sealing System
Independent temperature control ensures tight, leak-proof sealing for plastic and aluminum foil films, preserving freshness and product quality.
Hygienic Food-Grade Structure
Constructed with stainless steel and designed for easy cleaning, meeting food industry hygiene standards.
User-Friendly Control Panel
Intuitive interface allows quick parameter adjustment and real-time monitoring, reducing operator training time.
Efficient Production Output
Supports up to 40 cups per minute, ideal for small to medium-scale food businesses looking to scale efficiently.
Customizable for Different Cup Sizes
Flexible configuration to accommodate various cup or capsule sizes, helping brands adapt to different packaging formats.
Ideal for Single-Serve Packaging Business
Perfect for launching or scaling coffee capsule, instant beverage, or portioned food product lines.
Coffee Capsule Filling Machine Parameter
- Model: FZ-KCFC1
- Power: 3 Phase, 220/380 V, 50/60 HZ,1.2 KW
- Air Consumption: 0.1 m³/min
- Air supply: >0.6 Mpa
- Filling Accuracy: ± 0.1 g
- Capacity: About 20 cup/minute
- Filling Weight: 0-20 g
- Weight: 120 Kg
- Dimension: 602*820*1653 mm
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
The touchscreen control panel provides intuitive parameter setting and real-time monitoring of the entire filling and sealing process. Operators can easily adjust filling volume, sealing temperature, and production speed, reducing setup time and improving overall efficiency.
Driven by a servo motor, the filling system ensures precise and consistent dosing for various food powders such as coffee, milk powder, and protein blends. Even fine or slightly sticky powders can be filled accurately with minimal waste.
The food-grade stainless steel hopper is corrosion-resistant and easy to clean, making it ideal for hygienic handling of food powders. Its smooth inner surface prevents material buildup and ensures stable feeding.
Equipped with an independent temperature control system, the machine delivers strong and uniform seals on plastic or aluminum foil films. This ensures leak-proof packaging and helps maintain product freshness and shelf life.
The rotary structure allows multiple processes to run simultaneously, increasing production efficiency while maintaining compact machine size.
FAQ (Frequently Asked Questions)
1. Can this machine handle different powder types without changing major parts?
Yes. The machine can handle a wide range of powders with different densities and flow characteristics. Minor parameter adjustments are usually sufficient, making it suitable for switching between products like coffee, drinks powder, or nutritional blends.
2. Is it suitable for small batch production or only for large-scale factories?
This machine is designed to be flexible. It works well for both small batch production and growing businesses, allowing users to scale output without investing in a full production line at the beginning.
3. How difficult is it to switch between different cup sizes or formats?
Changing cup sizes typically requires replacing the corresponding molds or adjusting fixtures. The process is straightforward and does not require advanced technical skills.
4. What kind of operators are needed to run this machine?
The machine can be operated by one person after basic training. No specialized engineering background is required, which helps reduce labor costs.
5. Can the machine be integrated with other packaging equipment?
Yes. It can be connected with upstream and downstream equipment such as powder mixers, conveyors, labeling machines, or cartoning systems to form a complete packaging line.
6. How is the machine shipped and installed?
The machine is securely packed before shipment. Installation is simple, and remote technical support or video guidance is typically available to assist with setup and commissioning.
7. What should be considered when choosing the right film or sealing material?
The choice depends on product type, shelf life requirements, and packaging appearance. Common options include plastic films and aluminum foil. We can provide recommendations based on your product.
8. Can this machine be customized for specific products or requirements?
Yes. Customization options may include cup size, filling range, voltage, and certain structural adjustments to better match your production needs.
$10,199.00

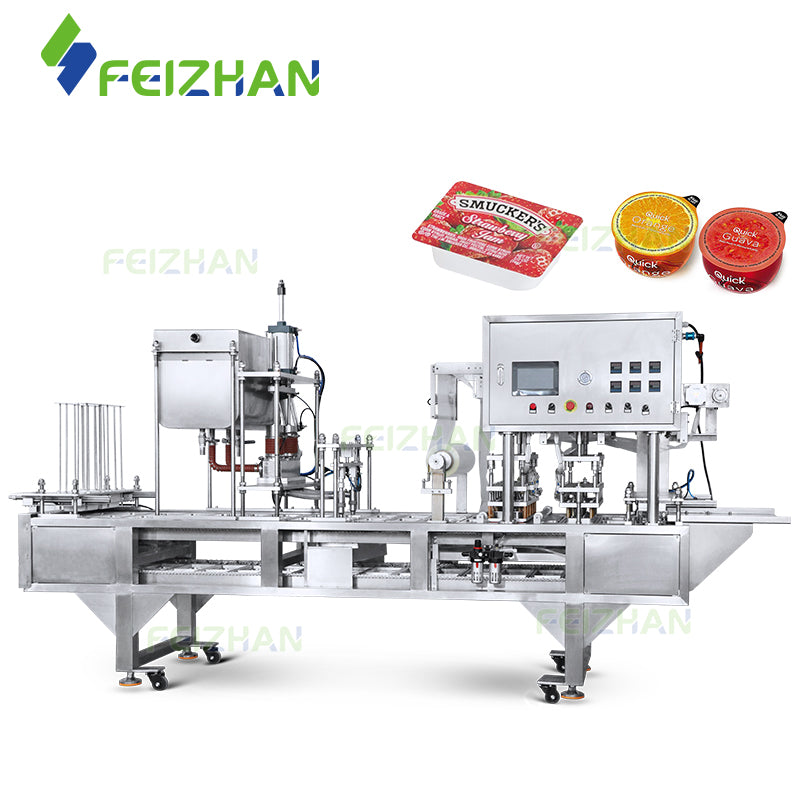

FEIZHAN Automatic Food Cup Filling and Sealing Machine is designed for hygienic and efficient packaging of various food products in plastic cups. It integrates automatic cup feeding, quantitative filling, film sealing and finished product output into one compact system, making it ideal for small to medium-scale food production.
This machine is widely used for packaging jelly, yogurt, pudding, honey, sauces and other semi-liquid or viscous food products, helping improve production efficiency while maintaining consistent filling accuracy and sealing quality.
Built with food-grade stainless steel, all contact parts meet hygiene requirements for food processing. The rotary working structure ensures stable operation and smooth workflow, reducing manual labor and improving overall productivity.
Food Cup Filling and Sealing Machine Parameter
- Machine Model: FZ-AFS06
- Voltage: 110 V / 220 V 50-60 Hz
- Power: 1.5 KW
- Working Speed: 1500 Cups/h (Based on 120 ml cups)
- Filling Range: 10-200 ml (Can be customized)
- Filling Accuracy: ±1%
- Filling Pump: Piston Pump
- Sealing Temperature: 0-400 ℃
- Suitable Cup Size: Can be customized
- Hopper Capacity: 35 L
- Air Pressure: 0.5-0.8 Mpa
- Machine Size: 1660*1150*1450 mm
- Machine Weight: 300 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
FAQ – Food Cup Filling Sealing Machine
Q1: What food products can this cup filling sealing machine handle?
A: This machine is suitable for a wide range of food products, including jelly, yogurt, pudding, honey, sauces and other semi-liquid or viscous materials. It is widely used in dessert cup packaging and snack cup production.
Q2: Is the machine made of food grade materials?
A: Yes, all parts that come into contact with food are made of food-grade stainless steel, ensuring hygiene, safety and compliance with food processing standards.
Q3: Can this machine handle viscous food like honey or sauce?
A: Yes, the machine is equipped with a piston pump filling system, which is suitable for viscous food such as honey, syrup, sauces and cream-based products, ensuring accurate and stable filling.
Q4: What types of cups are compatible with this machine?
A: This machine is designed for plastic cups of different sizes and shapes. Custom molds can be made according to your cup dimensions to ensure precise positioning and sealing.
Q5: Can it be used for yogurt and jelly cup packaging?
A: Yes, it is widely used as a yogurt cup filling sealing machine and jelly cup packaging machine, providing efficient and consistent sealing for food products.
Q6: Is the sealing process reliable for food packaging?
A: The sealing system allows adjustment of temperature and sealing time, ensuring tight, leak-proof sealing for different types of films used in food cup packaging.
Q7: What is the production capacity of this machine?
A: The working speed can reach approximately 15–25 cups per minute, depending on the product type, cup size and filling volume.
Q8: Is the machine suitable for small food businesses?
A: Yes, this automatic cup filling sealing machine is ideal for small to medium-sized food production, including dessert shops, yogurt brands and startup food businesses.
Q9: Can the machine be customized for different food products?
A: Yes, the machine can be customized with different molds, filling nozzles and configurations to suit various food products and cup sizes.
Q10: Does this machine support automatic production?
A: Yes, it integrates automatic cup feeding, filling, sealing and output, making it a complete food cup packaging solution.
$15,899.00

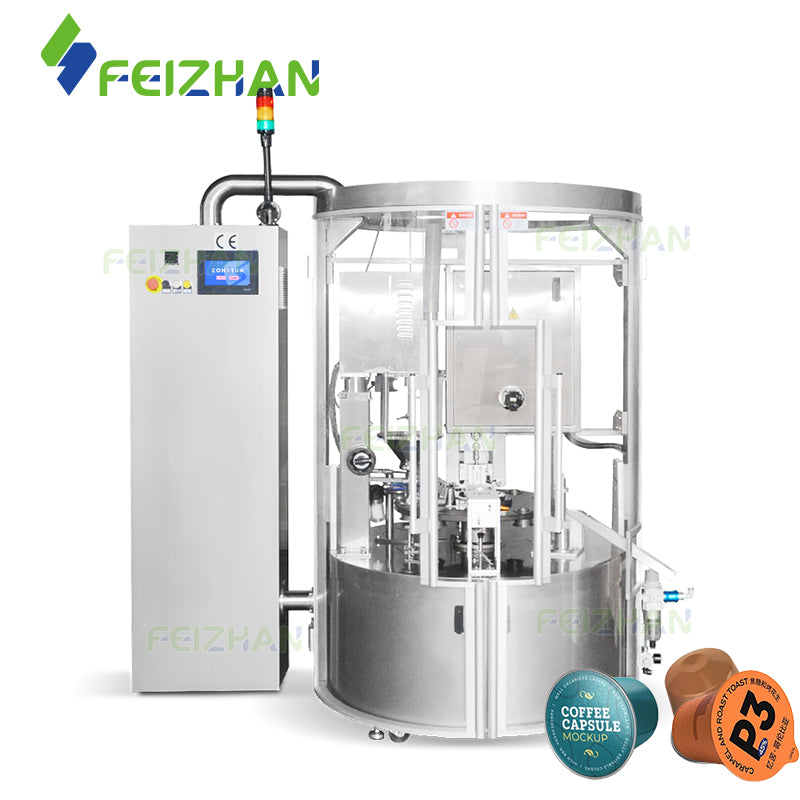

This automatic coffee capsule filling and sealing machine is designed for efficient packaging of coffee powder and other food powders into single-serve capsules. The machine integrates automatic cup dropping, precise powder filling, sealing film placement, and heat sealing into one compact system, enabling stable and continuous production.
Equipped with a high-precision filling system, the machine ensures consistent dosing for each capsule, helping maintain product quality and uniform taste. The intelligent sealing system applies controlled temperature and pressure to securely seal aluminum foil lids, creating airtight coffee capsules that help preserve aroma and freshness.
The machine is suitable for packaging various food powders such as coffee powder, tea powder, milk powder, cocoa powder, and protein powder. It is an ideal solution for coffee brands, capsule manufacturers, and food processing companies looking to produce single-serve capsule products efficiently. It is suitable for K-Cup compatible capsules and other coffee pods, making it a flexible solution for coffee capsule production.
Coffee Capsule Packaging Machine Parameter
- Model: FZ-KCFC2
- Power: 2.2 kW
- Voltage: 220/380V 50/60Hz
- Speed: 1200-1800 cups/hour
- Fill Range: 2-10 g (customized according to cup capacity)
- Filling Accuracy: ±1–2%
- Air Pressure: 0.5-0.75 MPa
- Maximum Air Consumption: 0.45 m³/min
- Machine Size: 1200*1100*1900 mm
- Machine Weight: 350 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
The machine is equipped with an intelligent touchscreen control panel that allows operators to easily adjust filling volume, sealing temperature, and production speed. The intuitive interface simplifies operation and enables quick parameter adjustments for different coffee capsule sizes and powder densities.
This machine uses a high-precision metering filling system designed specifically for coffee powder and other fine food powders. The filling volume can be adjusted easily, achieving filling accuracy of up to ±1%. It ensures consistent dosing for each coffee capsule, helping maintain stable product quality.
Vacuum suction cups accurately pick up and position the aluminum sealing film on each coffee capsule. The intelligent alignment correction system ensures precise placement before sealing, helping create reliable airtight seals that protect coffee aroma and product freshness.
Heat Sealing System for Coffee Capsules
The automatic heat sealing system applies precise temperature and pressure to securely seal the aluminum foil lid onto each capsule. The sealing temperature can be adjusted based on film materials, ensuring strong airtight seals that preserve aroma and extend product shelf life.
FAQ
What products can this coffee capsule filling machine package?
This machine is designed for filling and sealing various food powders into capsules. It is commonly used for packaging coffee powder, tea powder, milk powder, cocoa powder, and protein powder. The auger filling system ensures stable and accurate dosing for fine powders.
What types of coffee capsules are compatible with this machine?
The machine is suitable for K-Cup compatible capsules and other similar coffee pods. Different capsule molds can be customized to match various capsule sizes and designs.
What filling accuracy can the machine achieve?
The machine uses a servo-driven auger filling system that provides stable and precise powder dosing. Filling accuracy can reach up to ±1–3% depending on powder density and material flow characteristics.
How does the machine seal the coffee capsules?
The machine places aluminum sealing film automatically and applies heat sealing with controlled temperature and pressure. This process creates airtight seals that help preserve coffee aroma and freshness.
Is the machine easy to operate?
Yes. The machine is equipped with an intuitive touchscreen control panel that allows operators to easily adjust parameters such as filling volume, sealing temperature, and production speed. Minimal training is required for operation.
What industries is this machine suitable for?
This machine is widely used in coffee roasting factories, capsule coffee manufacturers, food processing plants, and beverage brands that produce single-serve coffee capsule products.
What is the production capacity of the coffee capsule filling machine?
The production speed depends on capsule size and powder characteristics. The machine is designed for stable and continuous operation, making it suitable for small to medium-scale coffee capsule production.
From $9,499.00
This automatic rotary cup filling and sealing machine is specially designed for hygienic packaging of dairy and semi-liquid food products such as yogurt, cream cheese, butter, hummus, pudding and sauces.
Equipped with a heated and mixing hopper, the system maintains stable material viscosity and prevents ingredient separation during production. This ensures consistent texture and precise portion control in every cup, even when filling high-viscosity or temperature-sensitive products.
The rotary working structure enables continuous and stable operation, improving output efficiency while reducing labor intensity. Servo-controlled filling ensures accurate dosing to minimize product waste and maintain cost control. Independent temperature-controlled sealing guarantees firm, airtight packaging to protect freshness and extend shelf life.
Built with food-grade stainless steel and enclosed safety design, the machine supports clean production environments required by modern dairy and food factories. Ideal for medium-scale food manufacturers seeking reliable, hygienic and efficient cup packaging solutions.
Cup Filling and Sealing Machine Parameter
- Machine Model: FZ-AFS07
- Voltage: 220V 3-Phase
- Power: 1.5 kW
- Production Capacity: 25 cups/min (Depending on cup size and filling materials)
- Filling Range: 10-100 ml (Can be customized)
- Filling Pump: Piston Pump
- Suitable Cup Size: Can be customized
- Hopper Capacity: 50L
- Hopper Function: Heating & Mixing Function
- Machine Size: About 1400*1100*1750 mm
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
Intelligent Control System – Stable & Easy Operation
Equipped with PLC and touchscreen control, the machine allows precise adjustment of filling volume, sealing temperature and production speed. Operators can quickly switch parameters for different products like yogurt, cheese, cream or sauce without complicated setup.
Stable control means fewer errors, less material waste, and more consistent product quality.
Double Head Filling System – Accurate & Clean Dosing
The dual filling nozzles ensure uniform filling for semi-liquid and viscous food products such as cream cheese, yogurt, butter, hummus and pudding.
Food-grade stainless steel contact parts guarantee hygienic production, while servo-controlled filling ensures precise portion control to reduce overfilling costs.
Heated & Mixing Hopper – Ideal for Viscous Dairy & Sauce Products
The hopper is equipped with integrated heating and mixing functions, specially designed for high-viscosity and temperature-sensitive food materials. Heating system maintains stable material fluidity, preventing solidification and ensuring smooth, accurate filling. Continuous mixing prevents ingredient separation, sedimentation and oil-water layering — guaranteeing consistent texture and quality in every cup.
Perfect for cream cheese, butter, chocolate paste, peanut butter, thick sauces and emulsified products.
Pre-Cut Lid Feeding System – Accurate & Stable Placement
This structure is designed for precise feeding and positioning of pre-cut film lids onto cups before sealing. Accurate lid placement ensures complete sealing coverage, reduces misalignment and prevents sealing defects. This improves packaging consistency and minimizes product rejection rate in dairy and food production.
The system can be customized according to cup size and lid specifications, making it suitable for yogurt, cheese, butter and sauce cup packaging.
Precise Heat Sealing – Secure & Leak-Proof Packaging
Independent temperature control ensures consistent sealing quality. The machine delivers firm, airtight sealing for pre-formed plastic cups, extending product shelf life and maintaining freshness.
Optional nitrogen flushing system available for products requiring extended shelf life.
FAQ – Rotary Cup Filling & Sealing Machine
1. What type of products is this machine suitable for?
This machine is designed for semi-liquid and viscous food products such as yogurt, cream cheese, butter, hummus, pudding, chocolate paste and thick sauces.
With the heated and mixing hopper, it is especially suitable for materials that require stable temperature control and uniform texture during filling.
2. Can it handle high-viscosity products like cream cheese or peanut butter?
Yes. The integrated heating and mixing system maintains material fluidity and prevents separation or solidification during production.
This ensures smooth filling, accurate dosing and stable sealing performance even for dense or temperature-sensitive products.
3. Is the machine food-grade and suitable for dairy production?
All product-contact parts are made of food-grade stainless steel.
The enclosed structure supports hygienic production environments required in dairy and ready-to-eat food factories.
4. How accurate is the filling volume?
The machine uses a servo-controlled filling system to ensure precise portion control.
Stable viscosity (supported by heating and mixing) further improves filling accuracy and reduces material waste.
5. Can the machine work with different cup sizes?
Yes. The rotary system and lid feeding structure can be customized according to cup diameter and height.
For multiple cup sizes, changeover solutions can be discussed based on your production needs.
6. What type of lids can it use?
The machine is designed for pre-cut aluminum foil or plastic film lids.
The precision lid feeding system ensures accurate placement before heat sealing, reducing sealing defects and improving finished product consistency.
7. Can nitrogen flushing be added for extended shelf life?
Yes. Nitrogen flushing function can be configured as an optional feature for products requiring modified atmosphere packaging.
8. What production capacity can this machine achieve?
Production speed depends on cup size, product viscosity and filling volume.
Please provide your product details and target output, and we will recommend the appropriate configuration.
Not sure if this machine fits your product?
Contact us with your material type, cup size and target capacity — we will provide a customized solution.
$8,699.00

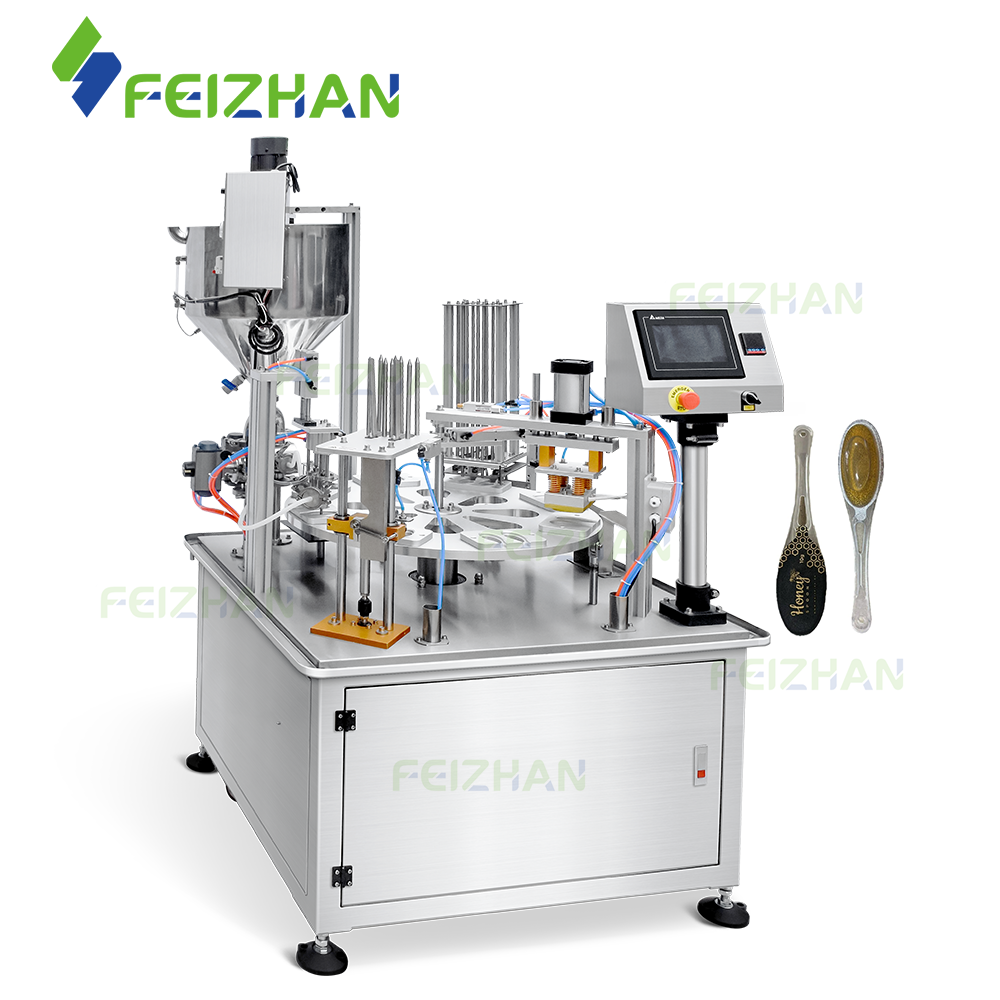

This automatic honey spoon filling sealing machine is specially designed for single-portion liquid food packaging. It integrates spoon feeding, high-precision piston filling, automatic film placement and heat sealing into one compact rotary system, ensuring stable and continuous production.
Equipped with a food-grade SUS304 stainless steel heated mixing hopper, the machine effectively maintains product fluidity and prevents crystallization, making it ideal for honey, syrup, jam, chocolate sauce and other viscous food products. The dual piston filling system provides accurate volumetric filling, ensuring consistent portion control and reducing material waste.
With adjustable sealing temperature and time, the machine delivers leak-proof and hygienic sealing performance, meeting food industry production requirements. It is widely used for honey spoon packaging in hotels, catering services, retail food brands and promotional markets.
Honey Spoon Filling Sealing Machine Parameter
- Machine Model: FZ-FSHS20
- Voltage: 220V/110V/380V 50-60Hz
- Power: 2KW
- Production Speed: 1600-1800 pcs/h (Depending on product size)
- Filling Range: 5-50 ml
- Filling Accuracy: ±0.5%
- Filling Pump: Piston Pump
- Sealing Temperature: 0-400 ℃
- Suitable Product Size: Can be customized
- Air Supply: 0.5-0.75 MPa, 0.45 m³/min
- Machine Size: 1000*1000*1800 mm/ 39.4*39.4*70.9 inches
- Machine Weight: 380 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
The hopper is made of SUS304 food-grade stainless steel, equipped with heating and mixing functions to prevent crystallization and ensure smooth filling of viscous products such as honey, syrup, jam and chocolate sauce. Temperature is adjustable to maintain stable fluidity during production.
The automatic spoon feeding structure ensures stable and continuous spoon placement into the rotary system, reducing manual handling and improving food hygiene standards. Customizable molds are available for different spoon sizes and shapes.
Equipped with dual piston pumps, the machine ensures accurate volumetric filling with low error tolerance, ideal for portion-controlled food packaging. Suitable for viscous liquids such as honey, syrup, jam and sauce. Filling volume can be customized according to product requirements.
The film lid feeding structure automatically places sealing films onto filled spoons, ensuring consistent positioning and reducing labor cost. Compatible with food-grade sealing films and customized lid sizes.
The heat sealing structure features adjustable temperature and sealing time control to ensure strong and hygienic sealing. Designed for food packaging applications, it provides leak-proof and tamper-evident sealing performance.
The rotary system automatically discharges finished products, enabling continuous production and reducing labor cost in food processing environments.
Frequently Asked Questions (FAQ)
1. What products can this machine fill?
This machine is designed for viscous liquid food products such as honey, syrup, jam, chocolate sauce, caramel, and other semi-liquid foods. It is especially suitable for single-portion honey spoon packaging.
2. Is the machine made of food-grade materials?
Yes. All product-contact parts are made of SUS304 food-grade stainless steel, ensuring hygiene and safety for food production applications.
3. Can the machine handle thick or crystallized honey?
Yes. The hopper is equipped with heating and mixing functions to maintain proper fluidity and prevent crystallization, ensuring smooth and stable filling.
4. What is the filling accuracy?
The machine uses a high-precision piston pump system with stable volumetric filling performance. Filling accuracy is typically within ±1% (depending on product characteristics).
5. Can the filling volume be customized?
Yes. The filling range can be customized according to your spoon size and product requirements.
6. Is the sealing temperature adjustable?
Yes. The heat sealing system allows adjustable temperature and sealing time to ensure leak-proof and hygienic sealing.
7. Can spoon size be customized?
Yes. The spoon feeding system can be customized based on your spoon shape and dimensions.
8. What industries is this machine suitable for?
This machine is widely used in honey brands, food processing factories, catering suppliers, hotel breakfast packaging, retail food brands, and OEM food manufacturers.
$60,000.00

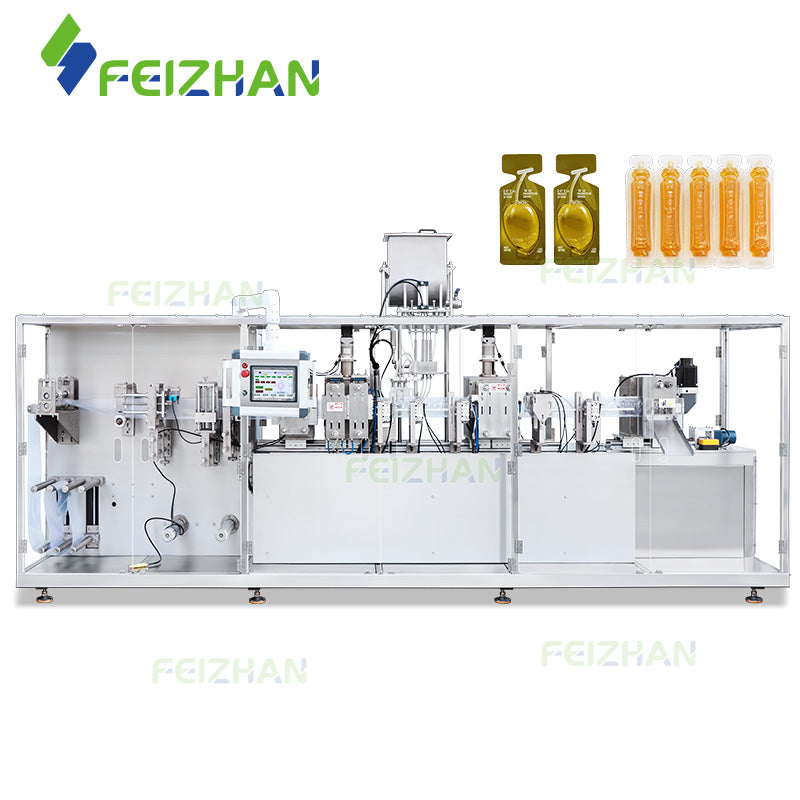

This food blister packaging machine is designed for single-serve viscous liquid food packaging, suitable for honey, sauce, syrup, butter, jam and other portion-controlled products. The system integrates blister forming, servo-driven piston pump filling, heat sealing and cutting in one automatic process, ensuring hygienic, precise and leak-proof packaging for food applications.
Food Blister Packaging Machine Parameter
- Model: FZ-DDP300
- Cutting Frequency: 10–15 Times/min
- Motor Power: 16 kW
- Air Pressure: 0.8 MPa
- Packaging Volume: Customizable
- Air Consumption: ≥ 1 m³/min
- Mold Cooling: Tap Water or Recycling Water
- Max Shaping Area & Depth: 160*200*20 mm
- Machine Size (L*W*H): 4925*1300*2190 mm(L*W*H)
- Machine Weight: 1500 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
Equipped with an intelligent PLC system and user-friendly HMI touchscreen, operators can easily set forming temperature, filling volume, sealing time, and cutting parameters. Real-time production data monitoring improves process stability and reduces setup time.
The thermoforming station precisely shapes uniform blister cavities with consistent depth and structure, ensuring stable filling volume and reliable sealing performance. Molds can be customized for different pack sizes and cavity designs.
Designed for precise liquid dosing, this system uses servo motor control to ensure accurate and repeatable filling volumes. Filling heads quantity can be customized, making it suitable for pharmaceutical solutions, cosmetic serums, gels, honey, and sauces.
Applies controlled heat and pressure to create strong, leak-proof seals. The sealing process ensures product safety, extended shelf life, and protection against contamination.
The four-lane cutting structure allows multiple packs to be produced per cycle, significantly increasing production efficiency. Cutting shapes can be customized via dedicated molds.
Constructed from stainless steel, the hopper ensures hygienic material feeding. It can integrate with existing feeding systems to enable continuous automatic production.
Frequently Asked Questions (FAQ)
1. What products can this blister packaging machine handle?
This machine is designed for liquid and semi-liquid food products, including honey, sauce, syrup, butter, jam, oil, jelly and other portion-controlled condiments. It is ideal for single-serve food packaging applications.
2. Is the filling volume adjustable?
Yes. The system uses servo-driven filling control, allowing precise adjustment of filling volume through the PLC interface. Different portion sizes can be achieved by parameter setting and mold design.
3. What packaging materials are supported?
The machine works with PS, PET and PVC sheets for blister forming, making it suitable for various food portion pack requirements.
4. How does the machine ensure sealing quality?
A stable heat sealing structure applies uniform temperature and pressure to ensure leak-proof and hygienic sealing, which is essential for food safety and shelf-life protection.
5. Can the number of filling heads be customized?
Yes. The filling station configuration is customizable according to production capacity needs, helping improve efficiency for large-scale portion packaging.
6. Is the cutting shape fixed?
No. The machine uses dedicated cutting molds, so blister pack shape and size can be customized to match your product design and branding needs.
7. Is the machine fully automatic?
Yes. It integrates forming, filling, sealing, date printing, cutting and discharge into one automatic workflow, reducing labor and ensuring consistent packaging quality.
8. Is this machine suitable for hygienic food production?
Yes. The system supports portion food packaging and can be integrated into hygienic production lines, making it suitable for food industry applications.
$11,899.00
This automatic linear cup filling sealing machine is designed for packaging viscous and semi-liquid foods such as sauce, jam, honey, butter, cream, yogurt, chocolate paste, and dipping sauces. Equipped with a high-precision piston pump filling system, it ensures accurate and stable filling of thick food materials without dripping or waste. The machine integrates cup feeding, quantitative filling, film sealing, and cup discharge into one continuous process, improving production efficiency while maintaining hygienic, food-grade standards. Its adjustable structure makes it suitable for different cup sizes and shapes, making it an ideal solution for food processing factories and sauce packaging lines.
Cup Filling Sealing Machine Parameter
- Model: FZ-AFS01
- Power: About 8 KW
- Voltage: 380 V/50 HZ
- Filling Pump: Piston Pump
- Filling Head Quantity: 2
- Working Speed: About 10-30 Pieces/min
- Air Consumption: 0.7 m³/min
- Machine Size: 3600*968*1595 mm
- Packing Size: 3800*970*2020 mm
- Package Weight: 1050 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
The visual control panel displays real-time working status, production parameters, and operating data, making the cup filling and sealing process stable, precise, and easy to manage for food production lines.
The automatic cup feeding system uses pneumatic control to accurately place preformed cups into molds, ensuring stable positioning and continuous operation for sauce, mayonnaise, yogurt, and other food packaging.
The photoelectric sensor detects cups automatically and prevents filling without containers, reducing food waste and ensuring clean, efficient, and reliable food packaging.
Equipped with food-grade piston pumps and optional heating function, this system maintains proper temperature for viscous foods such as cheese sauce, chocolate paste, butter, and jam, ensuring smooth filling and consistent product quality. Multiple filling heads can be customized for higher output.
The sealing structure precisely seals and cuts films according to cup shape, with adjustable temperature control to suit different food-grade sealing films, ensuring leak-proof and hygienic packaging.
The hopper features an automatic level detection system that works with a feeding pump to maintain stable material supply, ideal for continuous packaging of liquid and semi-liquid foods like sauces, cream, and honey.
FAQ
Q1. What food products can this powder pouch packing machine handle?
This machine is designed for food-grade powders and fine granular materials such as protein powder, milk powder, coffee powder, spice powder, seasoning powder, cocoa powder, flour, and nutritional drink powders. It is suitable for both free-flowing and slightly sticky food powders.
Q2. Is this machine suitable for food-grade production?
Yes. The machine uses food-contact parts made of SUS304 (SUS316 optional), meeting hygienic requirements for food processing. The structure is easy to clean, helping maintain sanitary production standards for food packaging.
Q3. How does the machine ensure accurate powder filling?
It adopts an auger screw filling system that provides precise quantitative filling for powder products. The filling volume can be adjusted through the control system, making it ideal for small-dose and medium-dose food powder packaging.
Q4. What types of pouches are supported for food packaging?
This machine works with premade food pouches such as stand-up pouches (doypack), zipper pouches, three-side seal bags, and aluminum foil pouches. These bags provide good moisture resistance and oxygen barrier protection for food powders.
Q5. Can this machine package different powder products on the same line?
Yes. By adjusting filling parameters and changing bag specifications, the machine can be used for different food powders like spices, coffee, milk powder, or nutritional powders, making it suitable for flexible food production lines.
Q6. Does the machine reduce food waste during packaging?
Yes. The machine is equipped with a pouch detection system that prevents filling when no bag is present, reducing powder waste and keeping the packaging area clean and efficient.
$9,777.00
This automatic K-Cup powder packaging machine integrates cup feeding, auger powder filling, lids feeding and heat sealing into one compact system. Designed for coffee and tea capsule production, it offers stable filling accuracy, clean sealing performance, and efficient operation for small to medium-scale production lines.
Powder Packaging Machine Parameter
- Machine Model: FZ-GF900C
- Voltage: 110/220 V 50-60 Hz
- Power: 2.5 KW
- Working Capacity: 1200-1500 Cups/hour
- Filling Range: 2-20 g
- Filling Method: Auger Filling
- Filling Accuracy: ±1.5%
- Sealing Temperature: 0-400 ℃
- Hopper Capacity: 30 L
- Machine Size: 1480*1020*1850 mm
- Package Size: 1260*1260*2040 mm
- Package Weight: 374 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
Equipped with an intuitive touch screen control panel, this K-Cup powder packaging machine allows easy operation, real-time parameter monitoring, and quick recipe adjustment. Multiple languages are supported, making it suitable for global coffee capsule production lines.
The stainless steel hopper features a built-in mixing system to prevent powder bridging and ensure consistent material flow. This design helps achieve stable and uniform filling, especially suitable for coffee powder, tea powder, and other fine powdered products.
After filling, the powder pressing structure gently compacts the powder inside the cup while removing excess powder dust from the cup rim. This ensures a clean sealing surface and improves the sealing quality and success rate.
The automatic lid feeding system accurately places film lids onto the cups, reducing manual intervention and improving overall production efficiency. It ensures consistent lid positioning for reliable heat sealing results.
The built-in conveyor smoothly transfers cups to the next processing stage, allowing easy connection with downstream equipment. This helps optimize workflow layout and reduce labor and handling costs.
The electrical system is well-organized with reliable components to ensure stable, continuous operation. It supports long-time industrial production with consistent performance and low failure rate.
FAQ
Q1: What can this K-Cup powder machine pack?
Basically, any free-flowing powder like coffee, tea, or instant drink mixes. It’s made for standard K-Cup capsules and you can settings for different fill range.
Q2: How does the filling and sealing work?
It uses an auger filler—basically a screw system that measures out the powder really steadily and accurately. You can adjust the portion size, which is perfect for keeping every coffee capsule consistent.
Q3: How accurate is the filling?
Pretty precise! You can expect accuracy within about ±1.5%. There’s also a built-in mixing hopper to keep the powder flowing evenly.
Q4: Can this machine handle small-scale production?
Definitely. It runs at around 1200–1500 cups per hour, so it’s a great fit for small to medium coffee capsule producers who want something reliable and efficient without being oversized.
- Choosing a selection results in a full page refresh.
- Opens in a new window.
