FEIZHAN
Automatic Food Cup Filling and Sealing Machine with Servo Gear Pump
Product Description

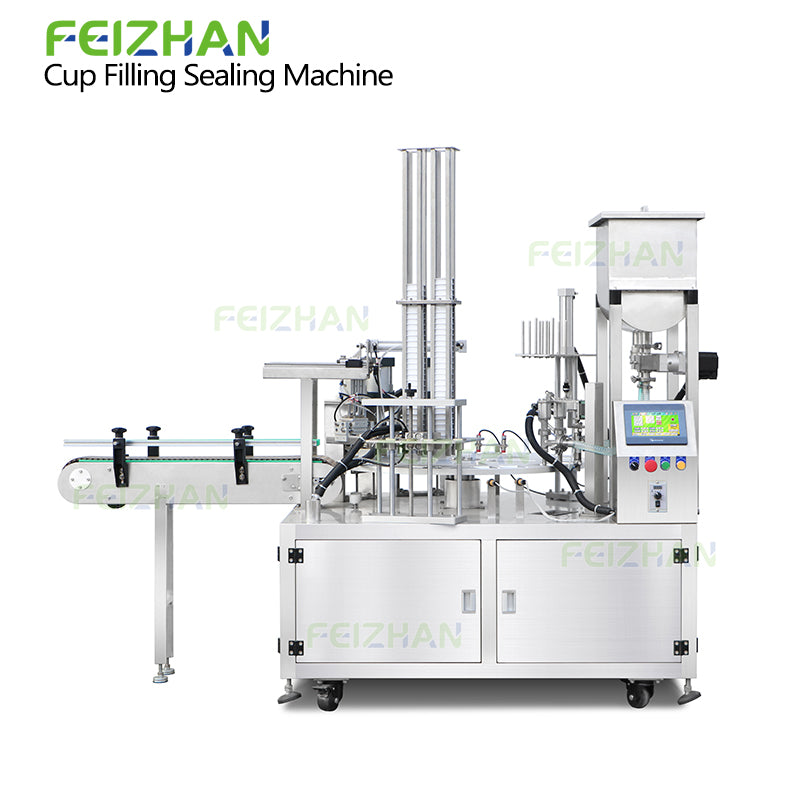

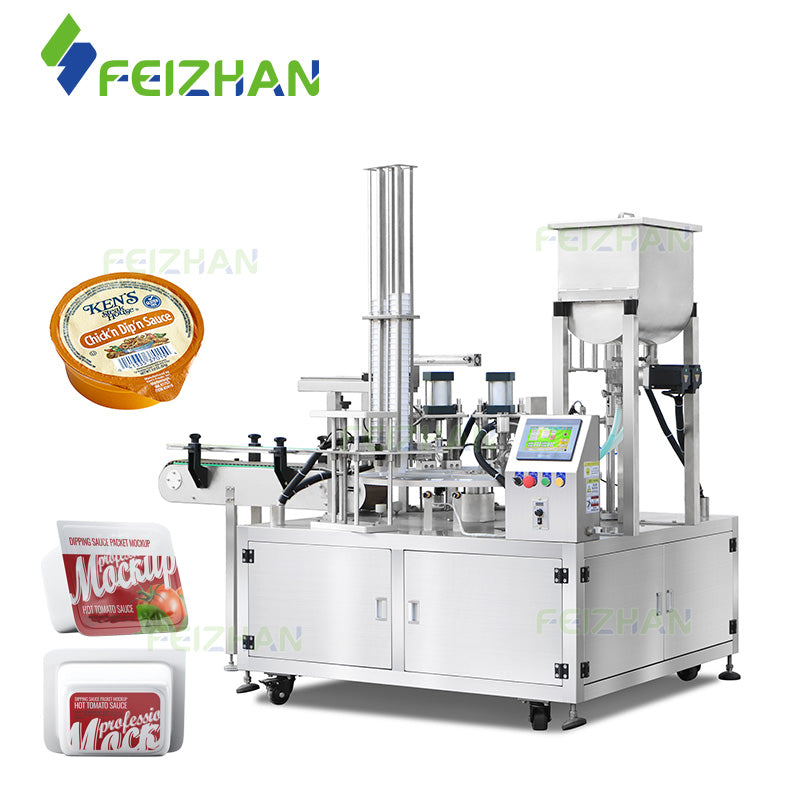

Automatic Food Cup Filling and Sealing Machine is designed for automatic filling and sealing of pre-formed food cups. The machine features a compact rotary design that integrates cup feeding, filling, film placement, film detection, heat sealing and outfeeding into one continuous process. A servo gear pump controls the 10–100 ml filling range, while anti-drip nozzles help reduce splashing during filling. The 50L U-shaped hopper can be equipped with optional heating and mixing functions for different food processing requirements. Cup holding molds are customized according to the cup shape and rim dimensions. With a working speed of 1200–1400 cups per hour, this rotary cup filling and sealing machine provides a compact solution for food cup packaging lines.
Key Features
-
Compact Rotary Design — Combines multiple packaging stations within a compact machine footprint.
-
Servo Gear Pump — Provides adjustable filling control for 10–100 ml filling volumes.
-
Anti-Drip Filling Nozzles — Helps reduce product splashing during filling.
-
1200–1400 Cups/Hour — Working speed varies according to filling volume.
-
50L U-Shaped Hopper — Helps minimize material accumulation during production.
-
Optional Heating & Mixing — Heating and mixing functions can be added according to product requirements.
-
Automatic Film Detection — Detects film availability and placement during the sealing process.
-
Customized Cup Molds — Cup holding molds are made according to cup shape and rim dimensions.
- Touchscreen HMI — Allows operators to adjust filling volume and production parameters directly.
Applications
The automatic food cup filling and sealing machine is suitable for packaging liquid and semi-viscous food products in pre-formed cups.
Dairy & Dessert Products
- Yogurt
- Dairy products
- Pudding
- Custard
- Dessert products
Sauces & Condiments
- Ketchup
- Mayonnaise
- Dipping sauces
- Salad dressings
- Other liquid or semi-viscous sauces
Sweet & Viscous Foods
- Jam
- Honey
- Chocolate-based products
- Other suitable viscous food products
Note: Actual product suitability depends on product viscosity, temperature, filling characteristics and cup specifications. Heating and mixing functions are available as optional configurations.
Machine Details

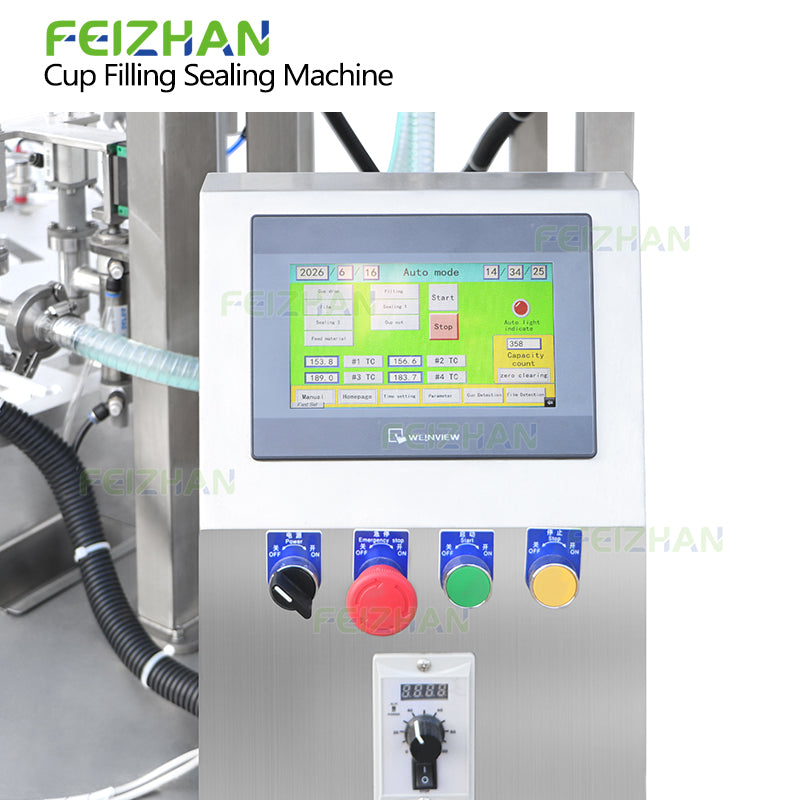

The touchscreen HMI allows operators to adjust filling volume and production parameters directly. It also simplifies operation when changing production settings.

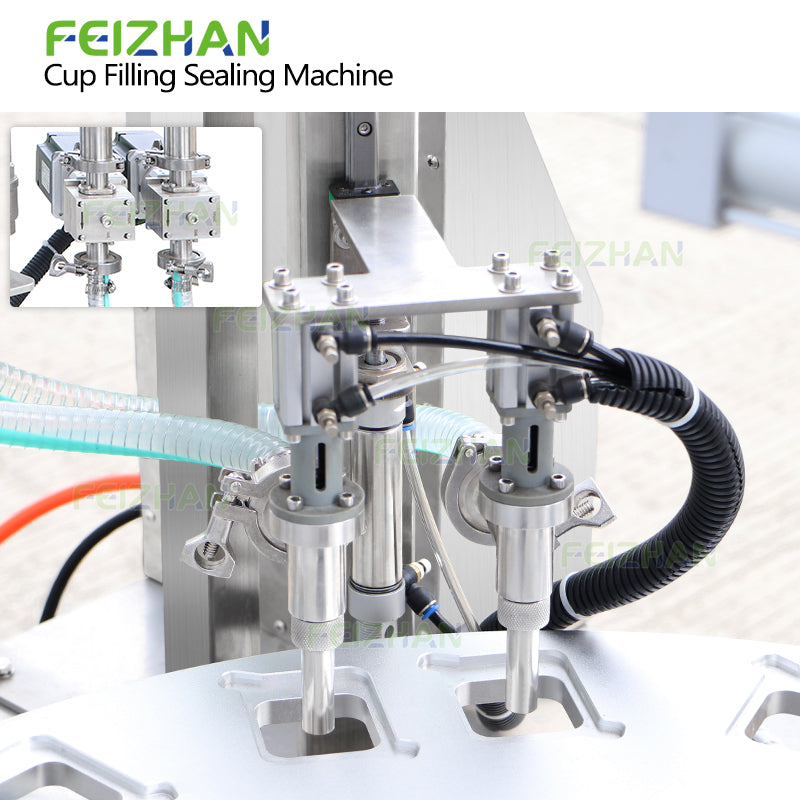

The servo gear pump controls the filling process within the 10–100 ml filling range. The anti-drip nozzle helps reduce splashing and keeps the filling process cleaner.

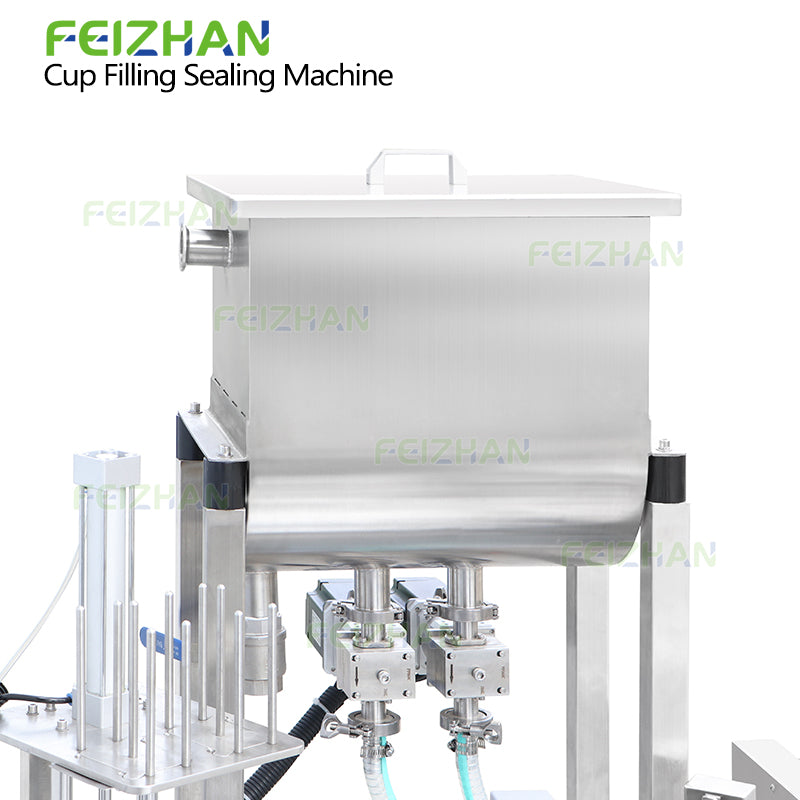

The 50L U-shaped hopper is designed to reduce material accumulation. Optional heating and mixing functions can be added according to the characteristics of the filling product.

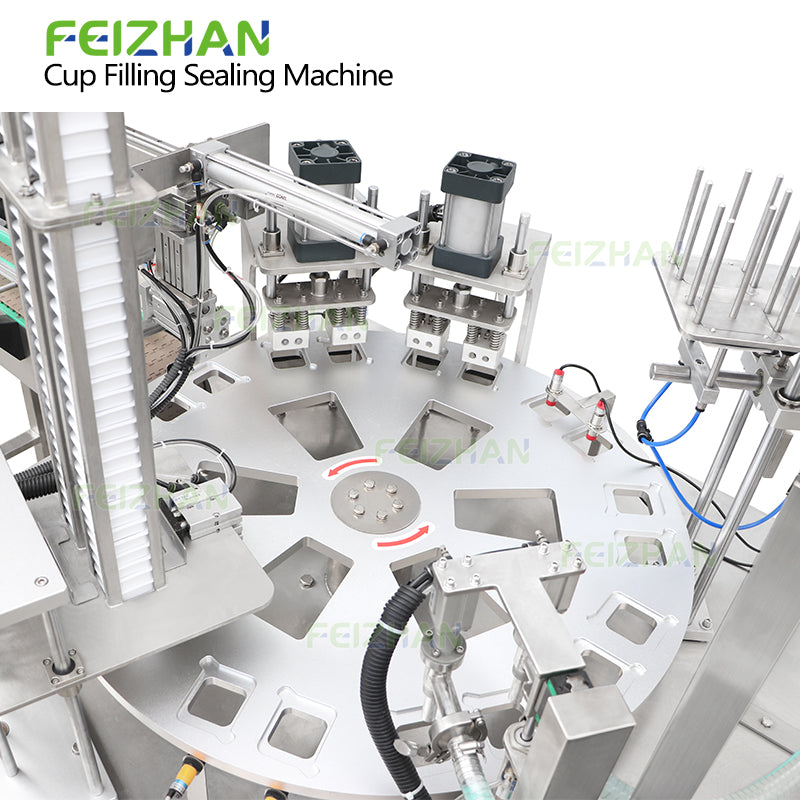

The multi-station starwheel integrates cup filling, film feeding and sealing into a compact rotary structure. Each station performs a defined step in the cup packaging process.

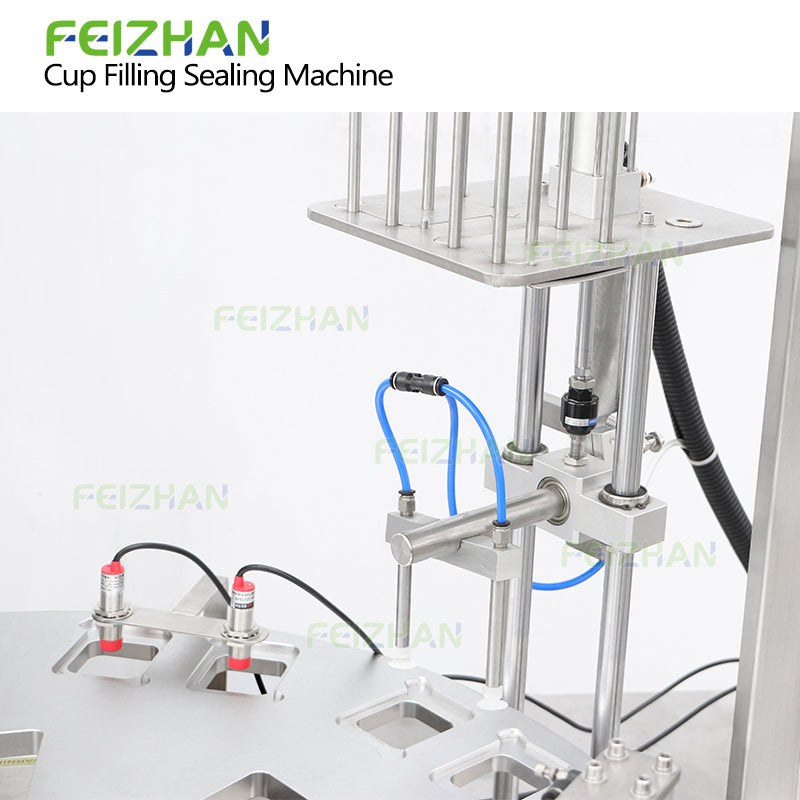

The film system automatically places sealing film onto the cup and monitors film availability and placement. This helps reduce missing seals caused by incorrect or unavailable film.
The heat sealing unit applies heat and pressure to seal the film onto the cup. Sealing molds are customized according to the cup shape and rim dimensions.

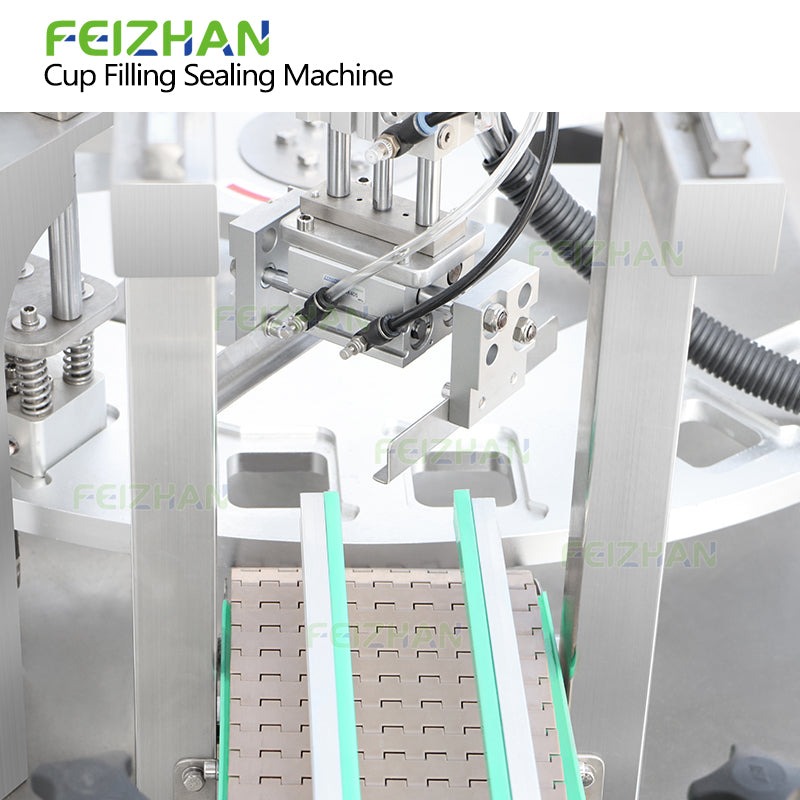

The outfeeding conveyor transfers sealed cups to the next packaging process after filling and sealing. It provides continuous product transfer at the end of the machine.
Parameter and Specification
|
Parameter |
Specification |
|
Machine Model |
FZ-AFS07R |
|
Machine Type |
Automatic Cup Filling and Sealing Machine |
|
Voltage |
110/220V, 50–60Hz |
|
Power |
2.8 kW |
|
Working Speed |
1200–1400 cups/h |
|
Filling Range |
10–100 ml |
|
Filling Accuracy |
±1% |
|
Filling Pump |
Gear Pump |
|
Sealing Temperature |
0–400°C |
|
Suitable Cup Size |
Customizable |
|
Hopper Capacity |
50 L |
|
Air Pressure |
0.8 MPa |
|
Machine Size |
About 2300 × 1200 × 1800 mm |
|
Package Size |
About 1560 × 1360 × 1860 mm |
|
Package Weight |
About 598 kg |
How Does the Food Cup Filling and Sealing Machine Work?
1. Cup Feeding
Pre-formed empty cups enter the machine through the cup feeding station.
2. Product Filling
The servo gear pump transfers the food product into each cup according to the preset filling volume.
3. Film Feeding
Sealing film is automatically positioned above the filled cup.
4. Film Detection
The machine checks film availability and placement before the sealing process.
5. Heat Sealing
The sealing unit applies heat and pressure to bond the film to the cup rim.
6. Secondary Sealing
The cup passes through the secondary sealing station for the subsequent sealing process.
7. Outfeeding
Finished cups are transferred through the outfeeding conveyor to the next packaging stage.
Frequently Asked Questions
What products can this food cup filling and sealing machine package?
The machine is designed for liquid and suitable semi-viscous food products filled into pre-formed cups. Products such as yogurt, pudding, jelly, sauces, jam and honey can be considered according to their filling characteristics. Actual suitability should be confirmed through product testing.
What is the filling range?
The standard filling range is 10–100 ml. The filling range can be customized according to the required configuration.
What is the production speed?
The working speed is 1200–1400 cups per hour, depending on the filling volume.
What type of filling pump does the machine use?
The machine uses a servo gear pump filling system. It provides adjustable filling control and works together with an anti-drip filling nozzle.
Can the machine fill viscous food products?
The machine can be configured for suitable liquid and semi-viscous products. Product viscosity, temperature and filling behavior should be evaluated before selecting the final pump and nozzle configuration.
Can the hopper heat and mix the product?
Yes. The 50L U-shaped hopper can be equipped with optional heating and mixing functions according to the filling product.
Can the machine handle different cup sizes?
Yes. The cup holding molds are customized according to the cup shape and rim dimensions.
Does the machine automatically feed the sealing film?
Yes. The machine includes a film feeding system that places the sealing film onto the cup and detects film availability and placement.
What is the sealing temperature?
The specified sealing temperature range is 0–400°C. The actual sealing temperature should be adjusted according to the cup and sealing film materials.
What power supply does the machine require?
The machine is available with 110/220V, 50–60Hz power supply.
