FEIZHAN

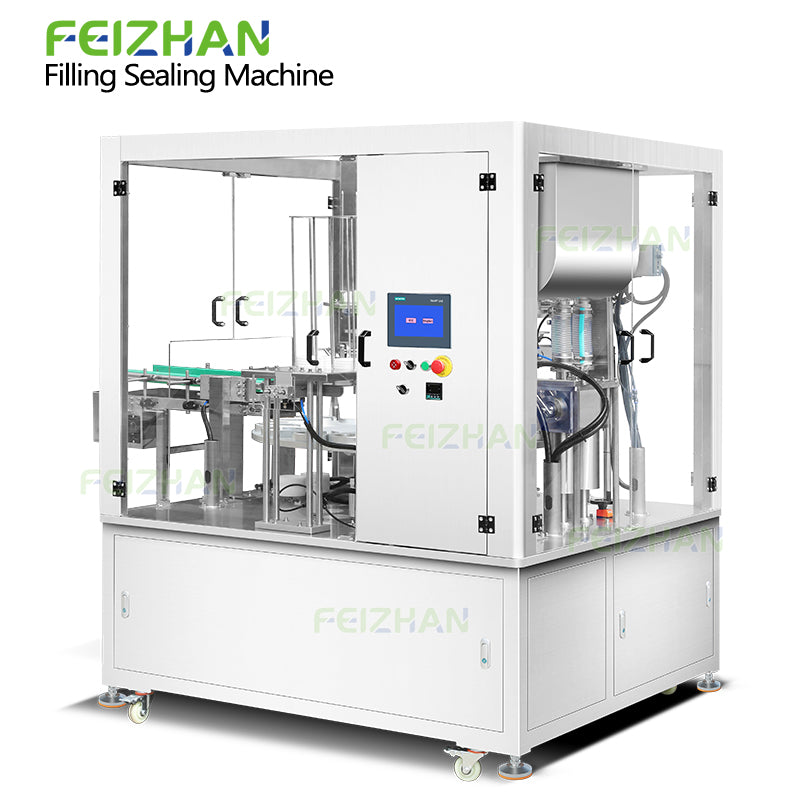

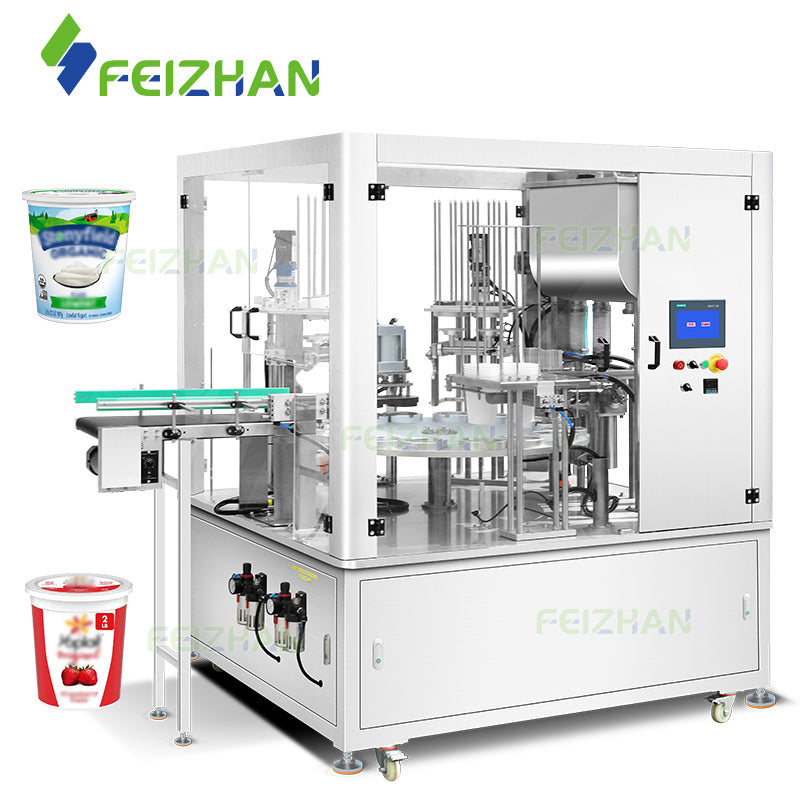

Automatic Servo Cup Filling Sealing Capping Machine for Yogurt, Jelly, Honey and Sauce
Product Description
The Automatic Cup Filling Sealing Capping Machine does it all — filling, sealing, and capping plastic cups automatically.
It handles a wide range of food products. Think yogurt, pudding, jelly, honey, sauces, cream, and fruit preparations. Empty cups go in. Finished, sealed cups come out. One compact system manages the whole process.
The machine runs on a high-precision piston filling system. A servo-controlled sealing mechanism pairs with it for tight, consistent seals. Together, they deliver accurate fills and reliable output every single run.
Cleaning is straightforward. The controls are simple and intuitive. Cup sizes are fully customizable. Food manufacturers get efficient, consistent, and professional-looking packaging — without the complexity.
Machine Features
All-in-One Packaging Process One machine handles everything — cup feeding, filling, film sealing, lid placement, and cup discharge. Less labor. Better efficiency.
High-Precision Piston Filling The piston filling system fills accurately and consistently every time. Works great for yogurt, honey, pudding, sauces, cream, and other viscous products.
Servo-Controlled Film Feeding Servo motors keep the film perfectly positioned and feeding smoothly. Less material waste. Consistent seals, every run.
Reliable Heat Sealing Controlled temperature and pressure create strong, leak-resistant seals. Products stay fresh longer and shelf life improves.
Automatic Lid Feeding & Pressing The machine places and presses outer lids onto sealed cups on its own. Better protection. Cleaner retail presentation.
Hygienic Food-Grade Construction Food-contact materials and an enclosed structure keep contamination risks low. Easy to clean, too.
Continuous Material Supply A diaphragm pump and mixing hopper work together to keep product feeding stable throughout production. No interruptions, no downtime.
Applications
Suitable for packaging:
Dairy Products
- Yogurt
- Greek Yogurt
- Drinking Yogurt
- Dairy Desserts
Desserts
- Jelly
- Pudding
- Custard
- Mousse
- Ice Cream Toppings
Sauces & Condiments
- Ketchup
- Mayonnaise
- Salad Dressing
- Chili Sauce
- Cheese Sauce
Sweet Products
- Honey
- Jam
- Chocolate Spread
- Syrup
Other Food Products
- Fruit Cups
- Snack Cups
- Dips
- Ready-to-Eat Foods
Technical Specifications
|
Machine Model |
FZ-AFS02R |
|
Power Supply |
220V/110V 50-60Hz 2KW |
|
Working Speed |
About 1000-1500 pcs/hour (Depending on filling range & materials) |
|
Filling Pump |
Piston Pump |
|
Filling Range |
20-200 ml(Customizable) |
|
Filling Accuracy |
±1% |
|
Suitable Cup Size |
Customizable |
|
Sealing Temperature |
0-400℃ |
|
Material Feeding Pump |
Diaphragm Pump |
|
Hopper Capacity |
50L(with mixer, customizable with heater) |
|
Air Pressure |
0.6-0.8 Mpa |
|
Machine Size |
About 2100*1500*1900 mm(L*W*H) |
|
Package Size |
About 1720*1580*2000 mm |
|
Package Weight |
About 819 kg |
Machine Detail

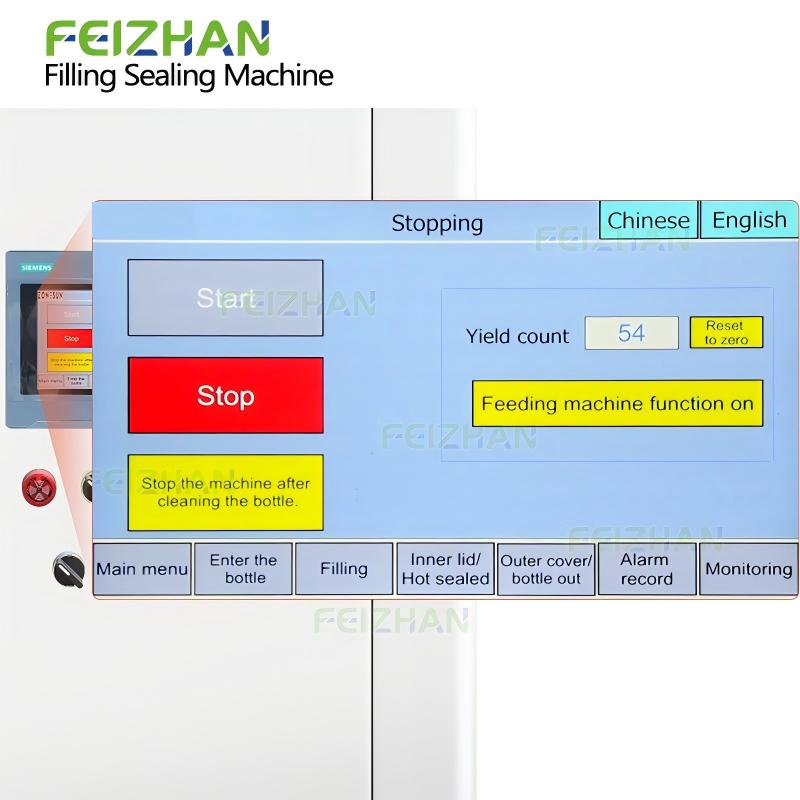

Control Panel
Allows operators to monitor production status and adjust filling volume, sealing temperature, and operating speed in real time. The user-friendly touch screen interface simplifies operation and improves production efficiency.

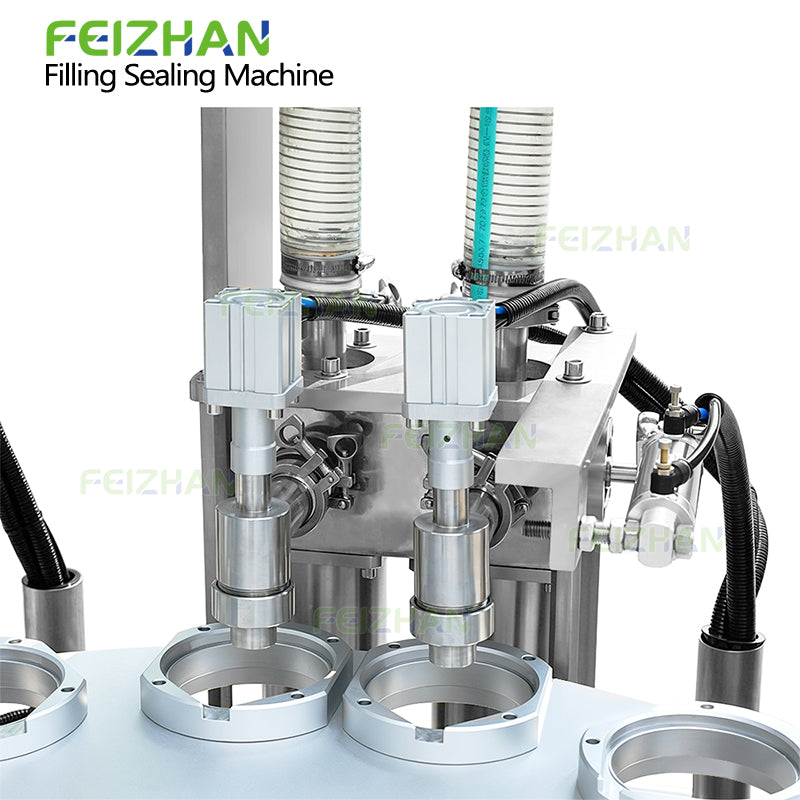

Double Filling Heads
Equipped with dual piston filling heads, the machine delivers accurate and consistent filling for yogurt, pudding, honey, sauces, cream, jam, and other viscous food products. Filling volumes can be customized to suit different packaging requirements.

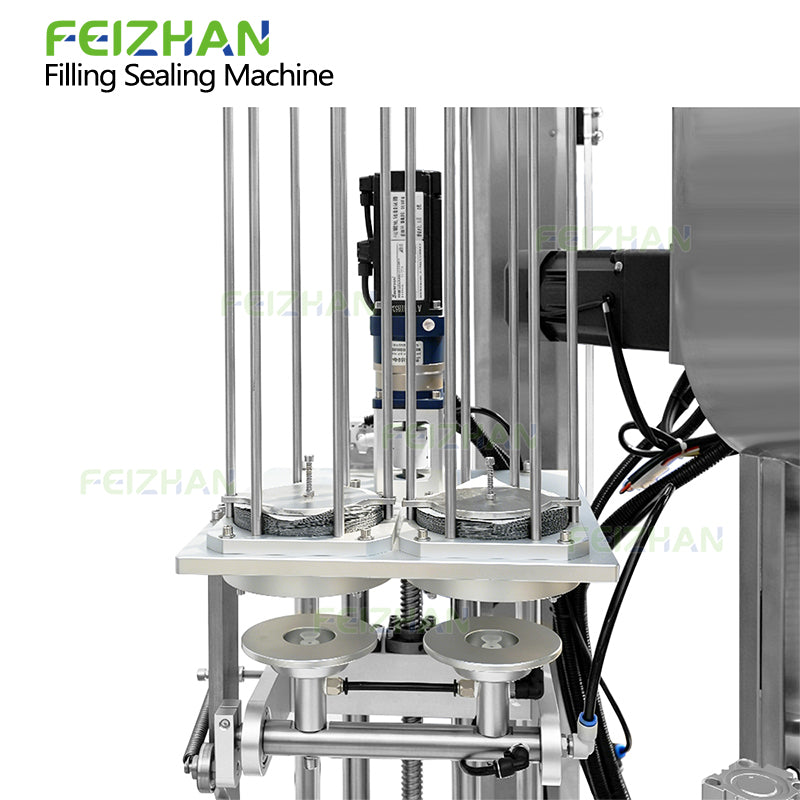

Film Lid Feeding Structure
The servo-controlled film feeding system ensures precise lid positioning and smooth film delivery, helping reduce material waste while maintaining stable and continuous production.

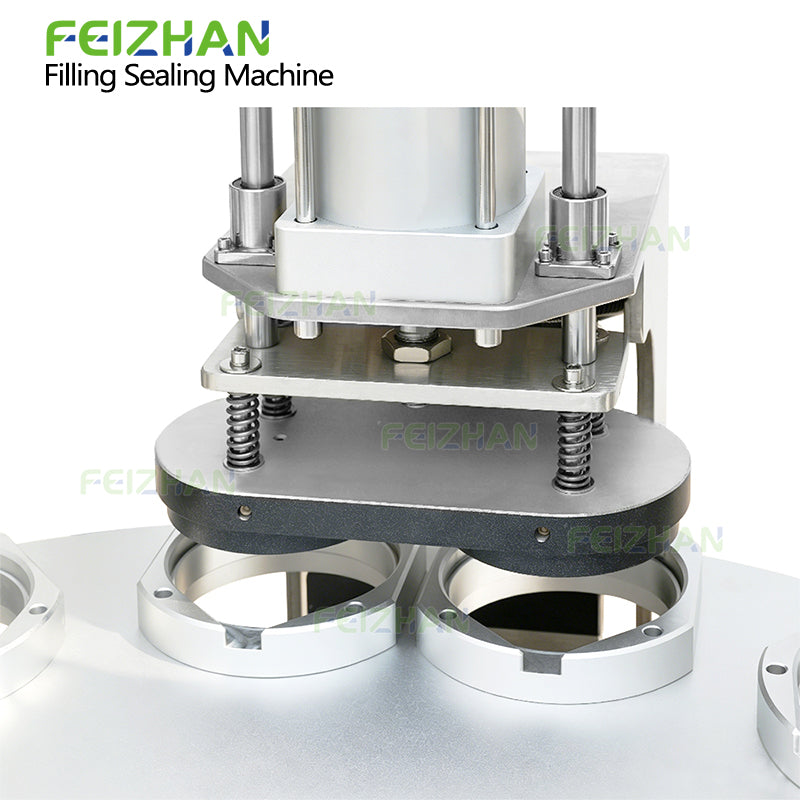

Film Lid Sealing Structure
Applies controlled heat and pressure to create strong, leak-resistant seals that help preserve product freshness, prevent contamination, and improve shelf life.

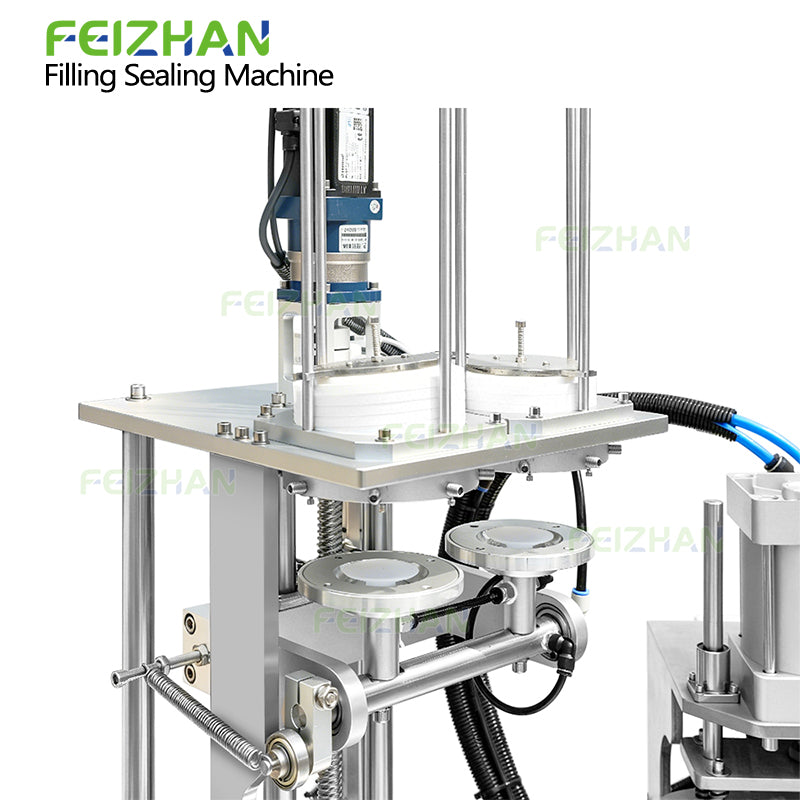

Outer Cover Feeding Structure
Automatically picks, places, and presses outer lids onto sealed cups, providing additional product protection and enhancing the appearance of finished products. The system can be customized according to production requirements.

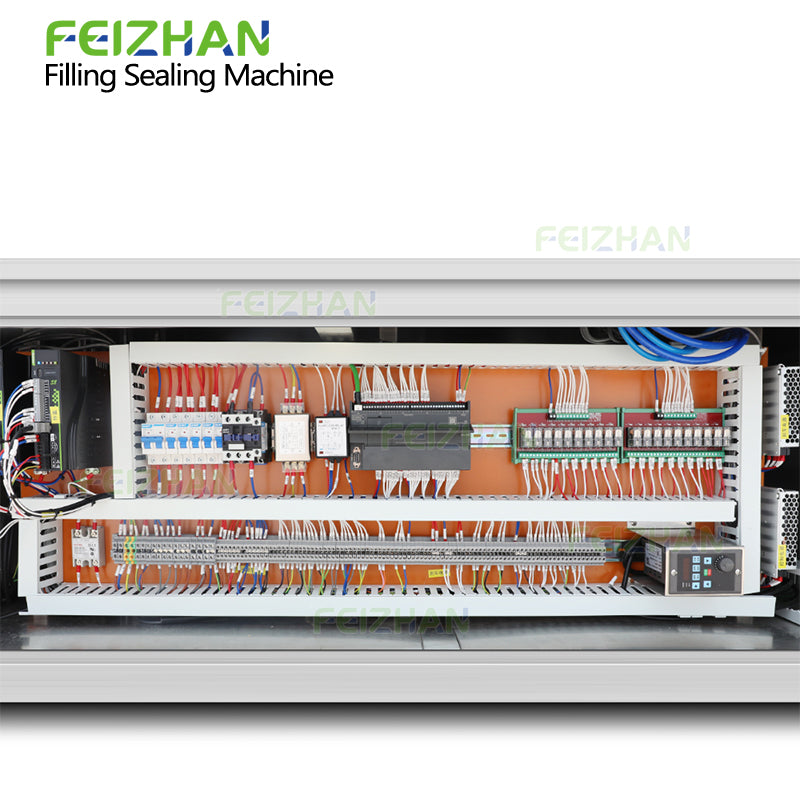

Electrical Components
High-quality electrical components are arranged in a well-organized layout to ensure stable machine performance, reliable operation, and convenient maintenance for long-term food production.
How Does the Machine Work?
Step 1
Plastic cups are automatically fed into the rotary indexing system.
Step 2
The piston filling system dispenses a preset amount of product into each cup.
Step 3
Pre-cut film lids are automatically positioned and sealed onto the cups.
Step 4
Outer plastic covers are automatically fed, placed, and pressed onto the sealed cups.
Step 5
Finished products are discharged through the conveyor for collection or secondary packaging.
Benefits of Choosing This Machine
Improve Production Efficiency
Automates multiple packaging processes to increase output and reduce labor requirements.
Consistent Product Quality
Precise filling and reliable sealing ensure uniform packaging quality.
Flexible Production
Cup sizes, filling volumes, sealing configurations, and lid designs can be customized.
Reduced Material Waste
Servo-controlled film feeding minimizes packaging material consumption.
Enhanced Product Protection
Double packaging protection through film sealing and outer lid pressing improves product safety and appearance.
Frequently Asked Questions
What products can this machine fill?
It can fill yogurt, pudding, jelly, honey, sauces, cream, jams, dessert fillings, and other viscous or semi-liquid food products.
Can the machine handle different cup sizes?
Yes. Cup dimensions can be customized according to production requirements.
Is the filling volume adjustable?
Yes. Filling volumes can be adjusted within the machine's specified range.
Can the machine be customized for heated products?
Yes. The hopper can be customized with heating functions for products that require temperature control.
Is the machine suitable for food production?
Yes. The machine is designed for food packaging applications and can be configured with food-grade contact materials.
