FEIZHAN

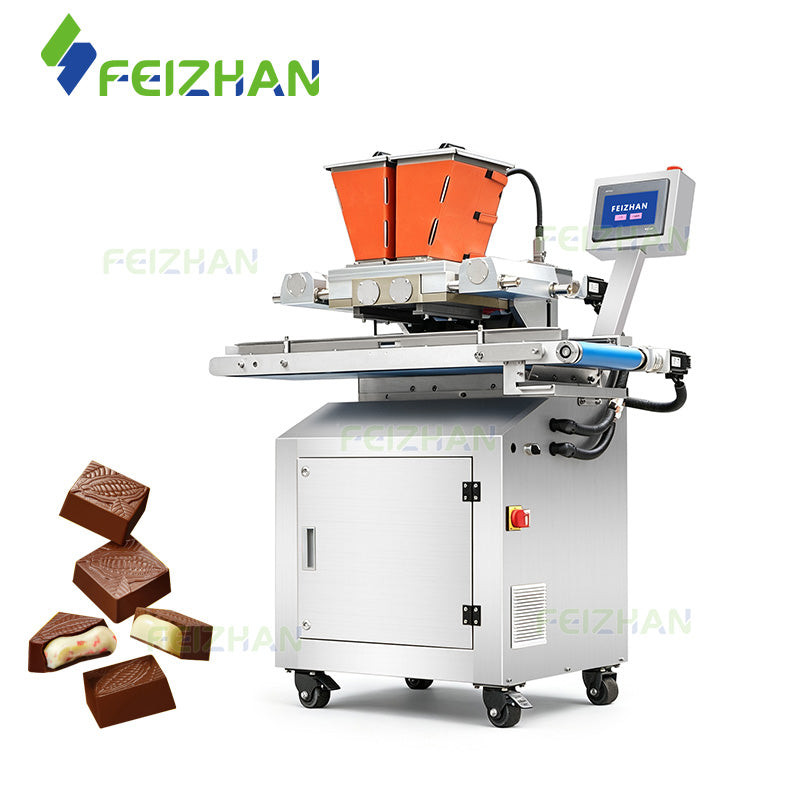

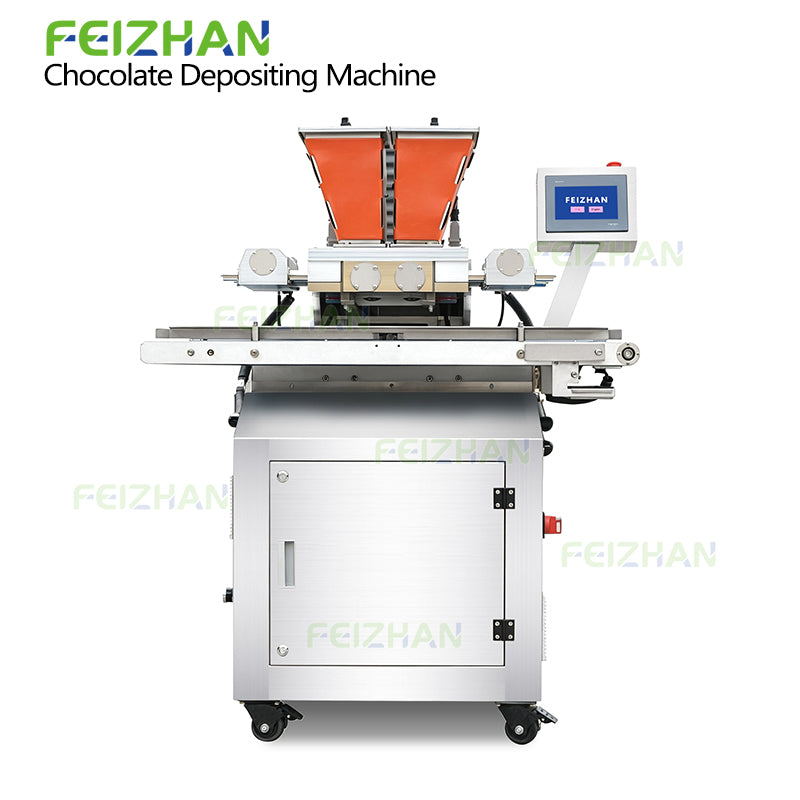

Automatic Chocolate Depositing Machine for Filled Chocolate Production
Description
Designed for filled chocolate and confectionery production, the FZ-GDJ8 provides precise chocolate depositing with adjustable filling ratios. Its heated hopper helps maintain stable chocolate conditions, while customized molds support different product shapes.
Key Features
-
Dual Hopper Design for different chocolate materials
-
Adjustable Filling Ratios for different recipes
-
Servo Motor Controlled depositing system
-
Piston Filling System for accurate portion control
-
Heated Stainless Steel Hopper for stable chocolate conditions
-
Customized Depositing Molds for different product shapes
-
Customizable Nozzle Configuration with up to 8 nozzles
- PLC Touchscreen Control for convenient operation
Applications
The FZ-GDJ8 is designed for filled chocolate and molded confectionery production, especially products requiring controlled chocolate and filling ratios.
-
Filled Chocolate
-
Center-Filled Chocolate
-
Cream-Filled Chocolate
-
Molded Chocolate
-
Chocolate Confectionery
- Customized Chocolate Products
Its dual-hopper and adjustable filling system allows different chocolate materials to be deposited separately according to the product recipe and mold design.
Detail

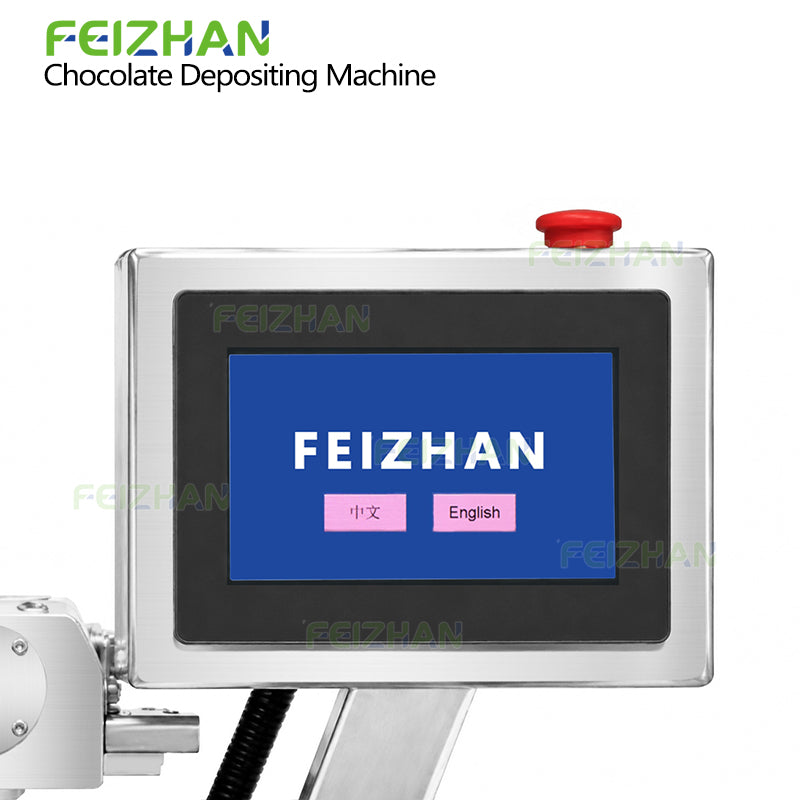

The PLC-controlled touchscreen allows operators to adjust depositing parameters and perform machine setup and debugging through the control interface. A DELTA PLC is standard, with Siemens PLC available upon request.

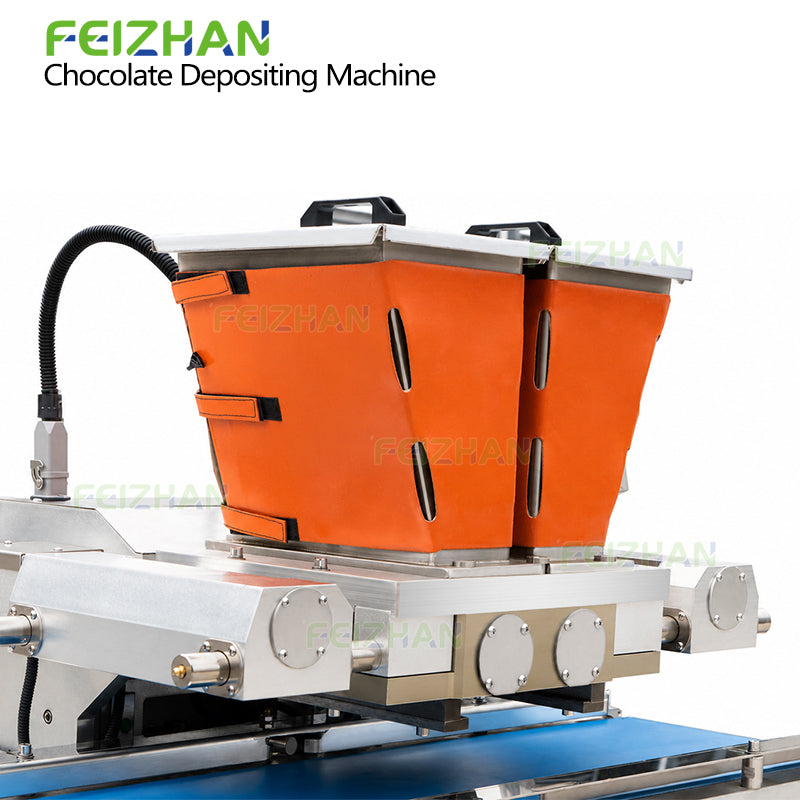

The food-grade stainless steel hopper is equipped with an independent heating system and temperature control function. It helps maintain suitable chocolate temperature and viscosity during filling, ensuring smooth depositing performance.

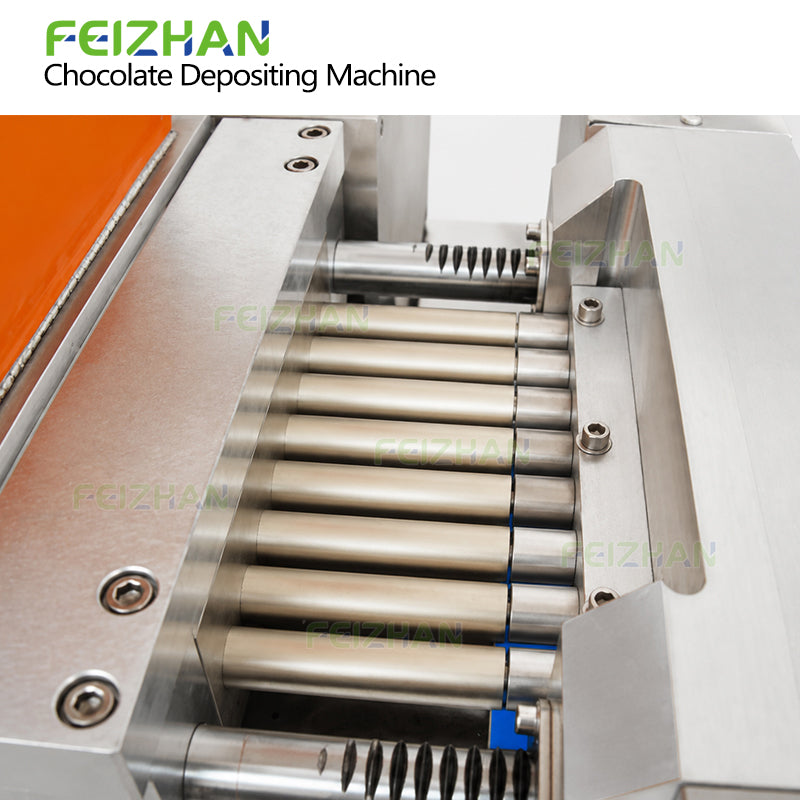

The machine uses a piston-based filling structure to control chocolate volume accurately. The standard configuration includes 2 × 8 sets of Φ20 mm pistons, supporting stable and uniform depositing for chocolate production.

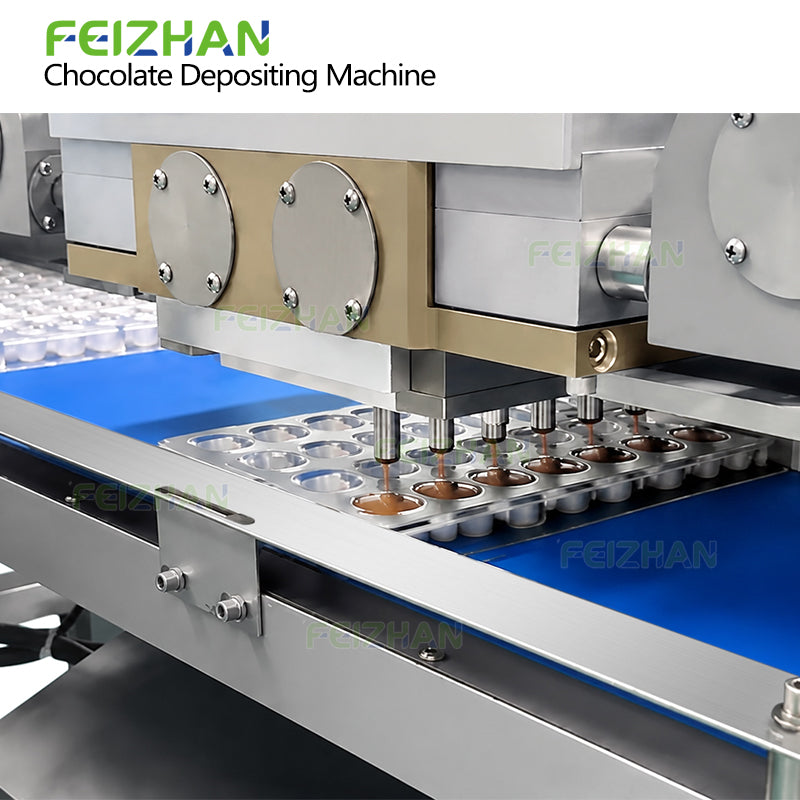

The number of depositing nozzles can be customized according to production capacity requirements. The machine supports configurations with up to eight nozzles for different output demands.
Technical Parameters
|
Machine Model |
FZ-GDJ8 |
|
Power Supply |
110/220V, Single Phase, 50/60Hz (Customized available) |
|
Productivity |
20–100 kg/h |
|
Recommended Mould Size |
275 × 175 mm / 275 × 135 mm |
|
Drive System |
4 sets of 0.4 kW servo motors |
|
PLC Control |
Standard DELTA PLC; Siemens PLC available upon request |
|
Piston System |
Standard 2 × 8 sets of Φ20 mm pistons |
|
Heating System |
Separate heating control for hopper and filling valves |
|
Machine Dimension |
1260 × 840 × 1660 mm (L × W × H) |
|
Package Weight |
Approx. 400 kg |
Why Choose the FZ-GDJ8?
For filled chocolate production, consistency depends on more than simply depositing chocolate. Chocolate temperature, filling ratio, depositing volume and mold design all affect the final product.
The FZ-GDJ8 combines heated hoppers, servo-controlled piston filling, adjustable filling ratios and customized molds in one depositing system, giving food manufacturers greater control over the filled chocolate production process.
FAQ
What products can the FZ-GDJ8 produce?
Filled chocolate and molded confectionery, mainly. Final shape and filling setup depend on the materials and molds selected.
Can the chocolate and filling ratios be adjusted?
Yes. Filling ratios adjust, so the chocolate-to-filling proportion can be configured to match product requirements.
Does the machine have a heating system?
Yes. Heated stainless steel hoppers, with separate heating control between the hopper and the filling valves.
Can the depositing mold be customized?
Yes. Customized molds work for different chocolate shapes and product designs.
How much chocolate can the machine deposit?
Stated productivity runs 20–100 kg/h, depending on configuration and product requirements.
Can the number of nozzles be customized?
Yes. Nozzle configuration adjusts to production needs, up to eight nozzles available.
What control system does the machine use?
A PLC-controlled touchscreen. DELTA PLC comes standard; Siemens PLC is available on request.
