FEIZHAN

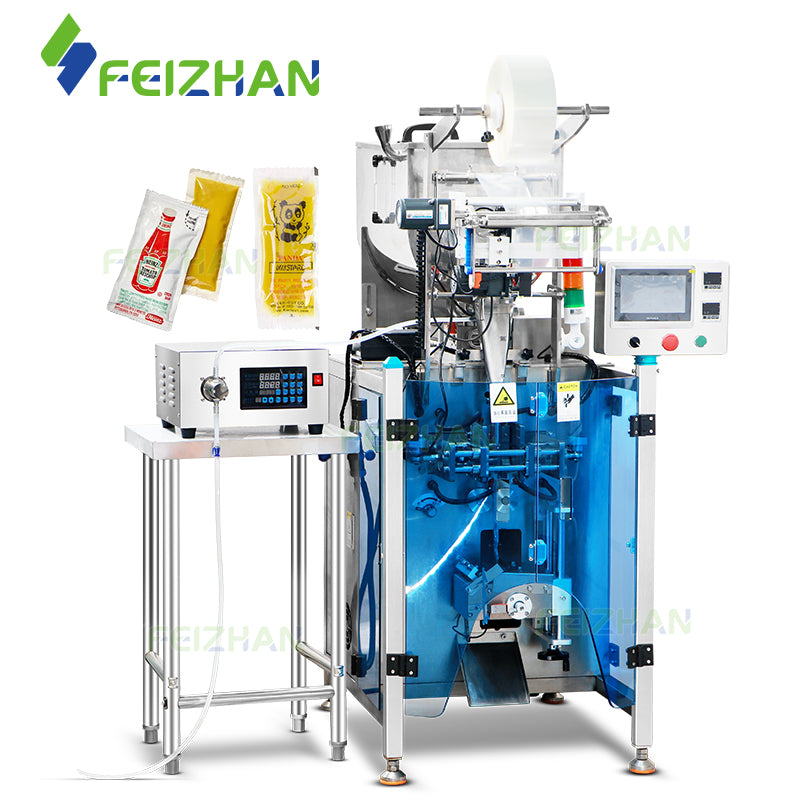

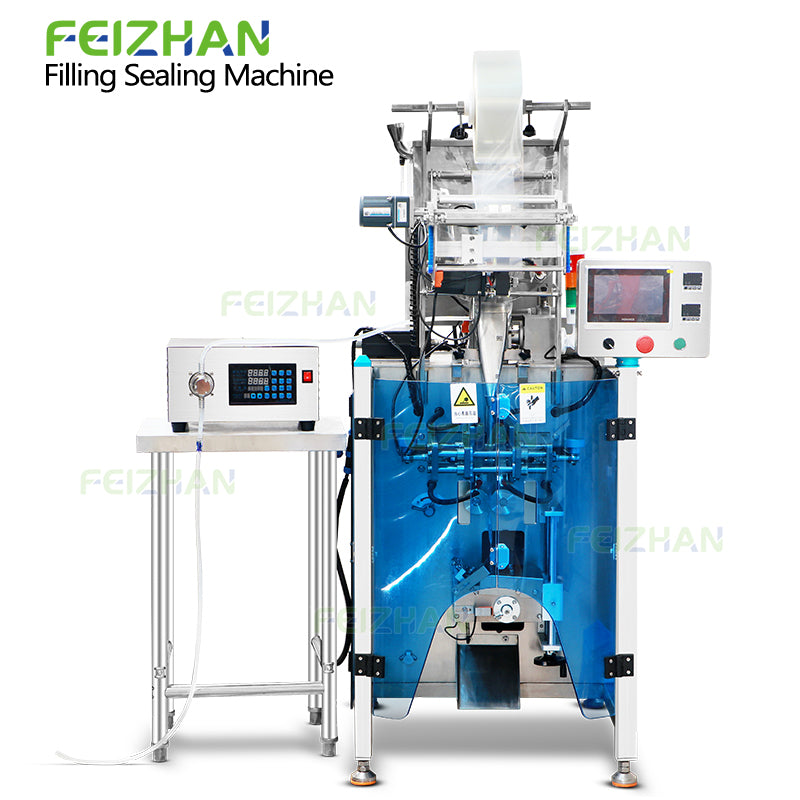

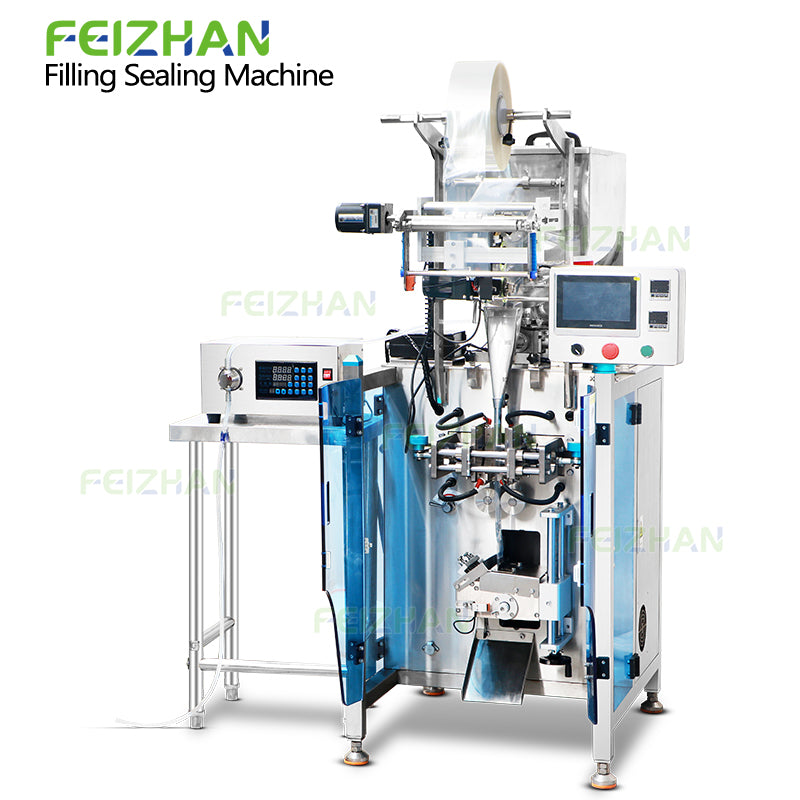

VFFS Sauce Sachet Filling Packaging Machine for Honey, Jam and Ketchup
Machine Overview
This automatic sachet filling machine is designed for packaging both liquid and paste food products in sachets. Equipped with a servo piston pump and SUS316 magnetic pump, the machine can accurately fill products such as honey, syrup, jam, ketchup, chili sauce, cooking oil, nutritional supplements, and other food products.
The vertical form fill seal (VFFS) system automatically completes bag forming, filling, sealing, coding, and cutting in one process, improving production efficiency while maintaining consistent package quality. Supporting back seal, three-side seal, and four-side seal sachets, this machine provides flexible packaging solutions for food manufacturers seeking reliable and high-speed production.
Machine Features
Dual Filling System for Liquid & Paste Products
Switch easily between a servo piston pump for viscous products and a magnetic pump for free-flowing liquids. One machine can handle multiple food products, reducing equipment investment and production costs.
High-Speed Sachet Packaging
Capable of producing up to 150 sachets per minute, the machine improves packaging efficiency for large-scale food manufacturing operations.
Multiple Sealing Styles Available
Supports back-side sealing, three-side sealing, and four-side sealing sachets, allowing manufacturers to customize packaging appearance according to market requirements.
U-Shaped Mixing Hopper
The integrated agitator continuously mixes viscous products to maintain consistent texture and filling accuracy. Optional heating function is available for products that require temperature control.
Intelligent Touchscreen Control
User-friendly touchscreen interface enables quick parameter adjustment, recipe storage, and real-time monitoring for efficient operation.
Optional Date Coding System
Add production dates, expiration dates, or batch numbers directly onto packaging materials to improve traceability and compliance.
Applications
Suitable for packaging:
Liquid Food Products
- Honey
- Syrup
- Cooking Oil
- Flavoring Liquids
- Nutritional Supplements
- Beverage Concentrates
Paste Food Products
- Ketchup
- Chili Sauce
- Mayonnaise
- Jam
- Peanut Butter
- Chocolate Sauce
- Fruit Paste
- Condiments
Technical Parameters
|
Machine Model |
FZ-FS220U |
|
Machine Voltage |
110/220V, 50-60 HZ, 2 KW |
|
Metering Method |
Servo Piston Pump & Magnetic Pump |
|
Packaging Form |
Back Side Sealing (can be customized) |
|
Package Film Material |
PET/VMPET/PE/PA/AL |
|
Max Roll Film Width |
220 mm |
|
Dosage Range |
0.1-20 ml (Customizable) |
|
Hopper Size |
50 L |
|
Bag Size Length |
L 20-145 mm* W 20-105 mm (Customizable) |
|
Packaging Speed |
45-150 bags/minute (Depending On The Actual Material) |
|
Machine Size |
L 1493 * W 1487 * H 1700 mm |
|
Machine Weight |
About 250 kg |
Machine Details

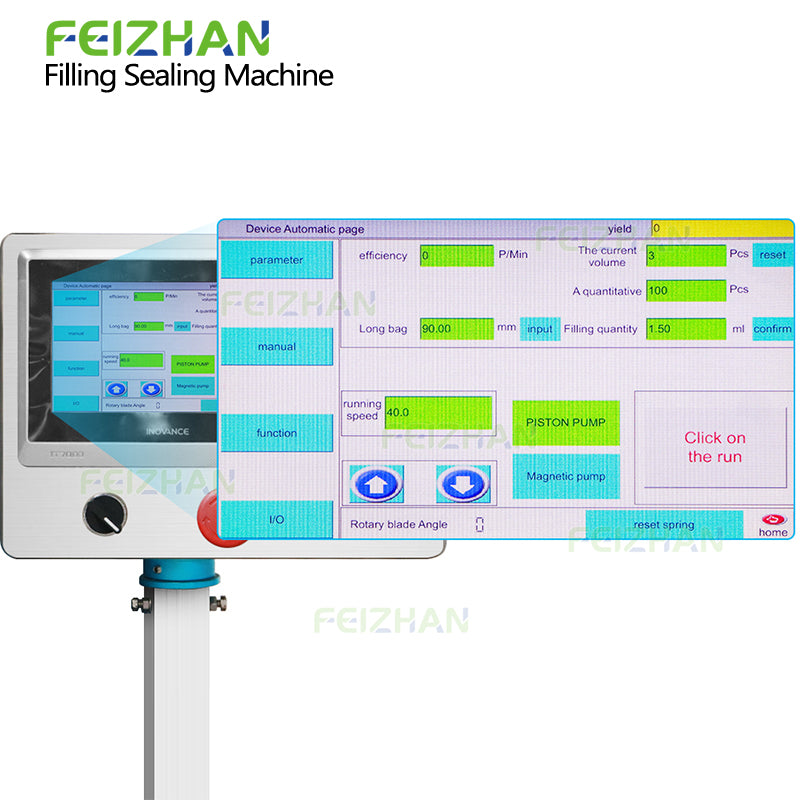

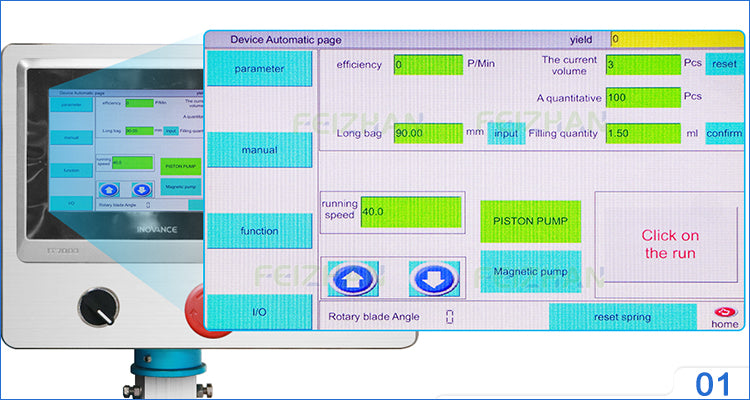

The user-friendly touchscreen control panel allows operators to quickly adjust filling volume, bag length, sealing temperature, and packaging speed. Multiple production recipes can be stored for fast changeovers between different food products, helping reduce downtime and improve manufacturing efficiency.

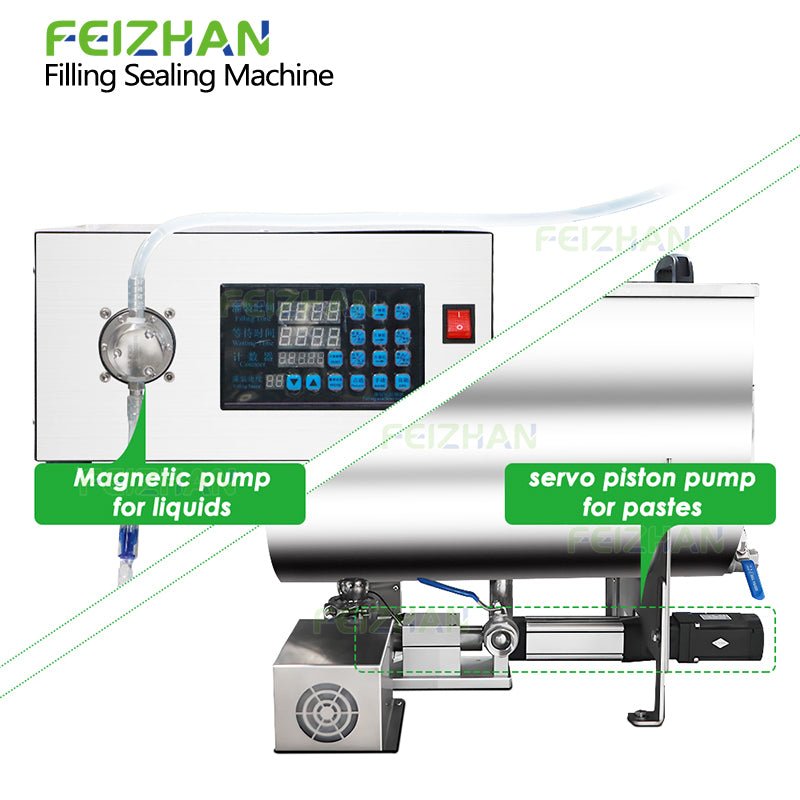

Equipped with a SUS316 magnetic pump for low-viscosity liquids and a servo piston pump for viscous products, the machine can accurately package a wide range of food products including honey, syrup, cooking oil, ketchup, jam, mayonnaise, chocolate sauce, and nutritional supplements. The dual-filling design reduces equipment investment by allowing multiple product types to be packaged on one machine.

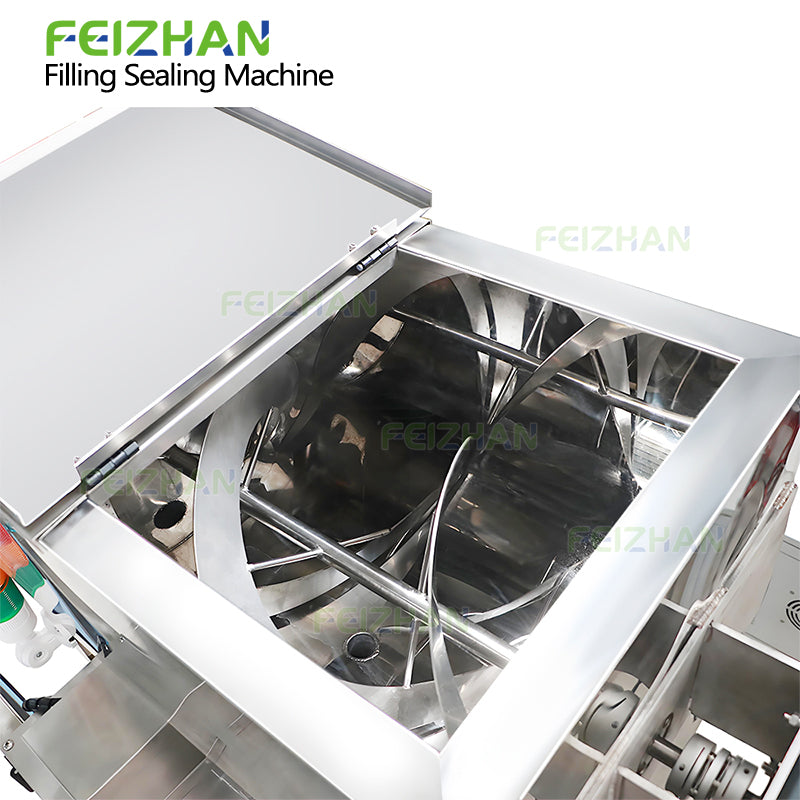

The U-shaped hopper is designed with a built-in agitator to continuously mix food products during operation. This helps prevent ingredient separation, sedimentation, or uneven consistency, ensuring accurate filling and uniform product quality. An optional heating function is available for temperature-sensitive products such as honey, chocolate sauce, and concentrated syrups.

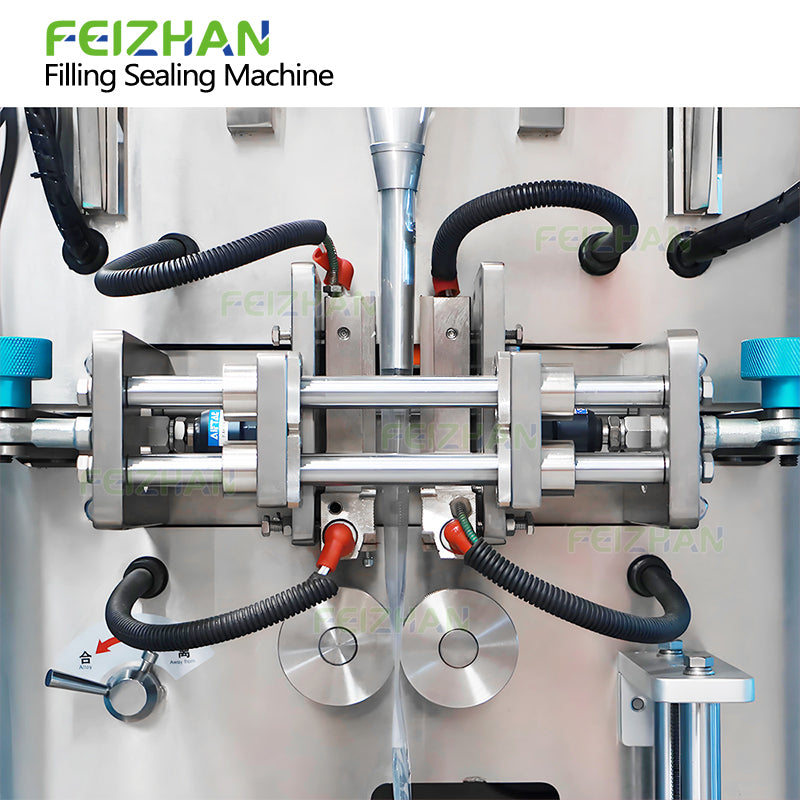

The precision heat-sealing system creates strong and consistent seals to protect food freshness and prevent leakage during transportation and storage. Back-side sealing, three-side sealing, and four-side sealing formats are available to meet different packaging and branding requirements.

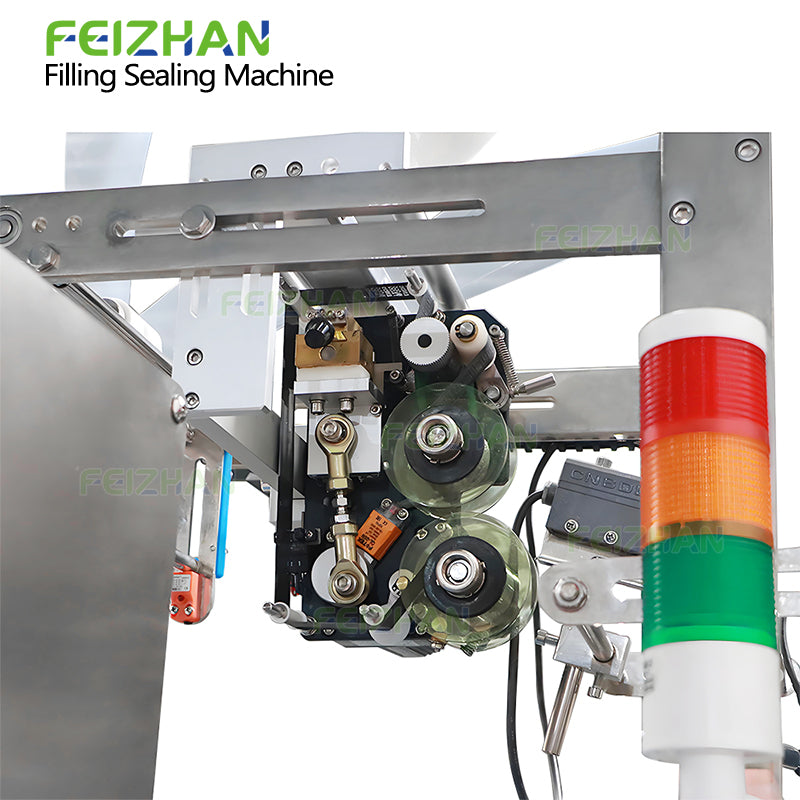

An optional coding device can print manufacturing dates, expiration dates, batch numbers, and lot information directly onto sachets. This supports food safety compliance and improves product traceability throughout the supply chain.
How Does the Sachet Filling Machine Work?
The packaging process is completed automatically in several steps:
Step 1: Film Feeding
Roll film is automatically pulled into the machine and guided through the forming system.
Step 2: Bag Forming
The packaging film is shaped into a sachet according to the preset bag dimensions.
Step 3: Product Filling
The selected filling system accurately dispenses liquid or paste products into each sachet.
Step 4: Heat Sealing
The filled sachets are sealed securely using the selected sealing style, ensuring product freshness and leak resistance.
Step 5: Date Coding (Optional)
Production dates, batch numbers, or expiration dates can be printed onto the packaging.
Step 6: Cutting and Discharge
Finished sachets are automatically cut and discharged for collection or downstream packaging processes.
Why Choose This Sachet Filling Machine?
One Machine for Multiple Products
The dual filling configuration allows manufacturers to package both liquid and paste products without purchasing separate machines.
Flexible Packaging Solutions
Supports multiple sealing styles, customizable bag sizes, and optional coding functions to meet various production requirements.
Reliable Filling Accuracy
Servo-controlled filling technology helps maintain consistent product dosage and reduce material waste.
Food-Grade Construction
Product-contact components are manufactured using food-grade materials, ensuring hygienic production standards.
Increased Production Efficiency
The automated packaging process minimizes manual labor while improving output and packaging consistency.
Easy Operation and Maintenance
The intuitive touchscreen control system and modular design simplify operation, cleaning, and routine maintenance.
