FEIZHAN

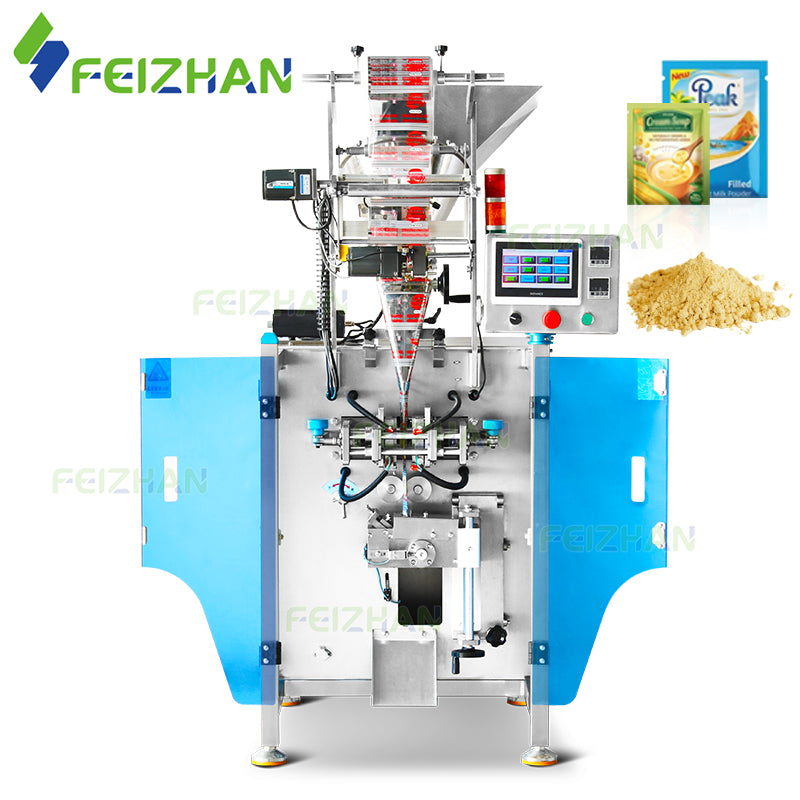

High Speed Automatic Powder Sachet Packaging Machine for Food Products
Description
Automatic powder filling, sachet forming and heat sealing in one continuous packaging process. Designed for coffee powder, milk powder, seasoning, spices, flour and other dry food powders. This automatic food powder packaging machine combines powder dosing, film forming, filling, heat sealing, sachet cutting and date coding into one integrated system. It is designed for food manufacturers and processors that need a continuous and efficient way to package dry, free-flowing and powdered food products into individual sachets. Depending on the product and sachet size, the machine can achieve approximately 40–100 sachets per minute.
Features
High-Speed Packaging — Up to 40–100 sachets/min for efficient food powder production.
Auger Powder Filling — Suitable for coffee, milk powder, spices, seasonings and other dry food powders.
Automatic Sachet Packaging — Integrates forming, filling, sealing and cutting in one process.
Adjustable Sealing — Heat-sealing temperature can be adjusted for different packaging films.

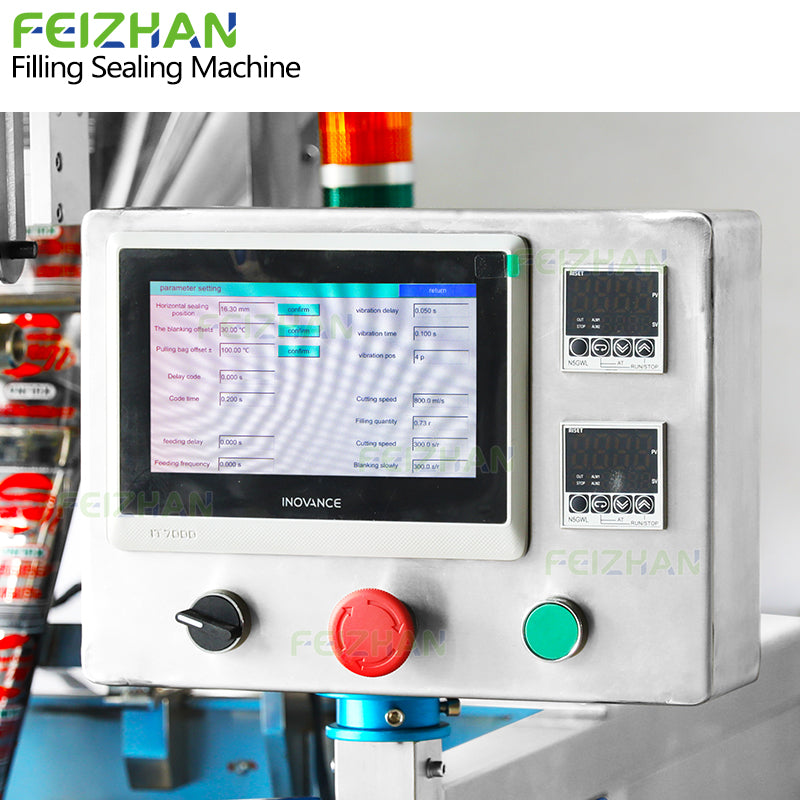

Touchscreen Control — Easy adjustment of filling, speed, sealing and sachet length.
Date Coding — Supports automatic printing of production dates, expiration dates and batch numbers.
Food Packaging Applications
This machine can be used in different parts of the food industry, including:
-
Coffee production
-
Beverage powder production
-
Dairy powder processing
-
Seasoning manufacturing
-
Spice processing
-
Flour and baking ingredients
-
Instant food production
-
Food ingredient manufacturing
- Portion-controlled food packaging
- Food-service sachet packaging
Sachet Packaging Formats
The machine can produce different sachet sealing configurations according to the selected forming and sealing structure.
Three-Side Seal
A three-side seal sachet is sealed on three edges and is commonly used for compact single-dose food packaging.
Four-Side Seal
Four-side seal sachets provide a more structured package and can be used for certain premium or portioned food powder applications.
Back Seal
Back-seal packaging forms a longitudinal seal on the rear of the sachet, providing another common format for powder products.
The actual sachet format depends on the selected machine configuration and packaging film.
Technical Specifications
|
Machine Model |
FZ-FS220P |
|
Voltage |
220V/110V, 50-60 Hz |
|
Power |
2 kW |
|
Packaging Speed |
About 40-100 pcs/min (Depending on sachet size) |
|
Filling Range |
1-100g (Can be customized) |
|
Filling Method |
Auger Filling |
|
Sachet Forming Size |
(L)20-145 mm * (W)20-110 mm |
|
Sealing Type |
Back side/3 sides/4 sides sealing |
|
Hopper Capacity |
10 L |
|
Machine Size |
About 900*700*1720 mm |
|
Machine Weight |
About 250 kg |
Machine Detail

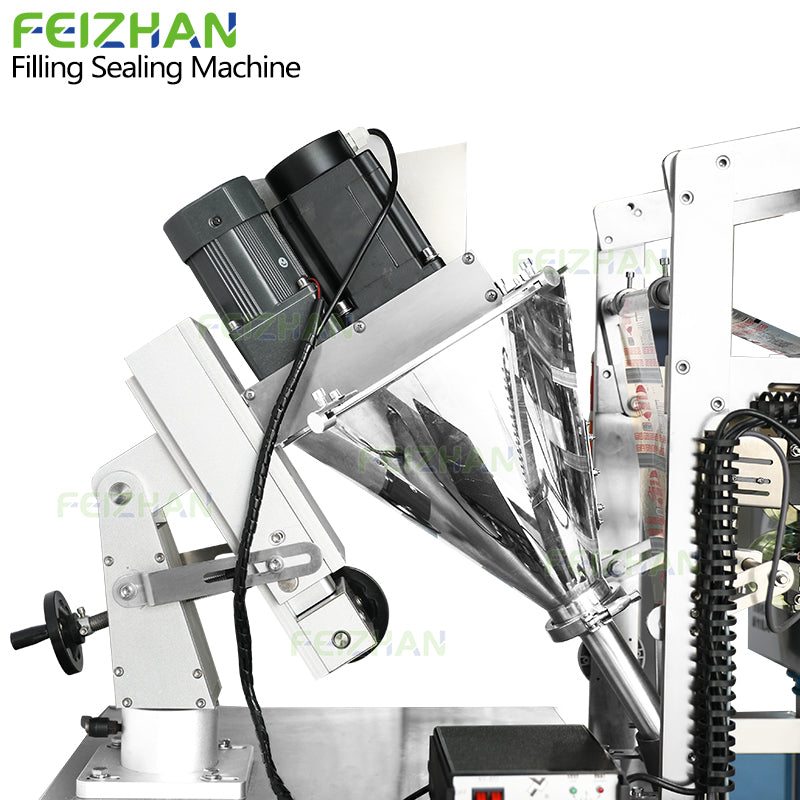

The auger system is positioned above the sachet forming and filling area. It continuously meters powder into the packaging film according to the configured filling parameters. The filling structure can be configured according to the characteristics of the powder and required filling range.

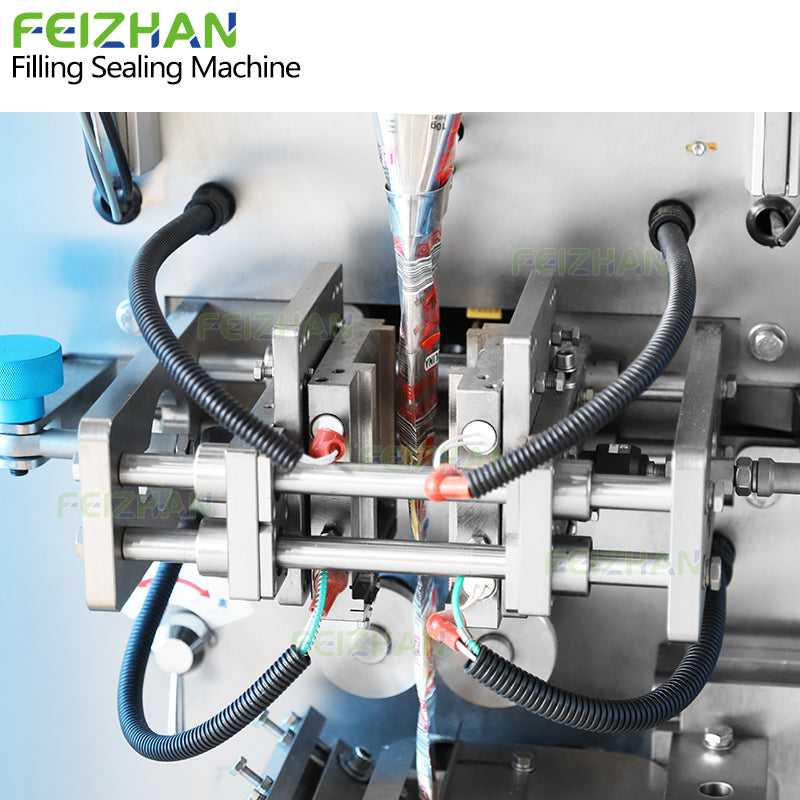

The sealing jaws apply controlled heat and pressure to the packaging film. The sealing temperature can be adjusted to suit different packaging films and production requirements. Proper temperature and sealing pressure are important for maintaining package integrity, particularly when packaging fine powders.

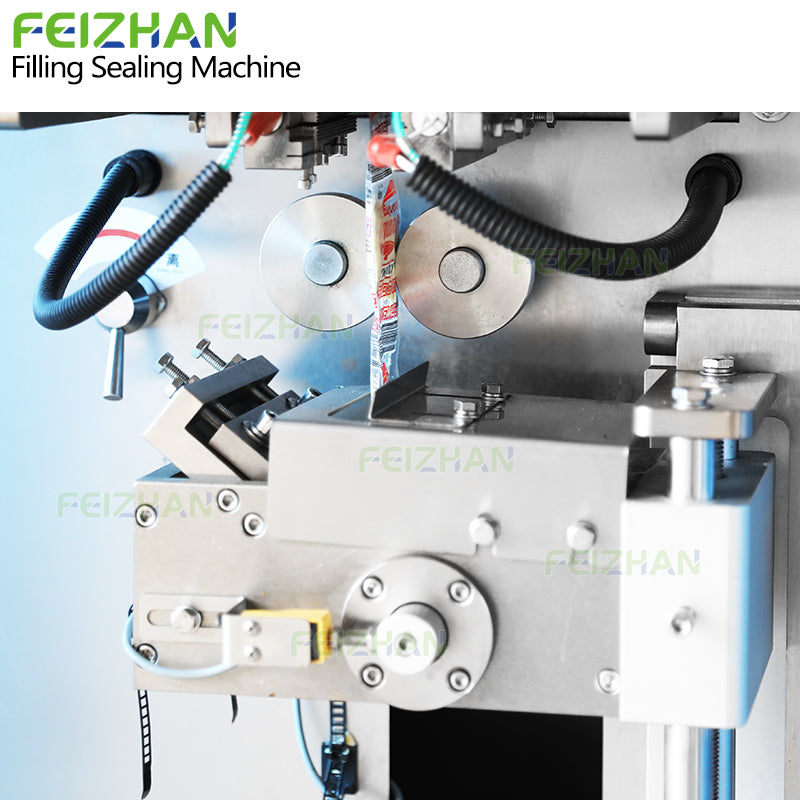

After filling and sealing, the continuous package is divided into individual sachets. The cutting length can be adjusted according to the required sachet size.

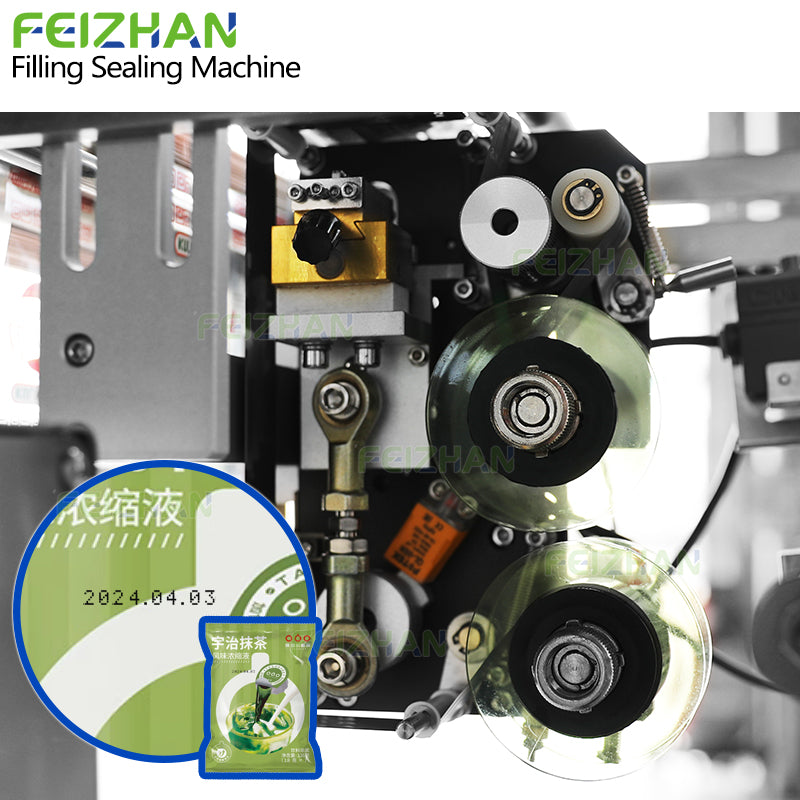

A date coding system can be integrated into the machine to automatically print production information onto the sachet. This is useful for food products that require production-date, expiration-date or batch identification.
Important Considerations Before Choosing a Food Powder Packing Machine
Not every powder behaves the same way. Before selecting the machine configuration, several factors should be considered.
Powder Flowability
Free-flowing and cohesive powders behave differently inside the auger system.
Particle Size
Fine powders may require different feeding and dust-control considerations compared with coarser powders.
Bulk Density
The same volume of different powders can have very different weights, so filling parameters should be tested with the actual product.
Moisture Content
Moist or hygroscopic powders can behave differently during filling and may require additional measures to maintain stable feeding.
Filling Weight
The required dose directly affects the filling configuration and production speed.
Sachet Size
Sachet width and length determine the forming and cutting configuration.
Packaging Film
The film must be compatible with the selected heat-sealing system and the intended food application.
FAQ
What food products can this powder packaging machine handle?
It can be used for many dry powdered food products, including coffee, milk powder, seasoning, spices, flour, sugar powder, cocoa and other food ingredients. The actual suitability depends on the powder's flowability, particle size, density and moisture content.
Can it package coffee powder?
Yes. Coffee powder is one of the typical applications for an auger-based powder sachet packaging machine.
Can it package milk powder?
Yes. The machine can be configured for powdered milk and other dry dairy or beverage powders, subject to product testing.
Can it package seasoning and spices?
Yes. Seasoning powders and spice powders are suitable applications when their physical characteristics are compatible with the selected auger filling system.
What is the filling range?
The listed filling range for the FZ-FS220P is approximately 1–100 g. The practical filling range depends on the product and filling configuration.
How fast can it package?
The approximate production speed is 40–100 sachets per minute, depending on the filling weight, powder characteristics, sachet size and packaging configuration.
What type of packaging does it produce?
The machine can be configured for back-seal, three-side-seal or four-side-seal sachets, depending on the selected configuration.
Can it print the production date?
Yes. A date coding system can be integrated to print production dates, expiration dates, batch numbers and other information.
Is this machine suitable for food production?
The machine is designed for powdered-product packaging applications. For a specific food product, the appropriate contact material, machine configuration, packaging film and sanitary requirements should be confirmed before purchase.
Can I use one machine for different powders?
Potentially, yes. However, different powders may have different flow characteristics and filling behavior. Product testing and appropriate auger selection are recommended when switching between significantly different products.
Can the machine package small single-serving sachets?
Yes. This type of machine is particularly suitable for portion-controlled and single-serving powder sachets, such as coffee, seasoning, creamer and beverage powder.
Looking for an Automatic Food Powder Packaging Machine?
Whether you are packaging coffee powder, milk powder, seasoning, spices, flour or other dry food ingredients, the FZ-FS220P can provide an integrated solution for powder dosing, sachet forming, filling, sealing, cutting and date coding.
Send us your product, target filling weight, sachet size and required production capacity. We can recommend the appropriate filling and packaging configuration for your application.
Request a Quote for Your Food Powder Packaging Application
