FEIZHAN
Automatic Servo Rotor Pump Food Paste Jar Filling Capping Labeling Line
Product Description

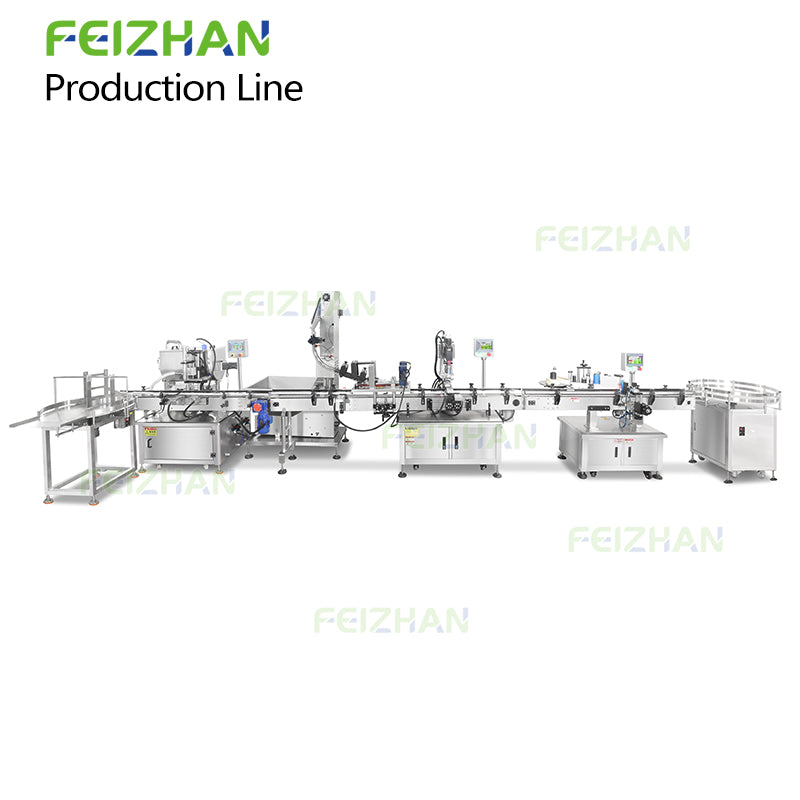

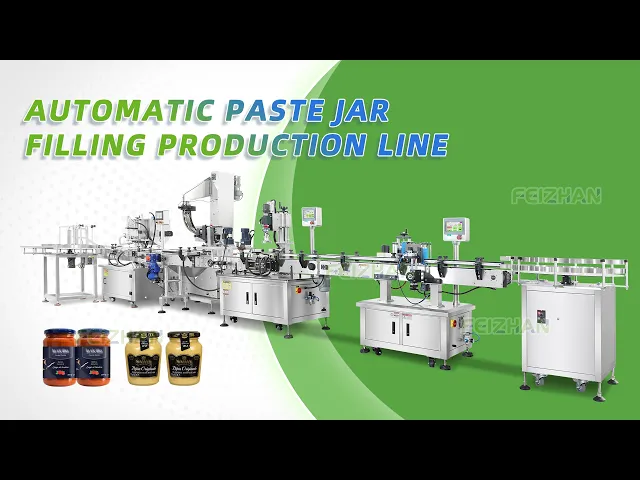

The Automatic Paste Jar Filling Production Line is designed for automated filling, capping, and labeling of viscous food products packed in jars. The complete line integrates bottle unscrambling, paste filling, cap feeding, servo capping, labeling, and bottle sorting to create a continuous packaging process with reduced manual handling.
The filling system uses a servo rotor pump to provide accurate and stable filling for viscous paste products. Its U-shaped hopper is equipped with a mixer to help maintain consistent and smooth product flow, making it suitable for food products that require controlled and uniform filling. The filling volume can be set through the control panel, with a standard filling range of 100–1000 ml and customizable configurations available.
The automated cap feeding and servo capping system help maintain a continuous packaging process. The capping mechanism provides consistent torque for secure sealing and can be customized according to the cap size.
For product identification and presentation, the labeling section supports single-side, double-side, or wrap-around labeling, with an optional date coder. The bottle sorting system helps feed and collect containers during production, supporting smooth material flow throughout the packaging line.
Main Features
-
U-shaped Hopper with Mixer
The U-shaped hopper is equipped with an integrated mixer to help maintain consistent material flow and support smooth, continuous feeding during the filling process. -
Servo Rotor Pump Filling
The servo rotor pump system provides accurate and stable filling for viscous paste products. Filling volume can be conveniently adjusted through the control panel. -
Automatic Cap Feeding
The cap feeding structure automatically supplies caps to the capping station, helping maintain continuous operation while reducing manual cap handling. -
Servo Capping System
The servo capping structure applies consistent capping torque to achieve secure and reliable sealing. The capping mechanism can be customized according to the cap size. -
Flexible Labeling
The labeling system supports single-side, double-side, or wrap-around labeling for different jar packaging requirements. A date coder is available as an optional configuration. -
Automatic Bottle Sorting
The bottle sorting system automatically feeds and collects bottles during production, helping maintain an organized product flow throughout the packaging line.
Suitable Food Applications
The line is suitable for viscous food products packaged in jars, depending on the product characteristics and filling requirements.
Typical applications can include:
-
Sauces
-
Jams
-
Fruit spreads
-
Honey
-
Peanut butter
-
Chocolate spreads
- Other viscous paste foods
Note: Actual product compatibility should be confirmed according to viscosity, flow characteristics, particle content, filling temperature, and other material properties.
Parameter
Bottle Unscrambler
- Machine Model: FZ-LP800N
- Power Supply: 220V/110V 50-60Hz 200W
- Turntable Diameter: 800 mm
- Suitable Bottle Diameter: 20-100 mm
- Suitable Bottle Height: 30-320 mm
- Working Speed: 40-60 bottles/min (Depending on bottle size)
- Package Size: About 1230*1010*1260 mm
- Gross Weight: About 141 kg
Paste Filling Machine
- Machine Model: FZ-YT1T-1PXM
- Power Supply: 220/110 V, 50-60 Hz, 2.5 kW
- Filling Pump: Servo Rotor Pump
- Filling Speed: About 20-30 Bottles/min (Depending on filling materials)
- Filling Range: 100-1000 ml(Customizable)
- Filling Accuracy: ±1 %
- Hopper Size: About 70 L (with mixer)
- Air Pressure: 0.5-0.7 MPA
- Machine Size: About 2090*1070*1700 mm(L*W*H)
- Package Size: About 1740*1010*1670 mm(L*W*H)
- Package Weight: About 350 kg
Capping Machine
- Machine Model: FZ-XG440T
- Machine Voltage: 110/220 V, 50-60 HZ, 2 KW
- Suitable Caps Diameter: 140 mm (customizable)
- Working Pressure: 0.5-0.7 MPa
- Working Speed: 15-30 bottles/min
- Machine Size: About 3050*1230*2350 mm(L*W*H)
- Machine Weight: About 250 kg
Labeling Machine
- Model: FZ-TB260R Labeling Machine
- Power Supply: AC 220 V 50/60 Hz 1 KW
- Labeling Capacity: 25-50 bottles/min(depends on bottle size)
- Labeling Accuracy: ± 1.0 mm
- Suitable Bottle Diameter: Φ30-100 mm H=30-200 mm
- Label Size: (L)20-300 mm (H)12-130 mm
- Roll Inside Diameter: Φ76 mm
- Roll Outside Diameter: Φ350 mm
- Conveyor Size: 112*2000 mm
- Machine Size: About 2000*820*1380 mm (L*W*H)
- Machine Weight: About 180 kg
- Packing Size: About 2100*890*1520 mm (L*W*H)
- Package Weight: About 250 kg
Bottle Sorting Machine
- Bottle Specifications: Square bottle/round bottle
- Conveying Speed: 0-20 revolutions per minute(adjustable)
- Voltage: 220V 50Hz (110V can be customized)
- Power Supply: 200W
- Turntable Diameter: 800 mm Available
- Dimensions: About 550*550*990 mm
- Package Size: About 1050*1000*1130 mm
- Net Weight/Gross Weight: About 93 kg/120 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
Working Process

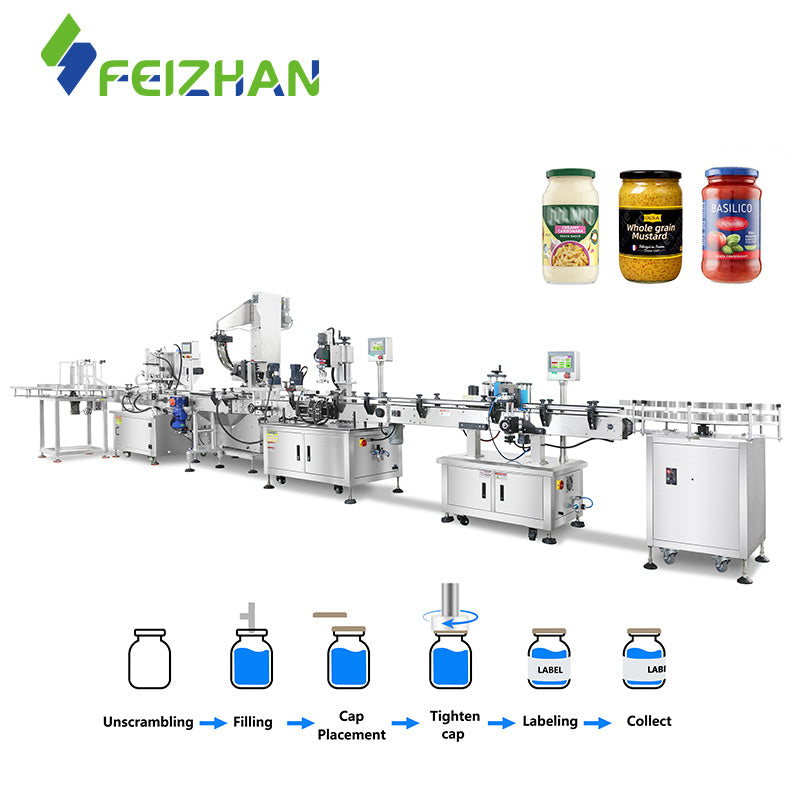

Bottle Unscrambling → Paste Filling → Cap Feeding → Servo Capping → Labeling → Bottle Sorting
Machine Detail

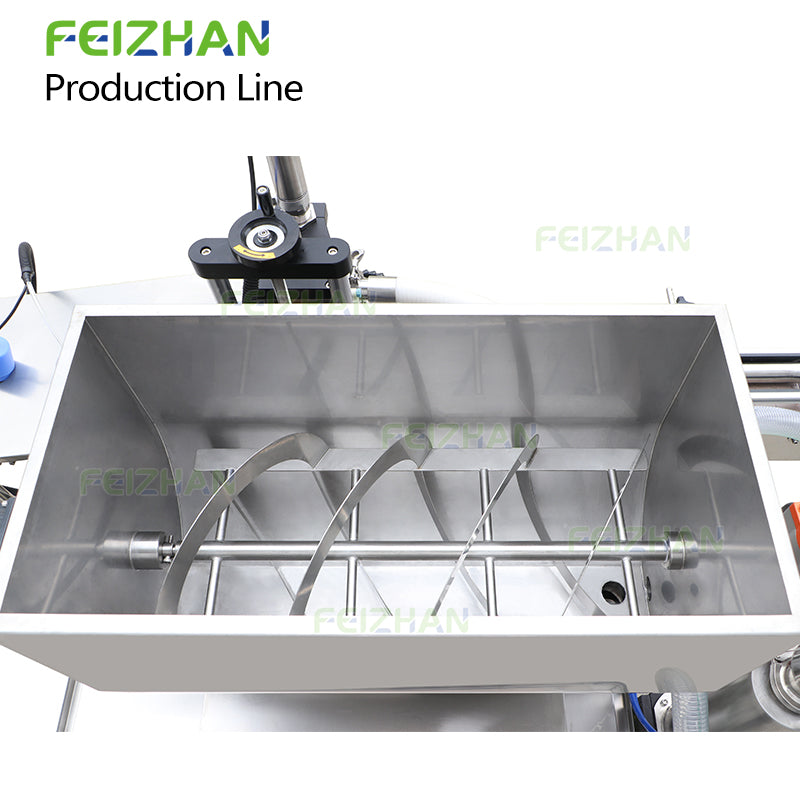

The U-shaped hopper is equipped with an integrated mixer to help maintain consistent material flow and support smooth, continuous feeding during the filling process.

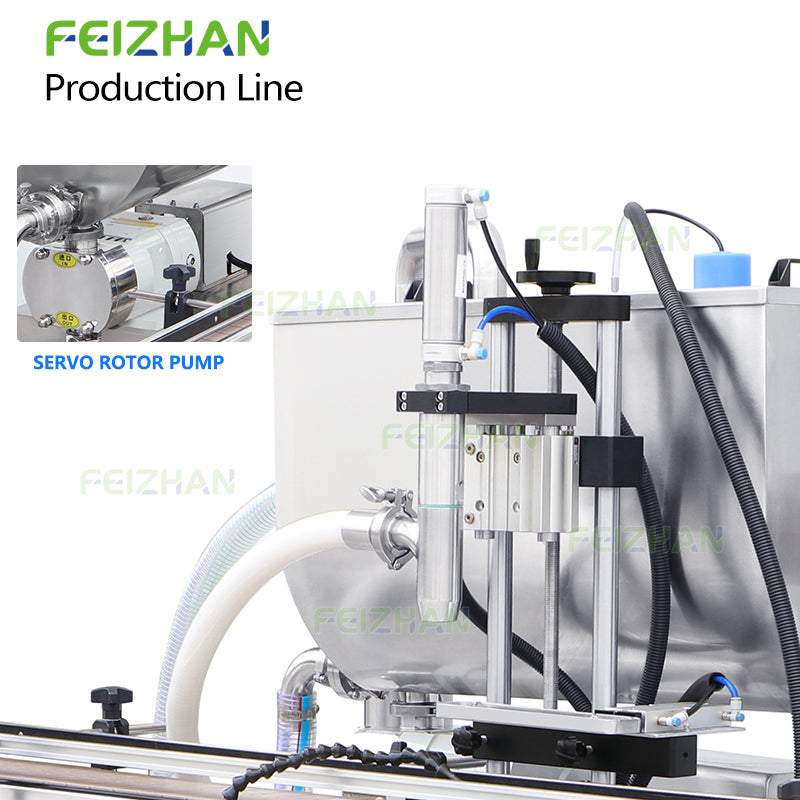

The servo rotor pump system provides accurate and stable filling for viscous paste products. Filling volume can be conveniently adjusted through the control panel.

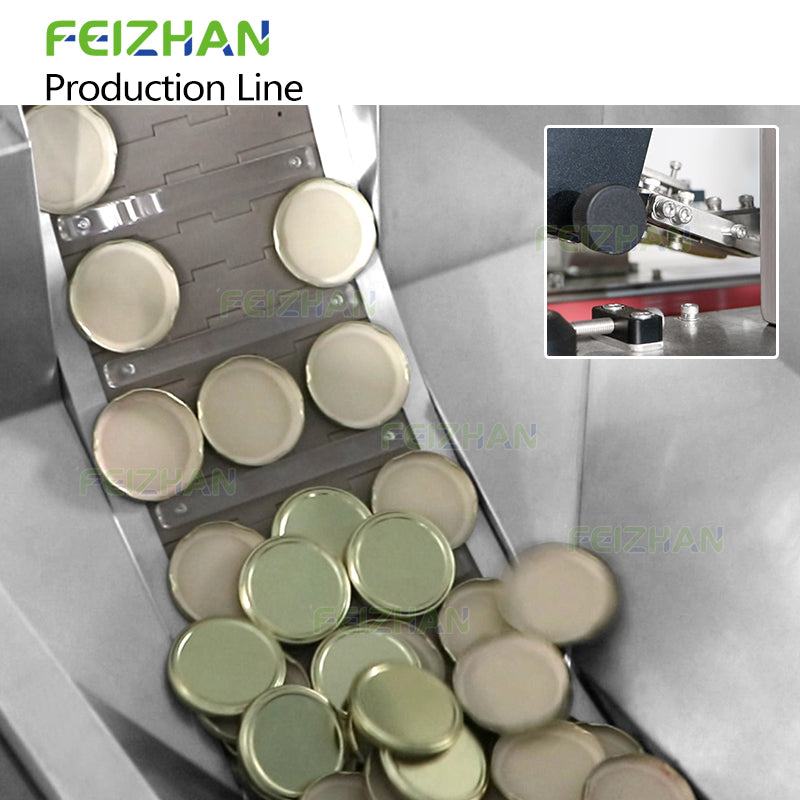

The cap feeding structure automatically supplies caps to the capping station, helping maintain continuous operation while reducing manual cap handling.

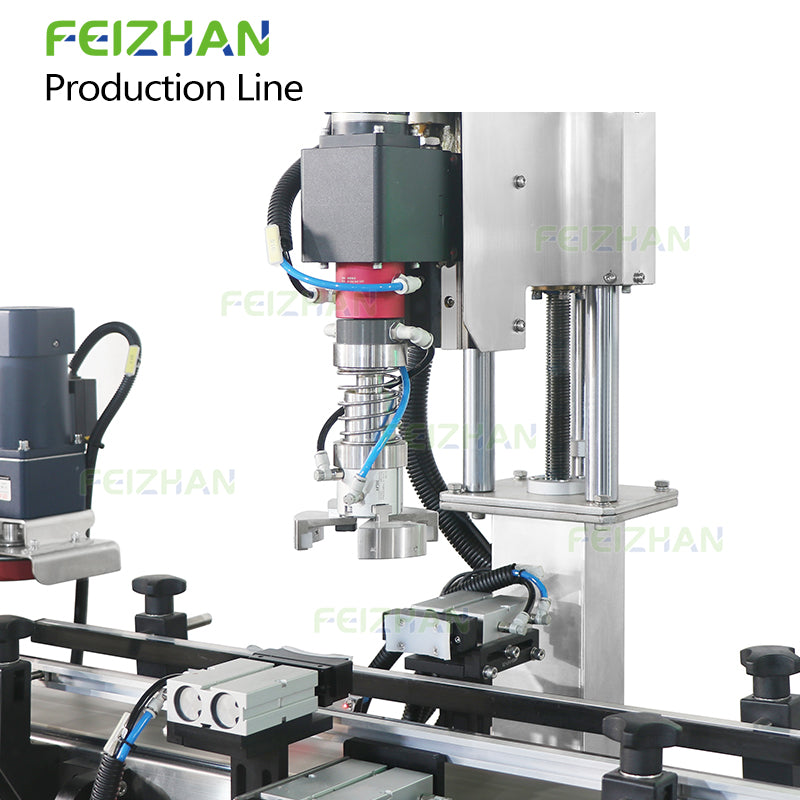

The servo capping structure applies consistent capping torque to achieve secure and reliable sealing. The capping mechanism can be customized according to the cap size.

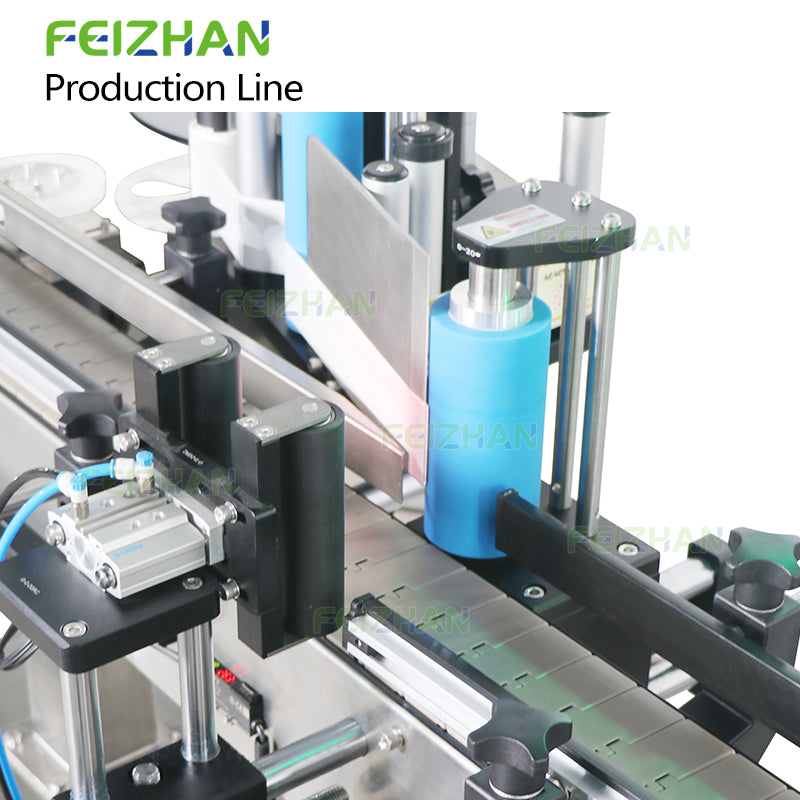

The labeling system supports single-side, double-side, or wrap-around labeling for different jar packaging requirements. A date coder is available as an optional configuration.

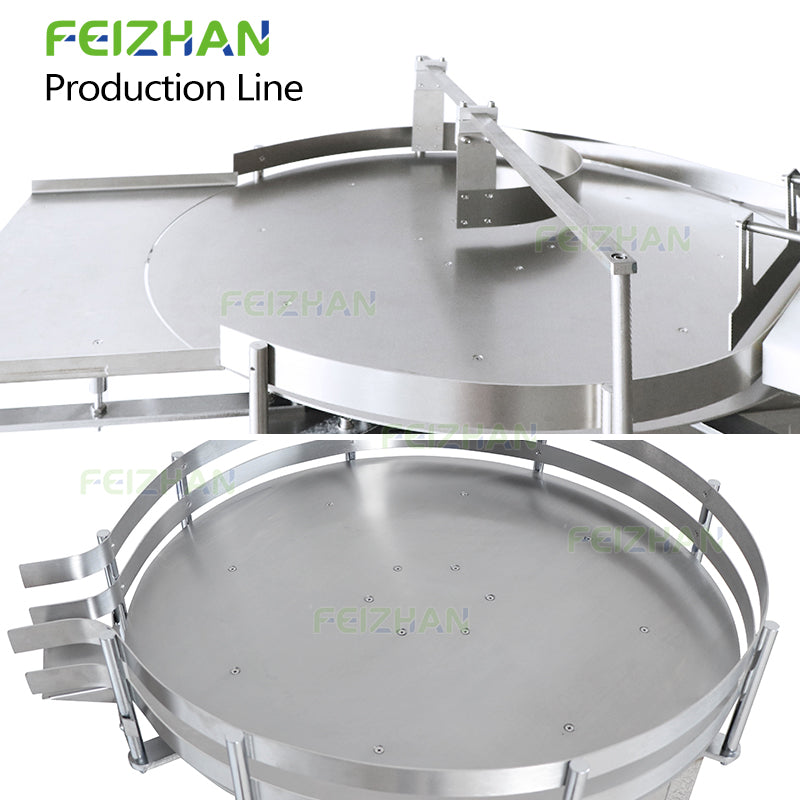

The bottle sorting system automatically feeds and collects bottles during production, helping maintain an organized product flow throughout the packaging line.
Why Choose This Food Paste Filling Line?
- Complete automatic packaging process from bottle feeding to sorting
- Servo rotor pump for controlled viscous product filling
- Mixing hopper helps maintain consistent product flow
- Automatic cap feeding reduces manual handling
- Servo capping provides consistent sealing torque
- Multiple labeling options for different jar designs
- Customizable filling and capping configurations
- Suitable for a range of viscous food products in jars
FAQ
What products can this food paste filling machine handle?
The machine is designed for viscous paste products. Specific food applications should be evaluated according to the product's viscosity and flow characteristics.
What is the filling range?
The standard filling range is 100–1000 ml, and customized filling ranges are available.
What filling pump is used?
The filling machine uses a servo rotor pump, designed to provide stable and accurate filling for viscous paste products.
Does the hopper have a mixer?
Yes. The U-shaped hopper is equipped with a mixer to help maintain consistent and smooth product flow.
Can the machine automatically feed caps?
Yes. An automatic cap feeding structure continuously supplies caps to the capping station, reducing manual handling.
What types of labeling are supported?
The labeling system supports single-side, double-side, and wrap-around labeling. A date coder is optional.
What is the filling speed?
The paste filling machine operates at approximately 20–30 bottles/min, depending on the filling material.
Can the machine be customized?
Yes. The filling range and capping structure can be customized according to production requirements.
Does the complete line require compressed air?
Yes. The line requires compressed air, with the listed working pressure for the filling and capping equipment being 0.5–0.7 MPa.
