FEIZHAN

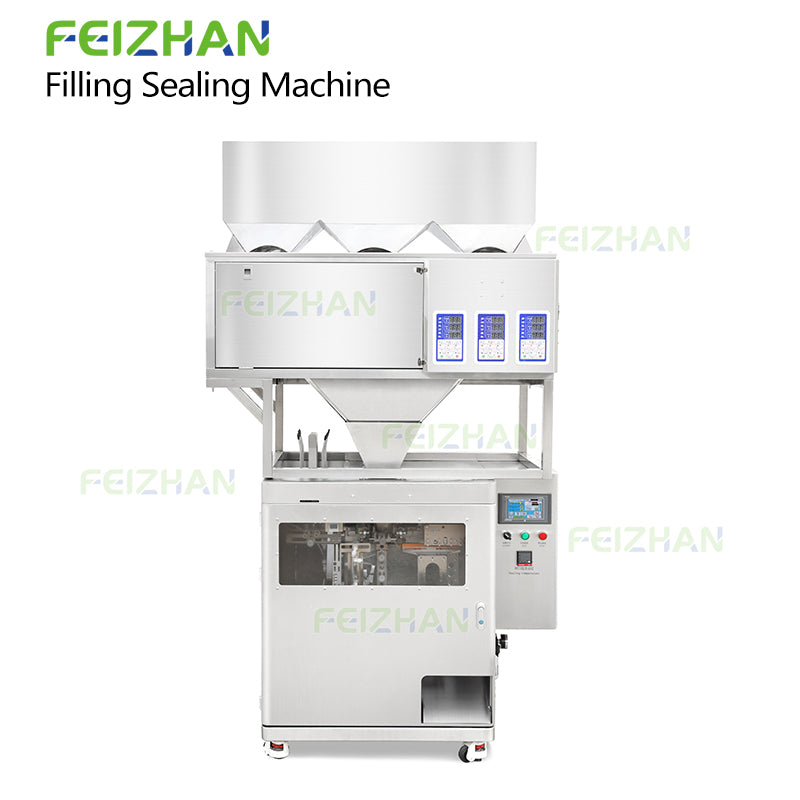

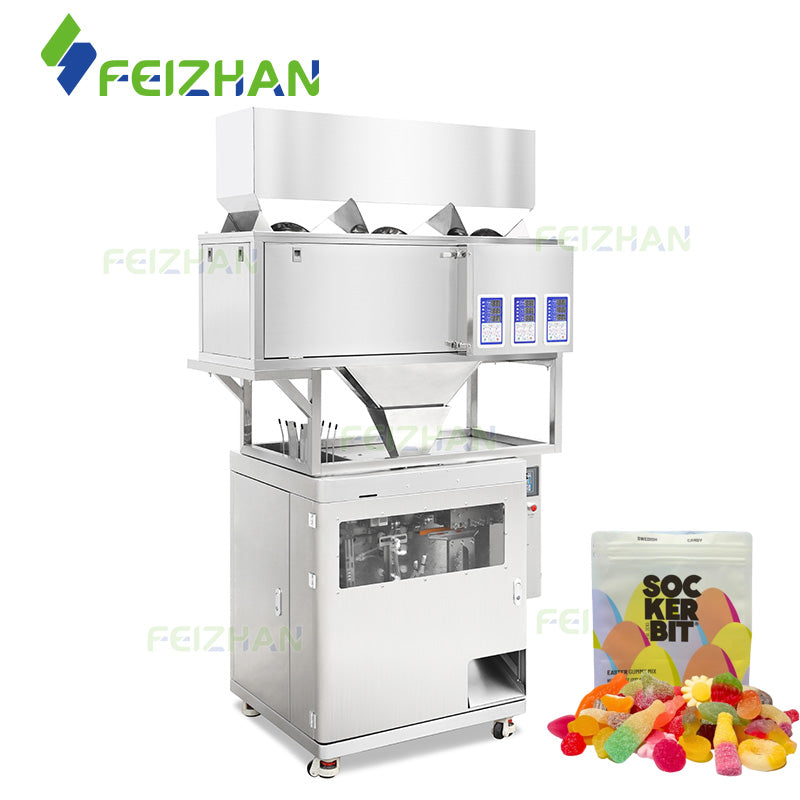

Automatic Premade Pouch Weighing Packaging Machine for Food Products
Machine Overview
The FEIZHAN Gummy packaging machine handles weighing, filling, and sealing of granule food products in a single automated sequence. Premade pouches feed in, get filled, and exit sealed — without manual intervention between steps.
Portion control runs through a 3-head electronic weighing system paired with a spiral feeding structure. The combination keeps fill weight stable across a run — relevant when packaging products sold by declared weight, where deviation accumulates into real product giveaway.
What does it run? Candy, nuts, dried fruits, tea, coffee beans, snacks, cereals, frozen foods. Single-product fills and mixed-product combinations both work — useful for manufacturers producing assorted snack packs or trail mix formats where multiple ingredients need to land in the same pouch.
Pouch feeding, opening, filling, heat sealing — all automatic. The steps that typically require dedicated operators on a manual line are built into the machine's sequence.
Modular construction keeps the footprint manageable. A touchscreen handles parameter adjustments — fill weight, pouch format, sealing temperature. Changes that would otherwise require mechanical intervention can be made at the panel. It helps improve production efficiency, reduce labor costs, and maintain consistent packaging quality.
Machine Features
3-Head Electronic Weighing System
Three independent weighing heads provide accurate and stable weighing performance. The machine supports both single-product and mixed-product packaging applications.
Spiral Feeding Design
The screw feeding mechanism ensures smooth and continuous feeding of light granules such as tea, candies, nuts, and snack products.
Premade Pouch Handling
Automatically picks, opens, positions, fills, and seals premade pouches, reducing manual labor and improving packaging consistency.
Flexible Packaging Modes
Supports single-material packaging as well as mixed-material combinations for snack assortments and trail mix products.
Compact Modular Structure
The modular design simplifies maintenance while allowing weighing and packaging sections to operate independently when needed.
Applications
Suitable Products
- Hard Candy
- Gummies
- Chocolate Beans
- Nuts
- Mixed Nuts
- Dried Fruits
- Trail Mix
- Coffee Beans
- Tea Leaves
- Breakfast Cereals
- Granola
- Frozen Vegetables
- Frozen Fruits
- Snack Foods
- Crackers
- Popcorn
- Pet Treats
Technical Parameters
|
Model |
FZ-AFS04C |
|
Power Supply |
AC 220V, 960W |
|
Filling Range |
1–999g |
|
Packing Speed |
15–25 bags/min |
|
Applicable Pouch Size |
50*70 mm to 200*300 mm |
|
Air Consumption |
0.83 m³/min at 0.6–0.8 MPa |
|
Filling Accuracy |
±0.5 g |
|
Hopper Capacity |
25kg*3=75 kg |
|
Pouch Magazine Capacity |
Approx.450 bags (Based on 0.10 mm thickness) |
|
Machine Size |
About 991*650*1650 mm |
|
Machine Weight |
About 220 kg |
|
Packaging Size |
About 1100*750*2000 mm |
|
Packaging Weight |
About 270 kg |
Machine Details

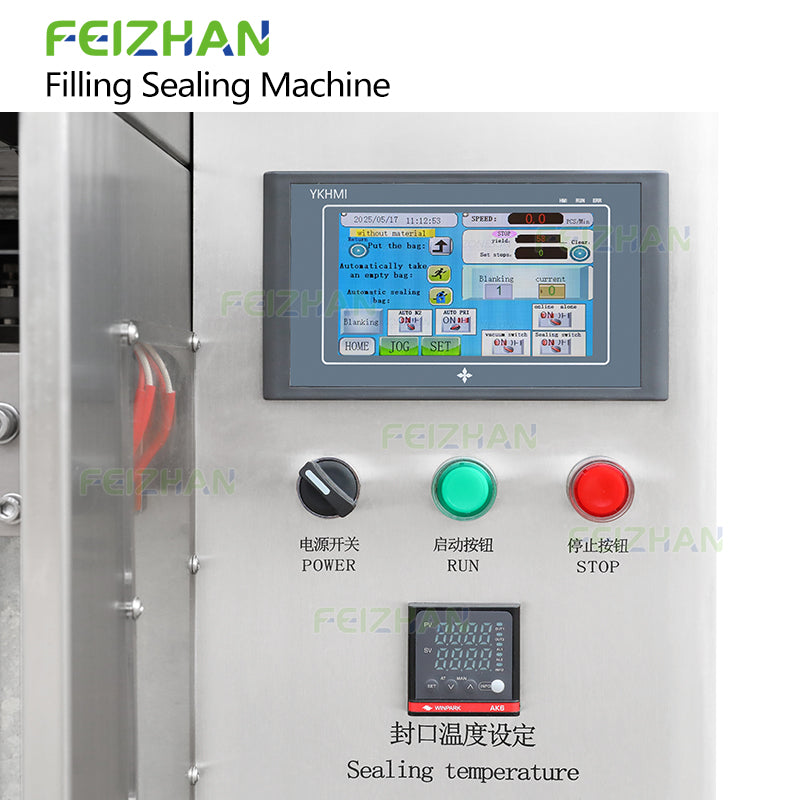

PLC Touchscreen Control System

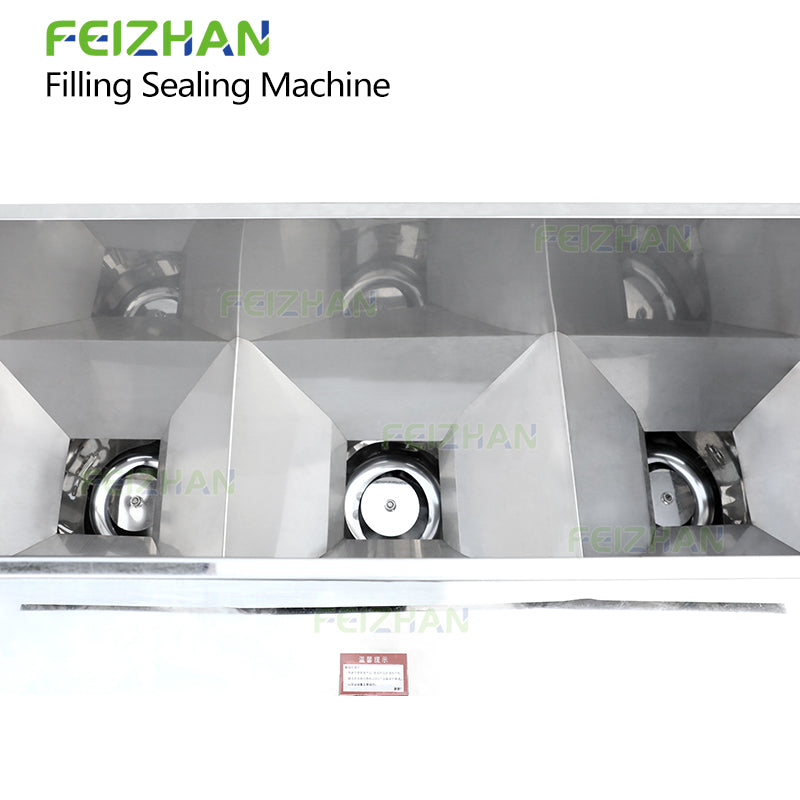

Spiral Feeding Design & Hopper

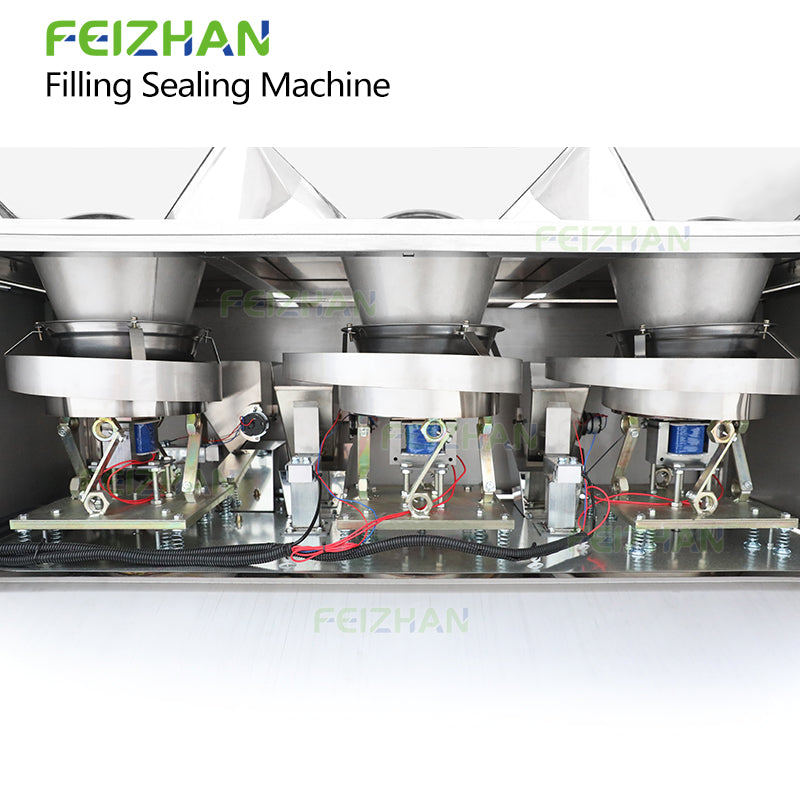

3-Head Electronic Weighing Structure

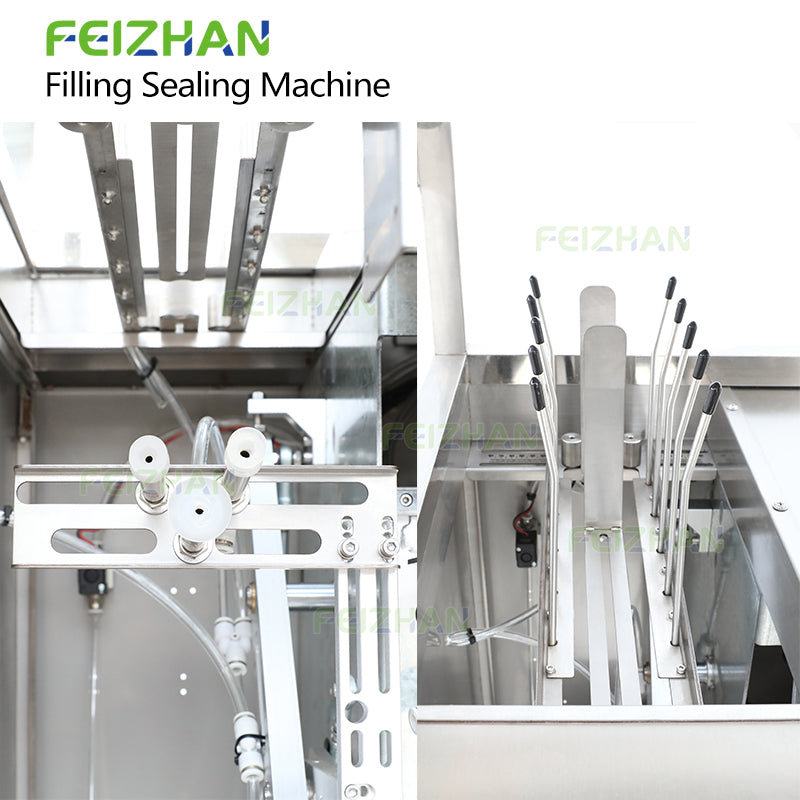

Premade Pouch Feeding and Opening Structure

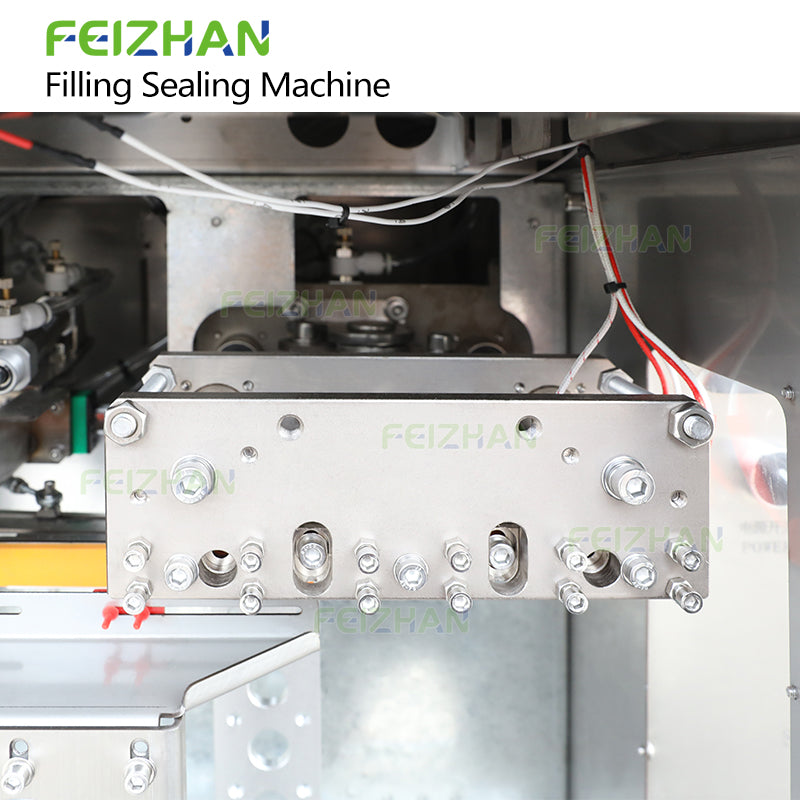

Heat Sealing Structure

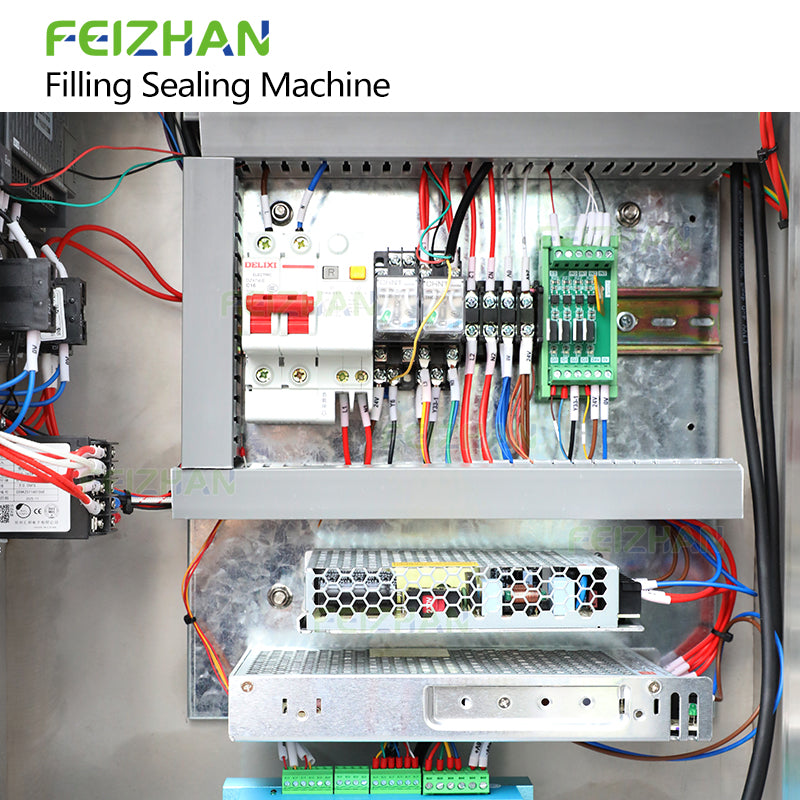

Modular Electrical Control System
A structural decision that tends to matter more as the operation scales.
Optional Customization
- Customized Hopper Capacity
- Stainless Steel Contact Parts
- Nitrogen Flushing System
- Date Coding Printer
- Zipper Pouch Compatibility
- Product Counting Function
- Dust Collection System
Why Choose This Packaging Machine
Accurate Weighing
Three independent weighing heads ensure consistent filling accuracy and reduce product giveaway.
Versatile Applications
Suitable for a wide variety of food products, from candy and nuts to cereals and frozen foods.
Easy Operation
PLC touchscreen control simplifies setup and daily operation.
Reliable Packaging Quality
Integrated weighing, filling, and sealing system ensures stable production and professional package appearance.
FAQ
What products can this machine package?
The machine is suitable for candy, nuts, dried fruits, cereals, coffee beans, tea, snacks, frozen foods, and other granule products.
Can it package mixed products?
Yes. The 3-head weighing system supports both single-product and mixed-product packaging.
What pouch types are supported?
Premade pouches, stand-up pouches, zipper pouches, and other common pouch styles.
What is the weighing accuracy?
