FEIZHAN

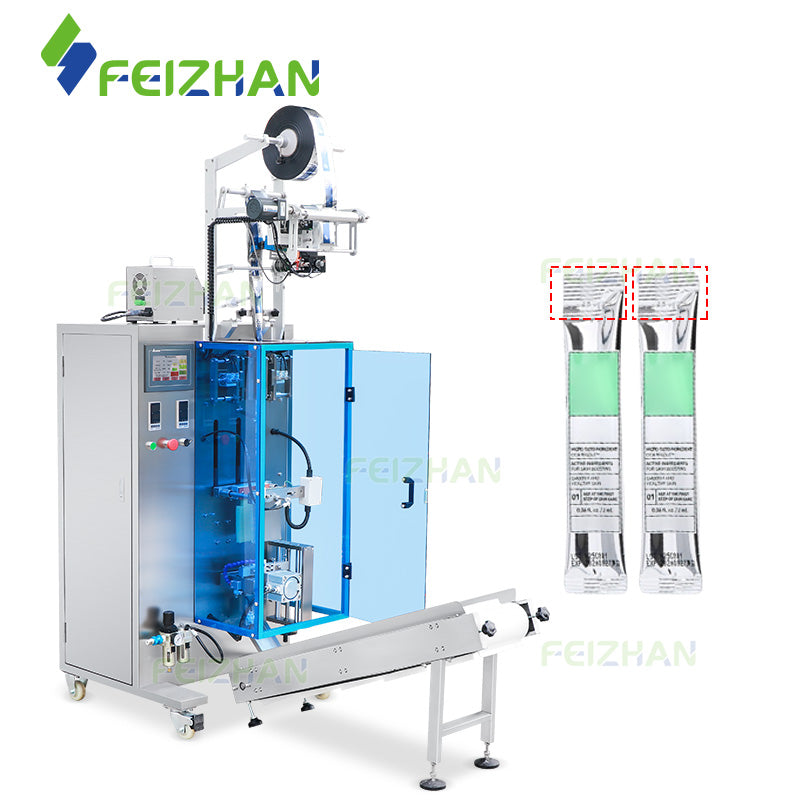

Automatic Liquid Sachet Packing Machine With Peristaltic Pump For Functional Drinks & Nutritional Supplements
Product Description
The liquid sachet packing machine packages low-viscosity beverages and food liquids into single-serve stick sachets with easy-tear openings. Pouch forming, filling, sealing, coding, and cutting — one continuous sequence, no manual handoffs between stages.
Filling runs through a peristaltic pump. Product contacts only the tubing — nothing else in the system touches the liquid directly. That separation does two things: it reduces contamination risk between the pump mechanism and the product, and it makes changeovers faster, since cleaning the contact surface means replacing or flushing the tubing rather than disassembling internal pump components.
Energy drinks, electrolyte solutions, vitamin supplements, nutritional liquids, herbal extracts — low-viscosity single-serve beverages are the target application. The easy-tear feature matters here specifically: a sachet a consumer opens by hand in a gym or on a trail needs to open cleanly at the intended point, not wherever the film happens to give way first.
PLC touchscreen control handles parameter adjustment — pouch size, fill volume, sealing temperature. Settings adjust at the panel rather than through mechanical intervention, which keeps format changes from becoming production stops.
Machine Features
Peristaltic Pump Filling System
The product only passes through flexible tubing during filling. This reduces material contact with machine components and makes cleaning or flavor changeovers easier.
Easy-Tear Sachet Production
Creates stick sachets with tear notches, allowing consumers to open packages quickly without scissors or additional tools.

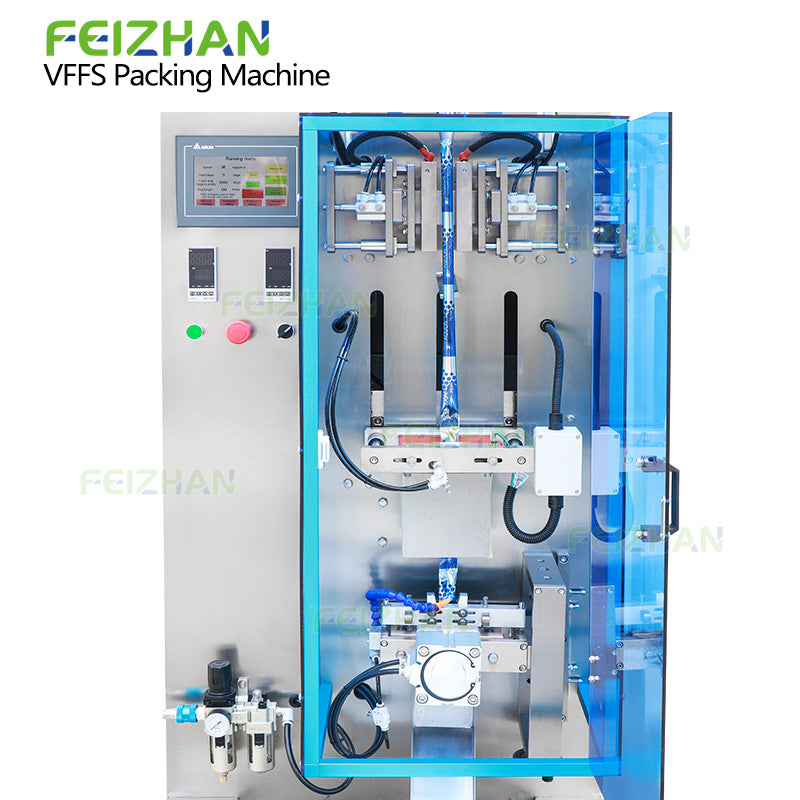

Integrated Form-Fill-Seal Process
Film forming, liquid filling, sealing, coding, and cutting are completed automatically within a compact production system.
PLC Touchscreen Control
Packaging length, filling volume, sealing temperature, and production parameters can be adjusted through the touchscreen interface.
Batch Coding Function
Optional date coding enables production dates, expiration dates, or batch information to be printed directly onto each sachet.

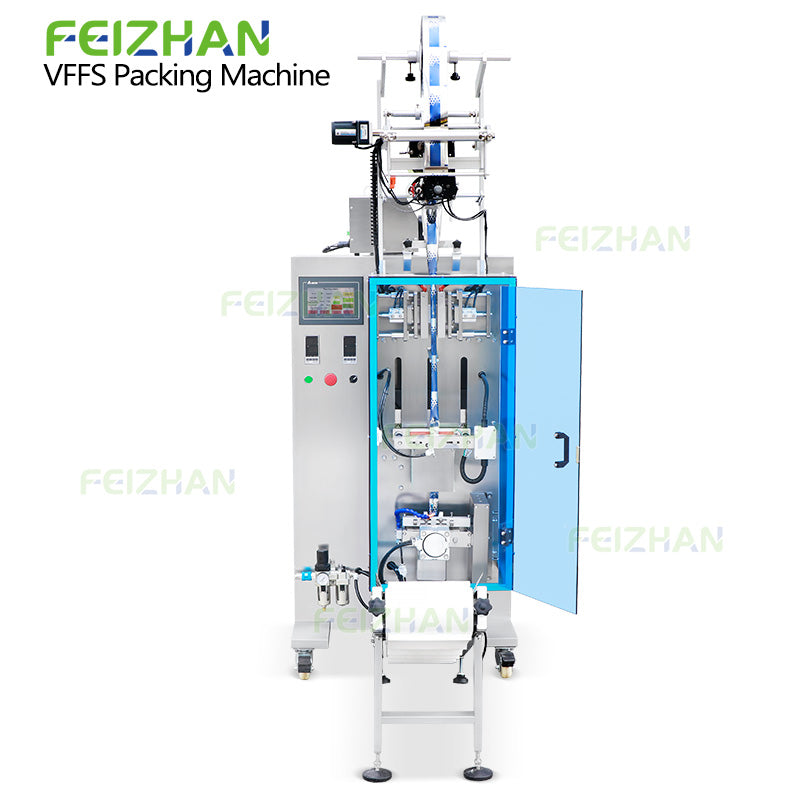

Compact Vertical Structure
The machine requires limited floor space while supporting continuous packaging operations.
Applications
Suitable for packaging:
- Energy drinks
- Vitamin shots
- Electrolyte solutions
- Nutritional supplements
- Liquid dietary supplements
- Herbal extracts
- Functional beverages
- Liquid food additives
- Concentrated beverage products
- Health and wellness drinks
Machine Parameter
|
Machine Model |
FZ-FS240P |
|
Machine Voltage |
110/220V, 50-60HZ, 2.5 KW |
|
Filling Range |
1-100 g(Can be customized) |
|
Filling Method |
Peristaltic Pump |
|
Sealing Type |
Back Side Sealing With Easy Tear Opening (Can Be Customized) |
|
Control SYSTEM |
PLC control |
|
Packaging Speed |
25-40 bags/min |
|
Bag Size |
40-200mm(L)*20-110mm(W) |
|
Bag Material |
Heat Sealable Bags |
|
Machine Size |
About 850*960*2100 mm |
|
Machine Weight |
About 300 kg |
|
Package Size |
About 1020*920*2200 mm |
|
Package Weight |
About 353 kg |
Machine Detail

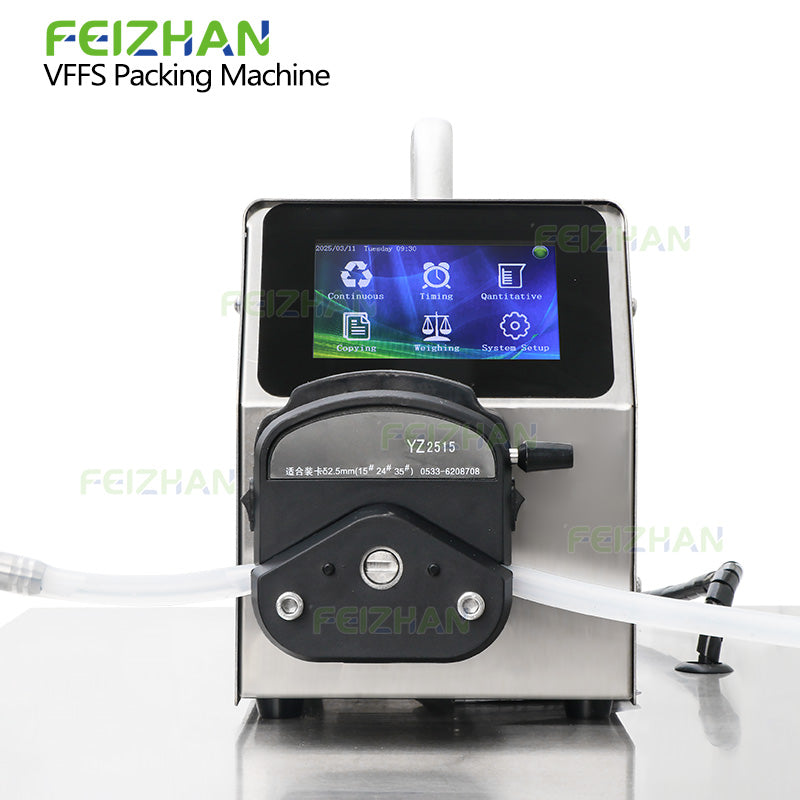

The pump compresses food-grade tubing from outside, pushing liquid through without the product ever contacting metal or internal mechanical parts. What that means in practice: the only surface the liquid touches is the tubing itself.
For nutritional drinks, electrolyte solutions, and vitamin liquids — products where formula integrity and cross-contamination risk both matter — that separation is the relevant spec, not pump speed or output pressure.
Touchscreen Operation
Production parameters such as filling volume, pouch length, and sealing temperature can be adjusted through the touchscreen interface, simplifying recipe changes and product switching.
Easy-Tear Sachet Design
A notch cut into the sachet edge gives the film a defined starting point — without it, the package tears wherever the material happens to give way first, which is rarely where it's supposed to.
For single-serve beverages and nutritional supplements consumed on the go, that predictability matters. A sachet that opens cleanly at the notch works in one hand, without scissors, without a flat surface to brace against.

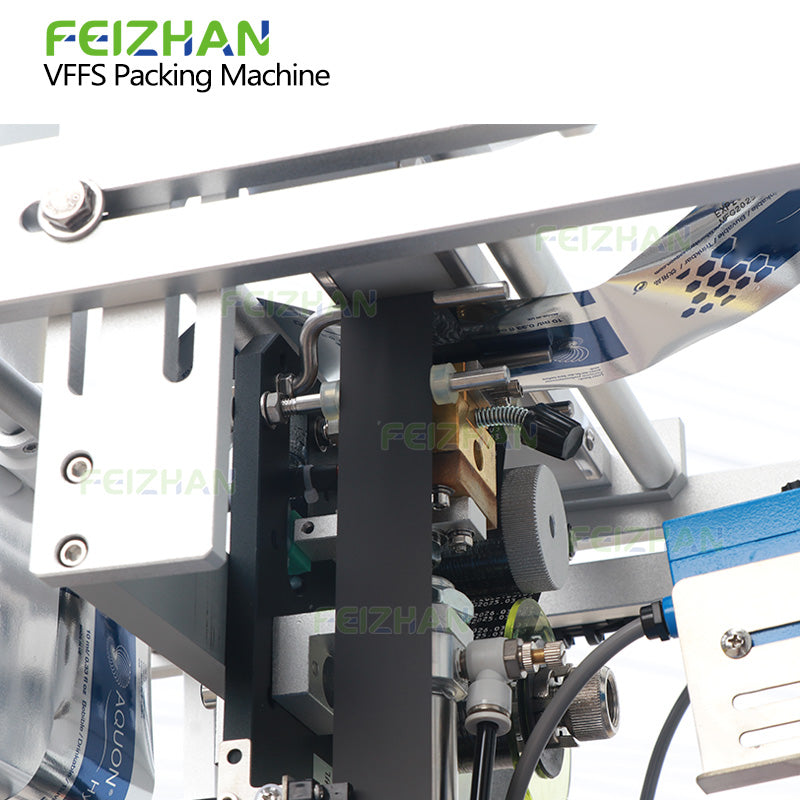

Batch & Date Printing
Production dates, expiration dates, batch numbers — printed directly onto each sachet as an optional addition. Sachet-level coding gives traceability down to the individual unit, not just the carton or case — which matters if a quality issue ever requires isolating a specific production run rather than pulling an entire shipment.

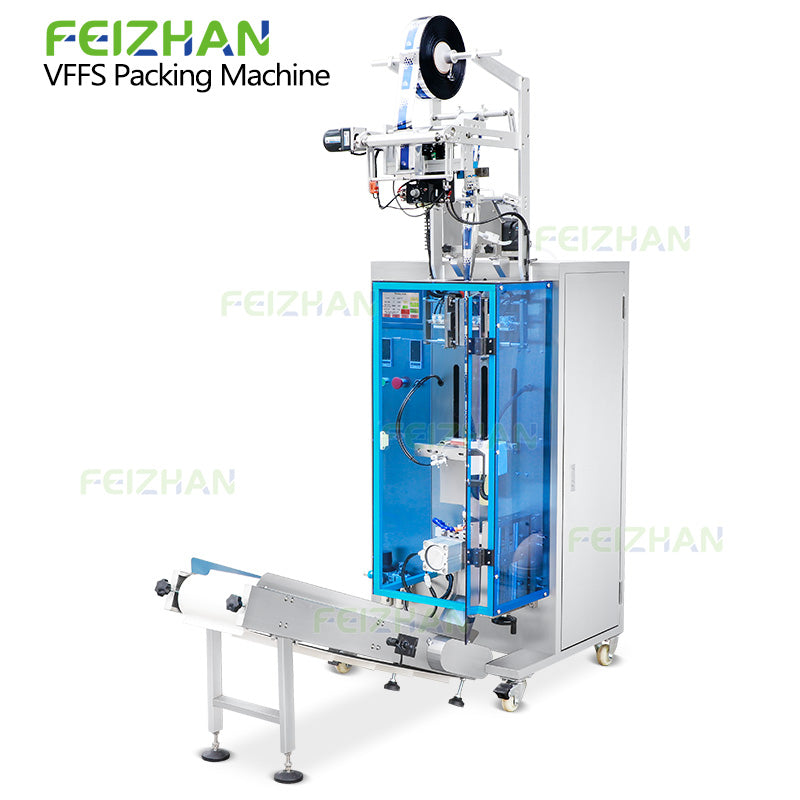

Compact Production Layout
Pouch forming, filling, sealing, coding, and cutting all run within one machine frame. For facilities where floor space is a real constraint — not a preference — consolidating five stages into one footprint changes what's actually possible within the available layout.
Stable Electrical Control System
Electrical components sit inside a protected cabinet — separated from the production environment rather than exposed to it. Organized wiring means a fault that needs tracing gets found faster, and maintenance that would otherwise require hours of untangling a disorganized panel gets done in a fraction of the time.
How Does The Liquid Sachet Packing Machine Work?
- Packaging film is fed into the forming section.
- The film is shaped into a tubular stick sachet.
- Bottom sealing creates the base of each pouch.
- The peristaltic pump dispenses a preset amount of liquid.
- The machine seals the filled sachet.
- Date or batch information is printed if required.

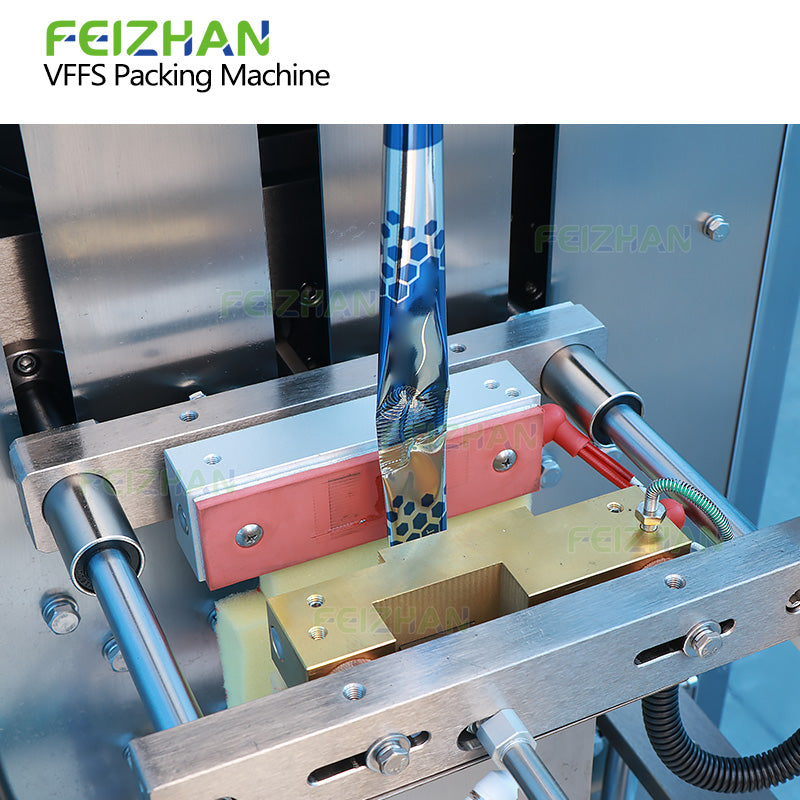

- The cutting unit separates individual sachets.
- Finished sachets are discharged through the conveyor.
Why Choose This Liquid Sachet Packing Machine?
- Hygienic peristaltic pump filling
- Suitable for food and supplement applications
- Easy-tear stick sachet production
- Automatic filling and sealing process
- Adjustable pouch dimensions
- PLC touchscreen operation
- Integrated date coding option
- Compact footprint
- Reduced product waste
- Supports customized packaging designs
Frequently Asked Questions
What products can this machine package?
Energy drinks, vitamin liquids, electrolyte solutions, nutritional supplements, herbal extracts — free-flowing liquids generally fall within range. If the product moves through tubing without resistance, the filling system handles it.
Why use a peristaltic pump?
The liquid contacts only the tubing — never the pump's internal components. That separation reduces contamination risk and makes cleaning straightforward: flush or replace the tubing rather than disassembling the pump itself.
Can the machine create easy-tear sachets?
Yes. The sealing system incorporates tear notches into the sachet edge — giving the film a defined opening point rather than leaving it to tear wherever the material gives way first.
Can pouch dimensions be customized?
Yes. Width and length can be configured within the available specification range to match the target sachet format.
Does the machine print production dates?
Yes, as an optional addition. Manufacturing dates, expiration dates, and batch numbers print directly onto each sachet — at the unit level, not just the carton.
What packaging film can be used?
Heat-sealable laminated films standard for liquid stick pack applications. Specific film compatibility can be confirmed against your material spec before purchase.
