FEIZHAN
Automatic Food Vacuum Packaging Machine for Premade Pouches
Product Description

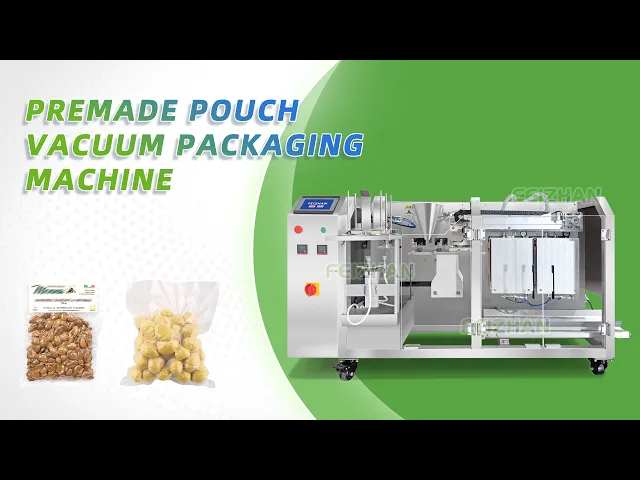

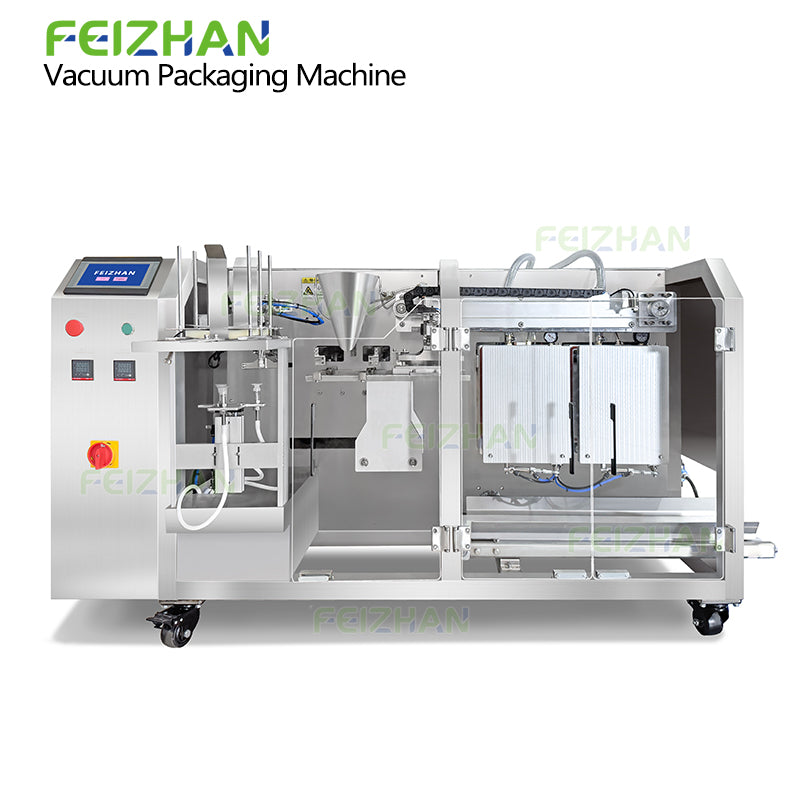

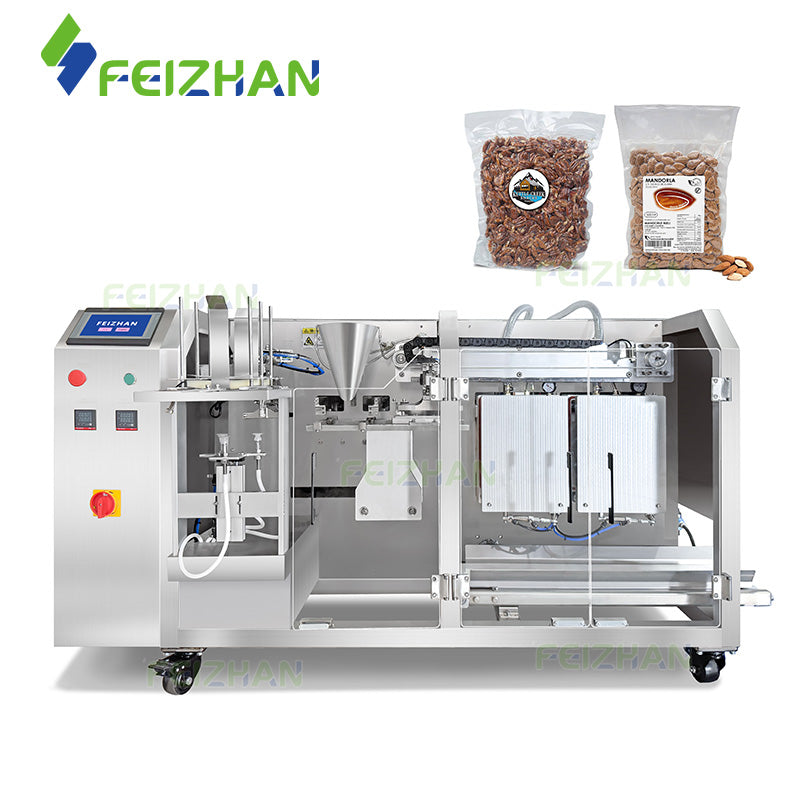

The FZ-AFS210V Premade Pouch Vacuum Packaging Machine is designed for vacuum packaging food products in premade pouches. The machine automatically feeds pre-formed pouches into the packaging position, while products are manually loaded into the opened pouches before vacuuming and sealing.
The machine integrates premade pouch feeding, vacuuming and heat sealing into one packaging process. A PLC touchscreen control system allows operators to adjust packaging parameters and manage the operating process. The manual loading station can also be integrated with a suitable measuring or filling system according to different food materials and production requirements.
With a working speed of approximately 15–25 bags per minute, the machine is suitable for food packaging applications requiring air removal and sealed premade pouches. The actual production speed depends on the product material and pouch size.
Key Features
Premade Pouch Vacuum Packaging
Designed specifically for premade pouches, the machine automatically transfers empty pouches into the packaging position for subsequent product loading, vacuuming and sealing.
Vacuuming & Heat Sealing
The vacuum system removes air from the pouch before sealing. The temperature-controlled sealing unit provides adjustable sealing conditions and automatic compensation to help maintain stable sealing quality.
Manual Product Loading
The standard machine configuration uses a manual loading station. Operators can place food products directly into opened pouches before the vacuum packaging process.
Filling System Integration
For applications requiring automated product dosing, the loading section can be integrated with a suitable measuring or filling system according to the characteristics of the material and packaging requirements.
PLC Touchscreen Control
The PLC touchscreen provides an intuitive interface for adjusting packaging parameters. The PLC system controls the complete operating process for convenient machine operation.
Adjustable Premade Pouch Sizes
The machine supports premade pouches measuring approximately 100–240 mm in length and 90–180 mm in width, providing flexibility for different food packaging formats.
Food Packaging Applications
The machine is intended for food packaging applications that require products to be packed in premade pouches followed by vacuuming and sealing.
Potential applications can include:
- Food products
- Prepared food
- Processed food
- Dried food
- Solid food products
- Other food materials suitable for premade pouch vacuum packaging
The specific food product and pouch material should be confirmed before selecting the final machine configuration.
Machine Configuration
|
Machine Model |
FZ-AFS210V |
|
Machine Voltage |
AC380V / 50 - 60Hz |
|
Machine Total Power |
4.5 kw |
|
Measuring System |
Manual Feeding (Customizable) |
|
Suitable Bag Size |
100–240 mm (L) × 90–180 mm (W) |
|
Working Speed |
15-25 BPM |
|
Air Pressure |
≥0.6 Mpa |
|
Machine Size |
2111 × 1290 × 984 mm |
|
Machine Weight |
About 650 kg |
Machine Detail

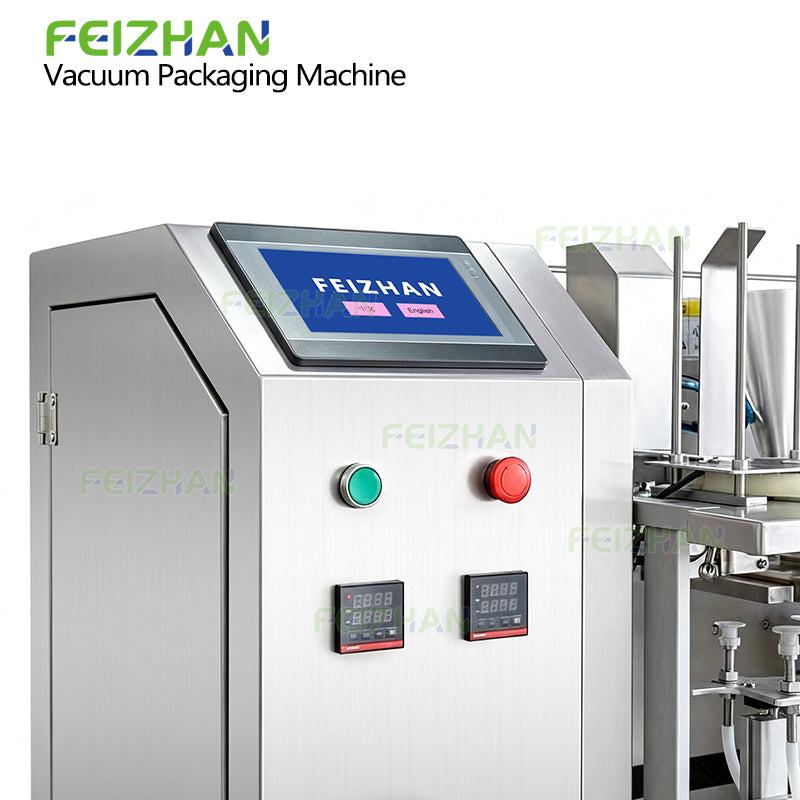

The PLC touchscreen control system provides convenient operation for food packaging applications. Operators can adjust packaging parameters through the touchscreen, while the PLC controls the complete packaging process for consistent machine operation.

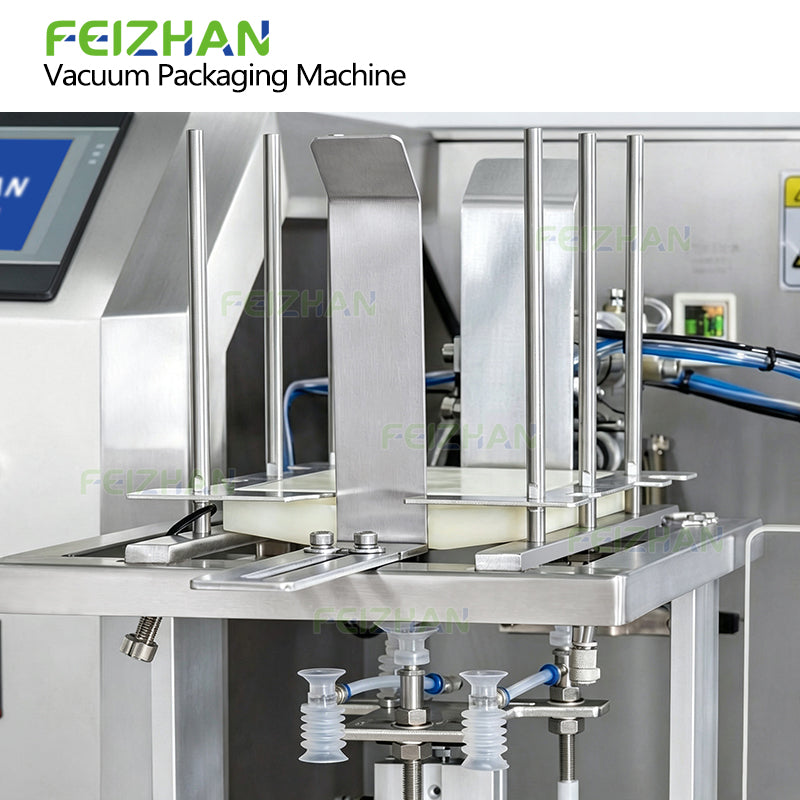

The premade pouch feeding system automatically transfers food packaging pouches into the packaging position. It is designed for production lines using ready-made pouches, reducing the need for manual pouch positioning before product loading and vacuum sealing.

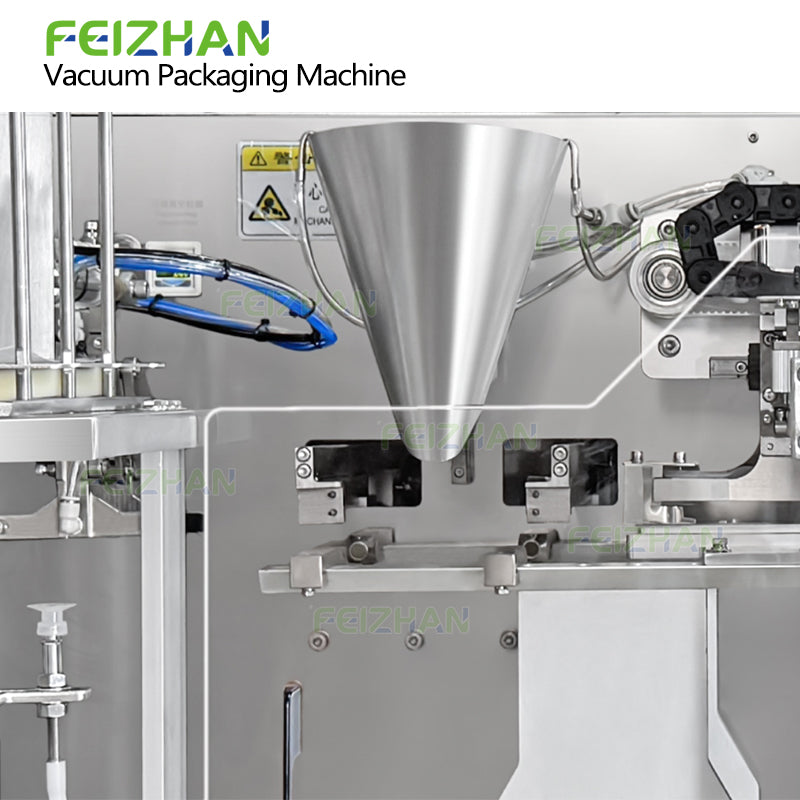

The manual loading station allows operators to place food products directly into opened premade pouches. This configuration provides flexibility when packaging different food materials or products with varying shapes and sizes.

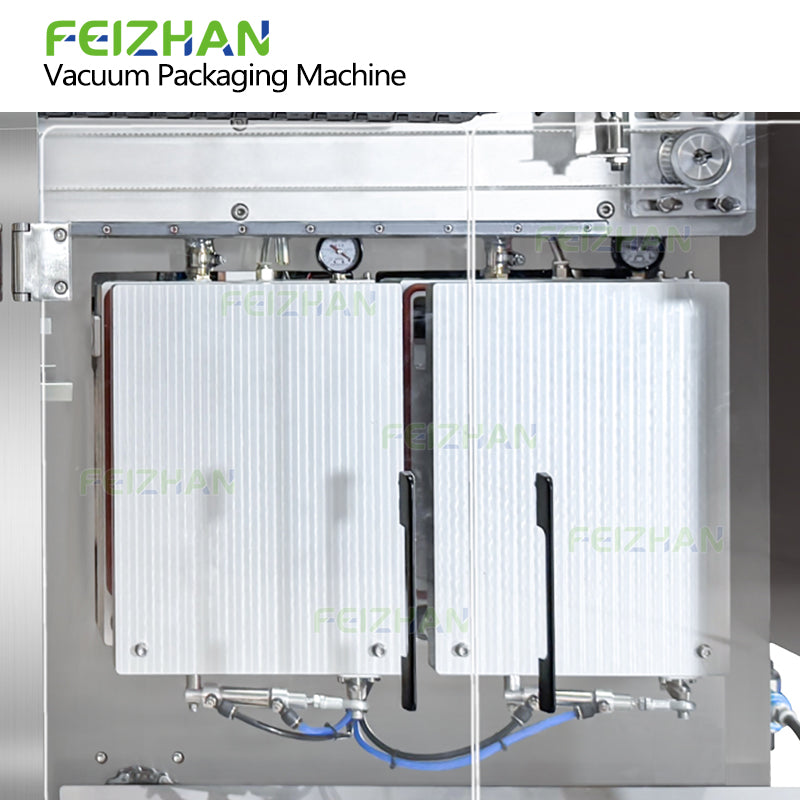

The vacuum system removes air from the food pouch before sealing, creating a vacuum-packed package. After vacuuming, the temperature-controlled sealing unit seals the premade pouch. Automatic compensation helps maintain stable sealing conditions for consistent food pouch sealing quality.
Why Choose a Premade Pouch Vacuum Packaging Machine?
For food manufacturers using premade bags, the FZ-AFS210V combines the main pouch handling, vacuuming and sealing processes within one machine.
Its manual loading design provides flexibility when handling different food products, while the loading section can be integrated with a suitable measuring or filling system when a more automated production setup is required.
The machine is particularly suitable when the packaging process requires:
-
Premade pouch packaging
-
Vacuum removal of air
-
Heat sealing
-
Flexible product loading
-
PLC touchscreen operation
- Optional filling system integration
FAQ
What type of bags can this machine use?
The FZ-AFS210V is designed for premade pouches. The supported pouch size is approximately 100–240 mm in length and 90–180 mm in width.
Is the product filling automatic?
The standard configuration uses manual product loading. A suitable measuring or filling system can be integrated according to the product material and production requirements.
Does the machine automatically feed premade pouches?
Yes. The premade pouch feeding system automatically transfers pouches into the packaging position before the vacuuming and sealing process.
Does the machine vacuum the food pouch before sealing?
Yes. The vacuum system removes air from the pouch before the temperature-controlled sealing unit seals the package.
What is the packaging speed?
The working speed is approximately 15–25 bags per minute, depending on the product material and pouch size.
Can the machine be connected to a filling machine?
Yes. The manual loading section can be integrated with a suitable measuring or filling system according to the characteristics of the material.
What control system does the machine use?
The machine uses a PLC touchscreen control system, allowing operators to adjust packaging parameters and manage the operating process.
What power supply does the machine require?
The machine uses AC380V, 50–60Hz power supply and has a total power of 4.5 kW.
