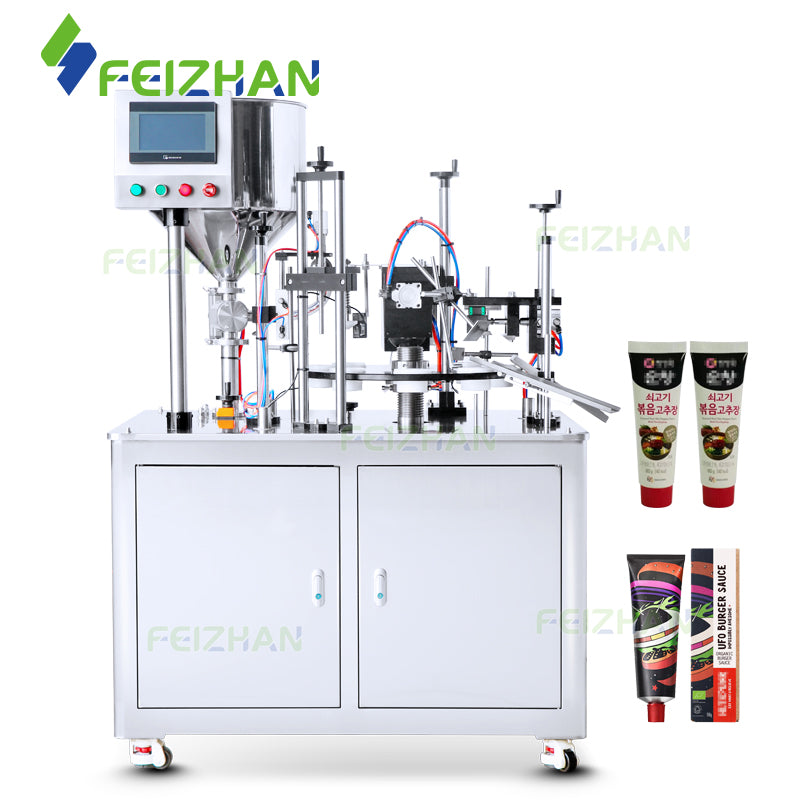

Automatic Food Tube Liquid Filling and Sealing Machine for Sauce
Machine Overview
The automatic food tube filling machine is designed for filling and sealing viscous or semi-liquid food products into plastic tubes with high precision and stable output. Equipped with an ultrasonic sealing system, the machine creates clean, reliable seals without overheating product materials, making it suitable for sauces, honey, jam, chocolate paste, cream, seasoning paste, and other food products.
This tube filling and sealing machine integrates automatic filling, ultrasonic sealing, trimming, and finished product discharge in one compact system, helping manufacturers improve production efficiency and packaging consistency for food tube packaging.
Machine Features
-
Ultrasonic Tube Sealing Technology
Uses ultrasonic sealing to create strong and neat seals for plastic tubes while maintaining packaging quality and reducing sealing defects. -
Accurate Piston Pump Filling System
Equipped with a piston filling structure for stable and repeatable filling performance, suitable for viscous food materials such as sauces, cream, jam, and honey. -
Automatic Filling and Sealing Process
Integrates tube loading, filling, sealing, trimming, and discharge into one automated workflow to reduce labor requirements. -
Adjustable Filling Volume
Supports flexible filling volume adjustment for different tube sizes and product requirements. -
PLC Touch Screen Control
User-friendly control panel enables parameter adjustment, production monitoring, and convenient operation. -
Compatible with Multiple Plastic Tube Sizes
Suitable for various plastic or laminated tubes used in food packaging applications. -
Compact Industrial Design
Designed to optimize production space while maintaining efficient tube packaging output.
Applications
This food tube filling machine is suitable for packaging:
- Honey
- Chocolate paste
- Peanut butter
- Jam and fruit paste
- Chili sauce
- Tomato sauce / ketchup
- Mayonnaise
- Salad dressing
- Cheese sauce
- Condiment paste
- Dessert cream
- Food concentrate paste
Honey, Jam, Mayonnaise, Chocolate spread, and other viscous food products can be packaged in plastic tubes for convenient retail or single-use applications.
Technical Parameter
|
Machine Model |
FZ-FS008U |
|
Voltage |
220V/110V 50-60Hz |
|
Power |
4kW |
|
Production Speed |
About 15 pcs/min (Depending on tube size and filling materials) |
|
Filling Pump |
Piston Pump |
|
Filling Range |
6-60 ml/10-120 ml/25-250 ml(Can be customized) |
|
Filling Error |
±1% |
|
Sealing Method |
Ultrasonic Sealing |
|
Ultrasonic Frequency |
20 KHz |
|
Suitable Tubes |
Aluminum tubes and aluminum-plastic tubes |
|
Applicable Tube Size |
Can be Customized |
|
Air Pressure |
0.4-1.6 MPa |
Machine Details

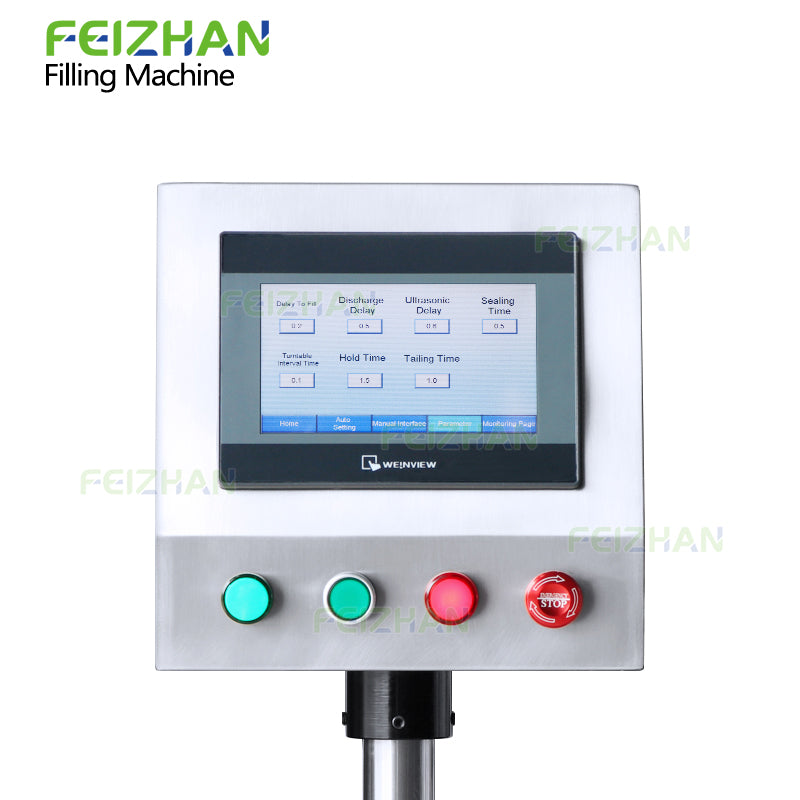

PLC Touch Screen Control Panel
The intelligent touch screen control system simplifies machine operation and allows operators to adjust filling parameters, sealing settings, and production speed efficiently. Production status can be monitored in real time to improve workflow management.
Precision Piston Filling Structure
The piston filling system delivers stable filling accuracy for viscous food materials. It helps minimize dripping and product waste while maintaining consistent filling performance for sauces, creams, and food paste products.

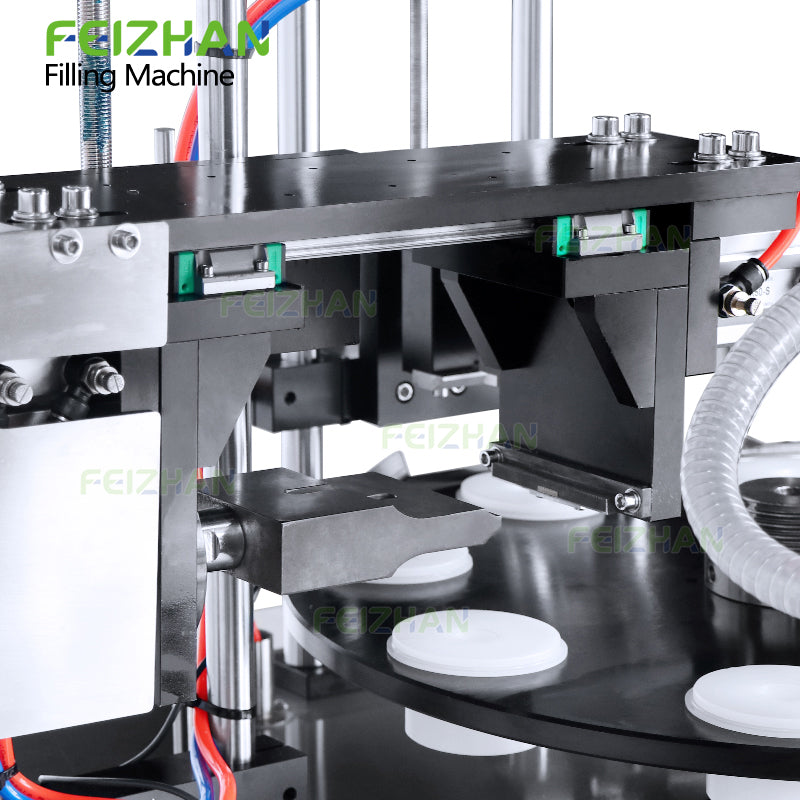

Ultrasonic Sealing System
The ultrasonic tube sealing system creates clean and secure seals for plastic tubes without excessive thermal influence, helping maintain packaging quality and product appearance.

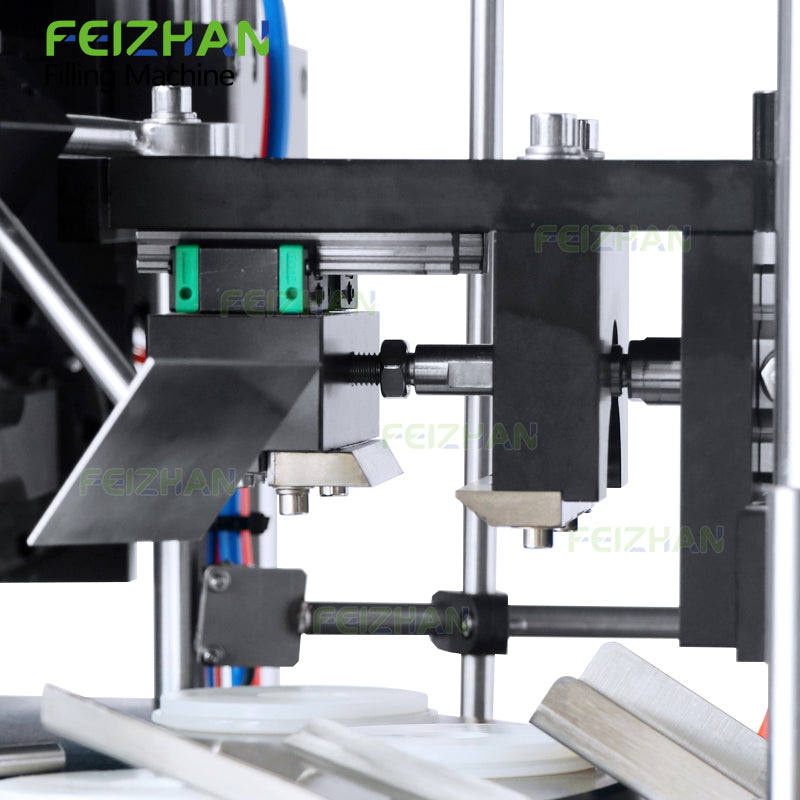

Tube Trimming Structure
After sealing, the trimming mechanism automatically cuts excess tube material to provide a smooth and professional package finish.

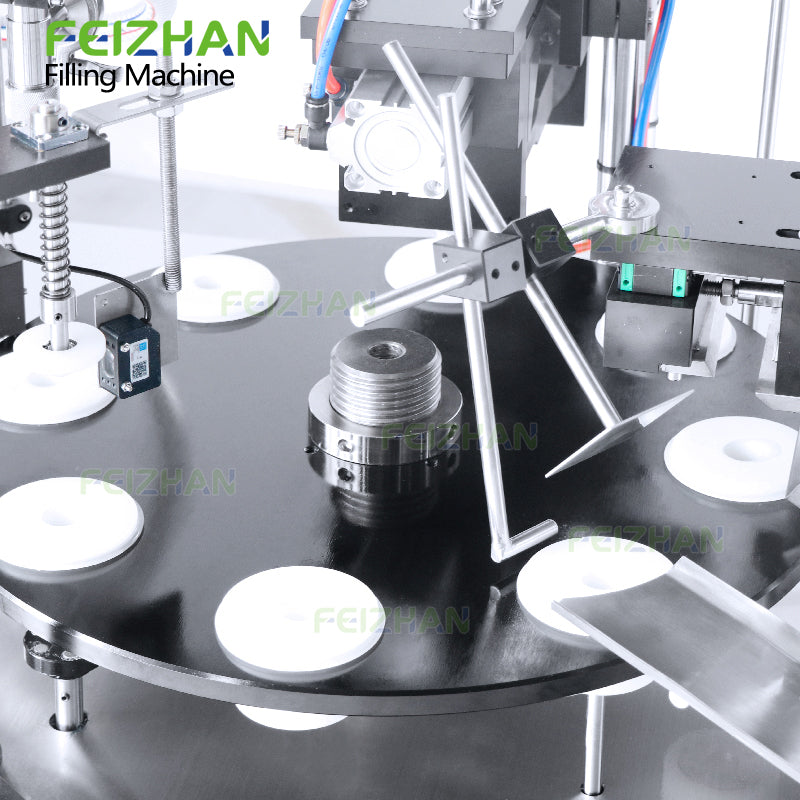

Rotary Positioning Plate
The rotary plate ensures stable tube transportation during filling and sealing, helping improve filling consistency and overall production efficiency.
How Does the Food Tube Filling and Sealing Machine Work?
- Empty plastic tubes are manually or automatically placed onto the rotary holder.
- The machine accurately fills food products such as sauce, honey, jam, or cream into tubes.
- The ultrasonic sealing system seals tube openings securely.
- Excess tube material is trimmed automatically for a cleaner finish.
- Finished products are discharged for collection or further packaging.
Why Choose This Food Tube Filling Machine?
- Suitable for multiple food paste applications
- Combines filling, sealing, and trimming in one machine
- Ultrasonic sealing ensures clean and stable tube packaging
- Supports viscous and semi-liquid food products
- Easy operation with PLC touchscreen control
- Compact structure for efficient production layout
- Ideal for food manufacturers, private label brands, and contract packaging
Frequently Asked Questions
1. What products can this tube filling machine handle?
This machine is suitable for honey, jam, chocolate paste, mayonnaise, ketchup, chili sauce, seasoning paste, dessert cream, and other viscous or semi-liquid food materials.
2. Can this machine seal aluminum tubes?
This model is mainly designed for plastic tubes and laminated tubes with ultrasonic sealing capability.
3. Is the filling volume adjustable?
Yes. The filling volume can be adjusted according to tube size and production requirements.
4. Is this machine suitable for thick food materials?
Yes. The piston filling system is suitable for viscous food products such as thick sauces, cream paste, and concentrated food materials.
5. Can the machine be customized?
