FEIZHAN

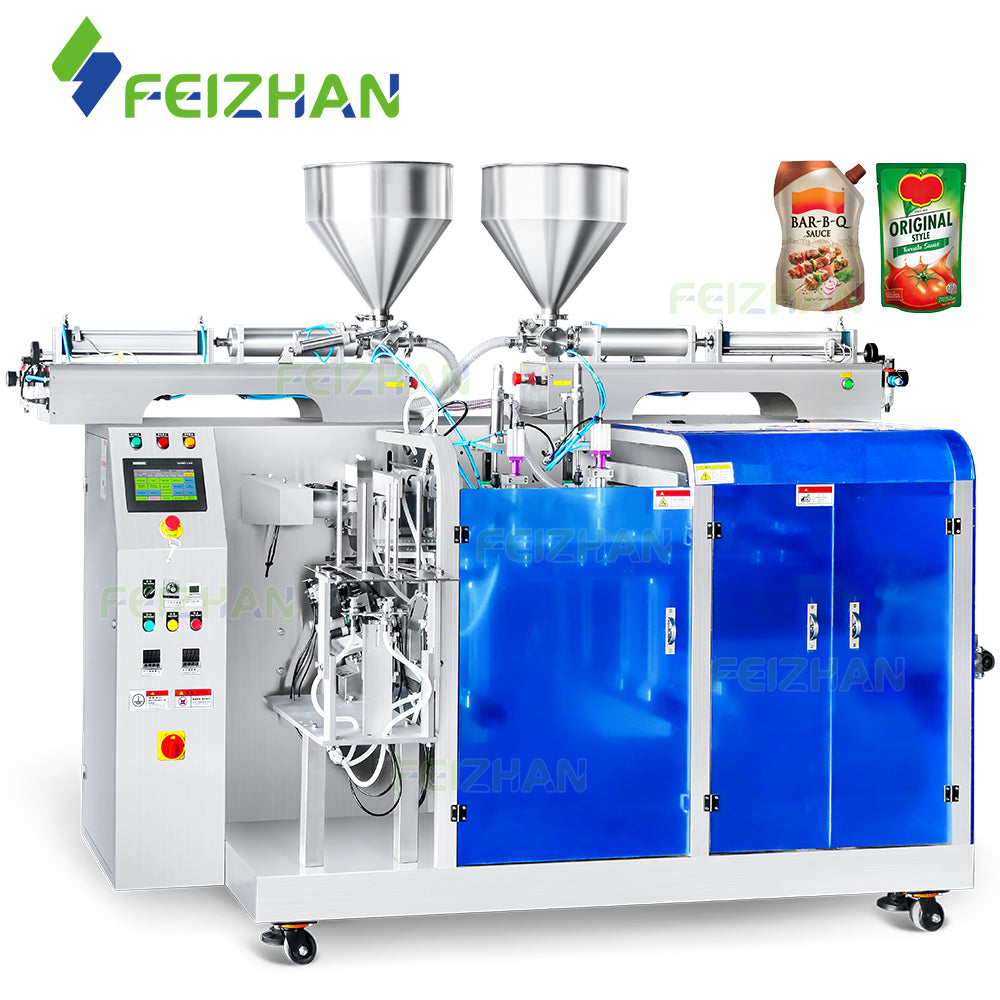

Automatic Food Sauce Beverage Premade Pouch Filling and Sealing Packaging Machine
This automatic food premade pouch filling machine is specially designed for food paste and liquid packaging, such as sauce, honey, jam and ketchup. It integrates pouch feeding, filling and sealing in one system, improving production efficiency while saving labor cost.
Equipped with a high-precision piston pump and dual filling nozzles, it ensures accurate and stable filling performance, even for high viscosity food products. The hygienic stainless steel structure makes it suitable for food-grade applications and easy to clean.
With adjustable sealing temperature and customizable pouch sizes, this machine is ideal for various food packaging needs, helping manufacturers achieve efficient, safe and consistent production.
Key Features
All-in-One Automatic Operation: Integrates premade pouch feeding, opening, filling and sealing in one system, improving efficiency and reducing labor cost for food packaging production.
High-Precision Piston Pump Filling: Equipped with a piston pump system, ensuring accurate and stable filling for high viscosity food products such as sauce, honey, jam and syrup.
Dual Filling Nozzles (Customizable): Designed with double filling nozzles to increase production speed. The number of nozzles can be customized based on different capacity requirements.
Food-Grade Hygienic Design: Made with stainless steel structure, suitable for food applications, easy to clean and maintain, ensuring safe and hygienic packaging.
Automatic Pouch Opening System: Vacuum suction cups automatically open premade pouches, improving consistency and reducing manual intervention.
Adjustable Sealing System: Features dual sealing structures with adjustable temperature, ensuring strong, leak-proof and reliable sealing for various pouch materials.
Intelligent PLC Control Panel: User-friendly PLC system with multilingual interface allows easy parameter setting and flexible operation.
Integrated Date Coding Function: Automatically prints production date or batch number on pouches, improving traceability and reducing additional labor.
Food Premade Pouch Filling Machine Parameter
- Machine Model: FZ-AFS03
- Voltage: 380 V 50 Hz
- Power: About 4 kW
- Filling Pump: Piston Pump
- Packing Speed: 20-40 pcs/min(Depending on pouch size and filling material)
- Filling Range: 200-1000 ml(Can be customized)
- Suitable Pouch Size: (W)100-220 mm*(L)120-350 mm
- Air Consumption: 0.7 m³/min
- Machine Size: 2450*1450*2080 mm
*Specifications are for reference only and may vary by your product. Please confirm with us if required

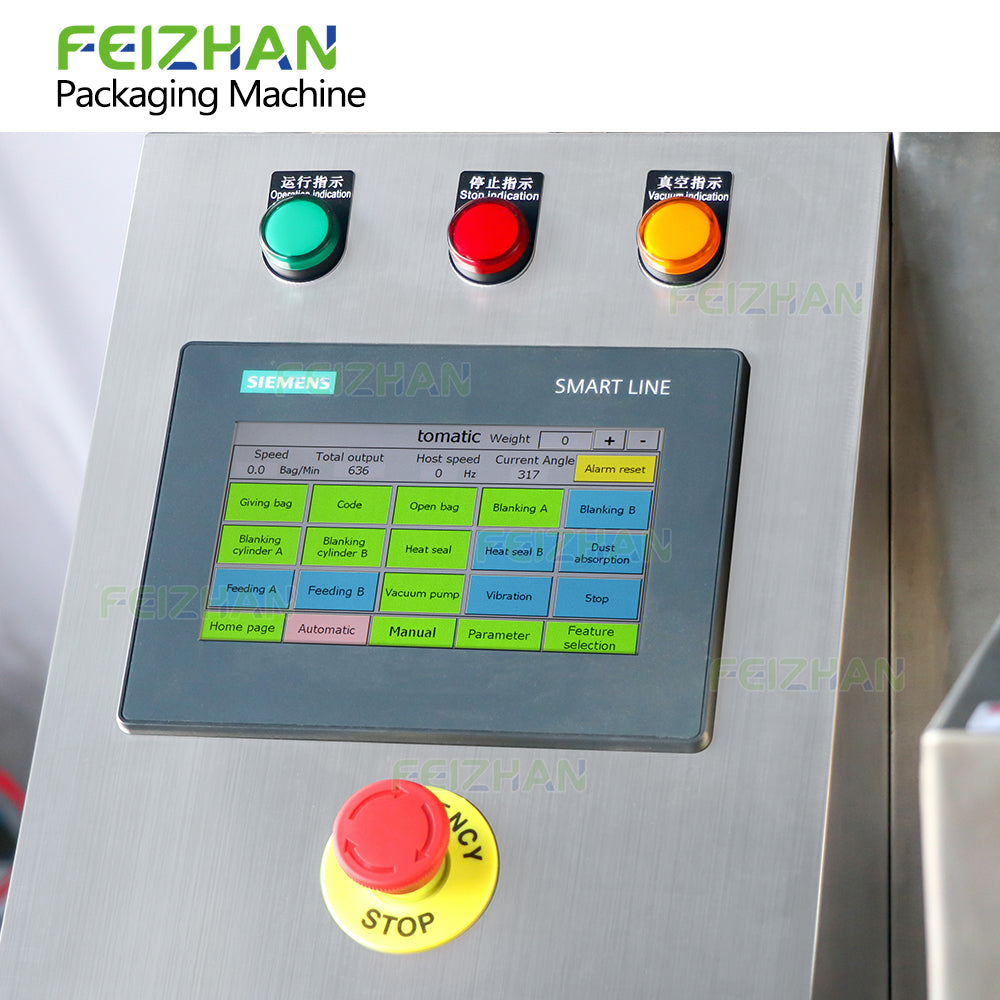

Equipped with an intelligent PLC control panel, this food pouch filling and sealing machine allows precise adjustment of filling volume, sealing temperature and working parameters. The multilingual interface ensures easy operation for global users.

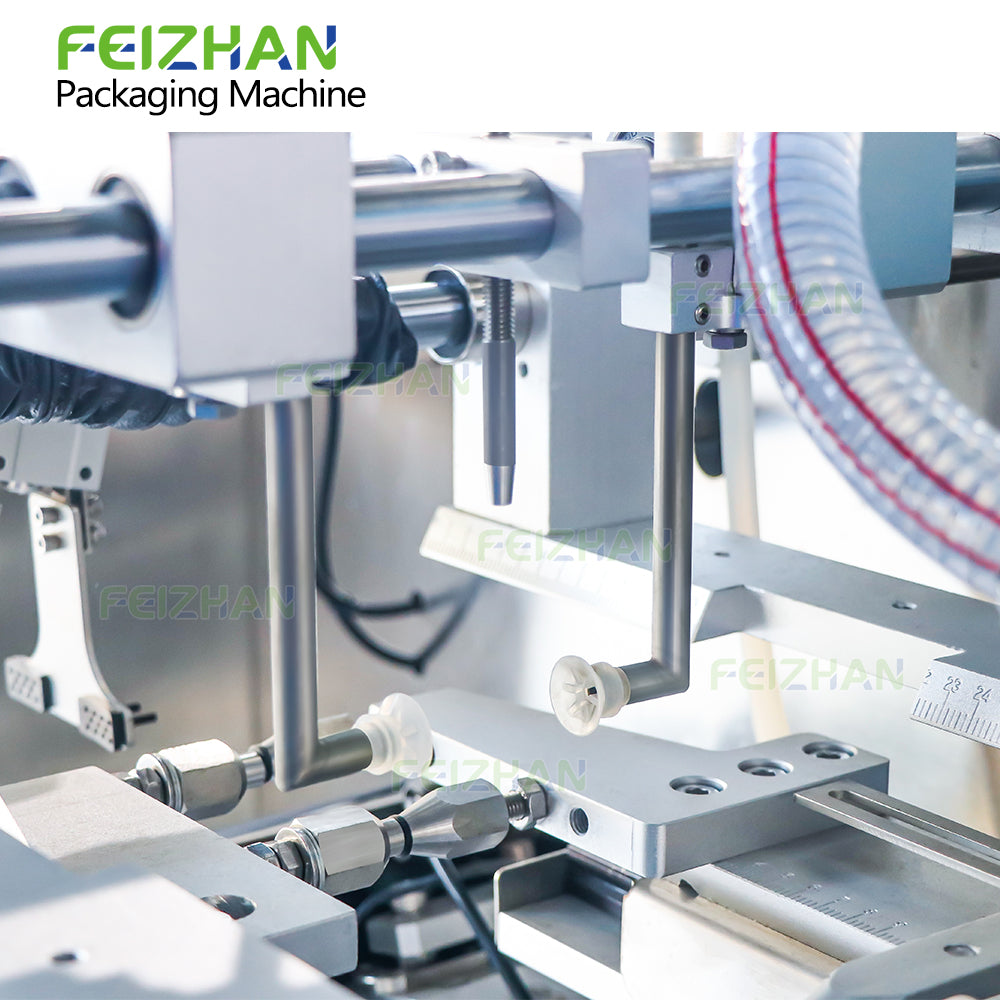

The machine uses vacuum suction cups to automatically open premade pouches before filling. This improves packaging efficiency, reduces manual labor and ensures stable pouch positioning during the food packaging process.

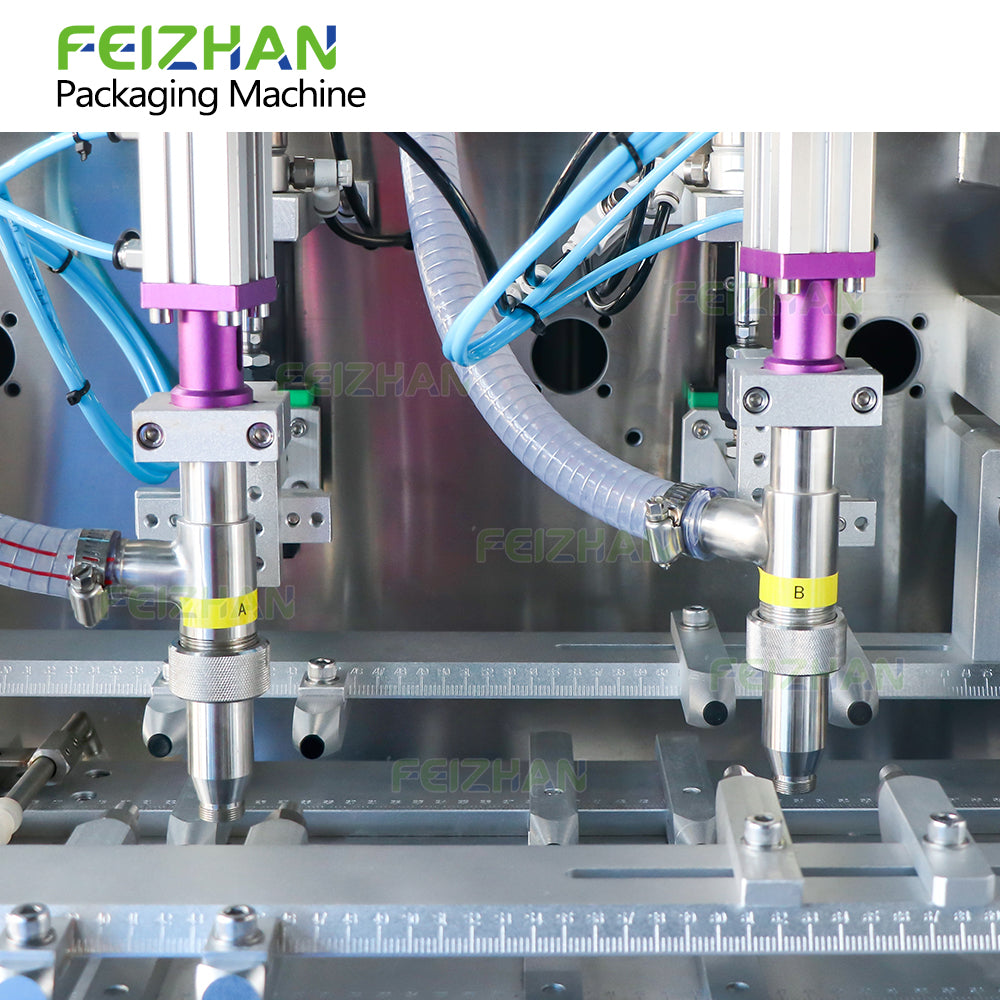

Designed with pneumatic filling nozzles and driven by a high-precision piston pump, this machine is suitable for high viscosity food products such as sauce, honey, jam and syrup. It ensures accurate, drip-free filling, and the number of filling nozzles can be customized based on production needs.

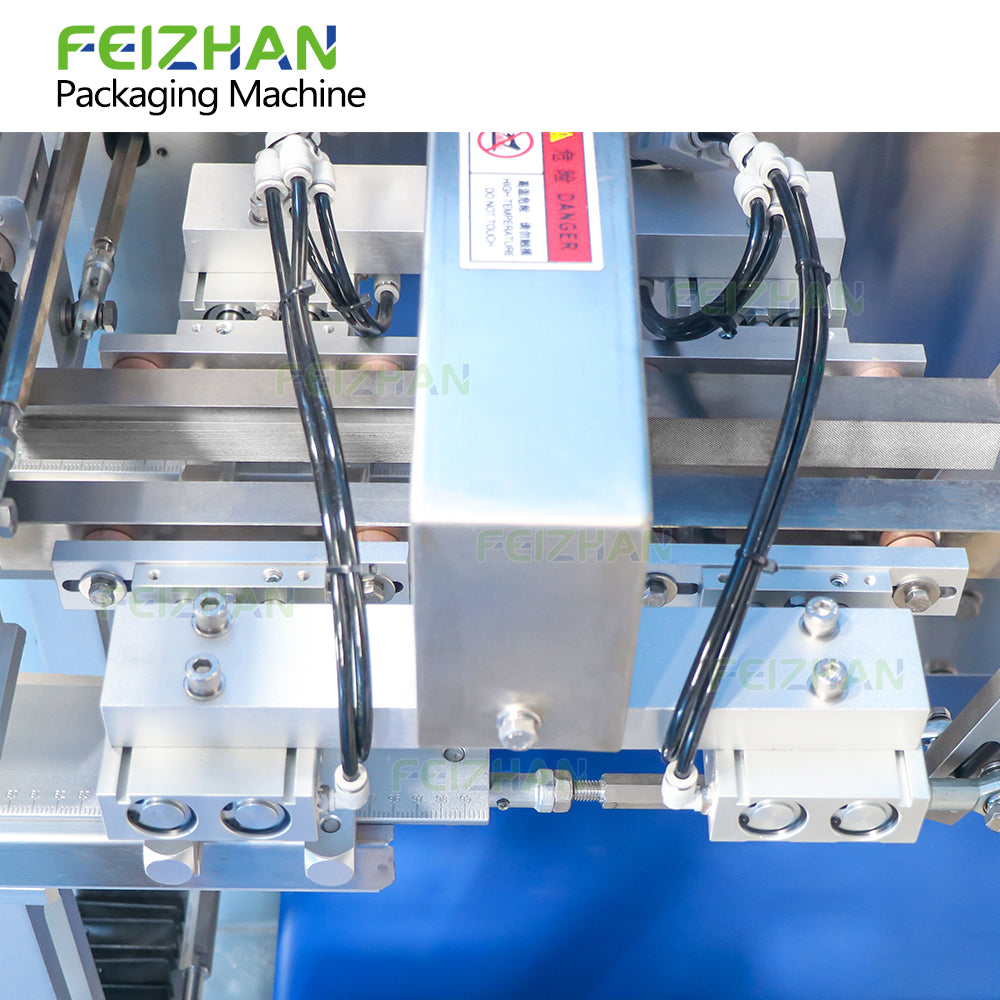

This pouch packaging machine features dual sealing systems with selectable sealing patterns to meet different food packaging requirements. The adjustable sealing temperature ensures strong, secure and hygienic seals for various pouch materials.

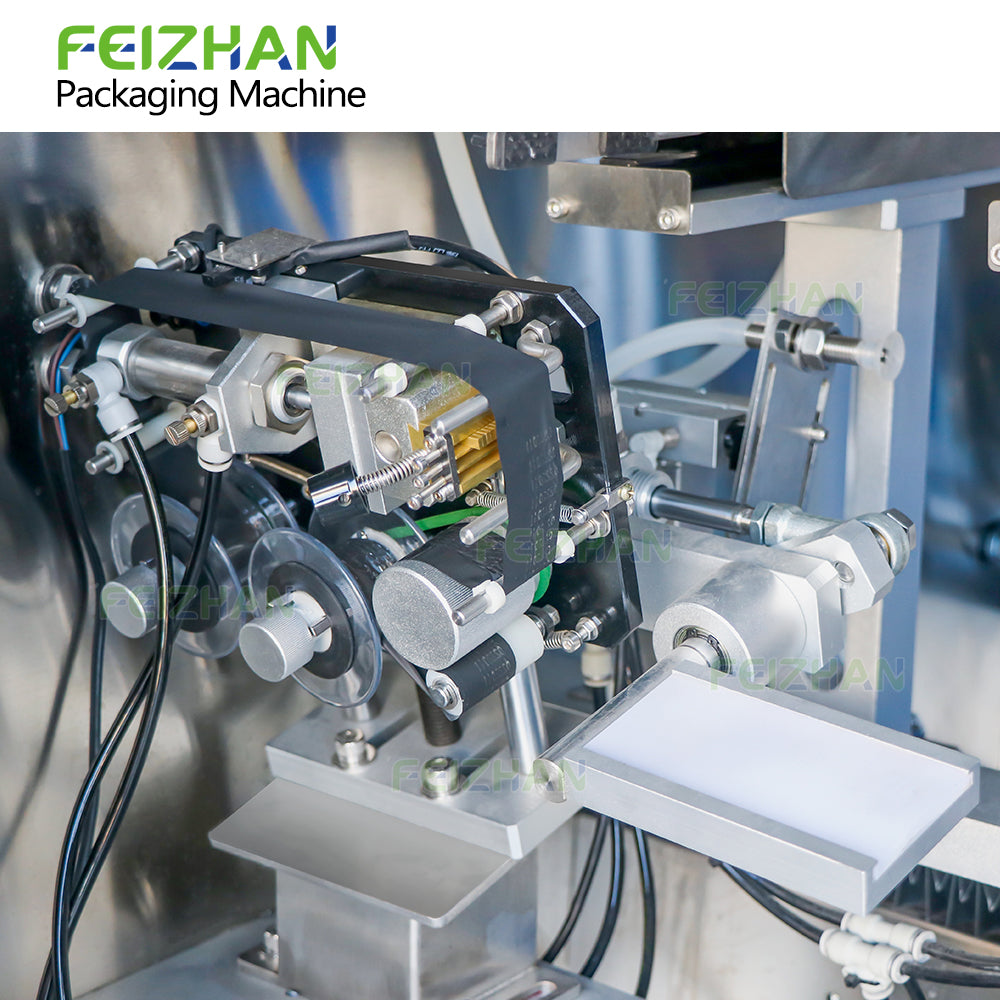

Equipped with an automatic date coder, the machine can print production date or batch number directly on pouches. This improves traceability and reduces labor costs in food production lines.
FAQ
1. What types of food products can this pouch filling machine handle?
This machine is suitable for a wide range of food products, including sauce, honey, jam, ketchup, syrup and other liquid or paste materials. It is especially effective for high viscosity food products.
2. Is this machine suitable for food-grade production?
Yes, the machine is designed with a hygienic stainless steel structure, making it suitable for food-grade applications. It is easy to clean and meets the requirements of food processing environments.
3. Can it handle thick or high viscosity materials?
Yes, equipped with a piston pump system, this machine ensures accurate filling for high viscosity products such as honey, sauces and pastes without dripping or waste.
4. What is the filling range of the machine?
The standard filling range is 200–1000ml, and it can be customized based on your specific product and packaging requirements.
5. What is the production speed?
The production speed is about 25–45 pouches per minute, depending on pouch size and filling materials.
6. Can the machine work with different pouch sizes?
Yes, it supports premade pouches within a size range of approximately 80–210mm (width) and 100–320mm (length), and can be customized if needed.
7. Is the machine easy to operate?
Yes, it is equipped with an intelligent PLC control panel with a user-friendly interface, allowing operators to easily adjust parameters such as filling volume and sealing temperature.
8. Can I customize the machine configuration?
Yes, the machine can be customized based on production needs, including filling nozzles, pouch sizes and additional functions.
9. Does the machine support date coding?
Yes, it comes with an automatic date coding system that can print production date or batch numbers directly on the pouch.
10. What industries is this machine suitable for?
This machine is widely used in food industries such as sauce, honey, jam and dress
