Automatic Food Premade Pouch Packing Machine with Multi-Head Weigher
Machine Description

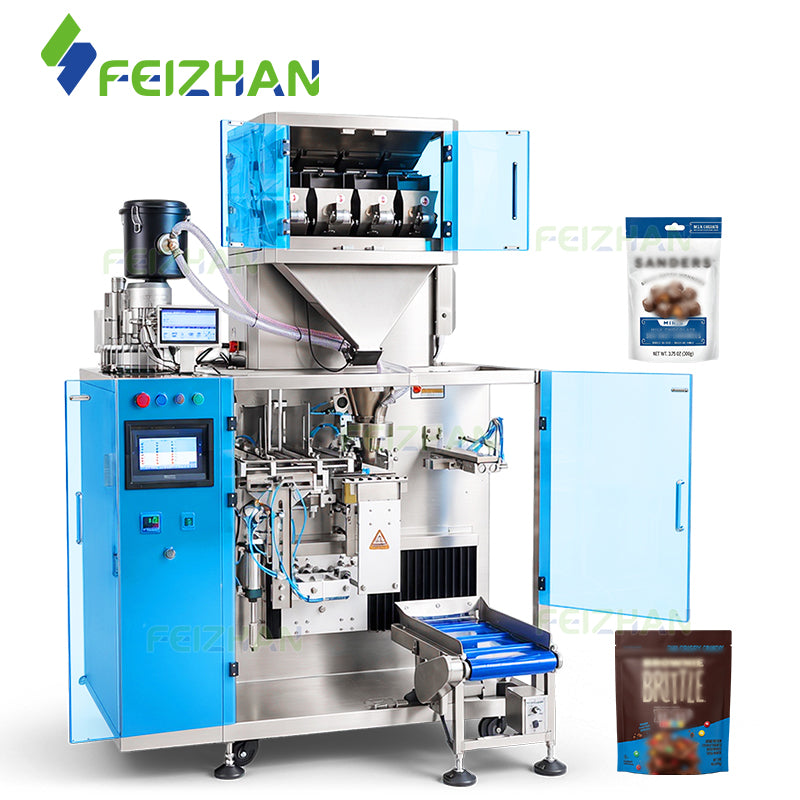

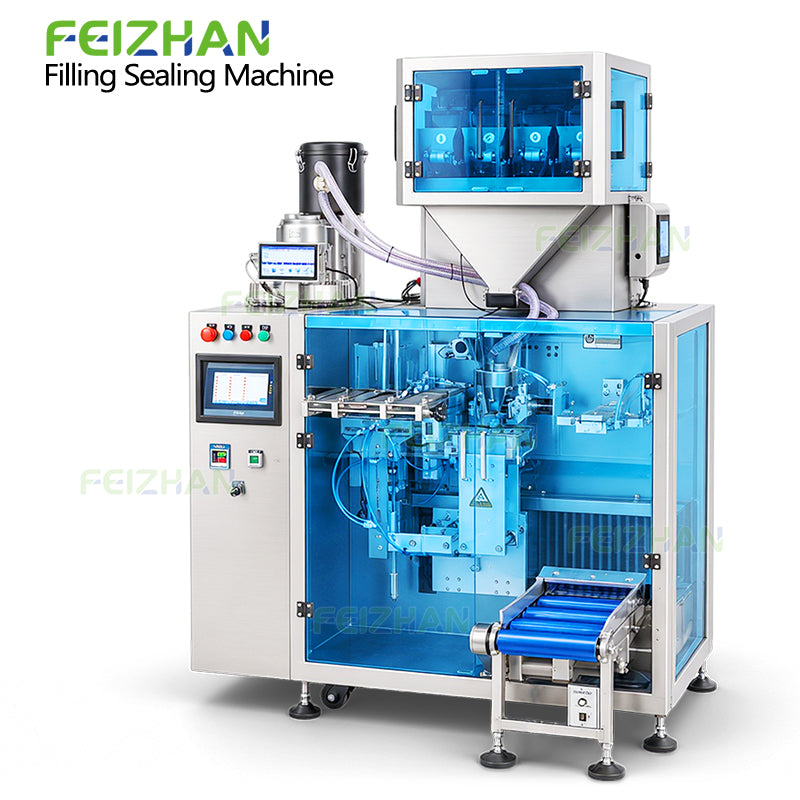

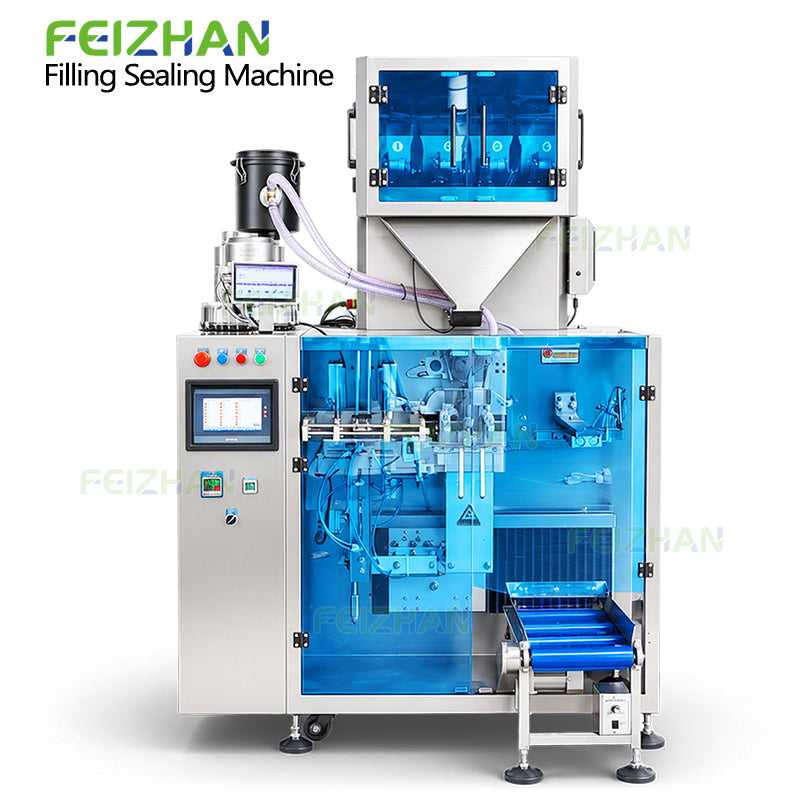

The FZ-AFS04W is an automatic food premade pouch packing machine designed for weighing, filling, and sealing granular food products in premade pouches. It combines automatic pouch feeding with a four-head weighing system, filling structure, sealing system, and discharge conveyor for a streamlined packaging process.
The machine supports both single-product and mixed-product packaging, making it suitable for food products that require controlled weighing and portioned pouch packaging. A vacuum dust collector is also provided to help reduce dust dispersion during operation.
With a weighing range of 2–500 g and a reference accuracy of ±1.5%, the machine can be configured for different portion sizes according to the product and packaging requirements. The listed working speed is approximately 5–30 bags/min, depending on the filling material.
Features
-
Automatic Premade Pouch Feeding – Continuously supplies premade pouches to the filling station.
-
Four-Head Weighing System – Provides controlled weighing for granular food products.
-
Single or Mixed Product Packaging – Supports single-material and mixed-material packaging.
-
Automatic Filling & Sealing – Integrates product filling and pouch sealing in one process.
-
Adjustable Sealing Temperature – Accommodates different pouch materials.
-
Vacuum Dust Collection – Helps reduce dust dispersion during weighing and filling.
-
Touchscreen Control – Allows operators to adjust settings and manage recipes.
-
Inkjet Printing – Supports customized printing contents and ink colors.
- Discharge Conveyor – Transfers finished pouches to downstream handling or packaging.
Food Packaging Applications
The machine is designed for granular products and can handle both single and mixed materials. For food packaging applications, the final suitability should be confirmed according to the specific product characteristics, such as particle size, flowability, and filling behavior.
Potential food packaging applications include:
-
Granular food products
-
Dry food ingredients
-
Snack-type granular products
-
Mixed granular food products
- Portion-packed dry food products
Product testing is recommended before final configuration, especially when the material has unusual particle size, shape, density, or flow characteristics.
Specifications
|
Machine Model |
FZ-AFS04W |
|
Power Supply |
110/220 V, 50-60 Hz, 4 kW |
|
Weighing Range |
2-500 g |
|
Weighing Accuracy |
±1.5 % |
|
Bag Size |
Width: 60-220 mm * Length: 80-310 mm |
|
Working Speed |
About 5-30 bags/min (Depending on filling materials) |
|
Hopper Capacity |
32 L |
|
Air Pressure |
0.6 MPa |
|
Machine Dimensions |
About 1300*900*1910 mm |
|
Package Size |
About 1400*1100*2100 mm |
|
Package Weight |
About 495 kg |
Specifications are based on the supplied machine information. Actual performance may vary depending on the product and packaging configuration.
Machine Detail

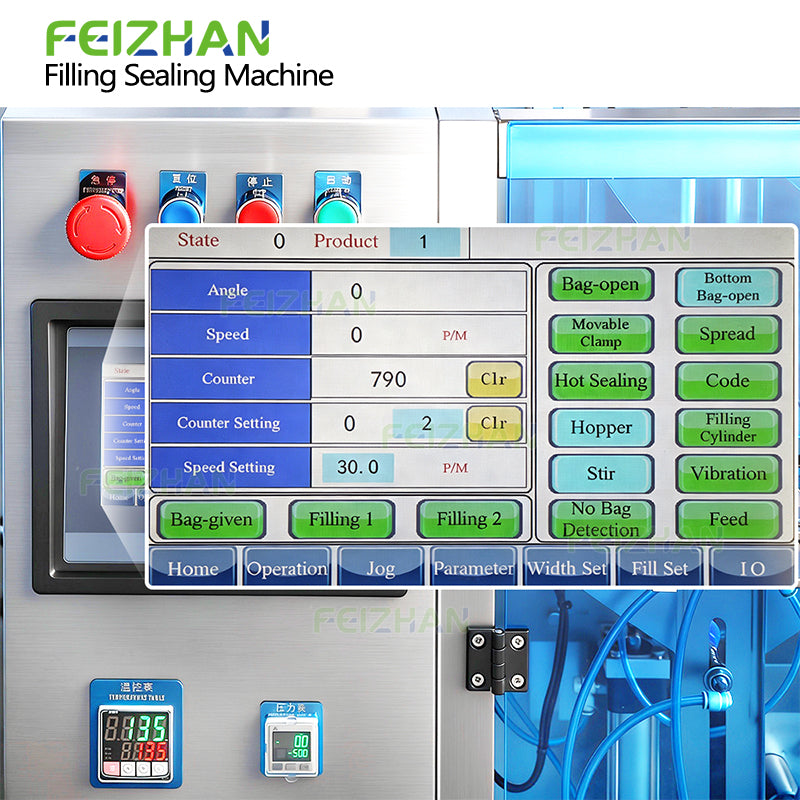

The touchscreen control panel provides a simple interface for operating the food pouch packing machine, adjusting packaging parameters, and managing product recipes. Operators can set different packaging parameters according to the food product and production requirements.

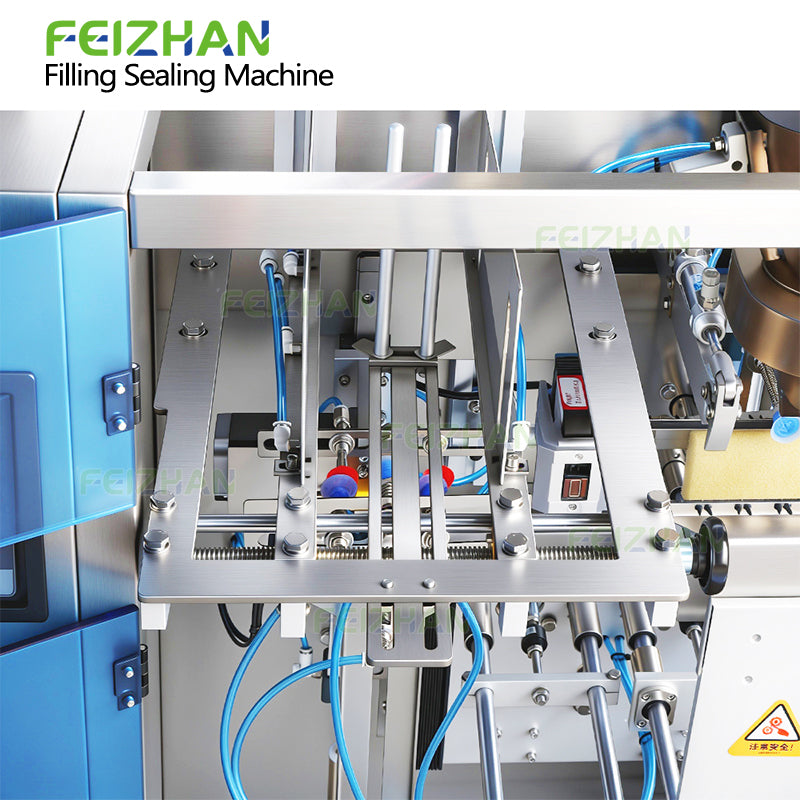

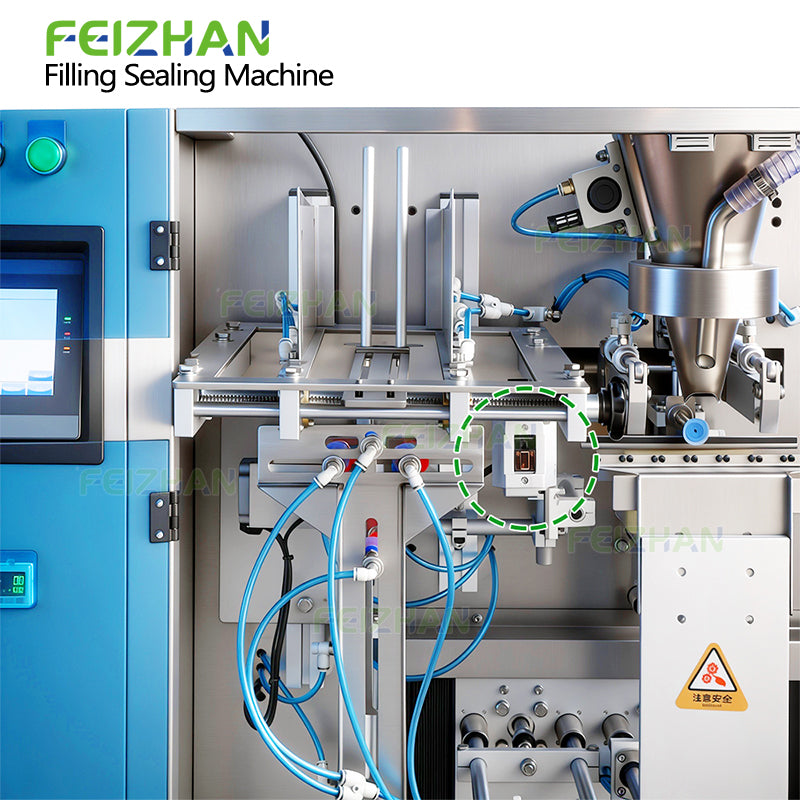

The pouch storage rack holds premade food pouches and continuously supplies them to the filling station. Automatic pouch feeding reduces repetitive manual handling and helps maintain a continuous food packaging process.

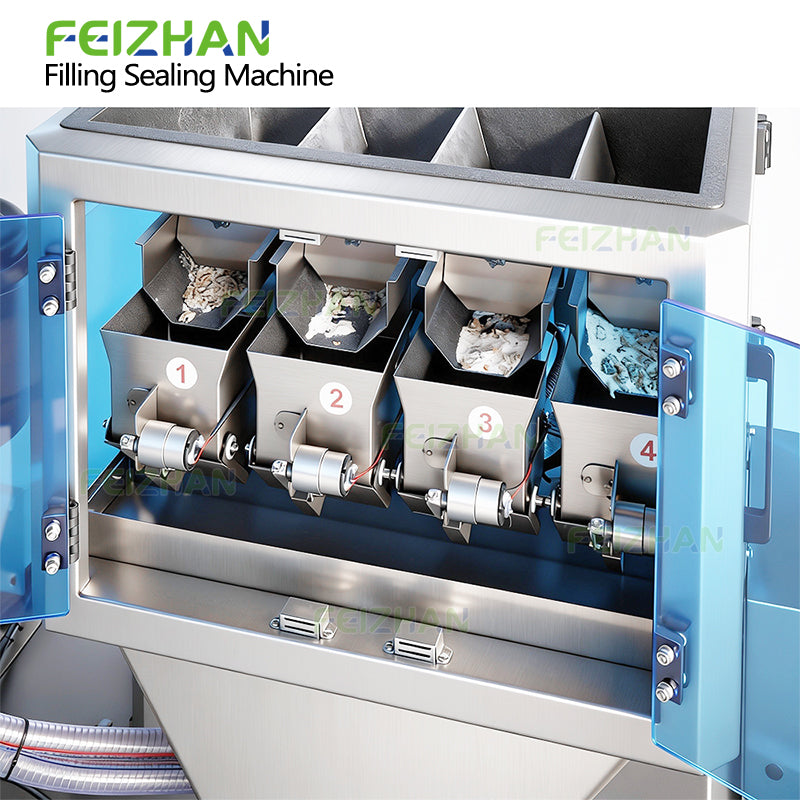

The four-head weighing system is designed for portioning granular food products before filling. With a weighing range of 2–500 g, it supports different portion sizes for food pouch packaging applications. The weighing structure also supports single or alternating feeding for single-product and mixed-product packaging.

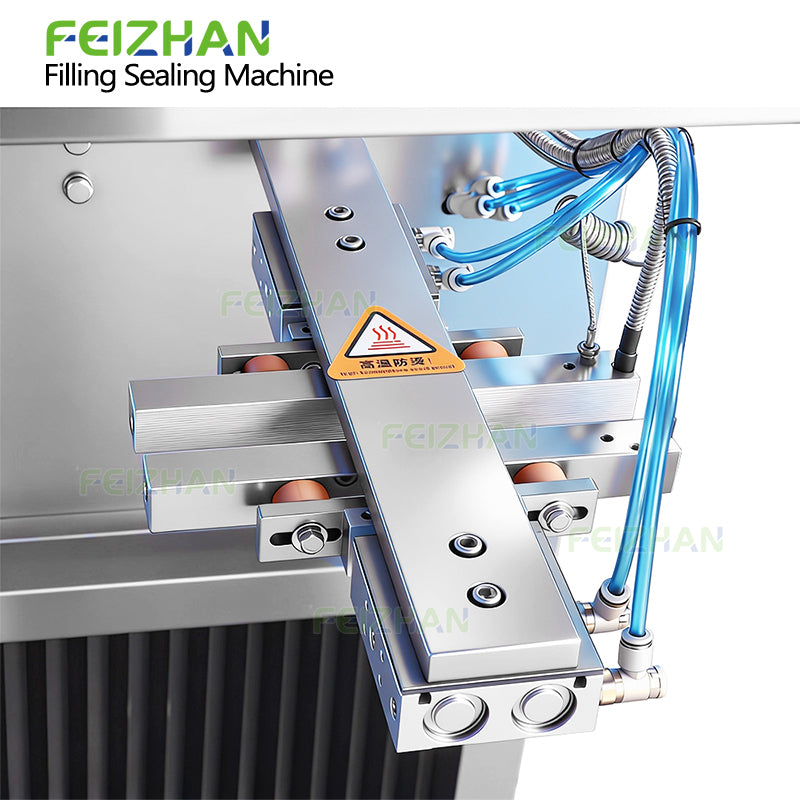

The sealing structure uses an adjustable-temperature sealing system designed to accommodate different pouch materials. The sealing temperature can be adjusted according to the selected packaging material to help achieve consistent seals on premade food pouches.

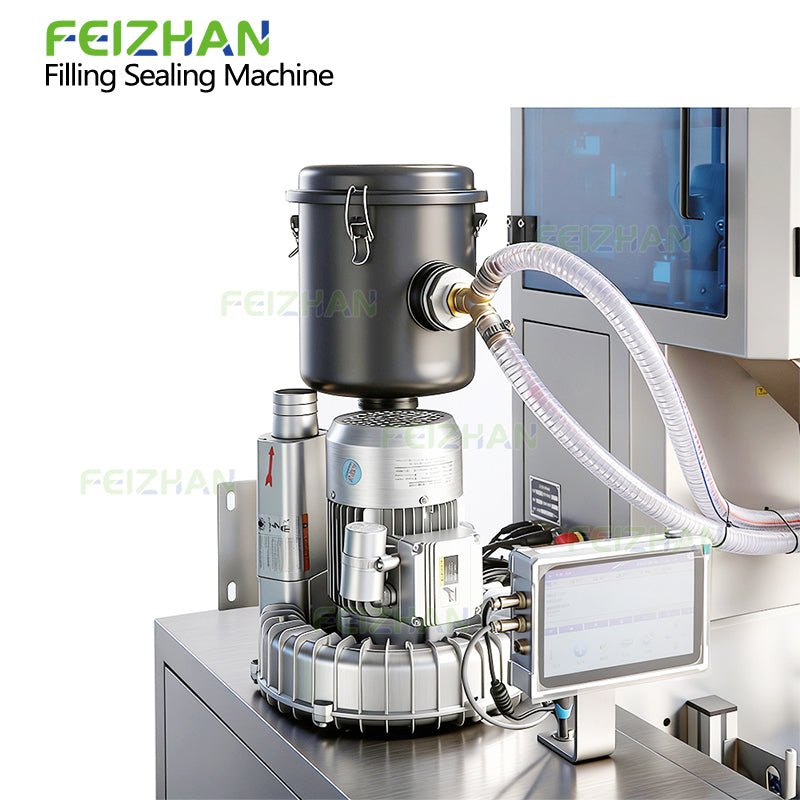

The vacuum dust collector helps reduce dust generated during the weighing and filling process. For granular food products that may produce dust during handling, it helps prevent dust from spreading around the packaging area and supports a cleaner working environment.
The inkjet printer can be used to print customized information on the finished food pouches. Printing contents and ink colors can be customized according to production requirements.

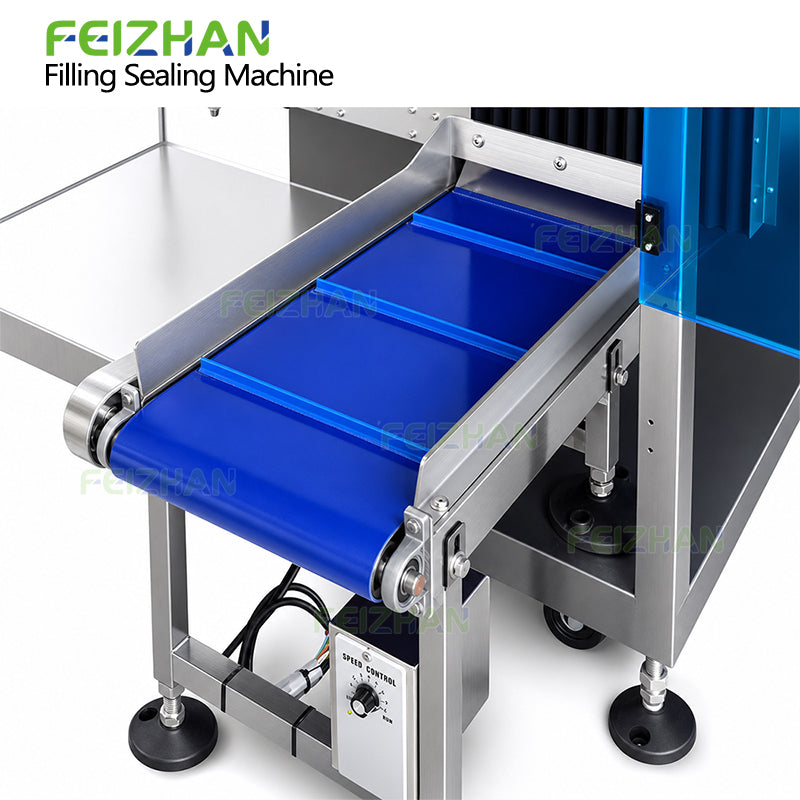

The discharge conveyor collects and transfers finished food pouches after sealing. It provides a continuous output path for the packaged products and can connect the pouch packing process with downstream handling or packaging operations.
FAQ
What food products can this machine package?
The machine is designed for granular products and supports single or mixed-product packaging. Specific food products should be tested before confirming the final configuration.
Is this a premade pouch packing machine?
Yes. The machine is designed for automatic premade pouch feeding, filling, and sealing, making it suitable for food manufacturers using ready-made pouches.
Can it package mixed food products?
Yes. The four-head weighing structure supports single or alternating feeding and can be used for single-material or mixed-material packaging.
What is the weighing range?
The weighing range is 2–500 g.
How many pouches can it pack per minute?
The listed working speed is approximately 5–30 bags per minute, depending on the filling material.
What pouch sizes can it handle?
The listed pouch size range is 60–220 mm in width and 80–310 mm in length.
Does it automatically feed pouches?
Yes. The pouch storage rack and feeding structure are designed to supply premade pouches continuously to the filling station.
Does it have dust collection?
Yes. A vacuum dust collector helps reduce dust dispersion during operation and supports a cleaner working environment.
Can the sealing temperature be adjusted?
Yes. The sealing system has adjustable temperature settings to accommodate different pouch materials.
Can printing be added to the packaging process?
Yes. The machine includes an inkjet printer configuration, with printing contents and ink colors customizable according to requirements.
