FEIZHAN
Automatic 14 Head Multihead Weigher Granule Packing Machine For Snacks And Nuts
Machine Overview

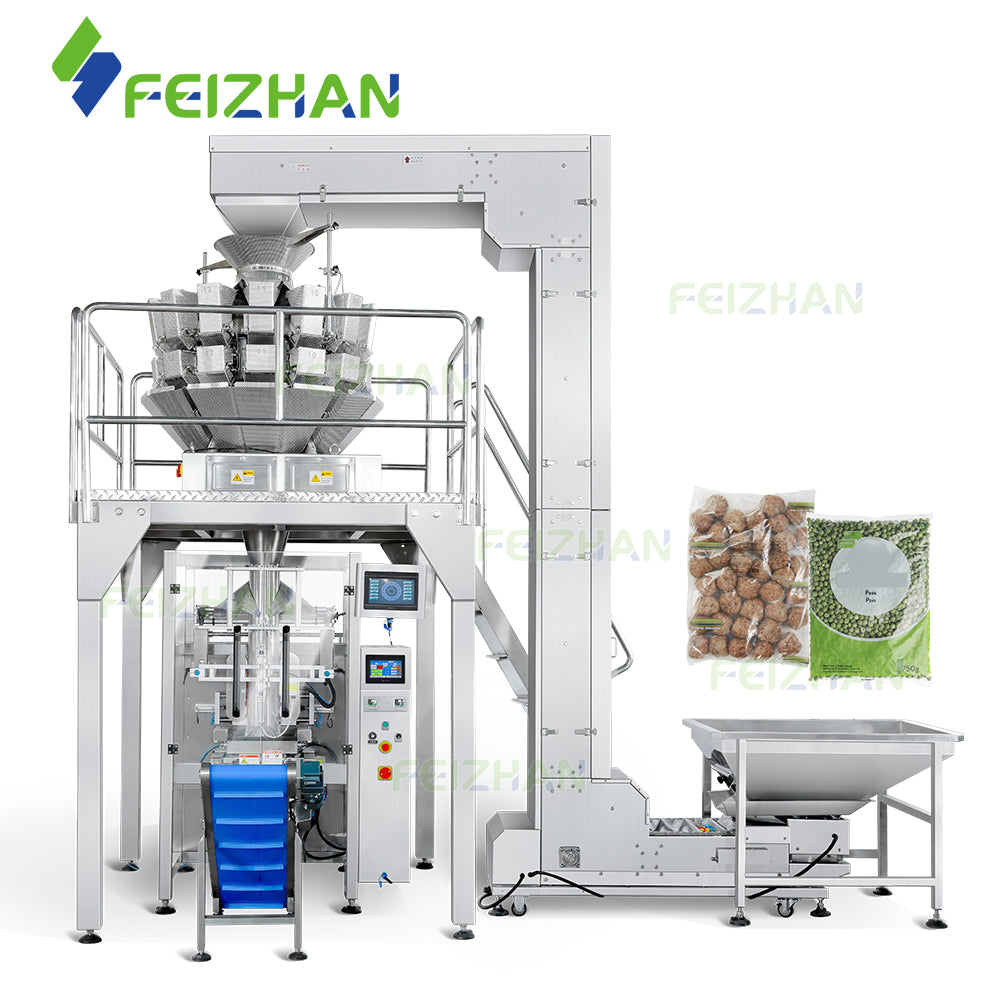

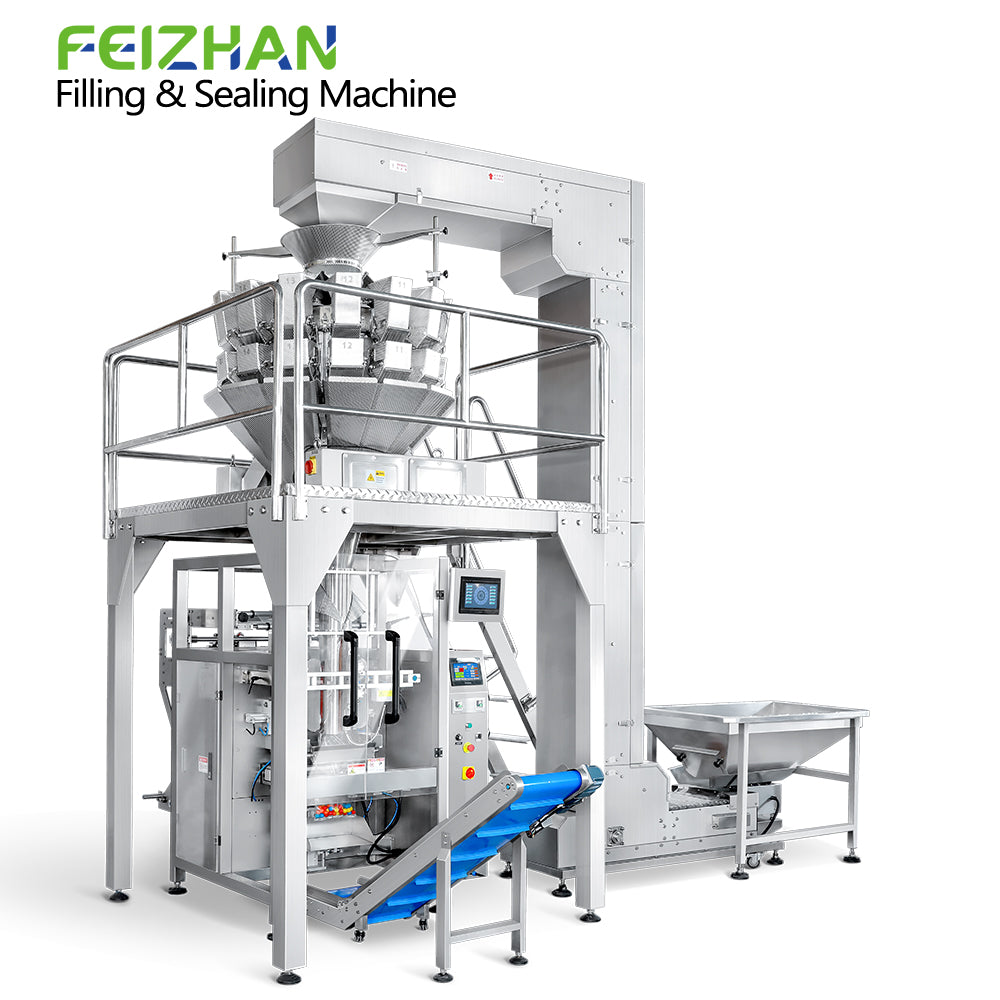

The Automatic Granule Packing Machine integrates a 14-head multihead weigher, Z-type elevator, bag forming, filling, and heat sealing into one continuous sequence — automatic feeding through to finished, sealed pouch without manual handling between stages.
The 14-head weigher distributes product across multiple weighing hoppers simultaneously. More active heads mean more weight combinations calculated per cycle — which is how the system finds the exact target weight accurately across products with irregular particle size or variable bulk density. Snacks, nuts, chips, dried fruits, candies, grains — these aren't uniform granules; weight per piece varies, and a standard volumetric system loses accuracy as that variation increases batch to batch.
The Z-type elevator feeds product from floor level into the weigher hopper continuously. Gentle incline conveying reduces product breakage for fragile granules — chips and dried fruits that would crack or fragment on a steep-angle elevator arrive at the weigher intact.
Bag size and filling weight adjust within the machine's configuration range through parameter changes. Heat sealing closes each pouch after filling — sealing temperature and dwell time adjust to match the packaging film specification.
Machine Features
14-Head Multihead Weigher for Accurate Portioning
Fourteen weighing hoppers run simultaneously, calculating weight combinations per cycle to find the closest match to the target fill weight. More active heads mean more combinations available, which keeps portioning accurate when particle size and bulk density vary across a batch.
Z-Type Elevator Feeding System
A Z-type bucket elevator transfers product from the floor-level feeding hopper to the multihead weigher continuously. Keeps product movement gentle, reducing breakage for fragile granules like nuts, chips, and dried fruits before they reach the weigher.
Complete VFFS Packaging Process
Weighing, bag forming, filling, and sealing run as one automated sequence producing pillow bags from roll film without manual handling between stages.
Wide Application for Food Granules
Nuts, seeds, candy, snacks, rice, beans, dried fruits, frozen foods. The multihead weigher handles variation in particle size and bulk density across that range without recalibration between products.
Adjustable Packaging Parameters
Filling weight, bag length, sealing temperature, and packaging speed adjust from the touchscreen. Saved recipes mean switching between products updates all parameters simultaneously rather than requiring manual re-entry of each value.
Food-Grade Stainless Steel Structure
Main machine structure is stainless steel. Smooth surfaces resist residue buildup from fine granules between cleaning cycles. Contact parts specify to food production requirements at order.
Applications
The automatic granule packing machine is widely used for packaging:
- Mixed nuts
- Peanuts
- Almonds
- Cashews
- Pistachios
- Potato chips
- Snack foods
- Candy
- Cookies
- Dried fruits
- Seeds
- Beans
- Rice
- Grains
- Pet food granules
Machine Detail
Adjust filling weight, bag length and sealing temperature from the touchscreen. Saved recipes mean switching between products updates all parameters simultaneously rather than requiring manual re-entry of each value.

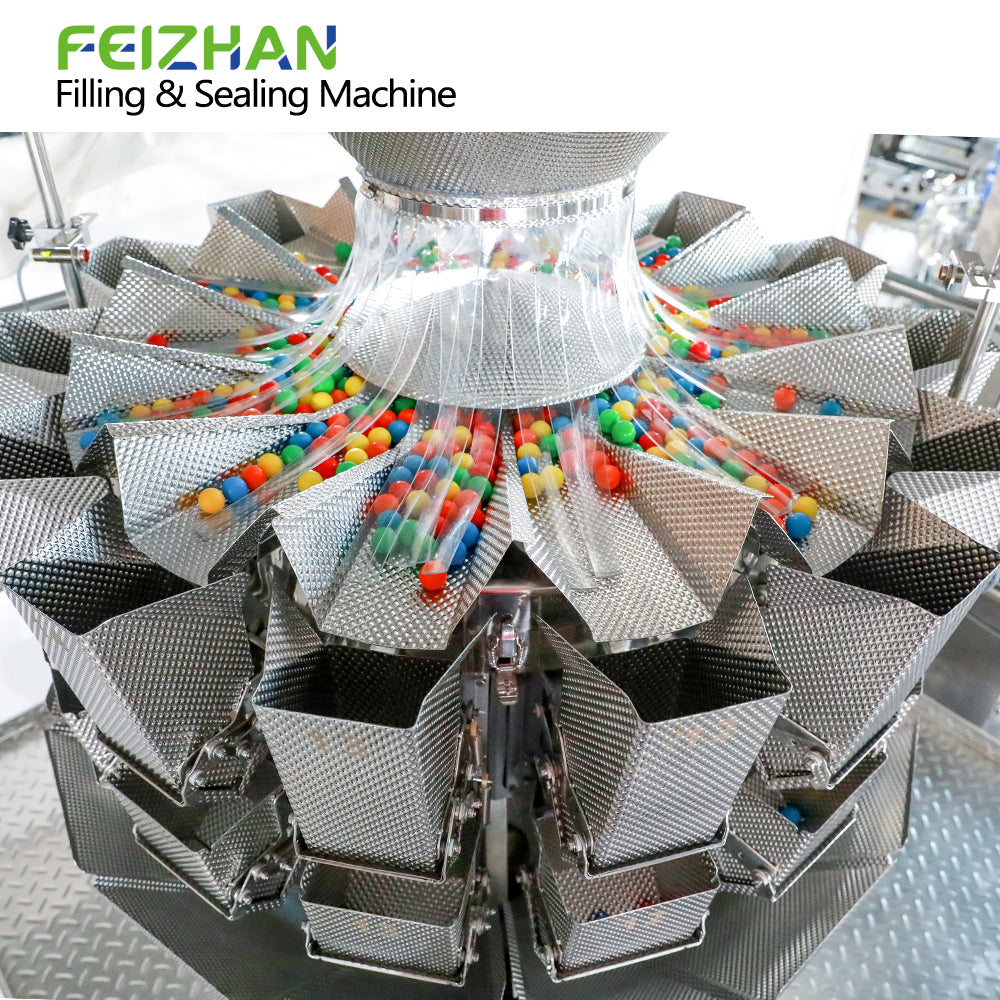

The multihead weighing system accurately portions snacks, nuts, dried fruits, candies and other granular food products. The opening and closing speed of each hopper door can be adjusted according to product characteristics, helping reduce product damage during weighing and discharge.

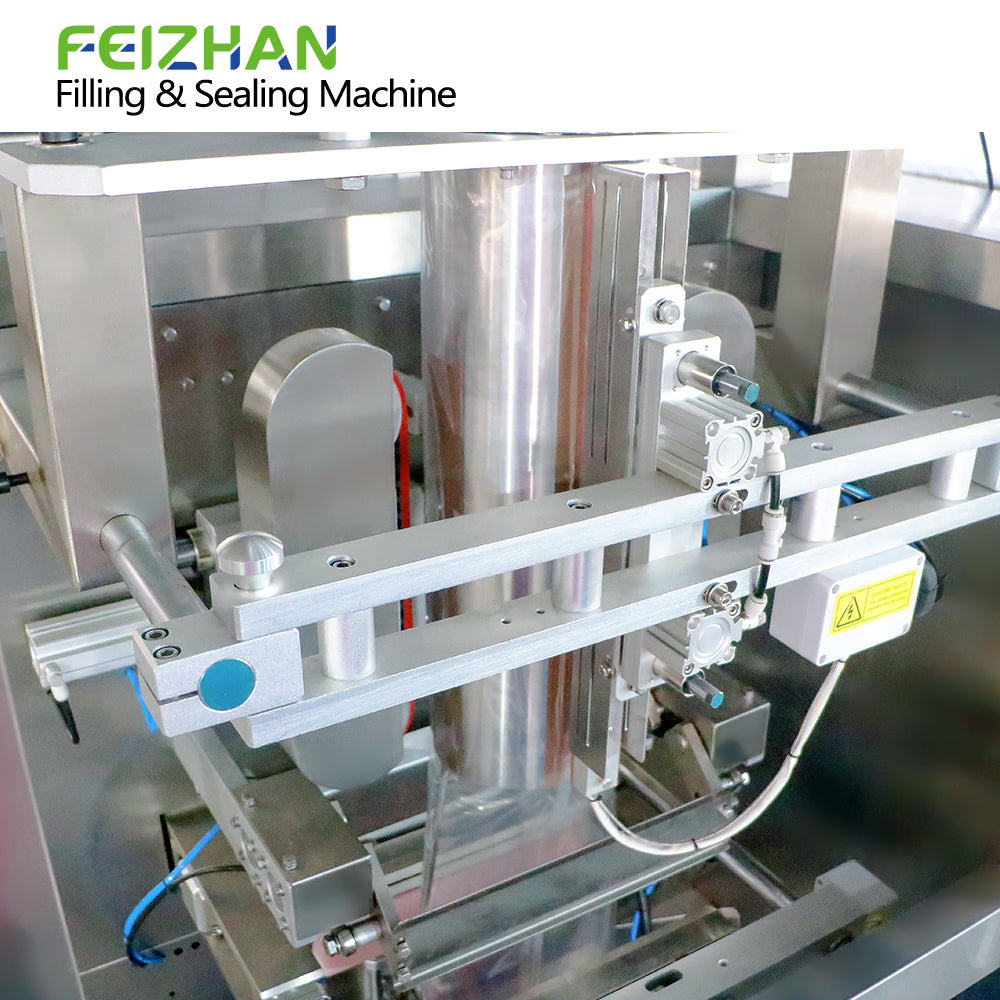

The bag forming unit is compatible with different food packaging films and creates stable bag shapes during continuous operation. Back seal, three-side seal and four-side seal packaging styles can be customized according to product requirements.

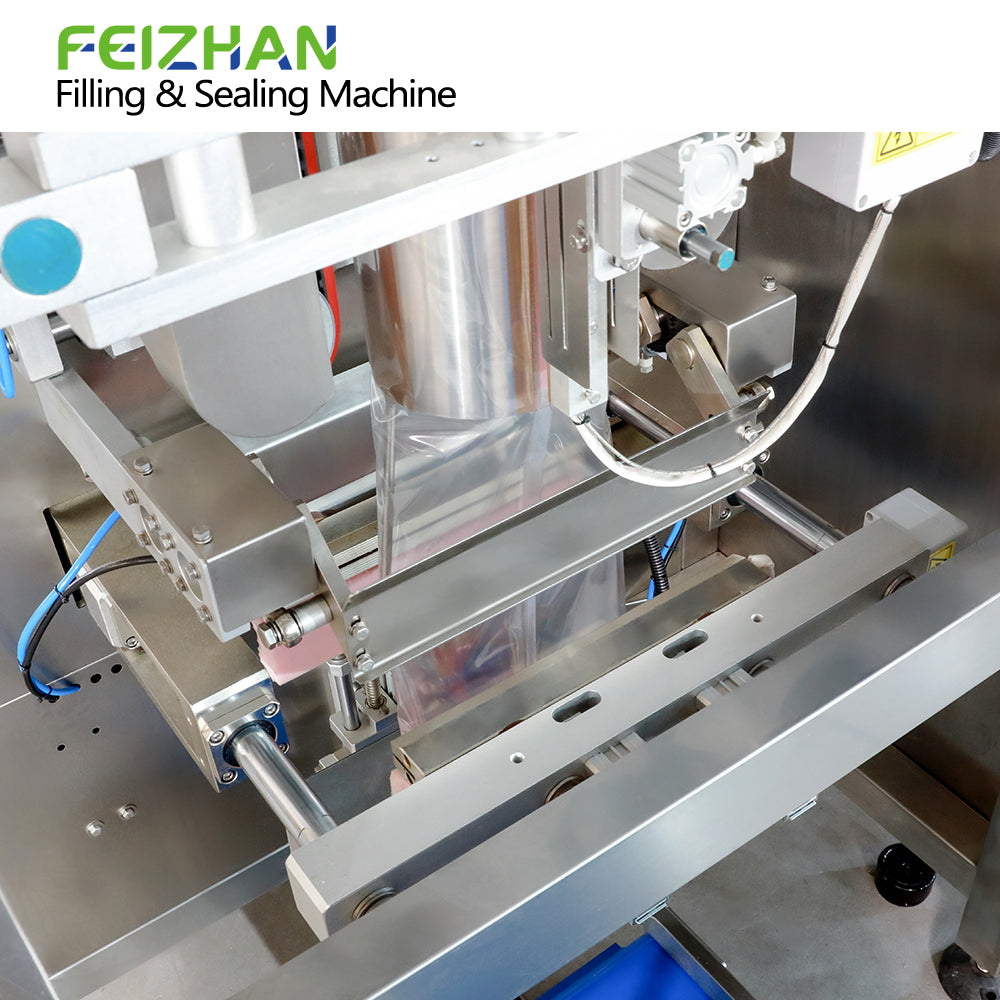

The heat sealing unit provides adjustable sealing temperature and time settings for different packaging films. Various sealing patterns and sealing methods can be customized to meet different snack and food packaging requirements.
The Z-type elevator automatically transfers food granules from the feeding hopper to the multihead weigher. It provides continuous material supply and is suitable for products such as nuts, chips, seeds, candy and dried fruits.
Finished bags transfer automatically to the next stage — checkweighing, metal detection, or collection. Conveyor height adjusts to match the production line layout.

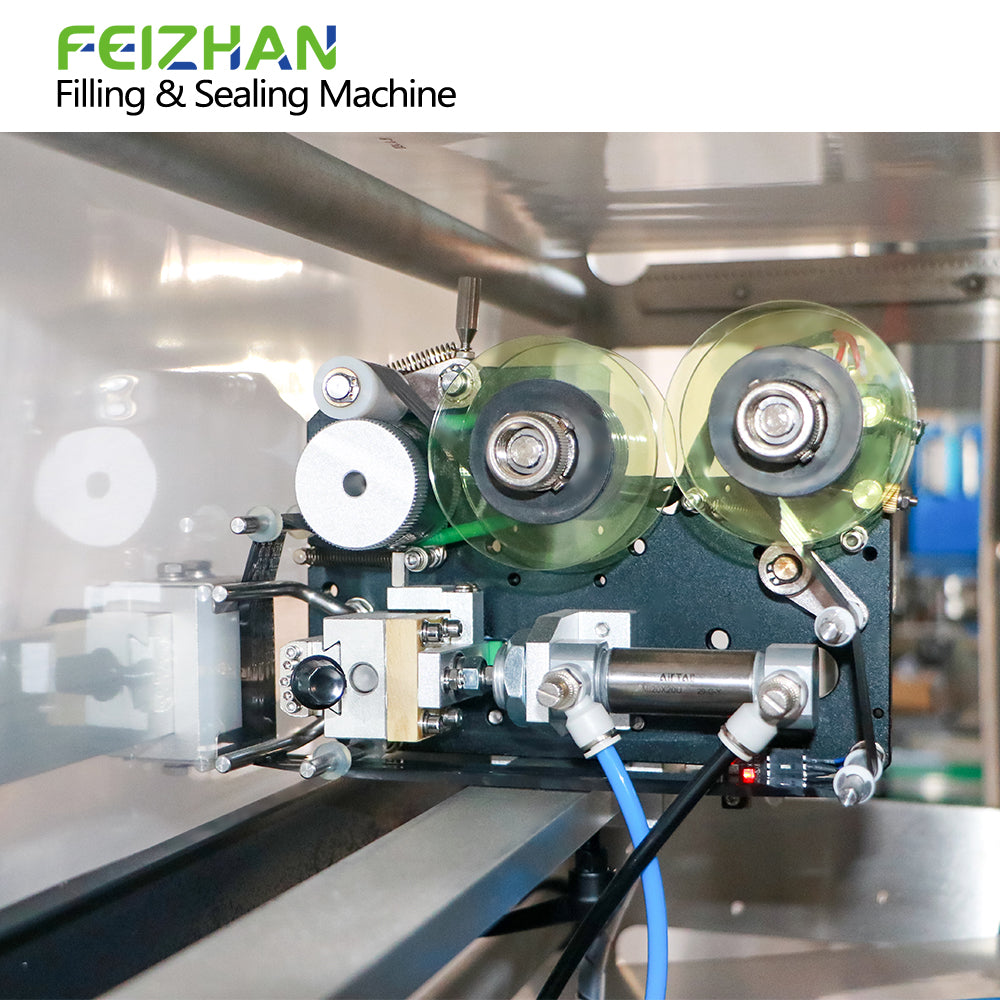

Production dates, batch numbers, and traceability information print directly onto packaging bags during the sealing stage. Unit-level coding gives finer traceability than outer carton coding alone if a quality issue requires isolating a specific production run.
Machine Specifications
- Machine Model: FZ-GW14
- Power Supply: 220/380V 50-60 HZ
- Power: 3.79 kW
- Air Source: 0.45 cbm/min, 0.65 Mpa
- Sealing Method: Back Side Sealing
- Measurement Range: 10-100 g/time
- Max Weighing Range: 1000 g
- Weighing Accuracy: 0.3-1.5 g
- Bag Size: Length: 150-400 mm, width: 130-300 mm
- Film Width: Max 620 mm
- Suitable Film Material: Complex film (OPP/CPP,OPP/PE,PET/PE etc)
- Packing Speed: 5-50 packs/min
- Elevator Conveying Capacity: 3-6 cbm/h
- Elevator Working Height: 3-6m(customizable)
- Work Platform Material: SUS304
- Outfeed Conveyor Working Height: 0.6-0.8 m
- Outfeed Conveyor Working Speed: 30 m/min
- Machine Size: About 4350*3100*4200 mm
- Package Size: Part 1: 2370*1930*670 mm / Part 2: 1720*1430*2000 mm / Part 3: 1920*920*1060 mm / Part 4: 1900*450*720 mm / Part 5: 2150*1080*1160 mm
Part 6: 1530*1140*1310 mm
- Gross Weight: About 307+702+190+115+489+343=2146 KG
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
How Does The Automatic Granule Packing Machine Work?
1. Product Feeding
Food granules are loaded into the feeding hopper and transported upward through the Z-type elevator.
2. Automatic Weighing
The multihead weigher receives products and distributes them into multiple weighing hoppers. The system calculates the best combination to achieve the preset weight.
3. Bag Forming
The packaging film is pulled through the forming collar to create a bag shape.
4. Filling Process
After the target weight is reached, the weighed product is released into the formed bag.
5. Sealing And Cutting
The bag is heat sealed and separated automatically, producing finished packaged products.
Why Choose This Snack Food Packaging Machine?
Reduce Manual Weighing Work
The automatic weighing system replaces manual portioning and helps improve production consistency for packaged foods.
Suitable For Different Food Products
By adjusting weighing parameters, the machine can handle various granular products with different sizes and densities.
Improve Packaging Efficiency
The integrated weighing and packing process allows continuous operation, making it suitable for food manufacturers requiring higher output.
Flexible Packaging Solution
The machine can be customized with different filling ranges, bag sizes, printers and feeding systems according to production needs.
Frequently Asked Questions
What products can this granule packing machine package?
Nuts, chips, candy, seeds, dried fruits, grains, and snacks — dry and free-flowing granules generally fall within range. If it moves through the Z-type elevator and into the weigher hopper without bridging or clumping, the system handles it.
What information should I provide for a customized machine?
The details that determine the configuration:
- Product type and characteristics
- Product size and weight range
- Required packing weight per bag
- Desired bag size and sealing style
- Packaging film material
- Production capacity requirement
- Voltage standard
- Additional equipment needed — printer, metal detector, or conveyor
Can this machine pack fragile products like chips and nuts?
Yes. Feeding speed and drop height both adjust to reduce mechanical impact on fragile granules before they reach the weigher. The Z-type elevator's incline angle keeps conveying gentle, and hopper door speed adjusts to control the discharge force at the moment product drops into the bag.
What packaging bags can be used?
Roll film is the standard input, producing pillow bags as the default output format. Back seal, three-side seal, and four-side seal styles are available through parameter and tooling adjustment rather than a separate machine per format.
Can the machine connect with other food production equipment?
Yes. Upstream feeding systems and downstream checkweighers, metal detectors, and finished product conveyors all connect inline — running as integrated stages in a continuous sequence rather than separate operations with manual transfers between them.
