FEIZHAN
Automatic Piston Pump Aluminum Tube Filling Sealing Machine for Food Paste Sauce

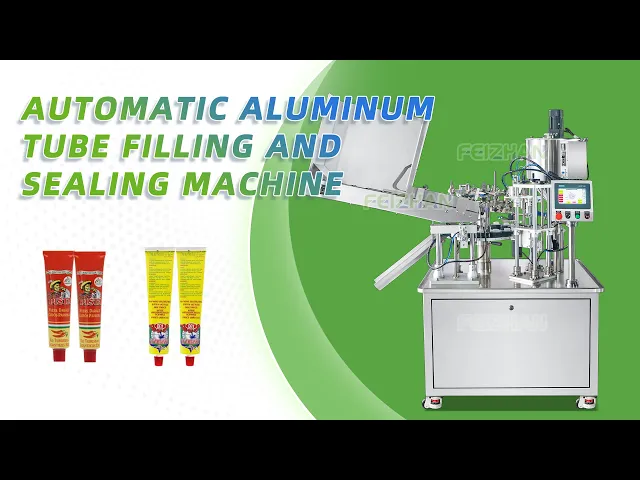

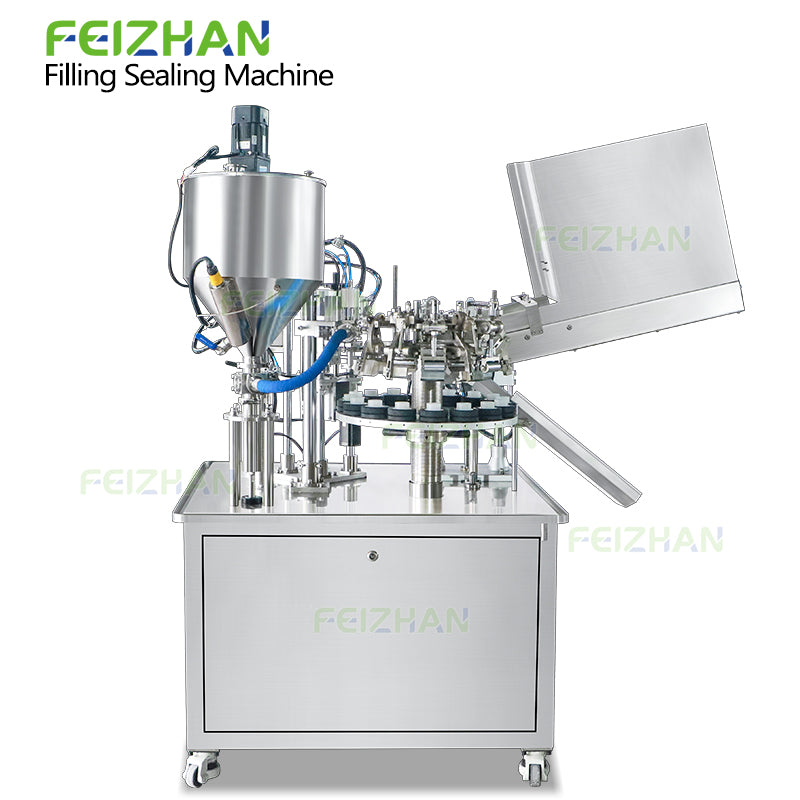

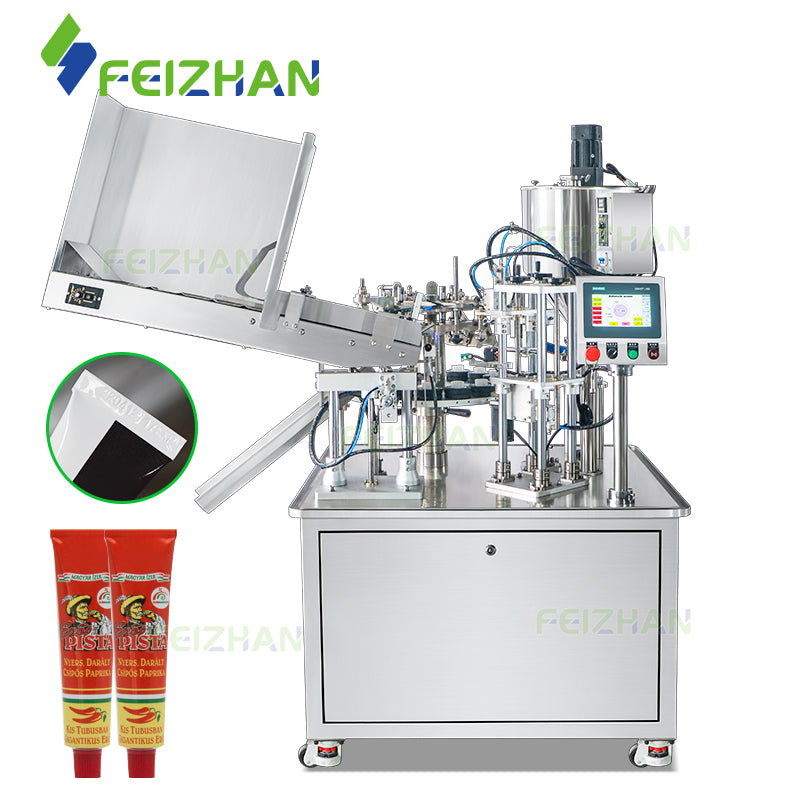

The FZ-FS009A is an automatic aluminum tube filling sealing machine designed for food-grade viscous products such as sauce, food paste, honey, and chocolate paste. It features a piston pump filling system for high accuracy, automatic tube feeding, strong aluminum tube sealing, and a heating mixing hopper to ensure smooth filling of thick materials. All product-contact parts are made of SUS 304 stainless steel, making it a reliable aluminum tube packaging solution for food manufacturers.
Aluminum Tube Filling Sealing Machine Parameter
- Machine Model: FZ-FS009A
- Voltage: 110V/220V 50-60 Hz
- Power: About 3 KW
- Working Speed: About 20-50 BPM
- Filling Pump: Piston Pump
- Filling Range: 30-150 ml (Customized)
- Filling Accuracy: ≤±1%
- Applicable Tubes: Aluminum Tubes
- Tube Diameter: Φ13-38 mm
- Tube Length: 100-200 mm
- Machine Part in Contact With Materials: SUS 304
- Air Pressure: 0.6-0.8 Mpa
- Machine Size: About 1800*945*1945 mm/ About 70.9*37.2*76.6 inch
*Specifications are for reference only and may vary by your product. Please confirm with us if required
Touchscreen panel makes it convenient to set parameters like filling volume. Language of panel can be customized.

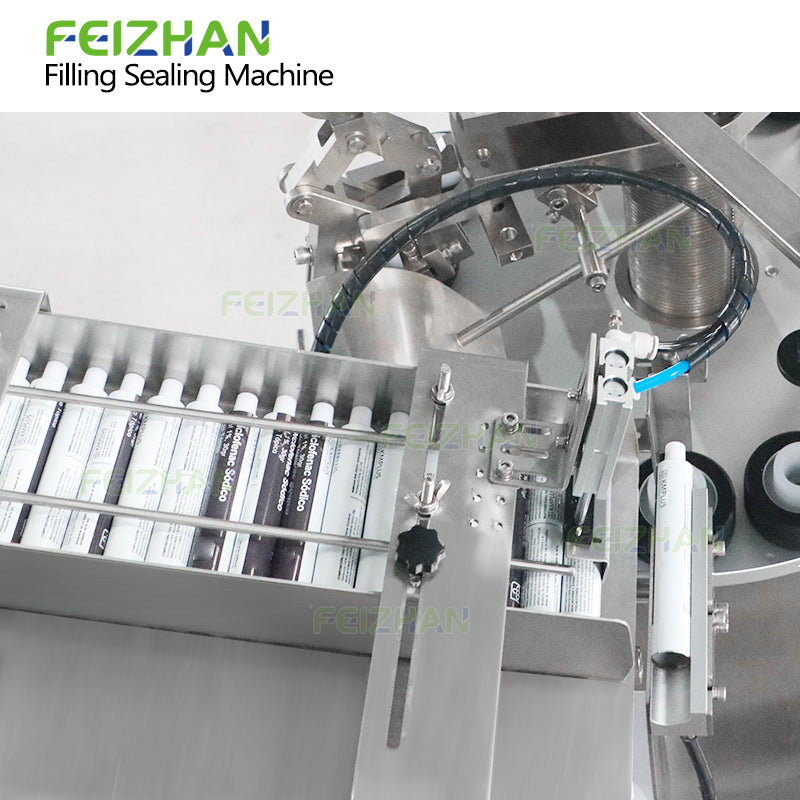

Can feed aluminum tubes to molds automatically, saving labor cost.

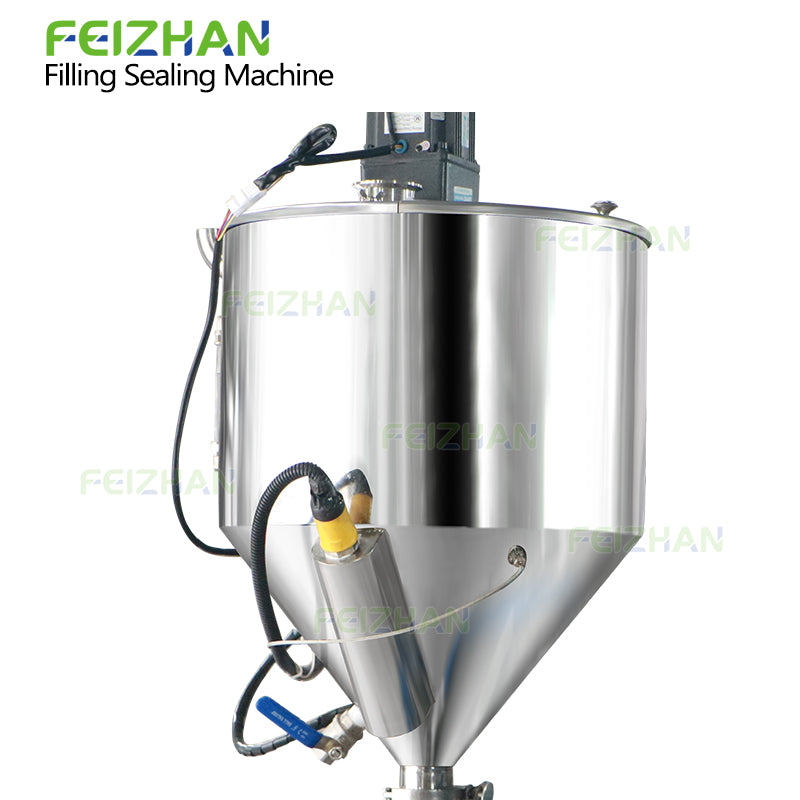

The hopper has mixing and heating function, making it fill viscous paste smoothly.

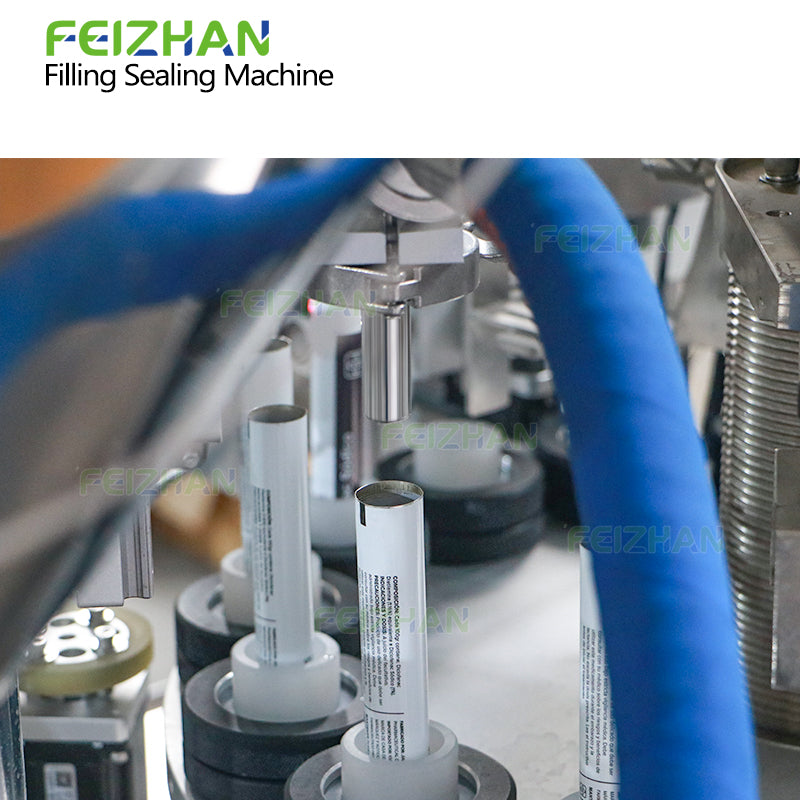

Driven by piston pump, it can fill viscous liquid or paste accurately. Filling range can be customized.

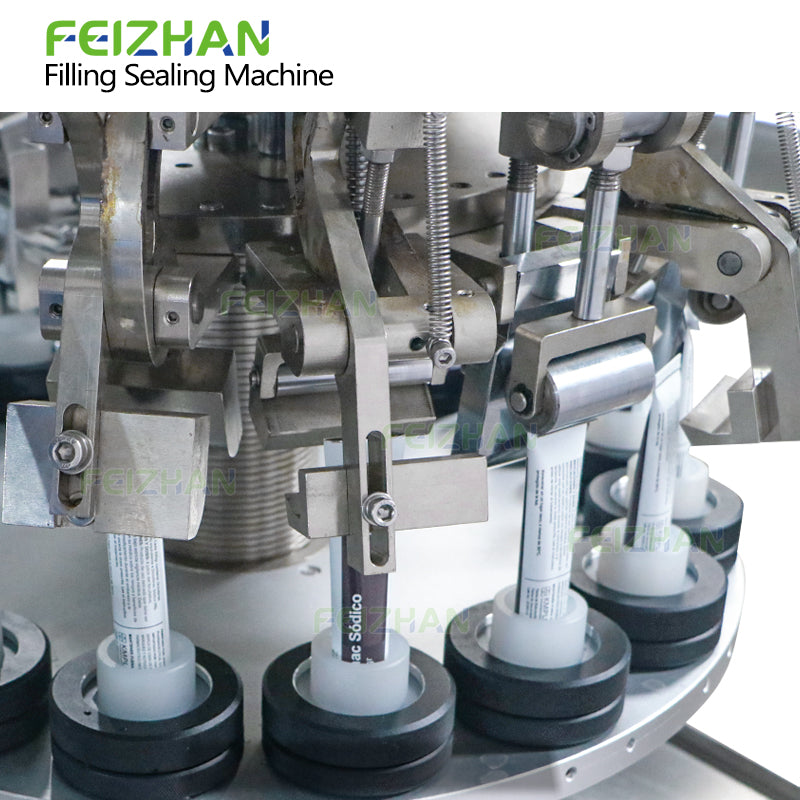

Can fold and press tube ends automatically. It can be customized as your products.
Can be used for printing production date or batch on tube ends automatically.
FAQ
Q1: What can I use this machine for?
It's great for filling thick, pasty foods into tubes. Imagine things like sauces, honey, chocolate spread, peanut butter, or sesame paste – basically, any thick food product that comes in a squeezable aluminum tube.
Q2: What’s the difference between the Gear Sealing and Roller Sealing versions?
Think of it like this: they give you different types of seals. The Roller Sealing version is the go-to choice for most pastes. It uses smooth rollers to press and seal the tube, and it works really well. The Gear Sealing version is stronger. It uses gears to clamp the tube shut, which is better if your tubes are made of thicker aluminum or if you just need a really heavy-duty seal.
Q3: Is this machine food-safe?
Yes, completely. Any part that touches your food is made from high-quality, food-grade stainless steel. It’s safe, meets hygiene standards, and is a breeze to clean.
Q4: Can it handle really thick stuff like honey or chocolate paste?
For sure. It has a special piston pump and a hopper that can be warmed up. This keeps thick, sticky products flowing smoothly so they fill into the tubes without any trouble.
Q5: What kind of tubes does it work with?
It’s designed for the classic all-aluminum squeeze tubes. You can use tubes with widths (diameters) between about 13 mm and 38 mm, and lengths from 100 mm up to 200 mm.
Q6: Can I change how much product goes in each tube?
Absolutely. The machine normally fills between 30 and 150 milliliters, but if you need a different amount, we can adjust that for you.
Q7: Does it print dates or batch codes?
Yep! It has a built-in printer. You can use it to stamp the production date or a batch number right onto the tubes.
FEIZHAN
Automatic Piston Pump Aluminum Tube Filling Sealing Machine for Food Paste Sauce
$10,499.00
Estimated delivery between March 20 and March 22.
The FZ-FS009A is an automatic aluminum tube filling sealing machine designed for food-grade viscous products such as sauce, food paste, honey, and chocolate paste. It features a piston pump filling system for high accuracy, automatic tube feeding, strong aluminum tube sealing, and a heating mixing hopper to ensure smooth filling of thick materials. All product-contact parts are made of SUS 304 stainless steel, making it a reliable aluminum tube packaging solution for food manufacturers.
Aluminum Tube Filling Sealing Machine Parameter
- Machine Model: FZ-FS009A
- Voltage: 110V/220V 50-60 Hz
- Power: About 3 KW
- Working Speed: About 20-50 BPM
- Filling Pump: Piston Pump
- Filling Range: 30-150 ml (Customized)
- Filling Accuracy: ≤±1%
- Applicable Tubes: Aluminum Tubes
- Tube Diameter: Φ13-38 mm
- Tube Length: 100-200 mm
- Machine Part in Contact With Materials: SUS 304
- Air Pressure: 0.6-0.8 Mpa
- Machine Size: About 1800*945*1945 mm/ About 70.9*37.2*76.6 inch
*Specifications are for reference only and may vary by your product. Please confirm with us if required
Touchscreen panel makes it convenient to set parameters like filling volume. Language of panel can be customized.
Can feed aluminum tubes to molds automatically, saving labor cost.
The hopper has mixing and heating function, making it fill viscous paste smoothly.
Driven by piston pump, it can fill viscous liquid or paste accurately. Filling range can be customized.
Can fold and press tube ends automatically. It can be customized as your products.
Can be used for printing production date or batch on tube ends automatically.
FAQ
Q1: What can I use this machine for?
It's great for filling thick, pasty foods into tubes. Imagine things like sauces, honey, chocolate spread, peanut butter, or sesame paste – basically, any thick food product that comes in a squeezable aluminum tube.
Q2: What’s the difference between the Gear Sealing and Roller Sealing versions?
Think of it like this: they give you different types of seals. The Roller Sealing version is the go-to choice for most pastes. It uses smooth rollers to press and seal the tube, and it works really well. The Gear Sealing version is stronger. It uses gears to clamp the tube shut, which is better if your tubes are made of thicker aluminum or if you just need a really heavy-duty seal.
Q3: Is this machine food-safe?
Yes, completely. Any part that touches your food is made from high-quality, food-grade stainless steel. It’s safe, meets hygiene standards, and is a breeze to clean.
Q4: Can it handle really thick stuff like honey or chocolate paste?
For sure. It has a special piston pump and a hopper that can be warmed up. This keeps thick, sticky products flowing smoothly so they fill into the tubes without any trouble.
Q5: What kind of tubes does it work with?
It’s designed for the classic all-aluminum squeeze tubes. You can use tubes with widths (diameters) between about 13 mm and 38 mm, and lengths from 100 mm up to 200 mm.
Q6: Can I change how much product goes in each tube?
Absolutely. The machine normally fills between 30 and 150 milliliters, but if you need a different amount, we can adjust that for you.
Q7: Does it print dates or batch codes?
Yep! It has a built-in printer. You can use it to stamp the production date or a batch number right onto the tubes.
