FEIZHAN
Automatic Ultrasonic Sauce Tube Filling and Sealing Machine for Chili Paste & Wasabi

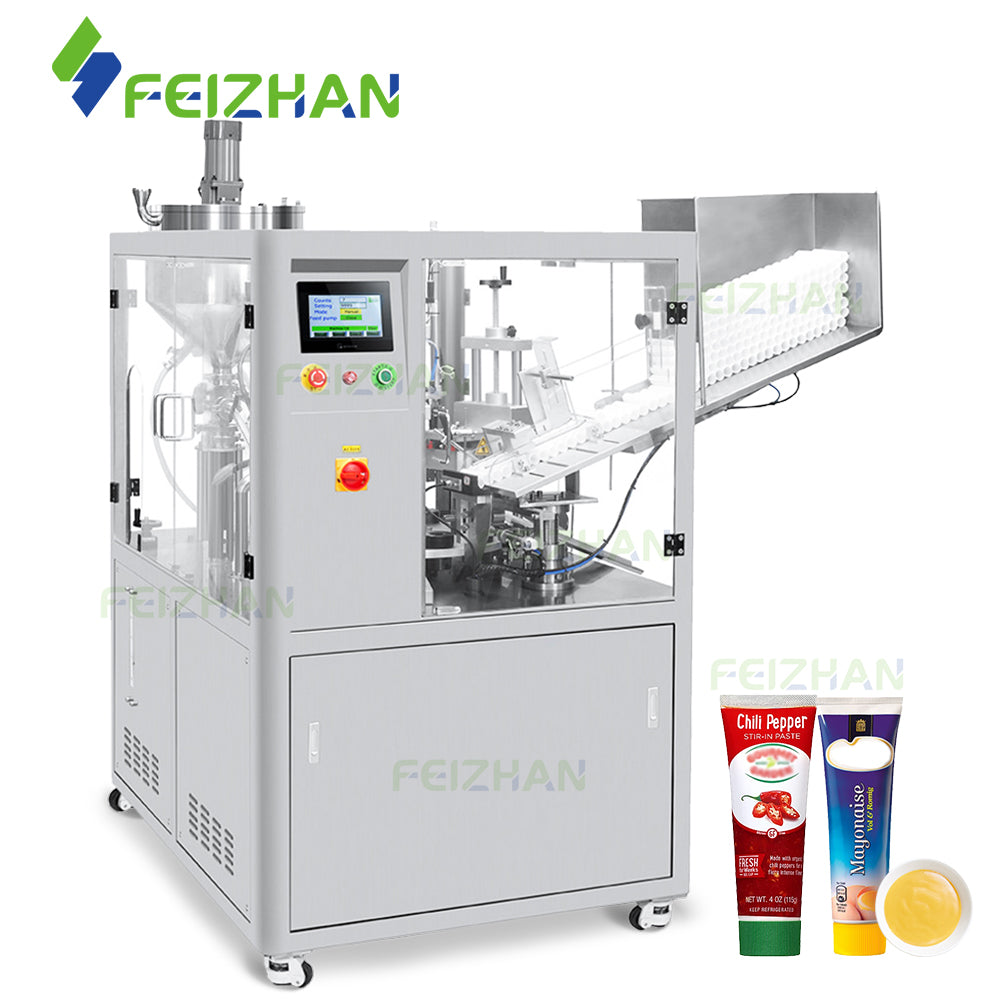

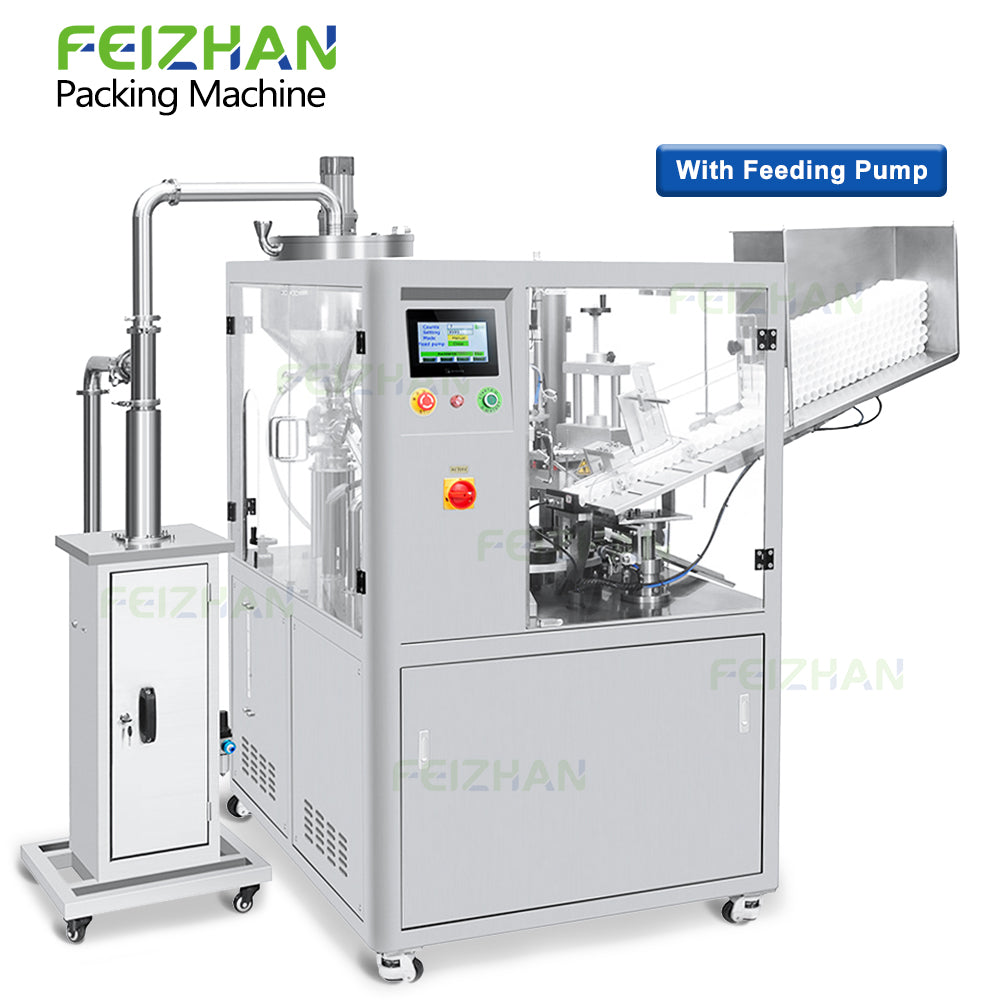

This fully automatic sauce tube filling and sealing machine integrates tube feeding, paste filling, tube sealing, date printing, and finished product discharge into a single efficient system. Equipped with a high-precision piston pump, it is specifically designed for filling thick and viscous pastes such as chili sauce, wasabi, and ketchup. The machine operates stably with consistent filling accuracy and robust sealing performance. Customization options are available to accommodate different tube sizes, filling volumes, and product characteristics, making it an ideal soft tube packaging solution for food processing manufacturers.
Sauce Tube Filling and Sealing Machine Parameter
- Machine Model: FZ-FS009U
- Voltage: 220V/110V 50-60 Hz
- Power: 2.6 KW
- Filling Pump: Piston Pump
- Production Speed: 22-30 pcs/min
- Filling Range: 6-60 ml/10-120 ml/25-250 ml/50-500 ml(Customized)
- Filling Error: ±1%
- Anti-dripping Function: Available
- Height of Tubes: 50-250 mm
- Sealing Diameter: 16-50 mm(Can be Customized)
- Sealing Method: Ultrasonic Sealing
- Ultrasonic Frequency: 20 kHz
- Suitable Tubes: Plastic Tubes /Aluminum-Plastic Tubes
- Working Pressure: 0.6 MPa
- Air Consumption: 0.38 m³/min
- Net Weight/Gross Weight: About 450 kg / 555 kg
- Machine Size: 1615*1400*1590 mm
- Package Size: 1610*1760*1860 mm
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

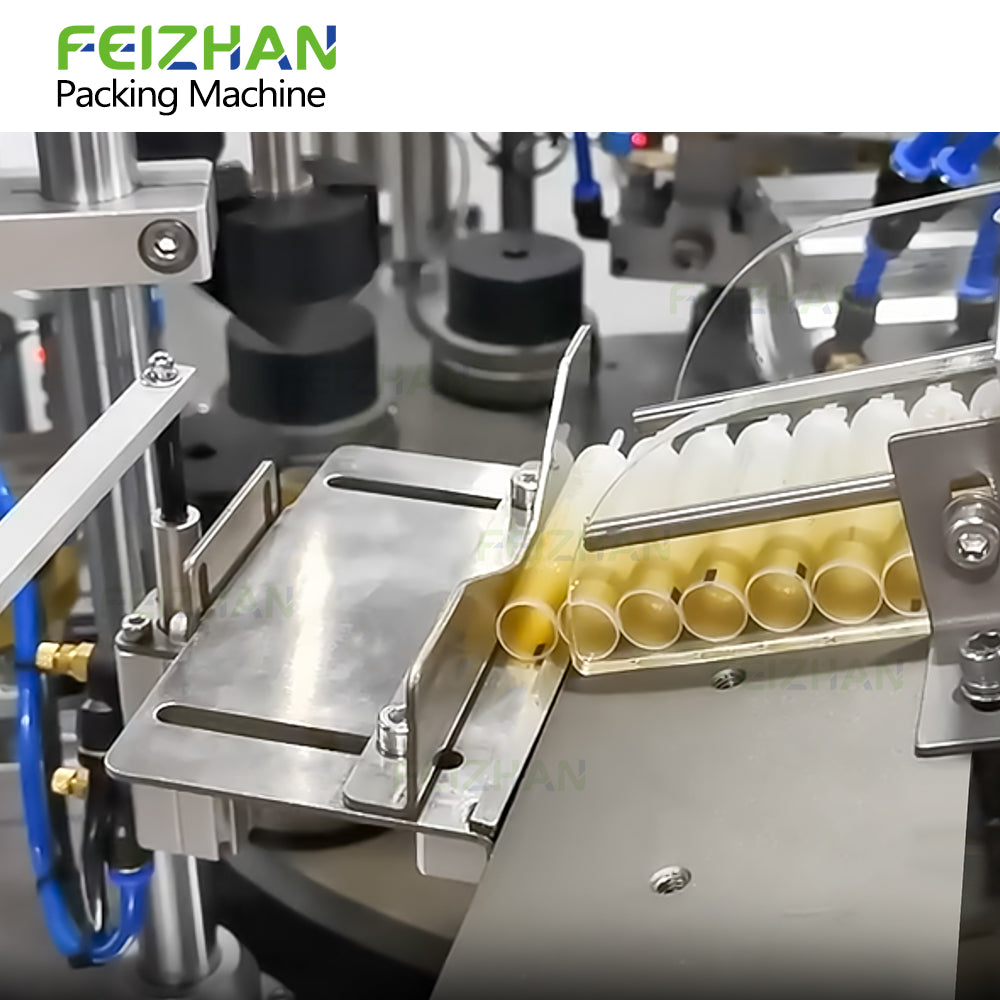

This component is designed for feeding laminated tubes before filling, greatly saving labor cost. The component can be customized according to your products.

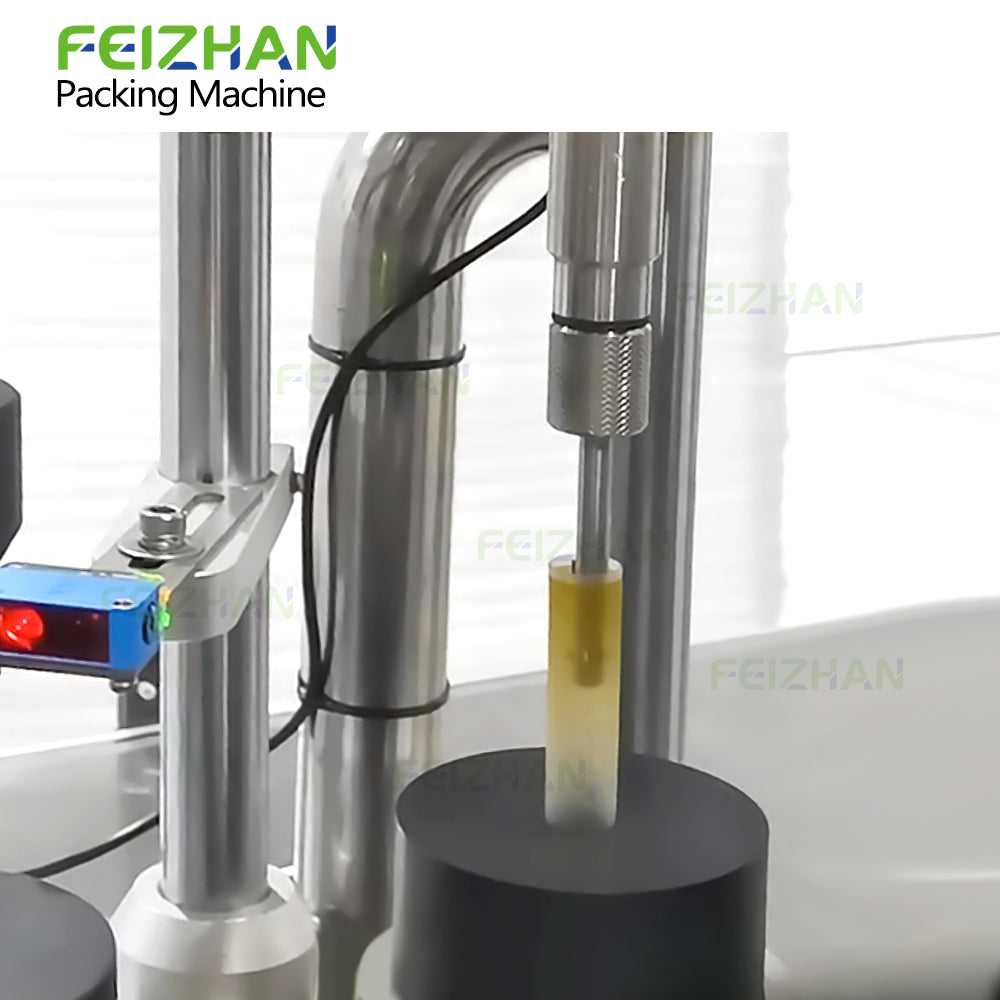

Driven by piston pump, this machine can fill viscous paste, such as honey mustard, mayonnaise. The filling range of the pump can be customized. This nozzle has anti-dripping function, ensuring production cleanliness.

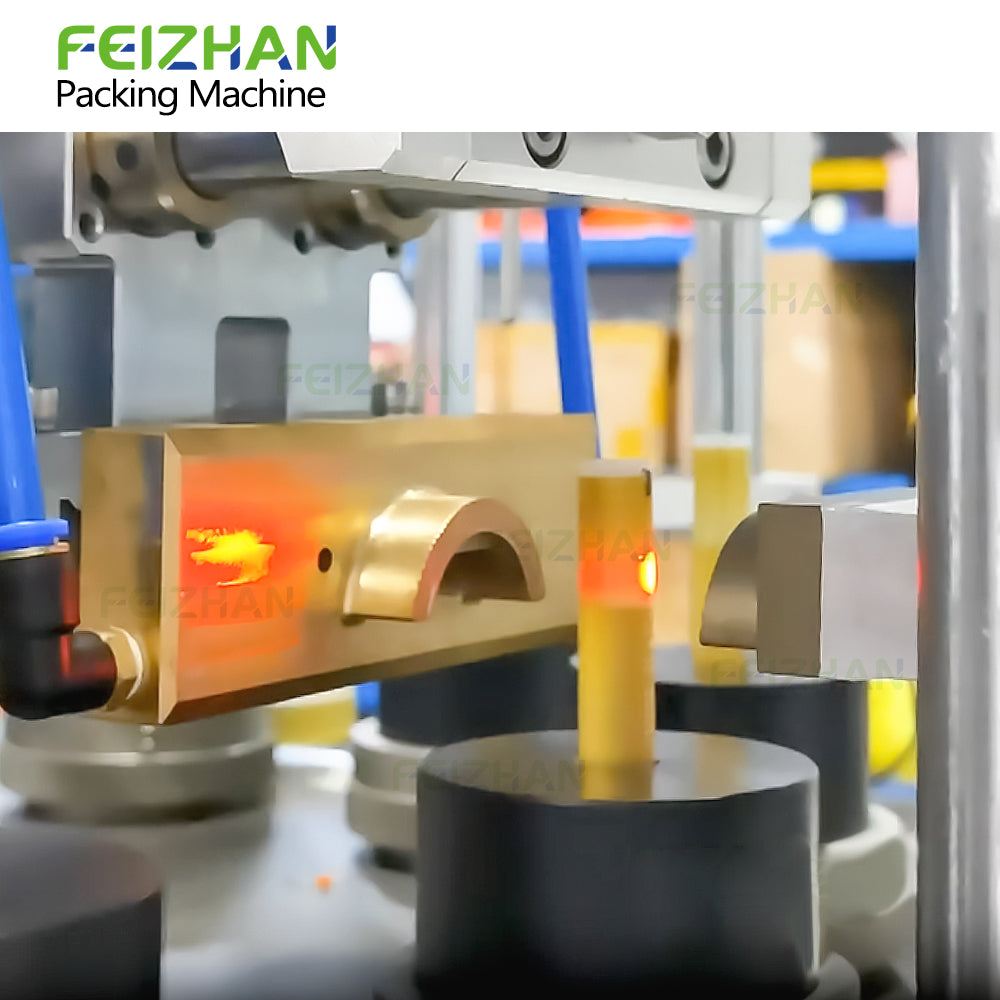

Adopting the way of ultrasonic sealing, this machine can seal tubes firmly. It can be equipped with letter molds, which can print batch or production date on tubes. The shape of sealing component is customizable.
The machine can trim tubes after sealing, ensuring product quality. The parts in contact with food materials are made of 316 stainless steel, which can ensure production quality.
FEIZHAN
Automatic Ultrasonic Sauce Tube Filling and Sealing Machine for Chili Paste & Wasabi
$14,399.00
Estimated delivery between March 19 and March 21.
This fully automatic sauce tube filling and sealing machine integrates tube feeding, paste filling, tube sealing, date printing, and finished product discharge into a single efficient system. Equipped with a high-precision piston pump, it is specifically designed for filling thick and viscous pastes such as chili sauce, wasabi, and ketchup. The machine operates stably with consistent filling accuracy and robust sealing performance. Customization options are available to accommodate different tube sizes, filling volumes, and product characteristics, making it an ideal soft tube packaging solution for food processing manufacturers.
Sauce Tube Filling and Sealing Machine Parameter
- Machine Model: FZ-FS009U
- Voltage: 220V/110V 50-60 Hz
- Power: 2.6 KW
- Filling Pump: Piston Pump
- Production Speed: 22-30 pcs/min
- Filling Range: 6-60 ml/10-120 ml/25-250 ml/50-500 ml(Customized)
- Filling Error: ±1%
- Anti-dripping Function: Available
- Height of Tubes: 50-250 mm
- Sealing Diameter: 16-50 mm(Can be Customized)
- Sealing Method: Ultrasonic Sealing
- Ultrasonic Frequency: 20 kHz
- Suitable Tubes: Plastic Tubes /Aluminum-Plastic Tubes
- Working Pressure: 0.6 MPa
- Air Consumption: 0.38 m³/min
- Net Weight/Gross Weight: About 450 kg / 555 kg
- Machine Size: 1615*1400*1590 mm
- Package Size: 1610*1760*1860 mm
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
This component is designed for feeding laminated tubes before filling, greatly saving labor cost. The component can be customized according to your products.
Driven by piston pump, this machine can fill viscous paste, such as honey mustard, mayonnaise. The filling range of the pump can be customized. This nozzle has anti-dripping function, ensuring production cleanliness.
Adopting the way of ultrasonic sealing, this machine can seal tubes firmly. It can be equipped with letter molds, which can print batch or production date on tubes. The shape of sealing component is customizable.
The machine can trim tubes after sealing, ensuring product quality. The parts in contact with food materials are made of 316 stainless steel, which can ensure production quality.
