FEIZHAN

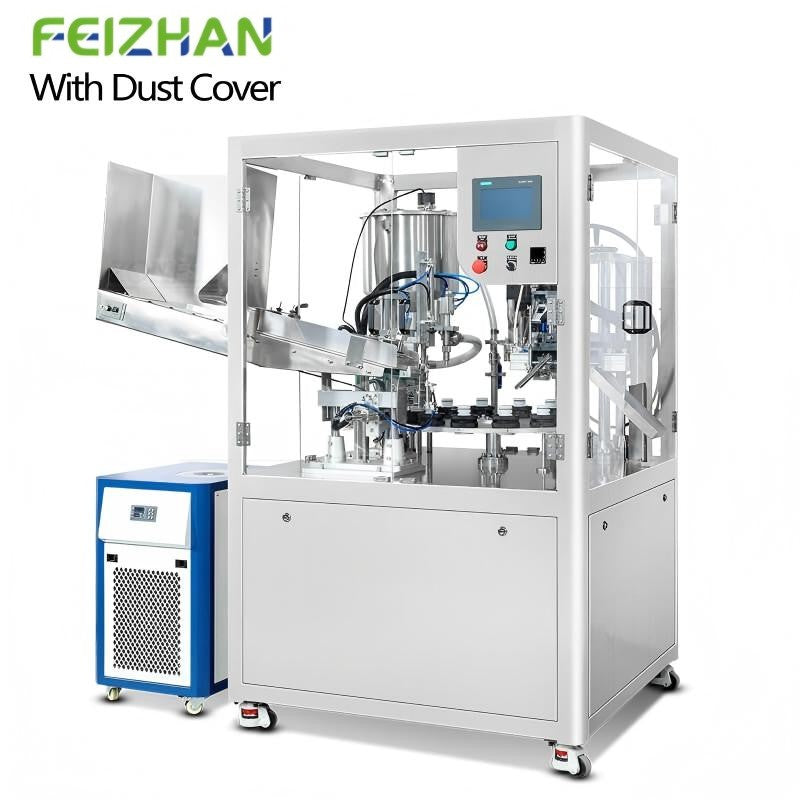

Automatic Servo Piston Plastic Soft Tube Filling Sealing Machine for Food & Sauce Packaging

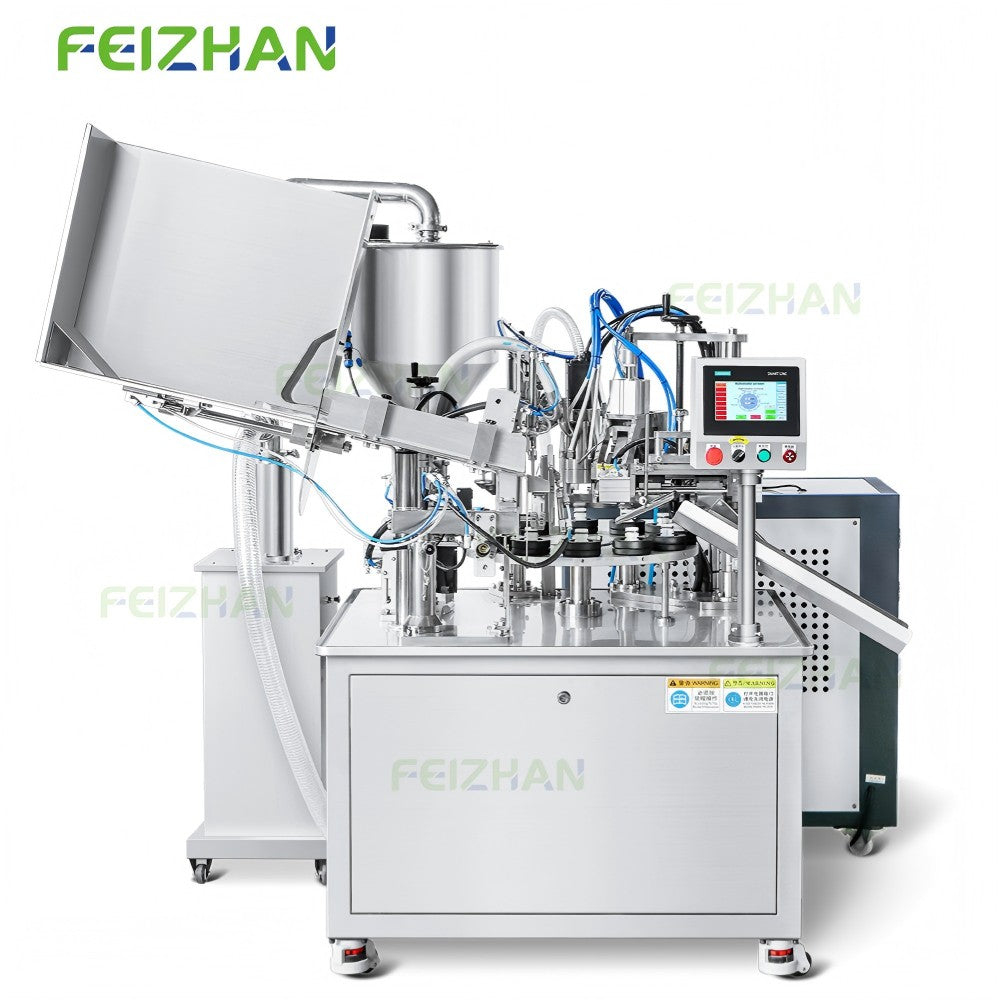

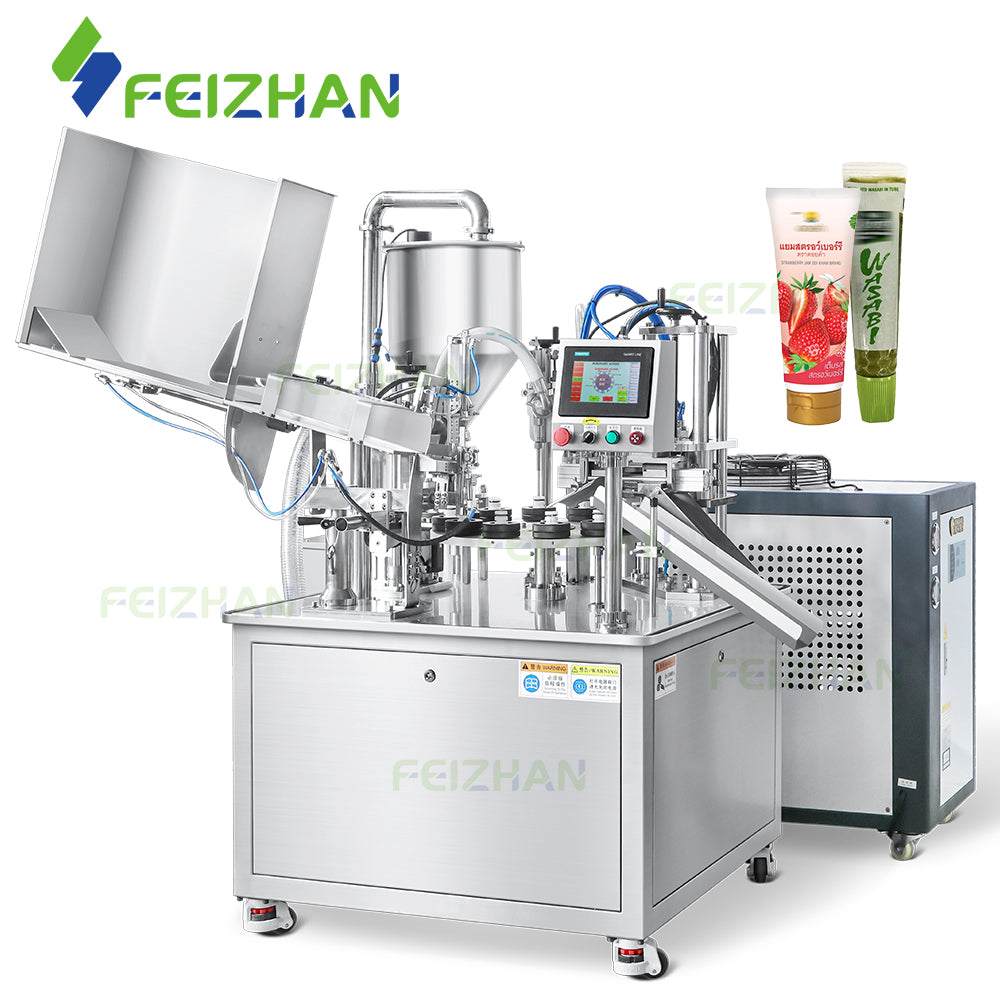

The FZ-FS007U is an automatic soft tube filling sealing machine designed for paste, mustard sauce and other viscous products. It supports plastic and aluminum-plastic composite tubes, features servo piston filling, tube positioning, date stamping, and stable output of 30–50 pieces per minute. Suitable for food-grade soft tube packaging such as mustard sauce, chili paste, ketchup, honey, cheese sauce, and other viscous edible products.
Soft Tube Filling Sealing Machine Parameter
- Machine Model: FZ-FS007U
- Voltage: 110/220V 50-60 HZ 4.5 KW
- Tube Material: Plastic Soft Tube, Composite Soft Tube
- Tube Diameter: φ16-50 mm
- Tube Length: 80-220 mm (Customizable)
- Filling Capacity: 4-30 ml/30-150 ml/50-300 ml (Customized))
- Filling Method: Servo Piston Filling
- Filling Accuracy: ±1%
- Production Efficiency: 20-50 pieces/min (based on filling volume and filling materials)
- Working Air Pressure: 0.6-0.8 Mpa
- Heat Sealing Power: 3.3 KW
- Machine Size: 1050*550*1070 mm(L*W*H)
- Package Size: 1720*1110*2030 mm(Main Machine)+ 460*440*1230 mm(Cooling Machine)
- Package Weight: 760 kg(Main Machine)+ 37 kg(Cooling Machine)
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

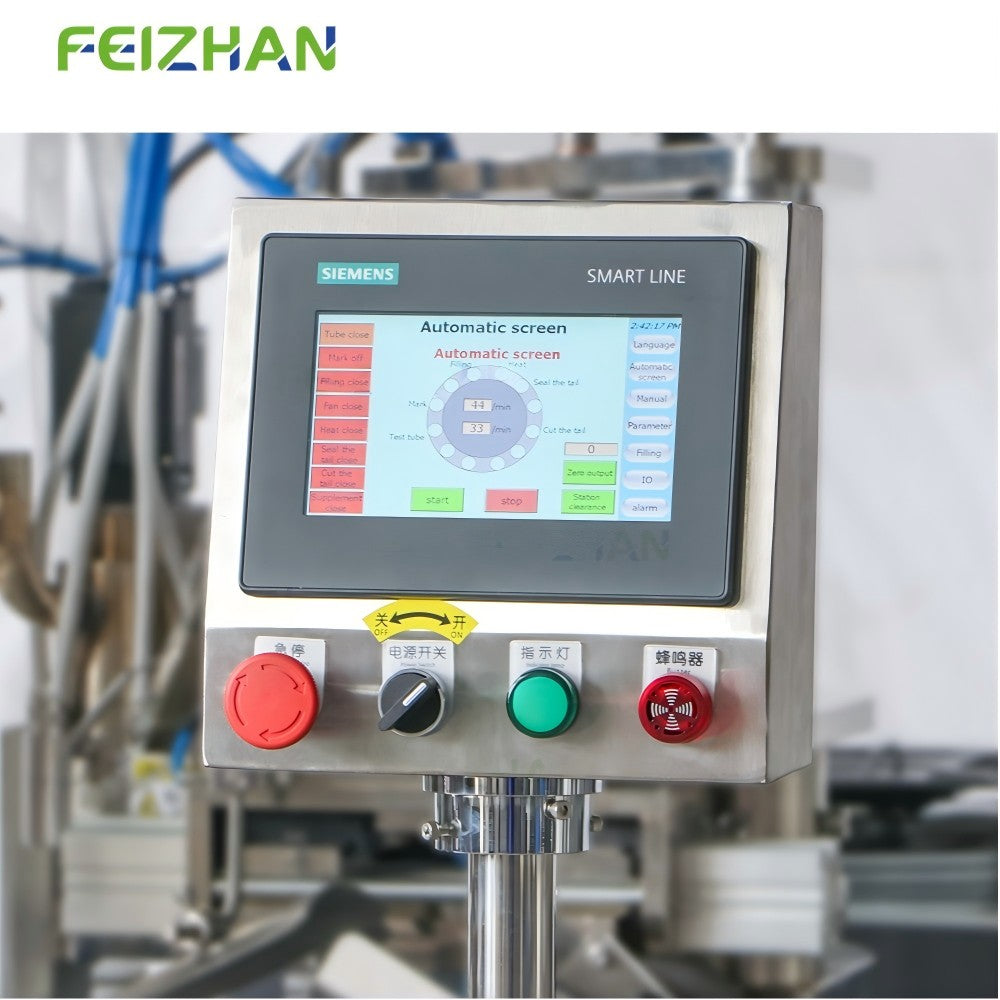

Working parameter settings are completed directly on the operation panel.

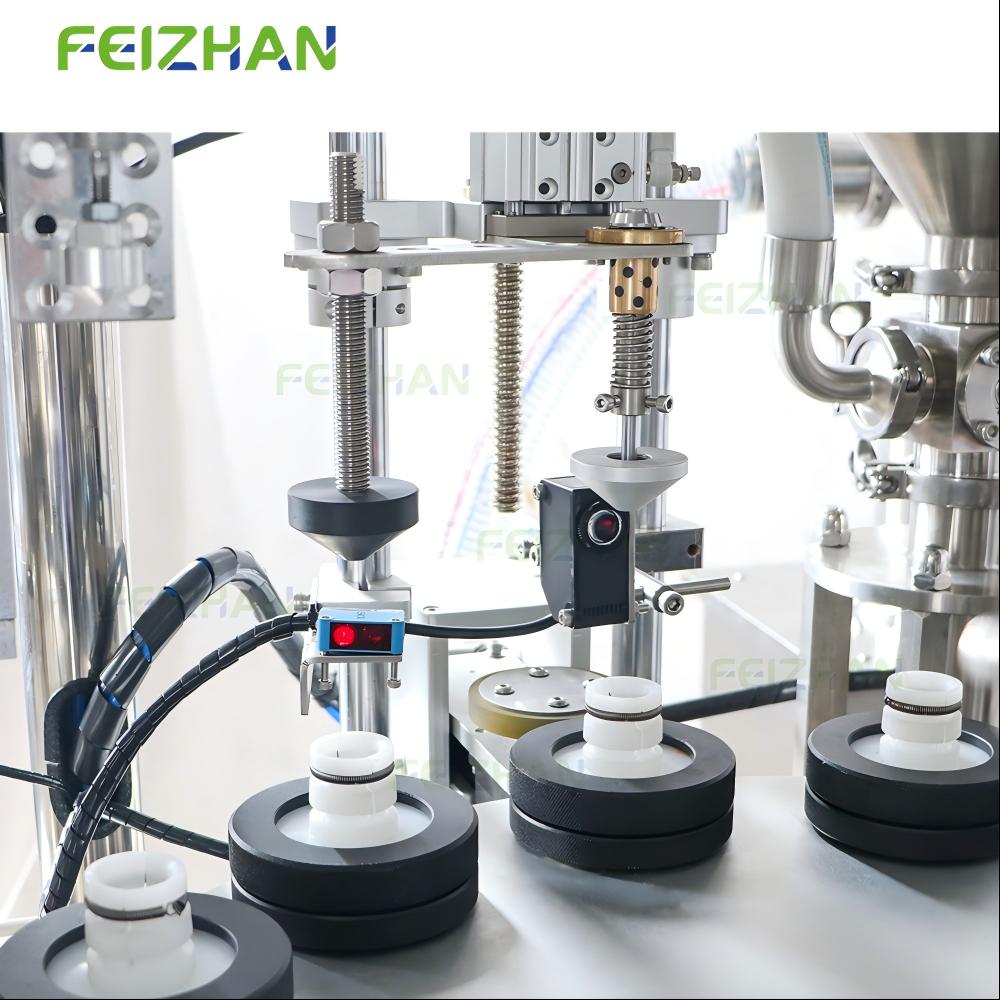

Can position soft tube before filling, improves working accuracy.

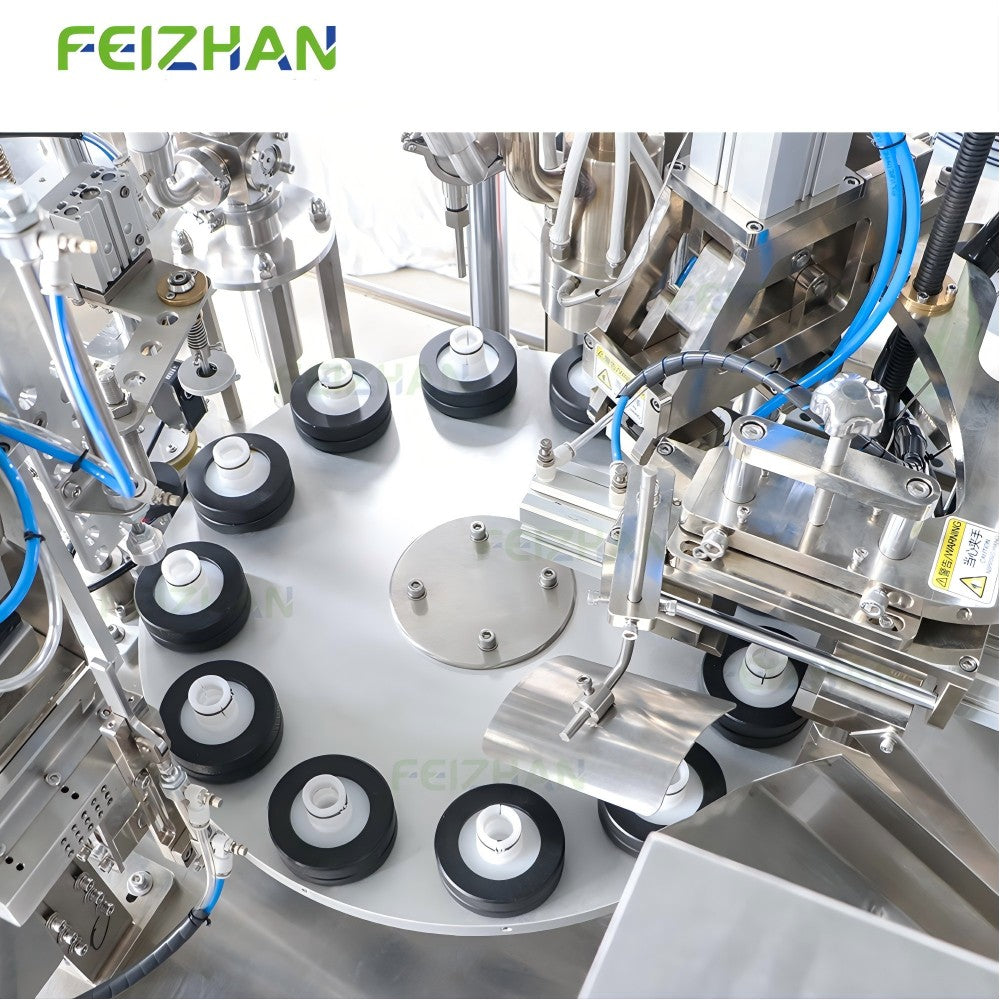

Each working station works at the same time, it can reach 30-50 pieces/min.

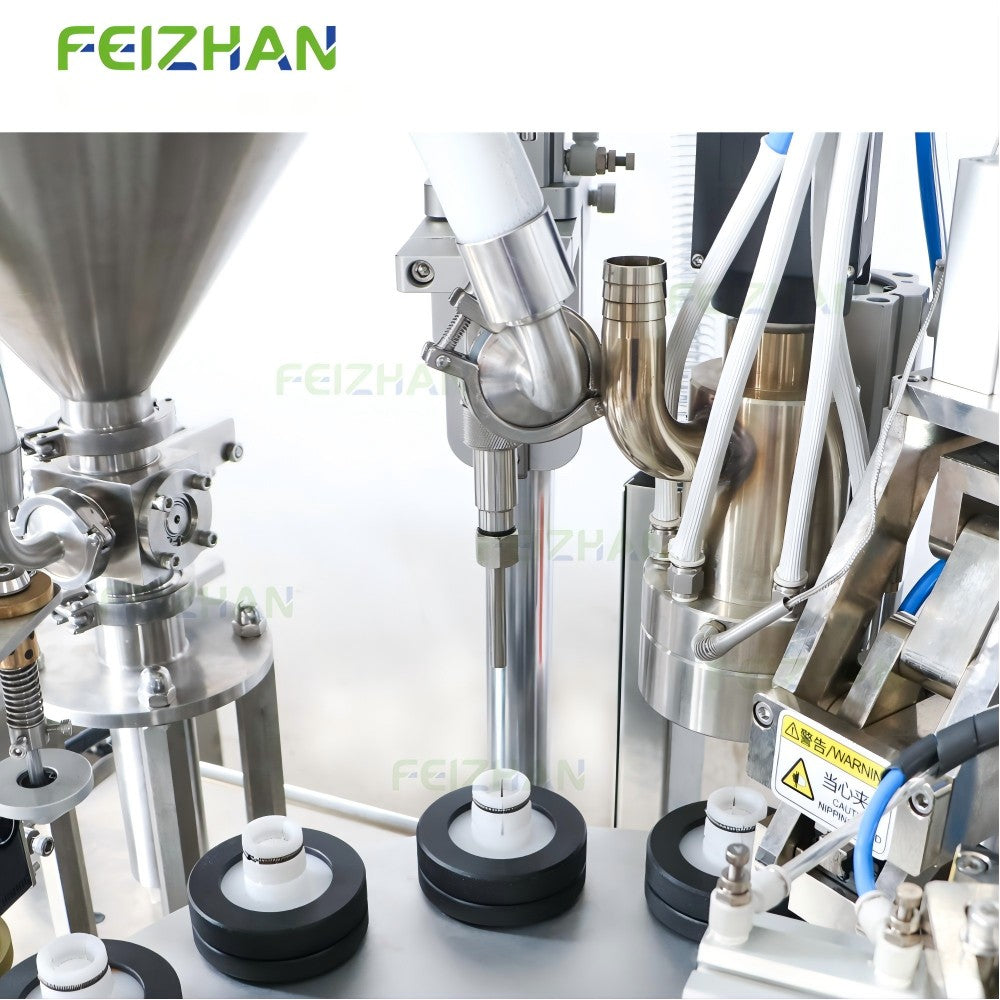

Filling nozzle can insert into tubes to prevent filling material from sticking to the tube wall.

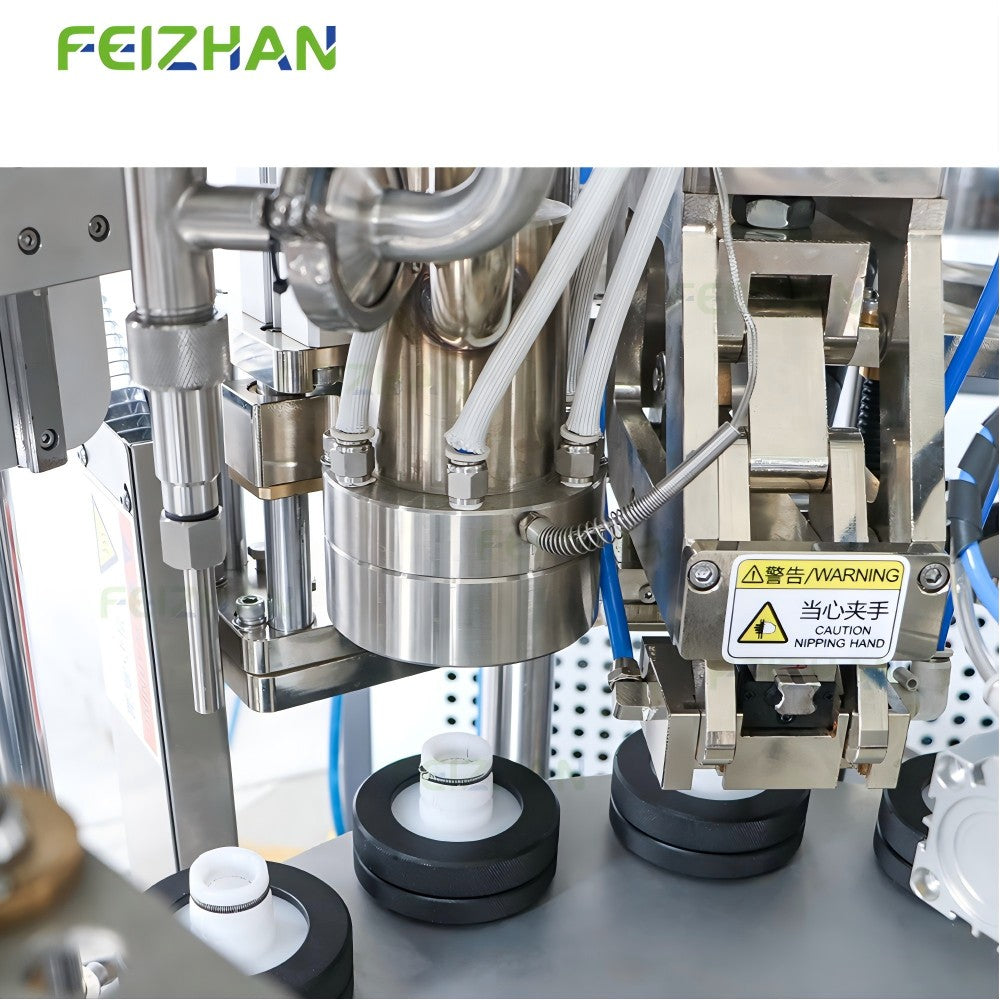

Can be raised and lowered to ensure consistent sealing height. Suitable for plastic composite soft tubes.

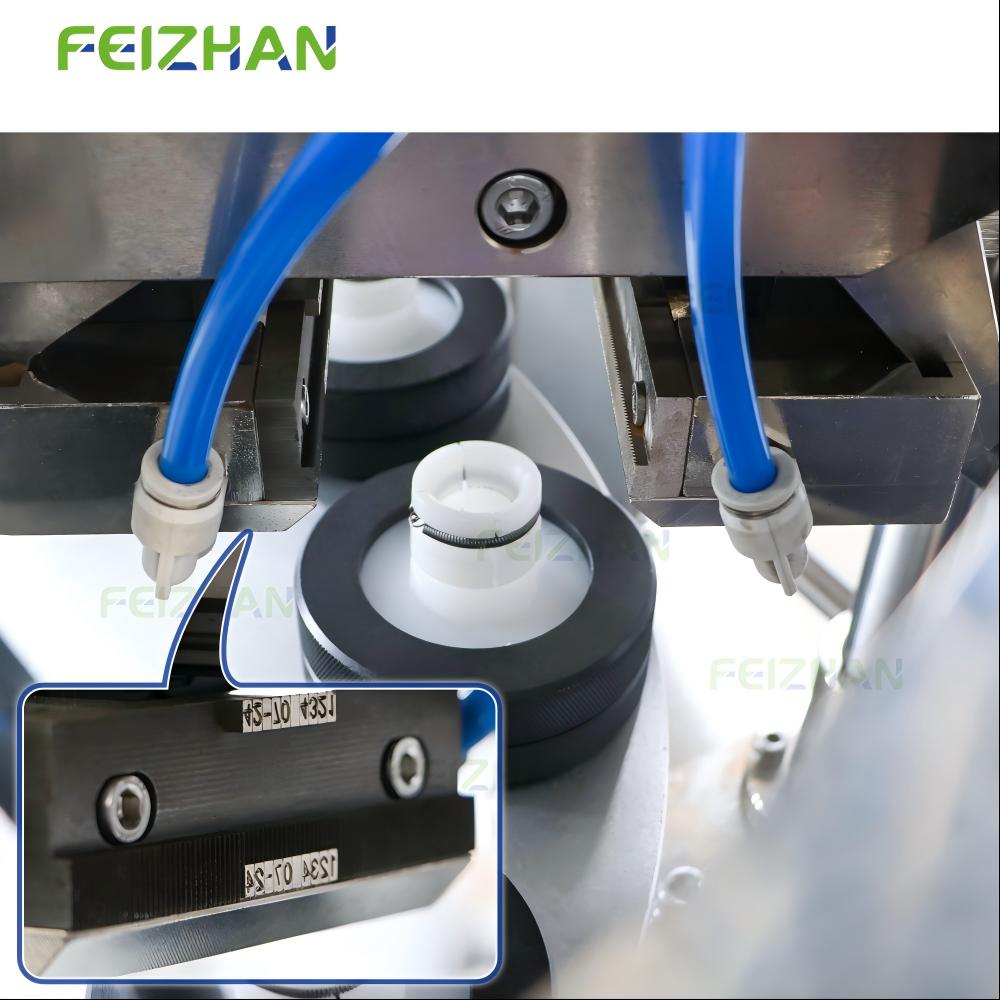

Can use letter molds to stamp production date or batch number on soft tubes.
Need to work with cooling machine to ensure packaging quality and safety operation.
Can supply filling material in time to save working labor.
FAQ
Q1: What products can this soft tube filling sealing machine be used for?
The ZS-FS007U soft tube filling sealing machine is suitable for viscous products such as mustard sauce, chili paste, ketchup, honey, cheese sauce, cosmetic creams, toothpaste, and other paste materials.
Q2: What tube materials and sizes are supported?
This machine supports plastic soft tubes and aluminum-plastic composite tubes, with tube diameters from φ16 to φ50 mm and tube lengths from 80 to 220 mm (customizable).
Q3: How accurate and efficient is the filling system?
The machine uses servo piston filling with a filling accuracy of up to ±1% and a stable production efficiency of 20–50 pieces per minute, depending on product viscosity and filling volume.
Q4: Does the machine support date or batch code printing?

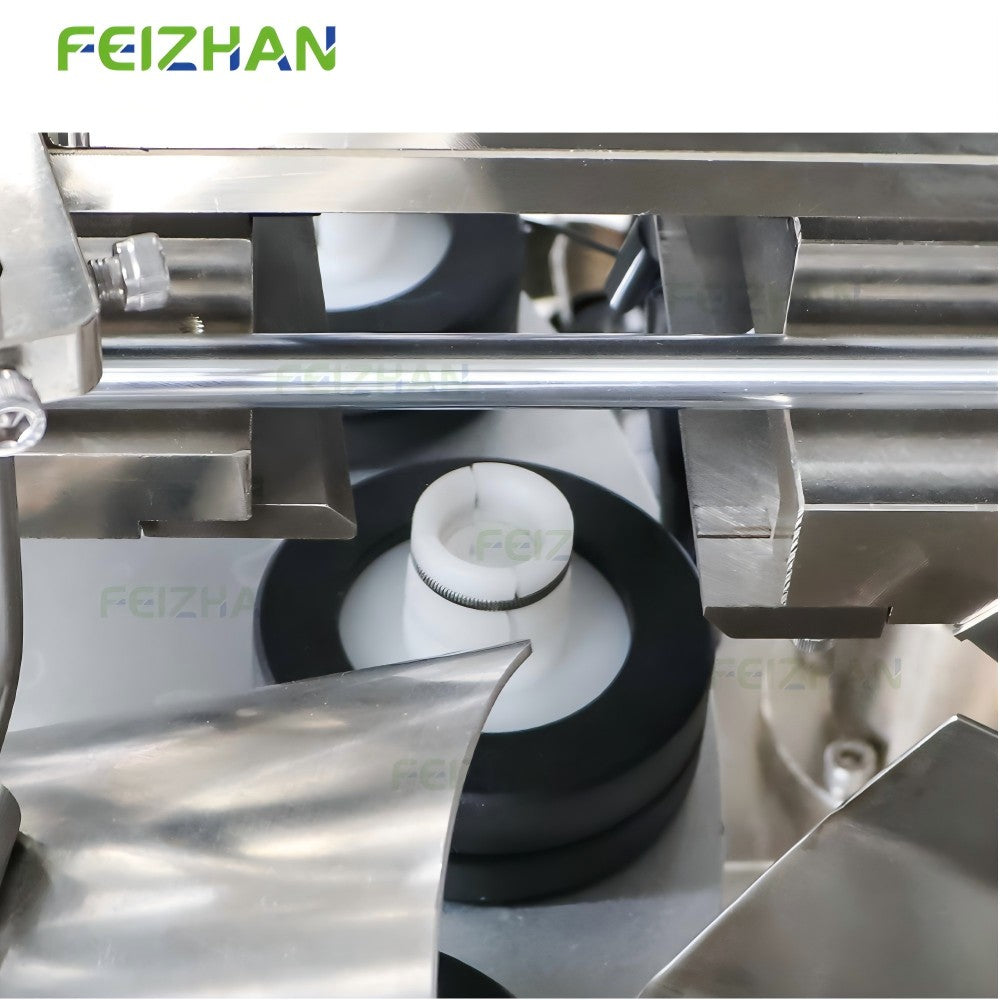

Yes. The sealing and cutting structure allows letter molds to stamp production dates or batch numbers directly on the soft tubes during sealing.
FEIZHAN
Automatic Servo Piston Plastic Soft Tube Filling Sealing Machine for Food & Sauce Packaging
$15,099.00
Estimated delivery between March 19 and March 21.
The FZ-FS007U is an automatic soft tube filling sealing machine designed for paste, mustard sauce and other viscous products. It supports plastic and aluminum-plastic composite tubes, features servo piston filling, tube positioning, date stamping, and stable output of 30–50 pieces per minute. Suitable for food-grade soft tube packaging such as mustard sauce, chili paste, ketchup, honey, cheese sauce, and other viscous edible products.
Soft Tube Filling Sealing Machine Parameter
- Machine Model: FZ-FS007U
- Voltage: 110/220V 50-60 HZ 4.5 KW
- Tube Material: Plastic Soft Tube, Composite Soft Tube
- Tube Diameter: φ16-50 mm
- Tube Length: 80-220 mm (Customizable)
- Filling Capacity: 4-30 ml/30-150 ml/50-300 ml (Customized))
- Filling Method: Servo Piston Filling
- Filling Accuracy: ±1%
- Production Efficiency: 20-50 pieces/min (based on filling volume and filling materials)
- Working Air Pressure: 0.6-0.8 Mpa
- Heat Sealing Power: 3.3 KW
- Machine Size: 1050*550*1070 mm(L*W*H)
- Package Size: 1720*1110*2030 mm(Main Machine)+ 460*440*1230 mm(Cooling Machine)
- Package Weight: 760 kg(Main Machine)+ 37 kg(Cooling Machine)
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
Working parameter settings are completed directly on the operation panel.
Can position soft tube before filling, improves working accuracy.
Each working station works at the same time, it can reach 30-50 pieces/min.
Filling nozzle can insert into tubes to prevent filling material from sticking to the tube wall.
Can be raised and lowered to ensure consistent sealing height. Suitable for plastic composite soft tubes.
Can use letter molds to stamp production date or batch number on soft tubes.
Need to work with cooling machine to ensure packaging quality and safety operation.
Can supply filling material in time to save working labor.
FAQ
Q1: What products can this soft tube filling sealing machine be used for?
The ZS-FS007U soft tube filling sealing machine is suitable for viscous products such as mustard sauce, chili paste, ketchup, honey, cheese sauce, cosmetic creams, toothpaste, and other paste materials.
Q2: What tube materials and sizes are supported?
This machine supports plastic soft tubes and aluminum-plastic composite tubes, with tube diameters from φ16 to φ50 mm and tube lengths from 80 to 220 mm (customizable).
Q3: How accurate and efficient is the filling system?
The machine uses servo piston filling with a filling accuracy of up to ±1% and a stable production efficiency of 20–50 pieces per minute, depending on product viscosity and filling volume.
Q4: Does the machine support date or batch code printing?
Yes. The sealing and cutting structure allows letter molds to stamp production dates or batch numbers directly on the soft tubes during sealing.
