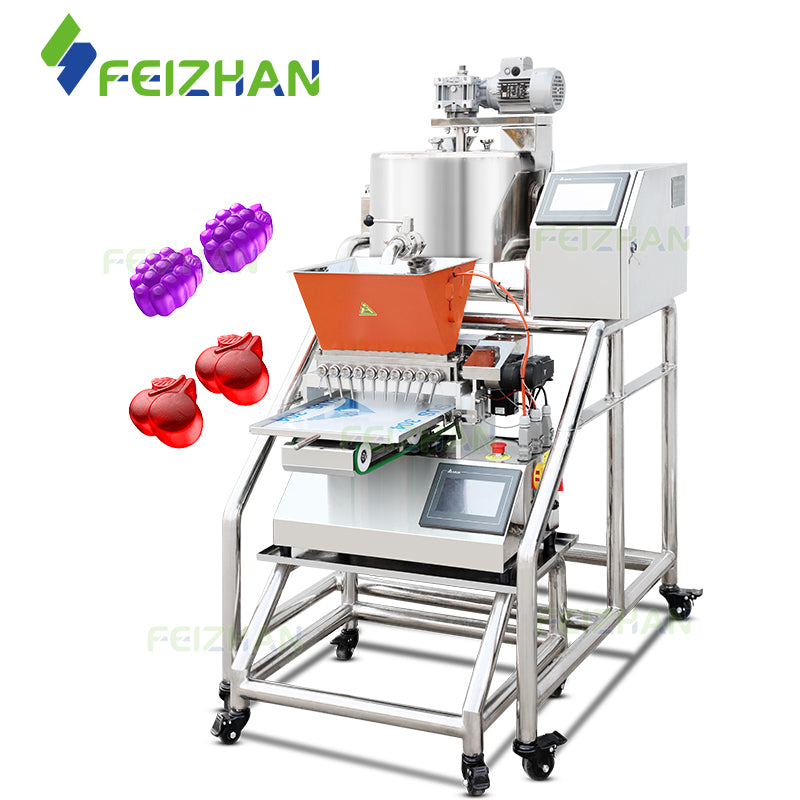

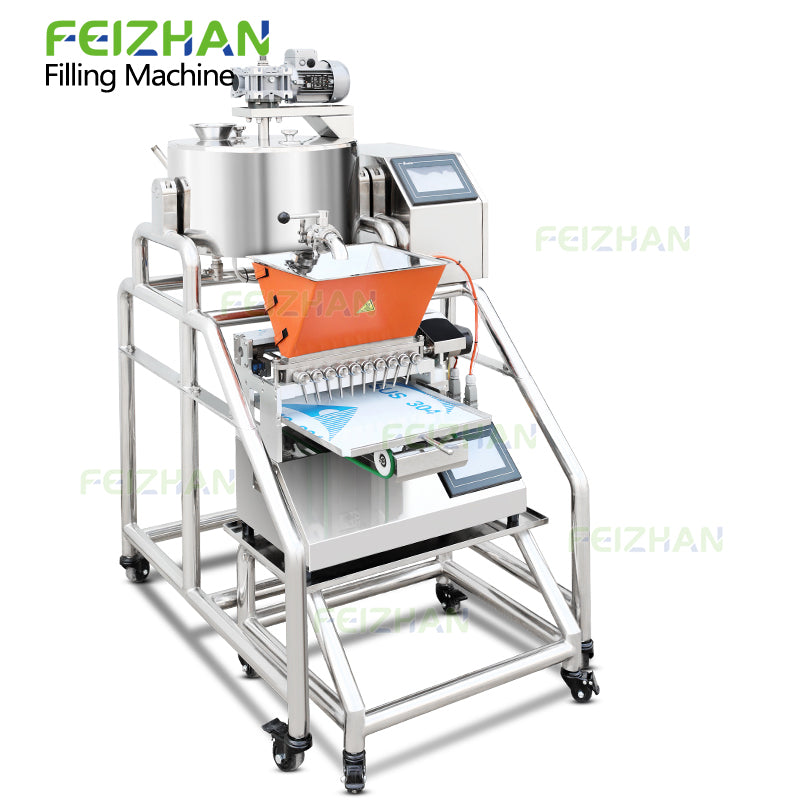

Semi-Automatic 10 Heads Gummy Depositing Machine with Cooking System
This semi-automatic gummy depositing machine is designed to simplify confectionery production by integrating cooking, mixing, and depositing into one compact system. With a 20L heated cooking tank and a 10L heated hopper, it ensures materials remain at optimal temperature for smooth and consistent filling.
Equipped with 10 precision depositing nozzles, the machine delivers accurate weight control (1–4.5g per piece) and a stable output of up to 24,000 pieces per hour. The built-in touchscreen control panel allows easy parameter adjustment and supports up to 60 recipe memories, making it ideal for manufacturers producing multiple candy types.
Constructed from food-grade 304 stainless steel, this machine is suitable for producing gummies, jelly candies, and chocolate products. Its compact design and reliable performance make it a practical choice for small to medium-scale production and growing confectionery businesses.
Key Features
All-in-One Cooking & Depositing
Integrates melting, mixing, and depositing into a single system, reducing manual steps and improving overall production efficiency.
High Output up to 24,000 pcs/hour
Designed for stable and continuous production, making it suitable for scaling from small batches to higher-volume manufacturing.
10 Heads Precision Depositing
Equipped with 10 nozzles for accurate filling (1–4.5g per piece), ensuring uniform size, shape, and weight across all products.
Smart Touchscreen Control
User-friendly interface allows easy parameter adjustment and stores up to 60 recipes, enabling fast product changeovers.
Stable Heating System
20L cooking tank with mixer and 10L heated hopper maintain optimal temperature, ensuring smooth flow and consistent depositing.
Food-Grade Stainless Steel Structure
Built with 304 stainless steel, ensuring hygiene, durability, and compliance with food production standards.
Compact & Space-Saving Design
Small footprint with flexible placement, ideal for workshops, startups, or limited production spaces.
Gummy Depositing Machine Parameter
- Machine Model: FZ-CTF50
- Voltage: 380V 50 Hz
- Heating Tubes: 2*3 kW
- Stirring Motor: 0.37/0.55 kW
- Heating Power: 6.5 kW / 380 V
- Depositing Nozzle: 10 Nozzles (Can be customized)
- Depositing Times: 6000-24000 pieces/hour
- Depositing Weight: 1-4.5 g for each time
- Hopper Capacity: 10 L
- Cooking Tank: 20L (With Mixer)
- Heating Temperature: Max 130℃
- Machine Material: 304 Stainless Steel
- Recipes Quantity: 60
- Filling Type: Piston Rod (Non-Pump Type)
- Sample Mold Size: 291.5*291.5*11.3 mm (Customizable, sold separately)
- Sample Cavity Size: 15.5*15.5*10 mm (Customizable)
- Sample Cavity Volume: 2.4 ml (Gummy 3.2 g, Chocolate 2.8 g) (Customizable)
- Machine Size: 650*550*600 mm
- Machine Weight: 65 kg
- Package Size: 750*740*900 mm
- Package Weight: 76 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

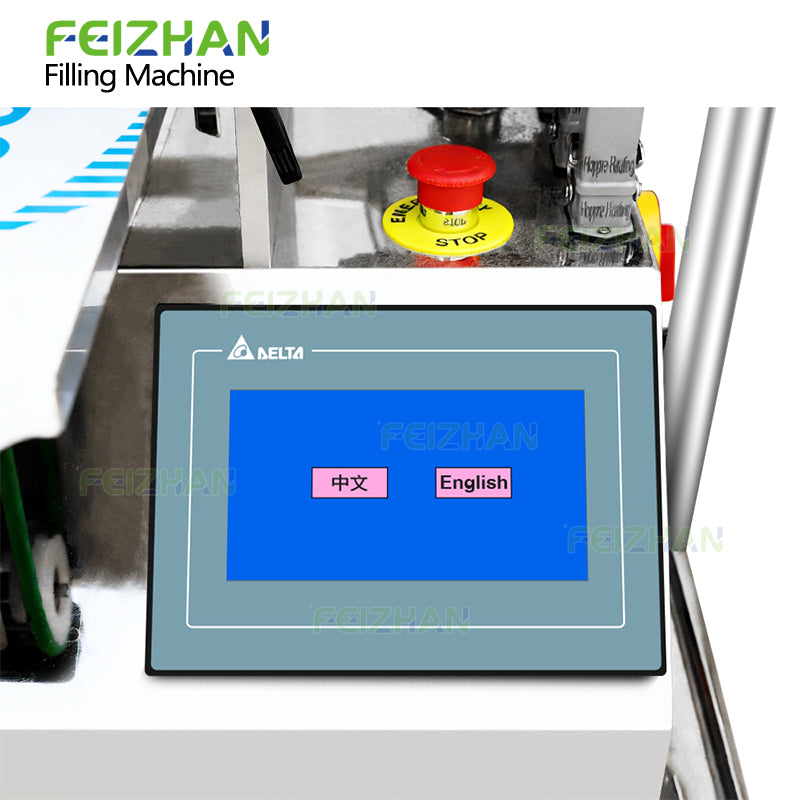

User-friendly touchscreen interface allows quick parameter adjustment and stores up to 60 recipes for different candy formulations. Reduce setup time and improve production flexibility.

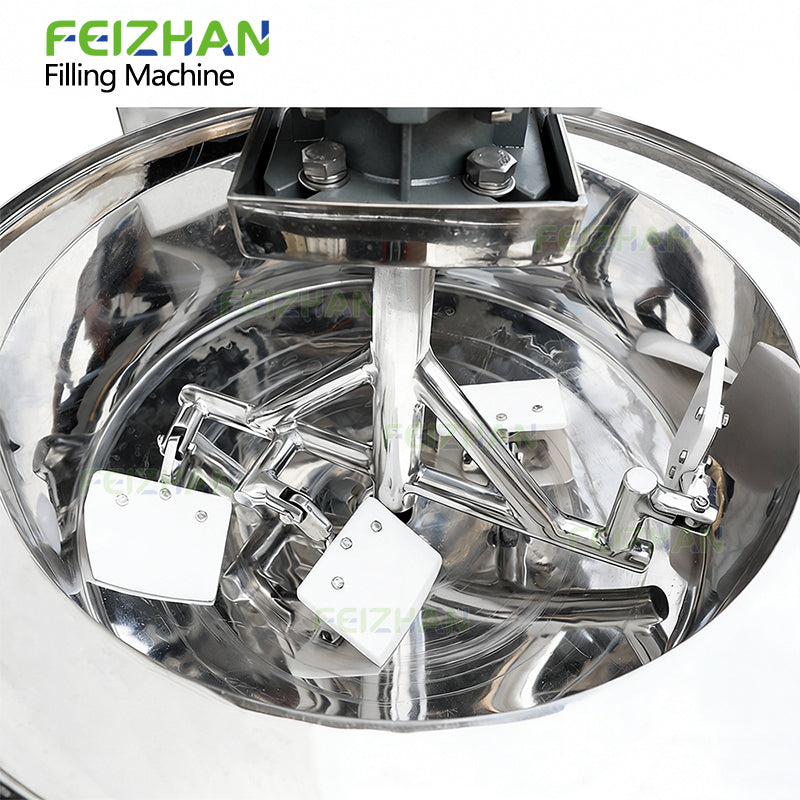

Equipped with a 20L heated tank and built-in mixer, ensuring raw materials are evenly melted and mixed for consistent product quality. Smooth discharge design minimizes residue and waste.

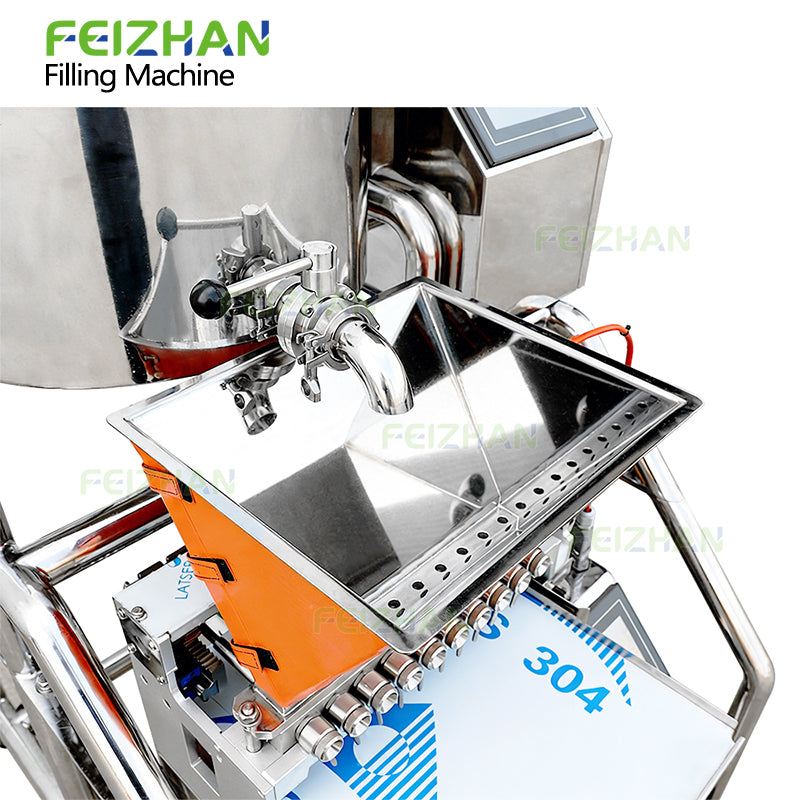

Keeps materials at optimal temperature to maintain proper viscosity, preventing clogging or inconsistent filling during operation.

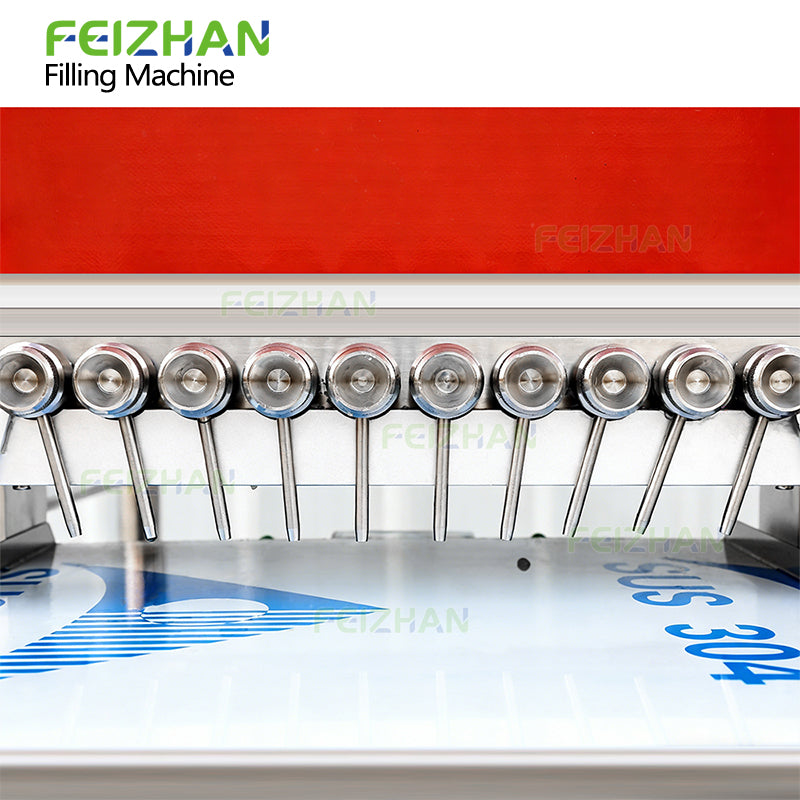

10 nozzles operate simultaneously to ensure accurate weight control (1–4.5g) and consistent shape across all molds. Boost productivity while maintaining product consistency.

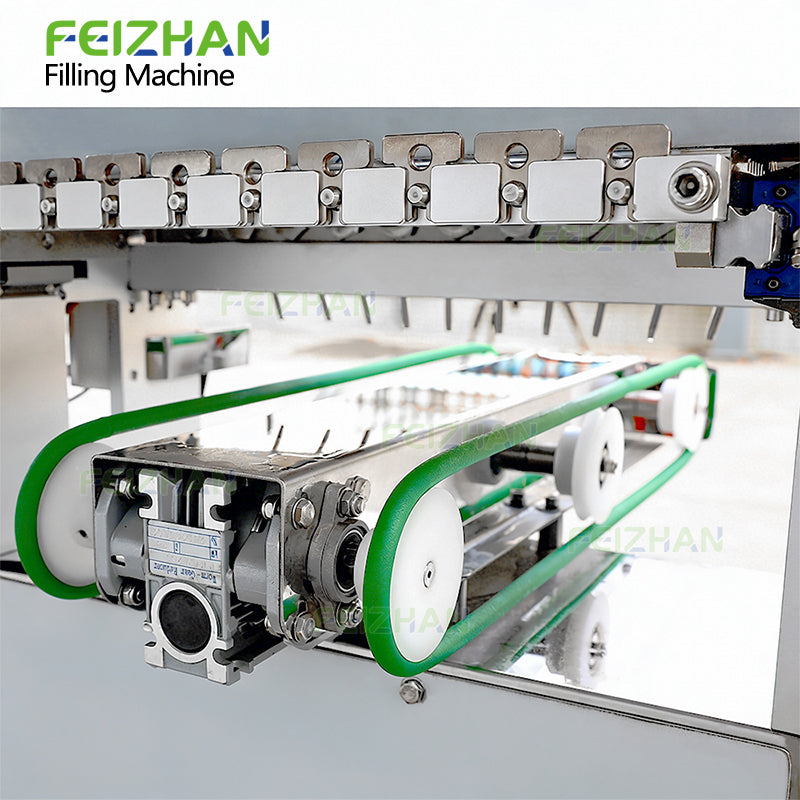

Ensures smooth and synchronized mold movement, reducing misalignment and enabling continuous, high-efficiency depositing.

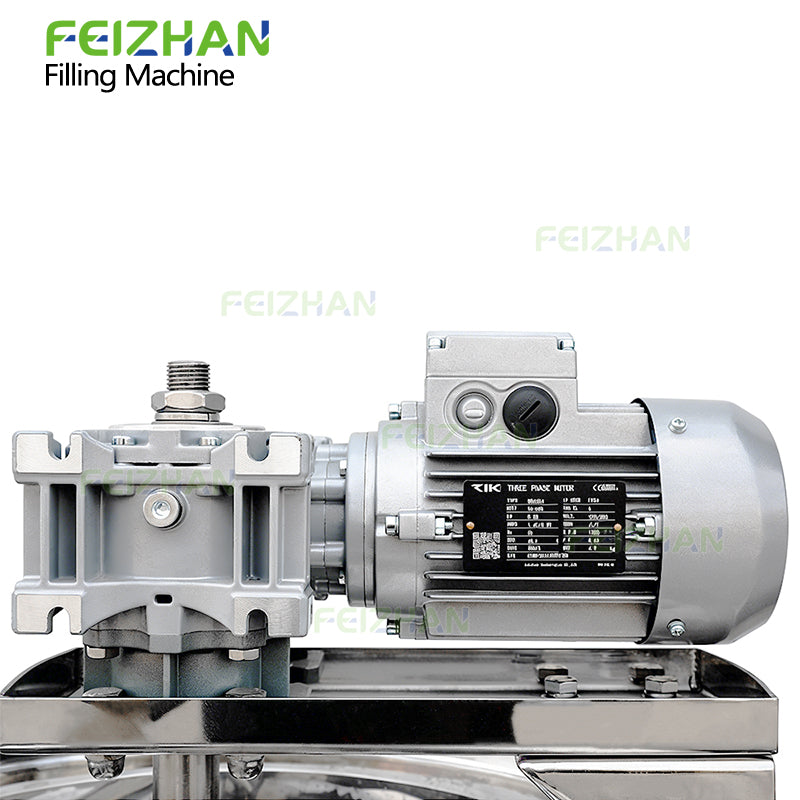

High-quality motor system provides stable operation and long-term durability, ensuring consistent production output.
FAQ
Q1: What products can this machine produce?
It is suitable for gummies, jelly candies, chocolate, and other liquid confectionery products.
Q2: Can the mold be customized?
Yes, silicone molds can be customized based on your product shape and size.
Q3: Is this machine suitable for small business?
Yes, its compact design and semi-automatic operation make it ideal for startups and small factories.
Q4: How accurate is the depositing weight?
The machine ensures precise filling with a range of 1–4.5g per piece.
Q5: Does it support multiple recipes?
Yes, up to 60 recipes can be stored and switched easily.
