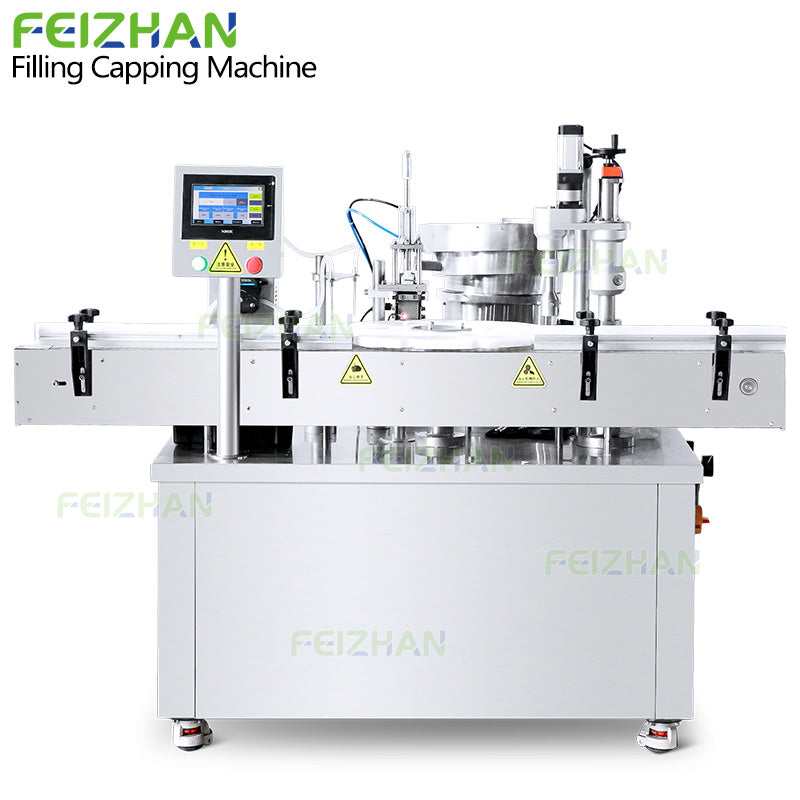

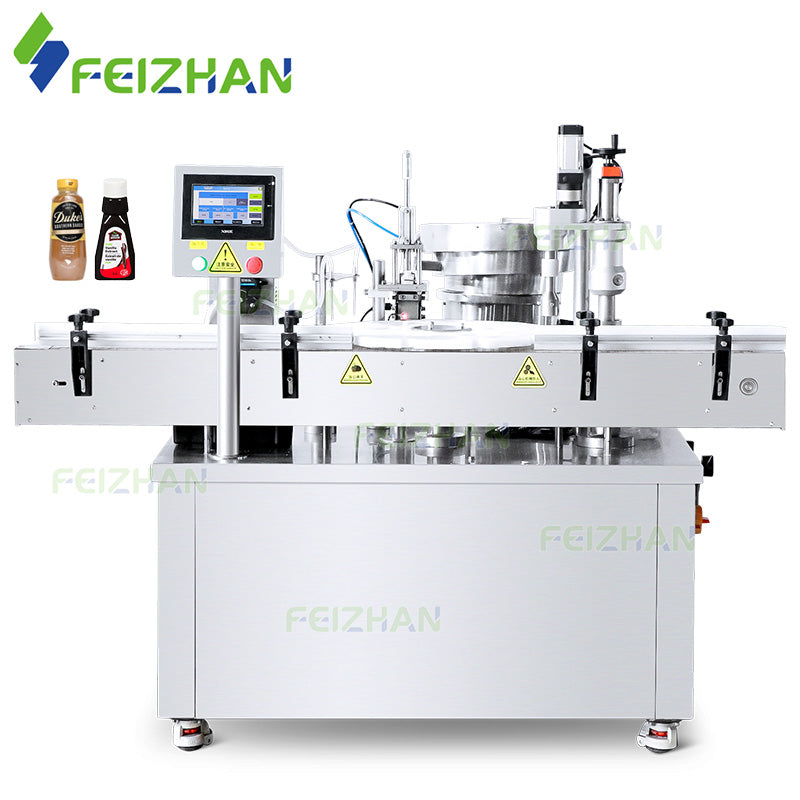

Automatic Peristaltic Pump Food Liquid Filling Capping Machine for Small Bottles
This automatic food liquid filling capping machine is designed for hygienic, small-volume packaging of low-viscosity edible liquids such as flavorings, extracts, light syrups, vinegar-based seasonings, and food additives. It uses a Peristaltic Pump system where the liquid only contacts the tubing, preventing cross-contamination and ensuring product purity. The monoblock structure integrates filling, cap feeding, and servo-controlled capping, delivering stable operation, ±1% accuracy, and efficient production for 10–60 ml food bottles.
Food Liquid Filling Capping Machine Parameter
- Machine Model: FZ-AFC32
- Voltage: 110/220V 50-60HZ
- Filling Pump: Peristaltic Pump
- Filling Hose Size: #17
- Filling Nozzle Quantity: 2
- Filling Range: 10-60 ml(Customized)
- Filling Accuracy: ±1%
- Working Capacity: About 30 BPM
- Material of Filling Nozzle: SUS304
- Material of Vibratory Bowl Sorter: SUS304
- Machine Size: 1800*1670*1450 mm(L*W*H)
- Package Size: 2490*960*1670 mm(L*W*H)
- Package weight: About 632 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required
Equipped with an easy-to-use touchscreen interface, operators can quickly set filling volume, speed, and working parameters. The system displays real-time production status and coordinates filling and capping actions for stable operation.

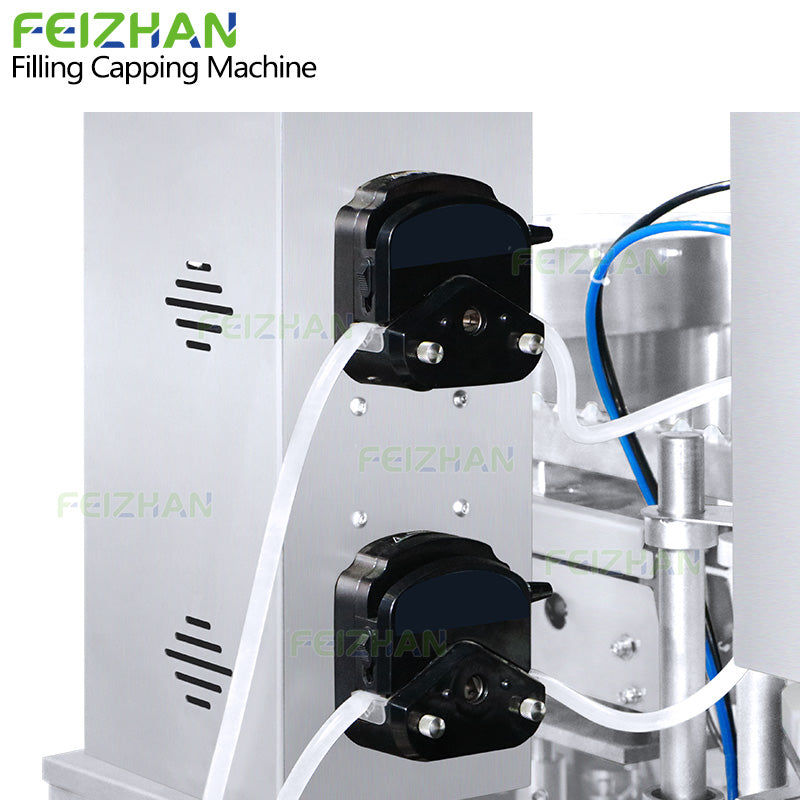

Equipped with a hygienic Peristaltic Pump system, the liquid only flows inside the tubing without contacting pump components, preventing cross-contamination and ensuring food-grade purity. Ideal for precise filling of low-viscosity liquids such as flavorings and extracts. Filling accuracy up to ±1%.

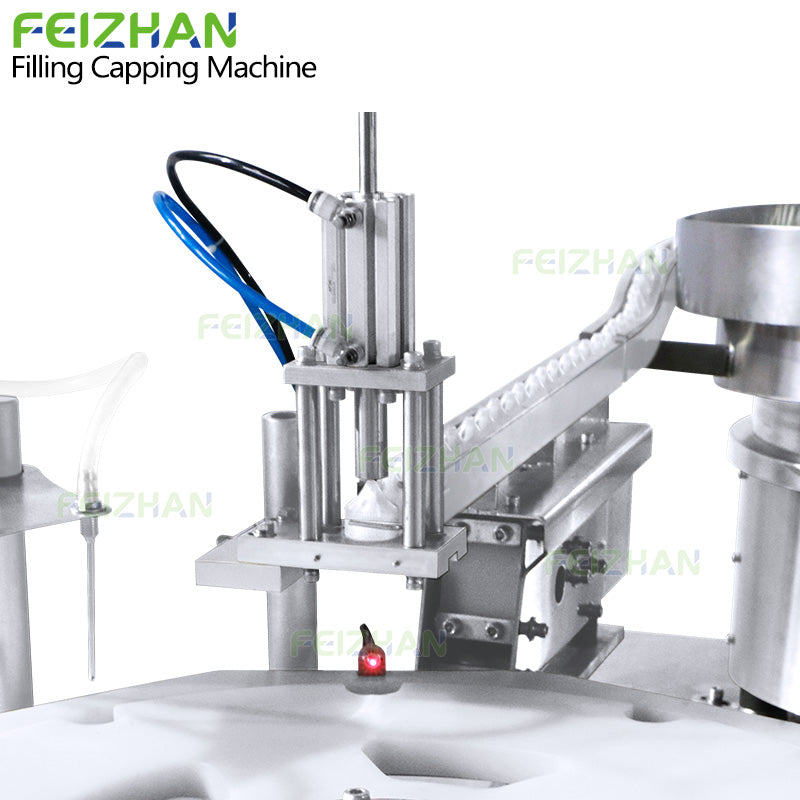

Sensors detect bottle presence and coordinate filling and capping actions. When no bottle is detected, the cap placing unit stops automatically, preventing cap waste and dry operation.

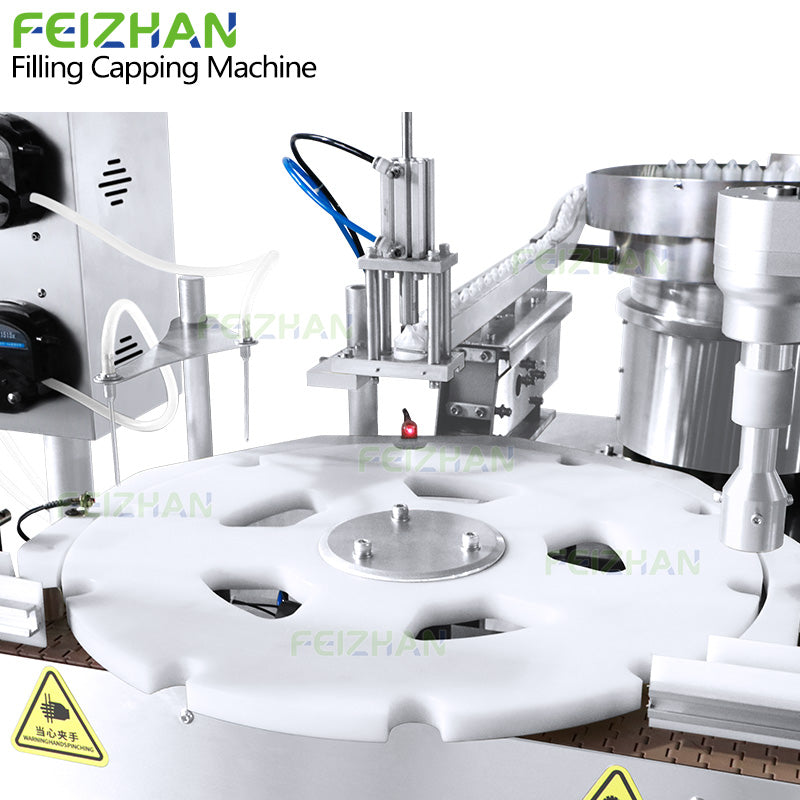

Combines bottle feeding, filling, cap placing, and capping in one compact structure. Saves floor space and simplifies production line layout for food liquid packaging.

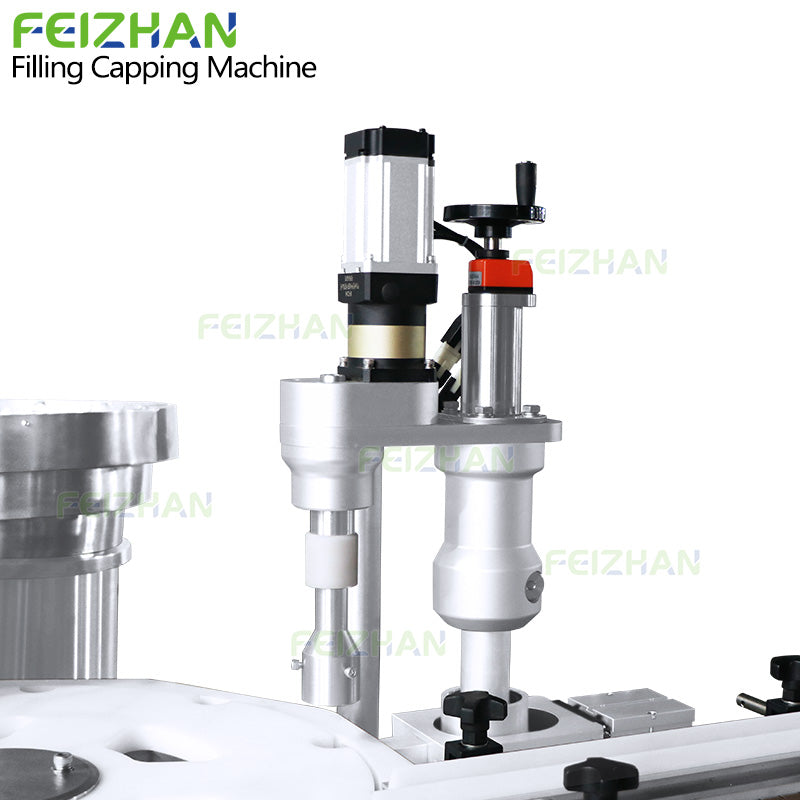

The servo-driven capping system provides precise torque control, ensuring caps are tightened consistently without damage or leakage. Suitable for food bottles requiring reliable sealing.
❓ Frequently Asked Questions
1. What type of food products is this machine suitable for?
This machine is designed for low-viscosity edible liquids such as food flavorings, vanilla extract, light syrups, vinegar-based seasonings, and liquid food additives. It is not recommended for thick products like honey, jam, or paste-type sauces.
2. Why does this machine use a peristaltic pump?
The filling system uses a peristaltic pump, where liquid only contacts the tubing. This prevents cross-contamination and ensures hygienic filling, making it ideal for food-grade production and small-batch packaging.
3. What is the filling accuracy?
The machine offers filling accuracy of up to ±1%, suitable for precision dosing of extracts, flavor essences, and food additives.
4. What bottle size can it handle?
It is suitable for small bottles, typically in the 10–60 ml range (customizable). Changeable starwheels allow adaptation to different bottle diameters.
5. Is the machine easy to operate?
Yes. It features an intuitive control panel that allows quick parameter setting, production monitoring, and stable automated operation, reducing manual intervention.
6. Can it integrate with other equipment?
Yes, the machine’s compact monoblock structure allows it to connect with bottle feeding, labeling, or downstream packaging equipment to form a complete food liquid packaging line.
FEIZHAN
Automatic Peristaltic Pump Food Liquid Filling Capping Machine for Small Bottles
$12,799.00
Estimated delivery between March 20 and March 22.
This automatic food liquid filling capping machine is designed for hygienic, small-volume packaging of low-viscosity edible liquids such as flavorings, extracts, light syrups, vinegar-based seasonings, and food additives. It uses a Peristaltic Pump system where the liquid only contacts the tubing, preventing cross-contamination and ensuring product purity. The monoblock structure integrates filling, cap feeding, and servo-controlled capping, delivering stable operation, ±1% accuracy, and efficient production for 10–60 ml food bottles.
Food Liquid Filling Capping Machine Parameter
- Machine Model: FZ-AFC32
- Voltage: 110/220V 50-60HZ
- Filling Pump: Peristaltic Pump
- Filling Hose Size: #17
- Filling Nozzle Quantity: 2
- Filling Range: 10-60 ml(Customized)
- Filling Accuracy: ±1%
- Working Capacity: About 30 BPM
- Material of Filling Nozzle: SUS304
- Material of Vibratory Bowl Sorter: SUS304
- Machine Size: 1800*1670*1450 mm(L*W*H)
- Package Size: 2490*960*1670 mm(L*W*H)
- Package weight: About 632 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required
Equipped with an easy-to-use touchscreen interface, operators can quickly set filling volume, speed, and working parameters. The system displays real-time production status and coordinates filling and capping actions for stable operation.
Equipped with a hygienic Peristaltic Pump system, the liquid only flows inside the tubing without contacting pump components, preventing cross-contamination and ensuring food-grade purity. Ideal for precise filling of low-viscosity liquids such as flavorings and extracts. Filling accuracy up to ±1%.
Sensors detect bottle presence and coordinate filling and capping actions. When no bottle is detected, the cap placing unit stops automatically, preventing cap waste and dry operation.
Combines bottle feeding, filling, cap placing, and capping in one compact structure. Saves floor space and simplifies production line layout for food liquid packaging.
The servo-driven capping system provides precise torque control, ensuring caps are tightened consistently without damage or leakage. Suitable for food bottles requiring reliable sealing.
❓ Frequently Asked Questions
1. What type of food products is this machine suitable for?
This machine is designed for low-viscosity edible liquids such as food flavorings, vanilla extract, light syrups, vinegar-based seasonings, and liquid food additives. It is not recommended for thick products like honey, jam, or paste-type sauces.
2. Why does this machine use a peristaltic pump?
The filling system uses a peristaltic pump, where liquid only contacts the tubing. This prevents cross-contamination and ensures hygienic filling, making it ideal for food-grade production and small-batch packaging.
3. What is the filling accuracy?
The machine offers filling accuracy of up to ±1%, suitable for precision dosing of extracts, flavor essences, and food additives.
4. What bottle size can it handle?
It is suitable for small bottles, typically in the 10–60 ml range (customizable). Changeable starwheels allow adaptation to different bottle diameters.
5. Is the machine easy to operate?
Yes. It features an intuitive control panel that allows quick parameter setting, production monitoring, and stable automated operation, reducing manual intervention.
6. Can it integrate with other equipment?
Yes, the machine’s compact monoblock structure allows it to connect with bottle feeding, labeling, or downstream packaging equipment to form a complete food liquid packaging line.
