Automatic Rotor Pump Cup Puree Weighing Filling and Sealing Packaging Line for Food Packaging

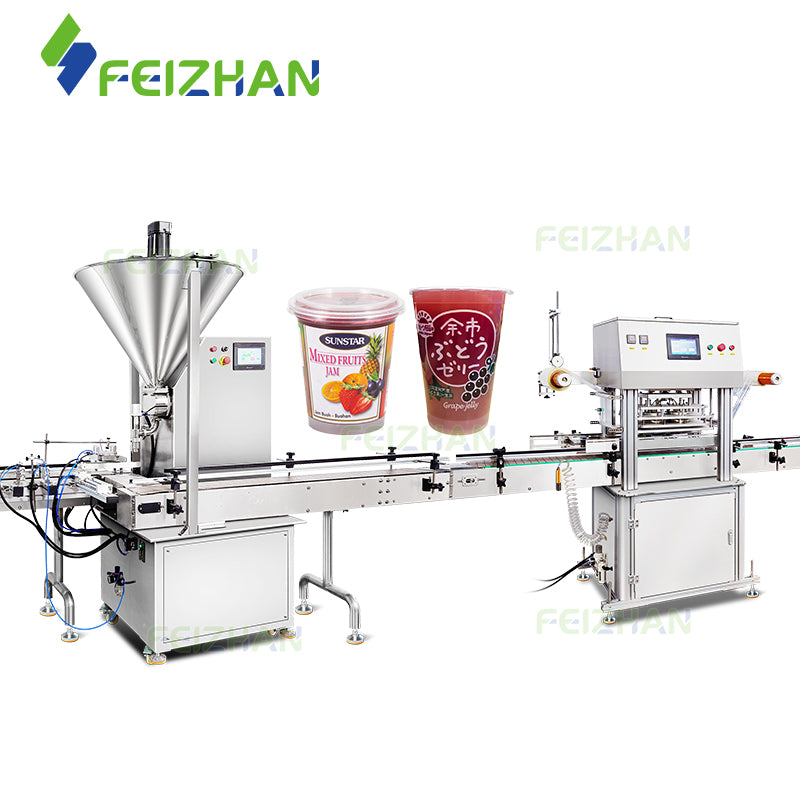

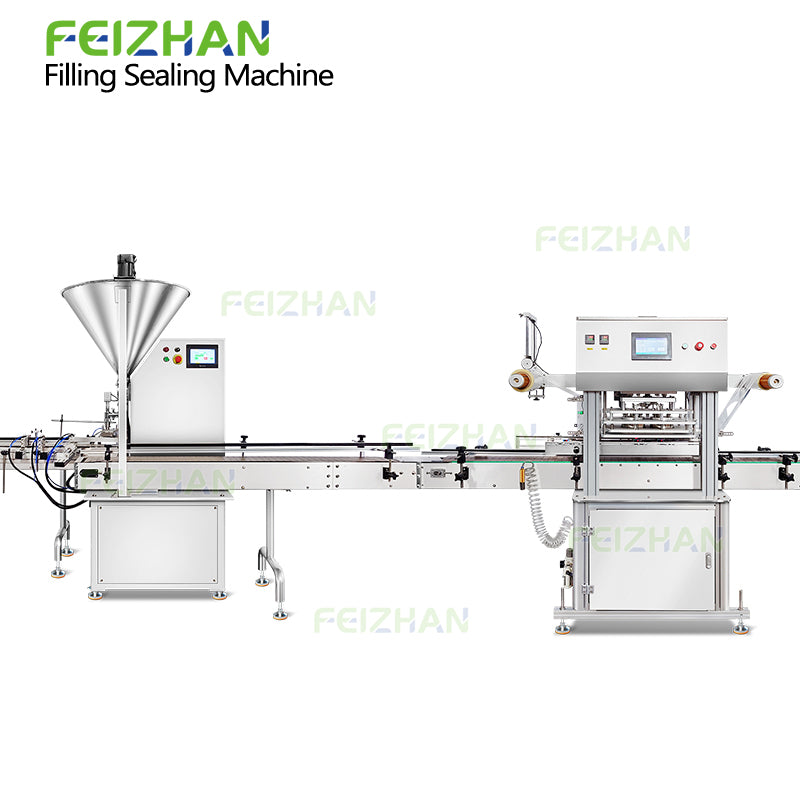

This automatic cup filling and sealing line integrates a rotor pump weighing filling machine with a flexible sealing system, designed for puree and other high-viscosity pastes. It delivers precise dosing through a weighing function, supports round and square cup sealing, and ensures uniform product consistency with an integrated mixing system. Ideal for food applications requiring accuracy, hygiene, and customizable production capacity.
Filling Machine Parameter
- Machine Model: FZ-RPVW1
- Machine Voltage: 110/220 V 50-60 HZ 2.5 KW
- Filling Pump: Rotor Pump
- Filling Range: 50-5000 ml
- Weighing Range: 0-8000 g
- Filling Accuracy: ±1%
- Bottle Size: 40-150*80-140 mm(φ*H) (Customizable)
- Hopper Size: 80 L
- Working Capacity: 8-10 BPM (Based on 1000 ml filling volume)
Sealing Machine Parameter
- Machine Model: FZ-FKR2T
- Machine Voltage: 110/220V 50-60 HZ 2 KW
- Quantity of Sealing Heads: 1/2/3/4 (Can be customized based on bottle size)
- Working Speed: 900-1200 BPH
- Heating Temperature: 0-300 ℃
- Sealing Diameter: 50-250 mm(Round or Square, Can be Customized )
- Suitable Film Size: 2-3 mm Larger than bottle mouth
- Suitable Film Material: PP/PE/PET/PS/ Aluminum foil film
- Air Pressure: 4-8 kg/cm²
- Machine Size: 2500*1000*1500 MM
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

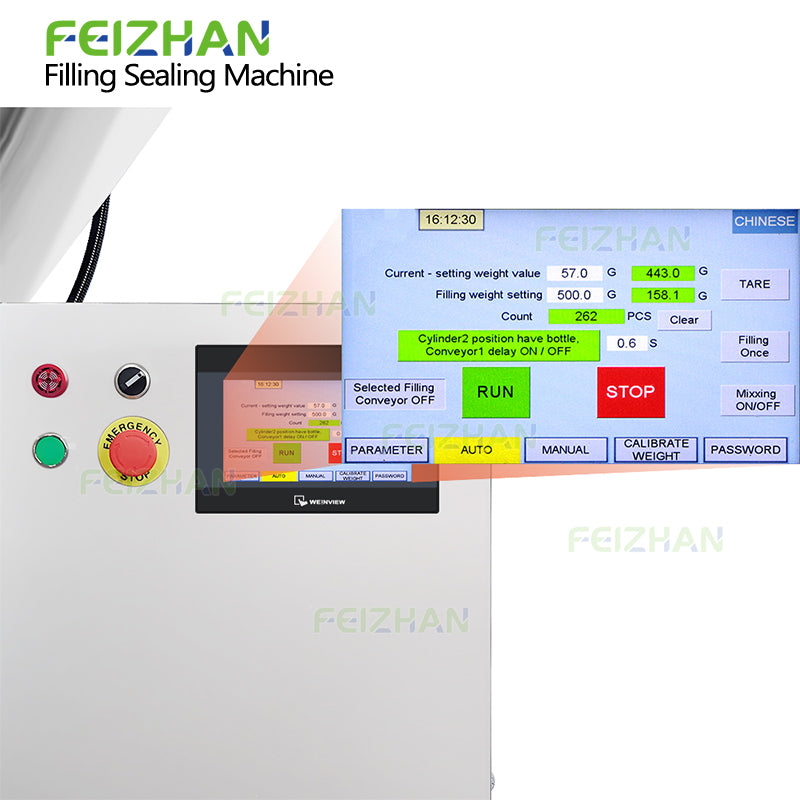

Parameter settings are intuitive and easy to adjust. The touchscreen supports multi-language operation and allows quick switching between different filling weights and production modes.

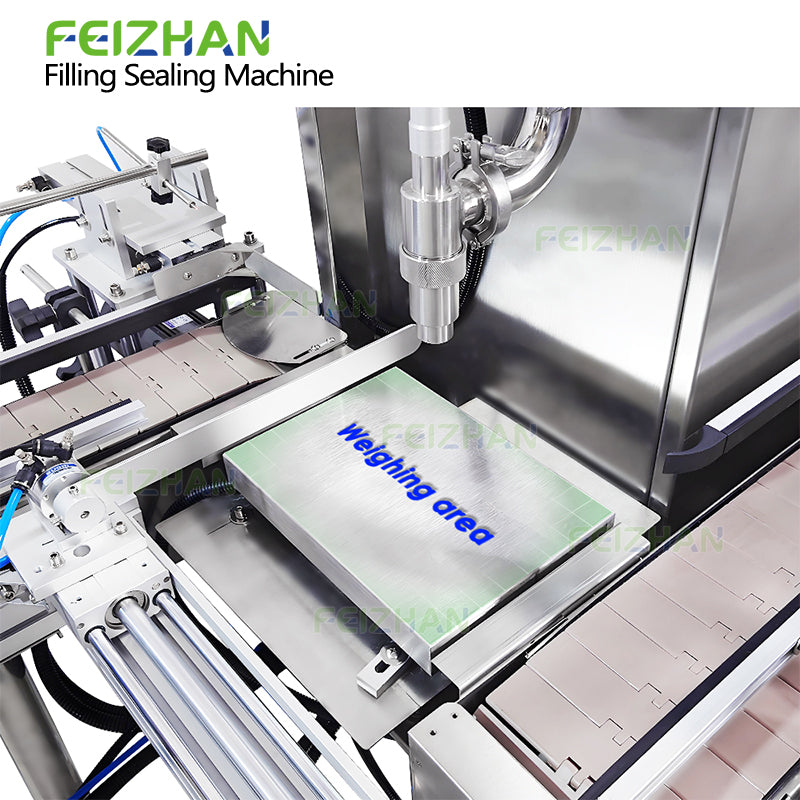

The integrated weighing scale controls filling by weight, ensuring high filling accuracy and consistency. Ideal for puree and other high-viscosity pastes where precise dosing is required.
Equipped with a large-capacity hopper to ensure stable material feeding. Mixing and heating functions are optional to maintain uniform paste consistency during continuous production.

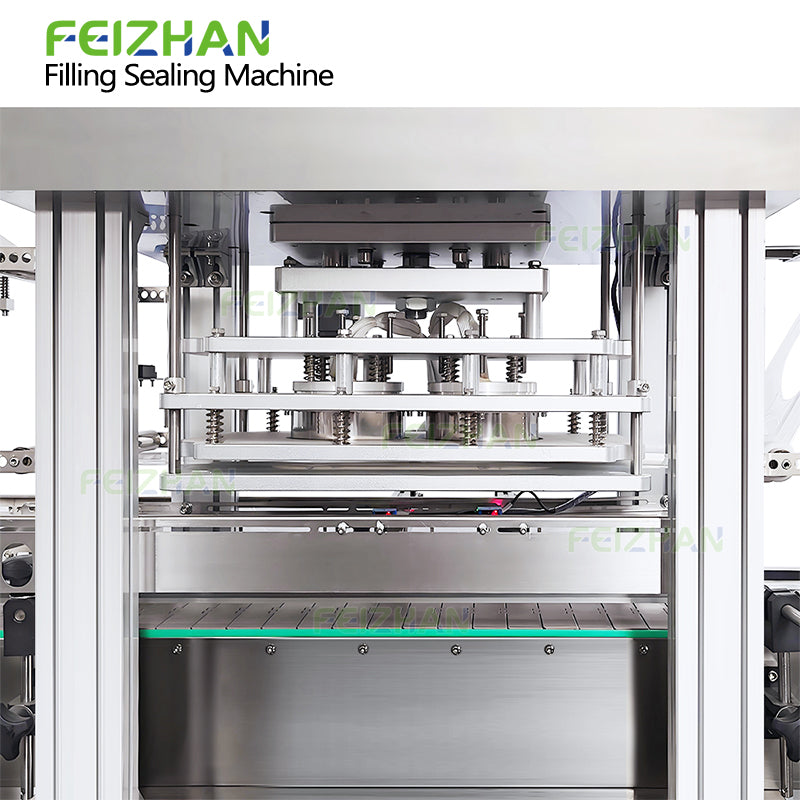

The sealing molds can be customized for different cup sizes and shapes. Supports both round and square seals, suitable for various packaging designs and film materials.

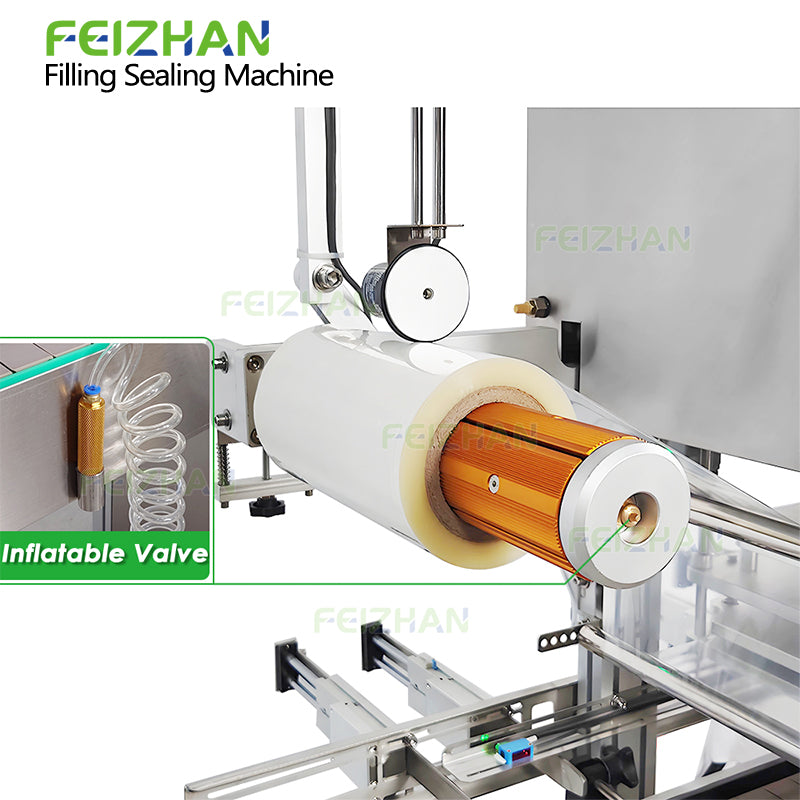

Designed with a stable film winding and fixing structure to ensure smooth film pulling and accurate sealing. Reduces film deviation and improves sealing reliability.

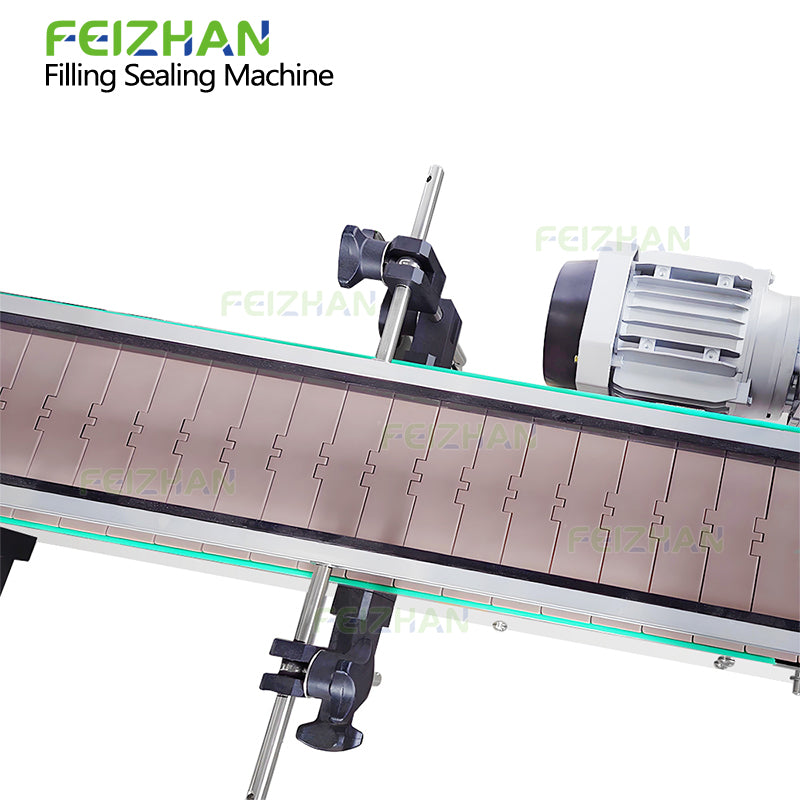

Heavy-duty conveyor with customizable width, length, and load capacity. Ensures smooth cup transfer and stable operation throughout the filling and sealing process.
FAQ
Q1: What types of products can this machine handle?
This filling and sealing line is designed for puree and other high-viscosity pastes, such as fruit puree, baby food, jam, sauce, and similar food products that require accurate weight control.
Q2: How does the weighing filling system improve accuracy?
The machine uses an integrated weighing system to control the filling process by weight rather than volume. This ensures consistent filling results and reduces product waste, especially for high-viscosity materials.
Q3: Can the machine support different cup sizes and sealing shapes?
Yes. The filling range, cup size, and sealing molds can all be customized. The sealing system supports both round and square cup sealing to meet different packaging design requirements.
Q4: Is the machine suitable for continuous food production?
Yes. The machine is built with food-grade materials and a stable conveyor system. Optional mixing and heating functions help maintain uniform product consistency during continuous operation.
FEIZHAN
Automatic Rotor Pump Cup Puree Weighing Filling and Sealing Packaging Line for Food Packaging
$16,799.00
Estimated delivery between March 20 and March 22.
This automatic cup filling and sealing line integrates a rotor pump weighing filling machine with a flexible sealing system, designed for puree and other high-viscosity pastes. It delivers precise dosing through a weighing function, supports round and square cup sealing, and ensures uniform product consistency with an integrated mixing system. Ideal for food applications requiring accuracy, hygiene, and customizable production capacity.
Filling Machine Parameter
- Machine Model: FZ-RPVW1
- Machine Voltage: 110/220 V 50-60 HZ 2.5 KW
- Filling Pump: Rotor Pump
- Filling Range: 50-5000 ml
- Weighing Range: 0-8000 g
- Filling Accuracy: ±1%
- Bottle Size: 40-150*80-140 mm(φ*H) (Customizable)
- Hopper Size: 80 L
- Working Capacity: 8-10 BPM (Based on 1000 ml filling volume)
Sealing Machine Parameter
- Machine Model: FZ-FKR2T
- Machine Voltage: 110/220V 50-60 HZ 2 KW
- Quantity of Sealing Heads: 1/2/3/4 (Can be customized based on bottle size)
- Working Speed: 900-1200 BPH
- Heating Temperature: 0-300 ℃
- Sealing Diameter: 50-250 mm(Round or Square, Can be Customized )
- Suitable Film Size: 2-3 mm Larger than bottle mouth
- Suitable Film Material: PP/PE/PET/PS/ Aluminum foil film
- Air Pressure: 4-8 kg/cm²
- Machine Size: 2500*1000*1500 MM
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
Parameter settings are intuitive and easy to adjust. The touchscreen supports multi-language operation and allows quick switching between different filling weights and production modes.
The integrated weighing scale controls filling by weight, ensuring high filling accuracy and consistency. Ideal for puree and other high-viscosity pastes where precise dosing is required.
Equipped with a large-capacity hopper to ensure stable material feeding. Mixing and heating functions are optional to maintain uniform paste consistency during continuous production.
The sealing molds can be customized for different cup sizes and shapes. Supports both round and square seals, suitable for various packaging designs and film materials.
Designed with a stable film winding and fixing structure to ensure smooth film pulling and accurate sealing. Reduces film deviation and improves sealing reliability.
Heavy-duty conveyor with customizable width, length, and load capacity. Ensures smooth cup transfer and stable operation throughout the filling and sealing process.
FAQ
Q1: What types of products can this machine handle?
This filling and sealing line is designed for puree and other high-viscosity pastes, such as fruit puree, baby food, jam, sauce, and similar food products that require accurate weight control.
Q2: How does the weighing filling system improve accuracy?
The machine uses an integrated weighing system to control the filling process by weight rather than volume. This ensures consistent filling results and reduces product waste, especially for high-viscosity materials.
Q3: Can the machine support different cup sizes and sealing shapes?
Yes. The filling range, cup size, and sealing molds can all be customized. The sealing system supports both round and square cup sealing to meet different packaging design requirements.
Q4: Is the machine suitable for continuous food production?
Yes. The machine is built with food-grade materials and a stable conveyor system. Optional mixing and heating functions help maintain uniform product consistency during continuous operation.
