FEIZHAN

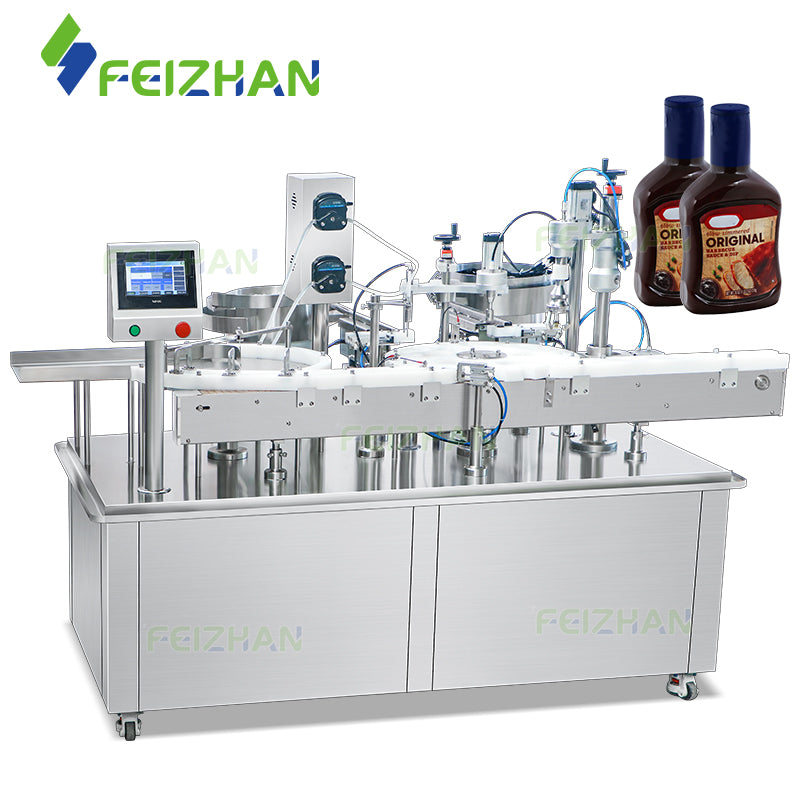

Automatic Small Bottle Food Liquid Filling Capping Machine with Inner Stopper
This monoblock liquid filling and capping machine is also suitable for food-grade liquid products such as syrup, vinegar, edible oil, and liquid seasonings. Equipped with a peristaltic pump, it ensures hygienic filling and precise dosing, while the inner stopper and screw cap system helps control dripping and improves user experience for high-value food products.
Liquid Filling Capping Machine Parameter
- Machine Model: FZ-AFC43
- Voltage: 110/220V 50-60 HZ 3 KW
- Filling Pump: Peristaltic Pump
- Working Capacity: 30-45 BPM(Based on filling range)
- Filling Accuracy: ±1 %
- Suitable Bottle Size: Customizable
- Suitable Cap Size: Customizable
- Main Machine Size: 2200*1630*1430 mm
- Size of Vibratory Bowl Sorter For Stopper: 605*455*1040 mm
- Size of Vibratory Bowl Sorter For Caps: 605*455*1070 mm
- Total Machine Weight: ≤ 600 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

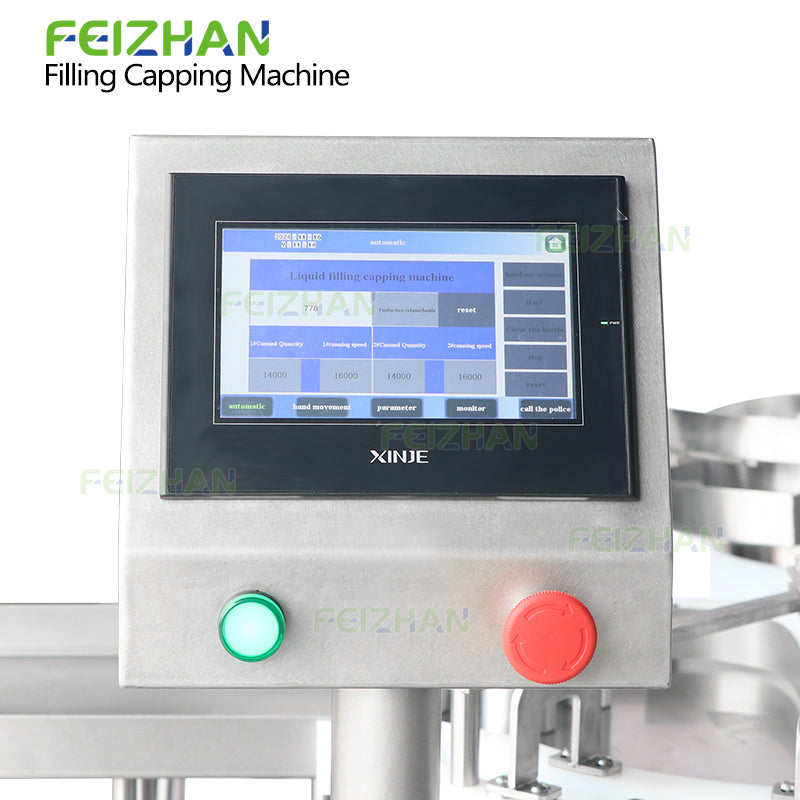

PLC touch screen control panel allows intuitive operation and quick parameter adjustment. Filling volume, speed, and capping settings can be easily controlled to ensure stable and consistent filling performance for food-grade liquid products.

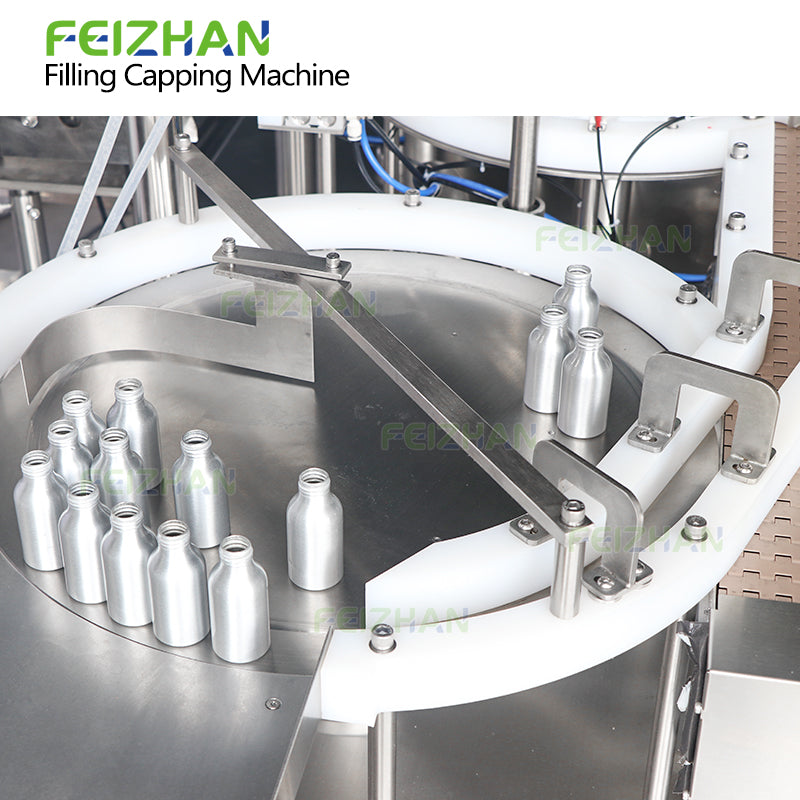

The rotary bottle sorting structure automatically arranges bottles in order before filling and capping. It improves workflow efficiency, saves working space, and ensures smooth bottle transfer for small food bottles.

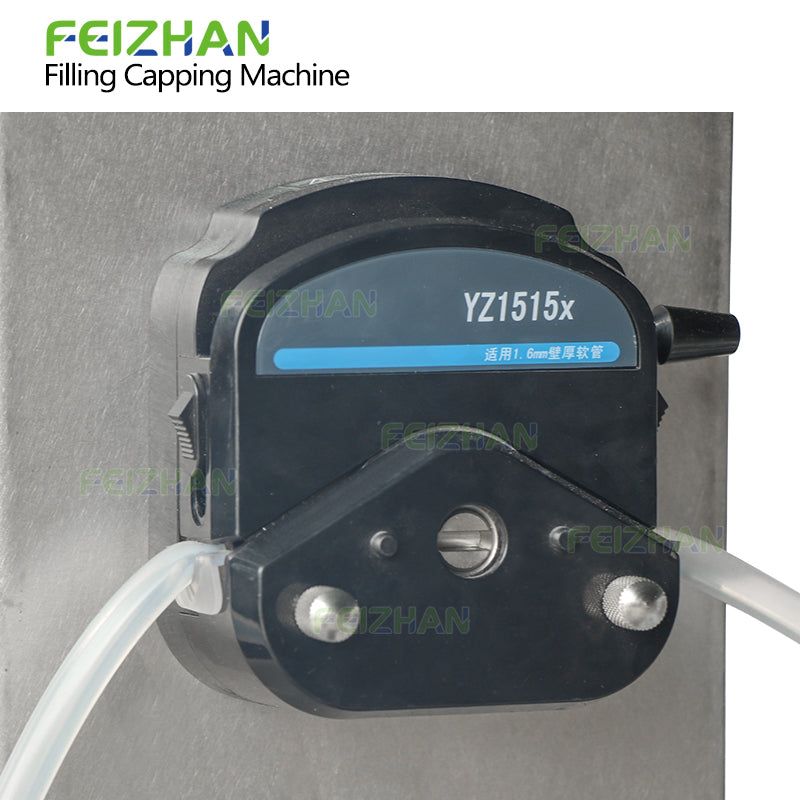

The peristaltic pump ensures that liquid only contacts the food-grade filling hose, effectively reducing contamination risks. It is ideal for filling honey, syrup, vinegar, edible oil, and other food-grade liquids requiring high hygiene standards.
The cam-driven system synchronizes filling, inner stopper insertion, and screw capping. All working stations operate simultaneously, delivering stable performance and high efficiency of 35–40 bottles per minute for food liquid packaging.

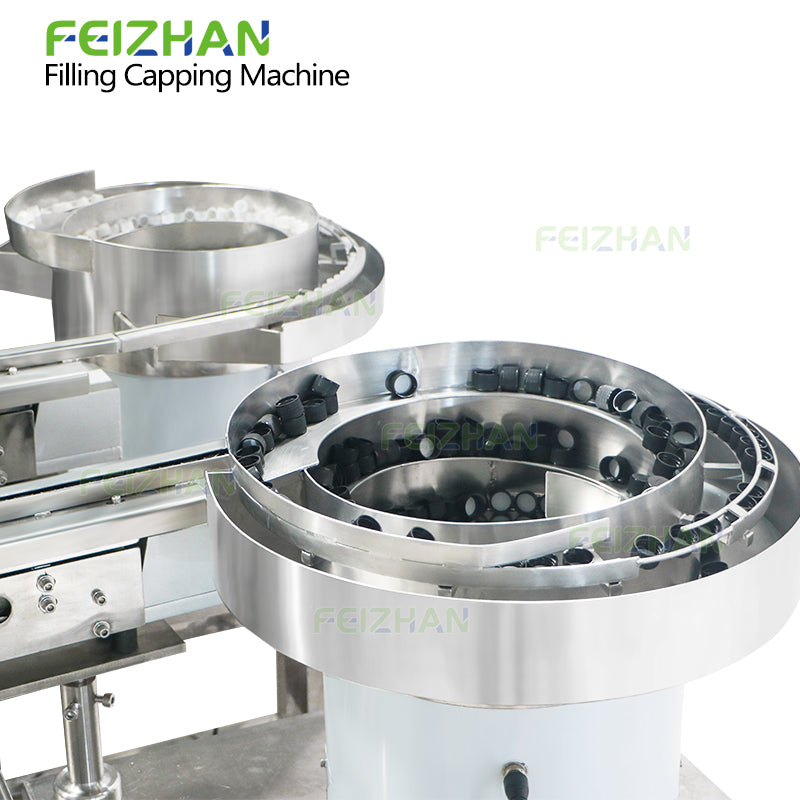

Dual vibratory bowl sorters automatically arrange inner stoppers and screw caps in correct orientation. This system ensures smooth feeding and reliable sealing performance for food bottle packaging. Bowl size and structure are customizable.
FAQ
Q1: What types of food products can this machine package?
This machine is suitable for food-grade liquids such as honey, syrup, vinegar, edible oil, liquid seasonings, and food concentrates packaged in small bottles with inner stoppers and screw caps.
Q2: Is the machine suitable for hygienic food packaging standards?
Yes. The machine is constructed with SUS304 and SUS316 stainless steel for product-contact parts, combined with a peristaltic pump design where liquid only contacts food-grade tubing, helping meet hygiene requirements for food liquid packaging.
Q3: Can the machine handle different bottle, stopper, and cap sizes?
Yes. Bottle size, inner stopper, and screw cap specifications are customizable. The SUS stainless steel structure ensures stable performance and easy cleaning when switching between different food products.
Q4: How does the machine prevent dripping and leakage after filling?
Precise filling control, inner stopper insertion, and secure screw capping work together to reduce dripping and leakage. The SUS304/316 stainless steel construction also supports reliable sealing and long-term use in food packaging environments.
FEIZHAN
Automatic Small Bottle Food Liquid Filling Capping Machine with Inner Stopper
$24,499.00
Estimated delivery between March 20 and March 22.
This monoblock liquid filling and capping machine is also suitable for food-grade liquid products such as syrup, vinegar, edible oil, and liquid seasonings. Equipped with a peristaltic pump, it ensures hygienic filling and precise dosing, while the inner stopper and screw cap system helps control dripping and improves user experience for high-value food products.
Liquid Filling Capping Machine Parameter
- Machine Model: FZ-AFC43
- Voltage: 110/220V 50-60 HZ 3 KW
- Filling Pump: Peristaltic Pump
- Working Capacity: 30-45 BPM(Based on filling range)
- Filling Accuracy: ±1 %
- Suitable Bottle Size: Customizable
- Suitable Cap Size: Customizable
- Main Machine Size: 2200*1630*1430 mm
- Size of Vibratory Bowl Sorter For Stopper: 605*455*1040 mm
- Size of Vibratory Bowl Sorter For Caps: 605*455*1070 mm
- Total Machine Weight: ≤ 600 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
PLC touch screen control panel allows intuitive operation and quick parameter adjustment. Filling volume, speed, and capping settings can be easily controlled to ensure stable and consistent filling performance for food-grade liquid products.
The rotary bottle sorting structure automatically arranges bottles in order before filling and capping. It improves workflow efficiency, saves working space, and ensures smooth bottle transfer for small food bottles.
The peristaltic pump ensures that liquid only contacts the food-grade filling hose, effectively reducing contamination risks. It is ideal for filling honey, syrup, vinegar, edible oil, and other food-grade liquids requiring high hygiene standards.
The cam-driven system synchronizes filling, inner stopper insertion, and screw capping. All working stations operate simultaneously, delivering stable performance and high efficiency of 35–40 bottles per minute for food liquid packaging.
Dual vibratory bowl sorters automatically arrange inner stoppers and screw caps in correct orientation. This system ensures smooth feeding and reliable sealing performance for food bottle packaging. Bowl size and structure are customizable.
FAQ
Q1: What types of food products can this machine package?
This machine is suitable for food-grade liquids such as honey, syrup, vinegar, edible oil, liquid seasonings, and food concentrates packaged in small bottles with inner stoppers and screw caps.
Q2: Is the machine suitable for hygienic food packaging standards?
Yes. The machine is constructed with SUS304 and SUS316 stainless steel for product-contact parts, combined with a peristaltic pump design where liquid only contacts food-grade tubing, helping meet hygiene requirements for food liquid packaging.
Q3: Can the machine handle different bottle, stopper, and cap sizes?
Yes. Bottle size, inner stopper, and screw cap specifications are customizable. The SUS stainless steel structure ensures stable performance and easy cleaning when switching between different food products.
Q4: How does the machine prevent dripping and leakage after filling?
Precise filling control, inner stopper insertion, and secure screw capping work together to reduce dripping and leakage. The SUS304/316 stainless steel construction also supports reliable sealing and long-term use in food packaging environments.
